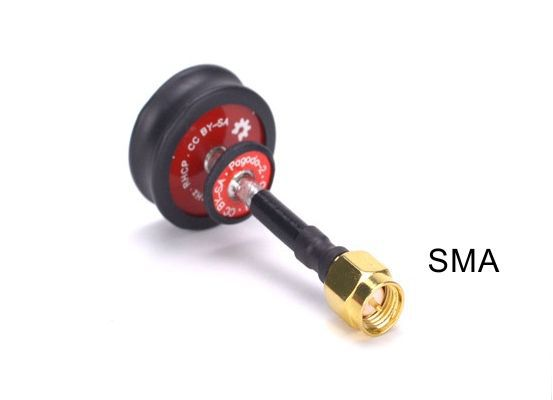

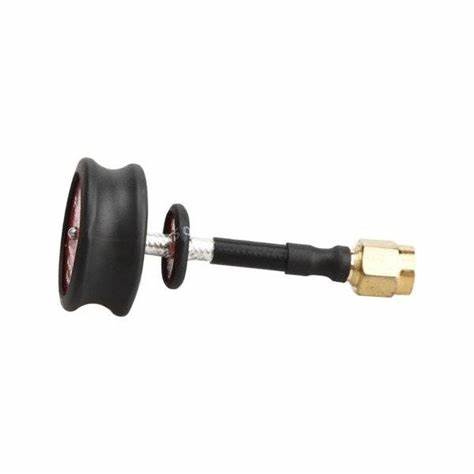

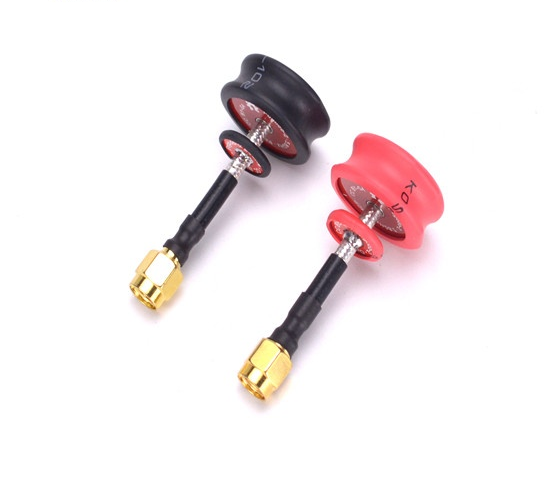

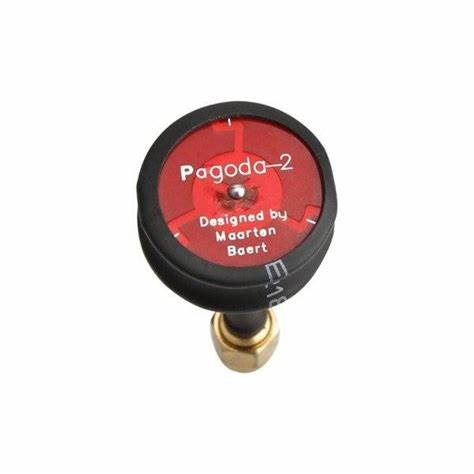

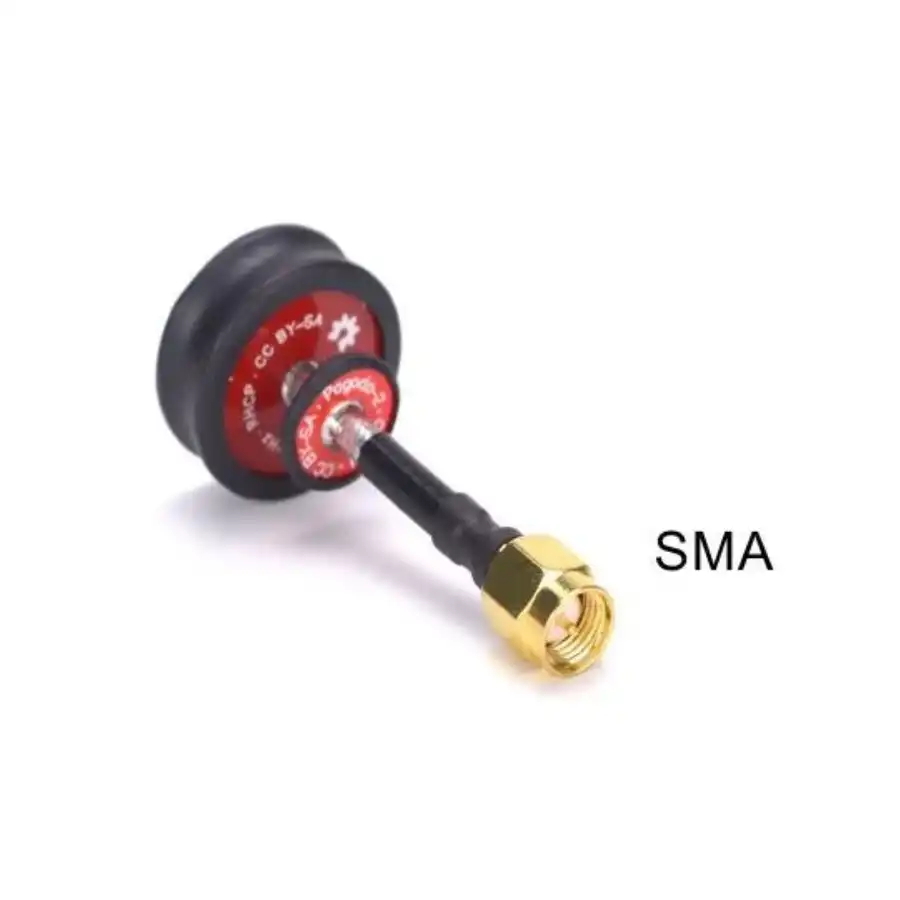

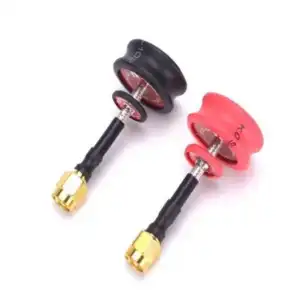

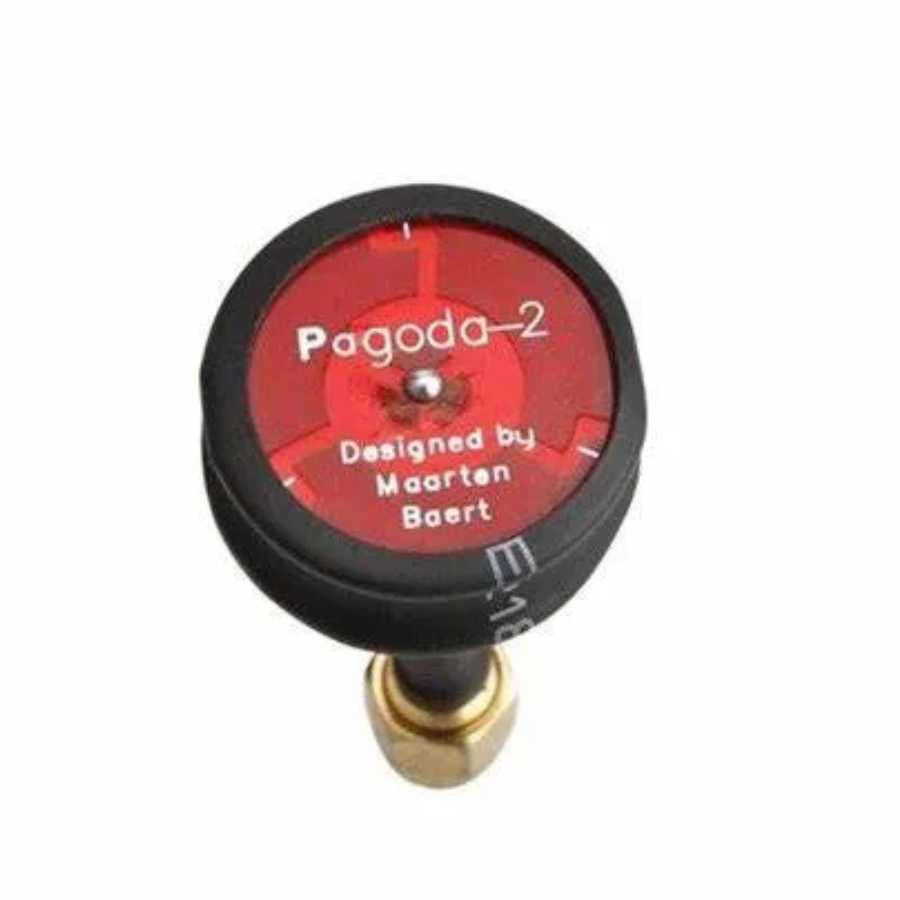

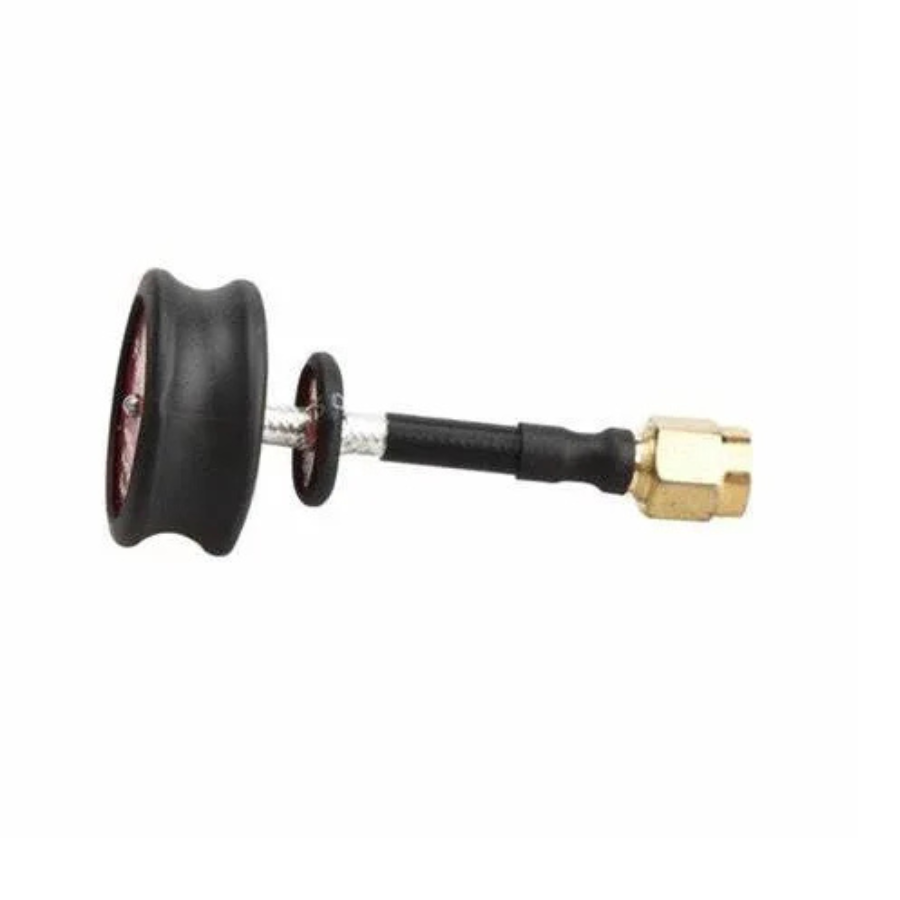

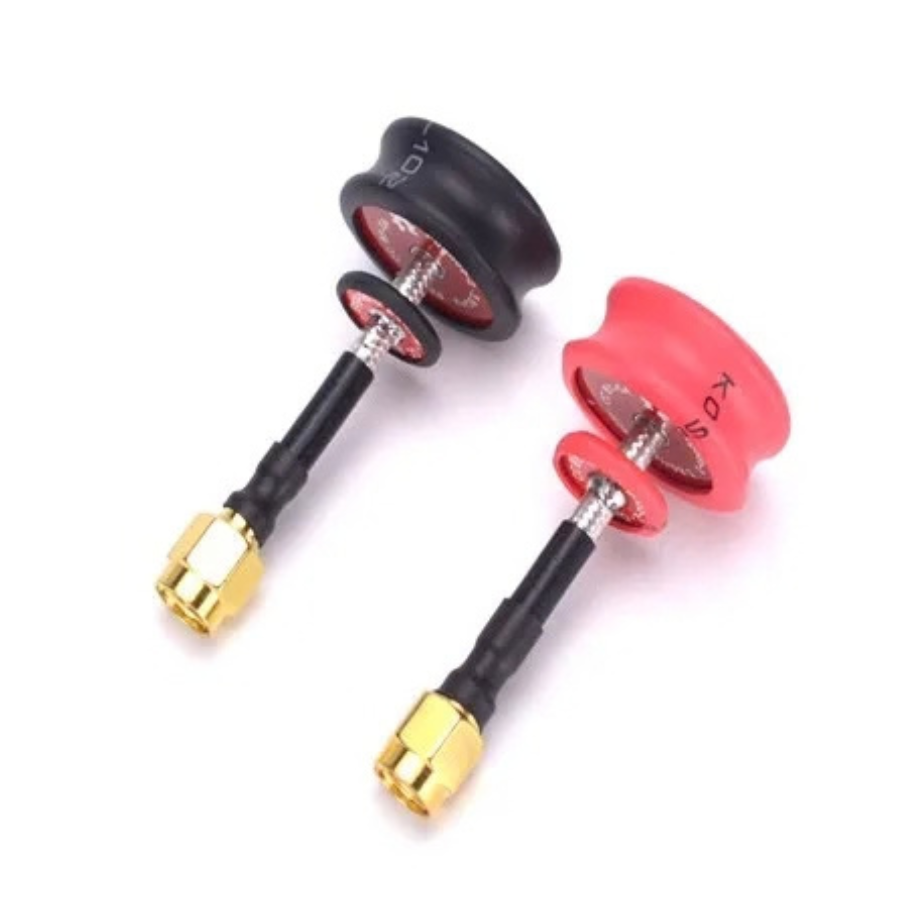

Pagoda SMA Antenna (short)
The Pagoda SMA antenna is a compact and high-performance antenna designed for RF applications, particularly in the 5.8 GHz frequency band commonly used in FPV (First Person View) systems, drones, and radio-controlled (RC) vehicles. It features a sturdy SMA connector, offering reliable connectivity to RF devices. The Pagoda design is known for its circular polarization, which helps mitigate multipath interference and improves signal reception. This antenna’s compact size and omnidirectional radiation pattern make it a popular choice for hobbyists and professionals seeking reliable and efficient RF performance in various environments.
Pagoda SMA Antenna Overview
The Pagoda SMA Antenna (short) is a compact circular-polarized antenna designed specifically for 5.8 GHz FPV video systems. Its omnidirectional pattern and high radiation efficiency deliver stable signal reception for drones, RC vehicles, and FPV goggles.
Key Features of Pagoda SMA Antenna
- Compact design reduces weight, ideal for tight drone frames
- 5.8 GHz center frequency with 500 MHz bandwidth (5.55–6.05 GHz) for versatile channel support
- S11 < –20 dB and VSWR < 1.22 at center frequency for minimal signal reflection
- Axial ratio < 1.3 and omnidirectional radiation pattern to combat multipath interference
- 95% radiation efficiency ensures clear, stable video transmission
- Secure SMA male connector; genuine product with fast shipping from Zbotic
Applications and Use Cases
- FPV racing drones requiring durable, low-profile antennas
- Long-range video transmitters on RC airplanes and helicopters
- Ground-station antennas for FPV goggles and receivers
- Indoor drone inspections in multipath-prone environments
- DIY FPV builds and custom camera mounts
How to Use Pagoda SMA Antenna
Remove the protective cap and screw the SMA male connector directly onto your 5.8 GHz video transmitter’s SMA female port. Position the antenna vertically, clear of metal obstructions, and hand-tighten until snug. Power on your FPV system and verify signal strength on your monitor or goggles.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use the Pagoda SMA Antenna with any 5.8 GHz VTX?
Yes, the SMA male connector is compatible with most 5.8 GHz video transmitters equipped with an SMA female port.
Will the short version affect range compared to the original Pagoda?
The compact design maintains the same bandwidth and 95% efficiency as the standard model, delivering similar range while saving weight and space.
How do I maintain optimal circular polarization?
Mount the antenna upright and away from metal surfaces. Ensure it remains perpendicular to the ground to preserve the intended circular polarization pattern.
Technical Specifications
| SKU | AI4571 |
|---|---|
| Weight | 0.0117 kg |
| Availability | Out of Stock |
