24 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board

PRODUCT DESCRIPTION

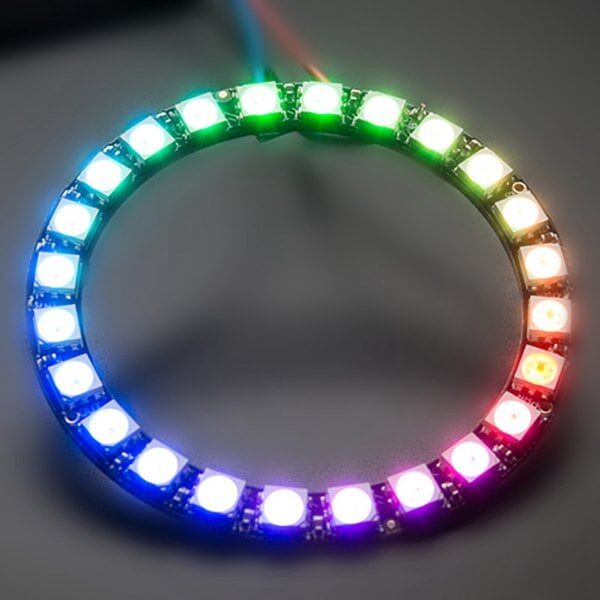

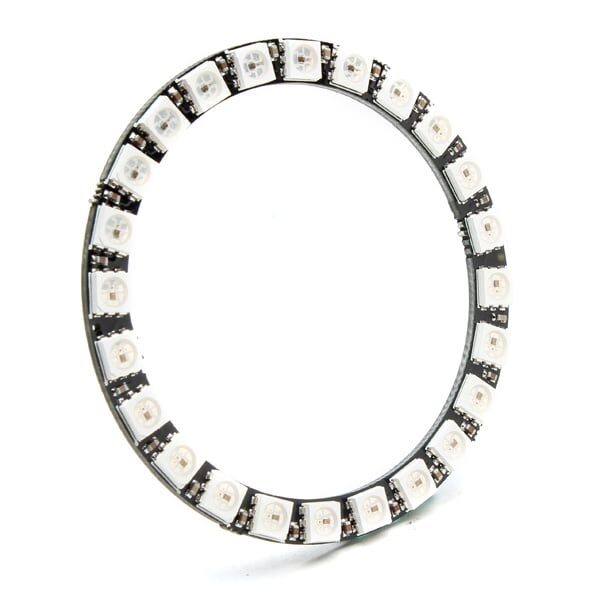

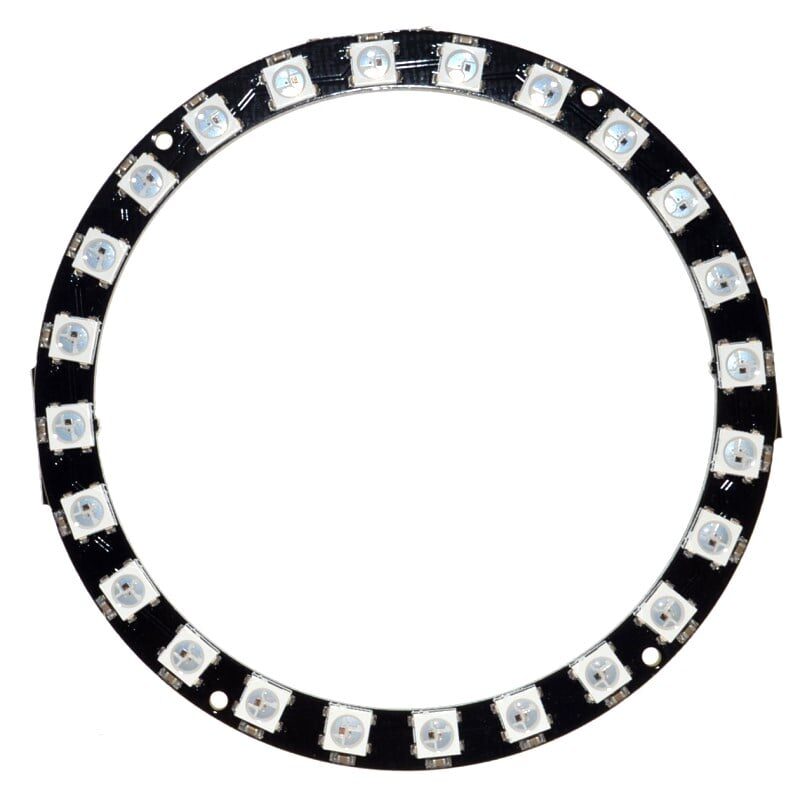

The 24-bit WS2812 5050 RGB LED Circular Development Board features a sleek, round black design and is equipped with 24 ultra-bright NeoPixels LEDs arranged in a circle on an 86mm diameter PCB.

These RGB ring lights can be easily connected by cascading the output pin of one to the input pin of the next (DI-DO), allowing you to control multiple LED rings with a single chip. Each LED is smart and addressable thanks to its integrated driver chip.

With a constant current drive of 18mA per LED, the color remains consistent and uniform even with voltage variations, eliminating the need for external current-limiting resistors. This results in a slim and simple design, making the RGB ring both easy to use and aesthetically appealing. The ring operates on a 5V power supply.

Characteristic :

Single wire communication, to maximize the reduction of I/O port pressure, and the use of the RGB WS2812B driver chip, so that the peripheral circuit requires only a single capacitor can meet the needs of the circuit, give people the enjoyment of beauty, in addition, this RGB ring, but also through a simple Dout input port, and the other using the same chip RGB lamp cascade, without need considering the shape of the limit.

Features :

1. The control circuit and the LED share the only power source.
2. Control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel point.
3. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
4. Built-in electric reset circuit and power lost reset circuit.
5. Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
6. Cascading port transmission signal by a single line.
7. Any two points the distance more than 5m transmission signal without any increase circuit.
8. When the refresh rate is 30fps, cascade number is not less than 1024 points.
9. Send data at speeds of 800Kbps.
10. The color of the light was highly consistent
11. Full-color module, Full-color soft lights a lamp strip.
12. LED decorative lighting, Indoor/outdoor LED video irregular screen.

Package Includes :

1 x 24 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board.
