Are you considering a brushless gimbal for your multi-rotor to unleash your inner cinematographer? Don’t fall for overpriced, sub-par kits. Instead, check out the value of these ready-to-go Quantum brushless gimbal motors.

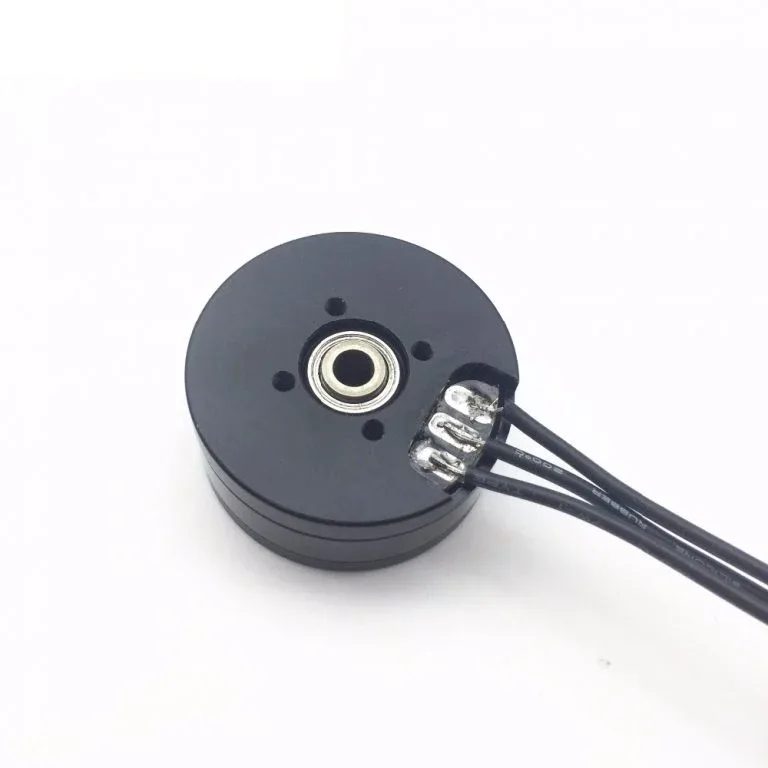

The 2204 260KV Brushless Gimbal Motor is pre-wound for optimal torque and smoothness, available in two sizes for the most common camera classes.

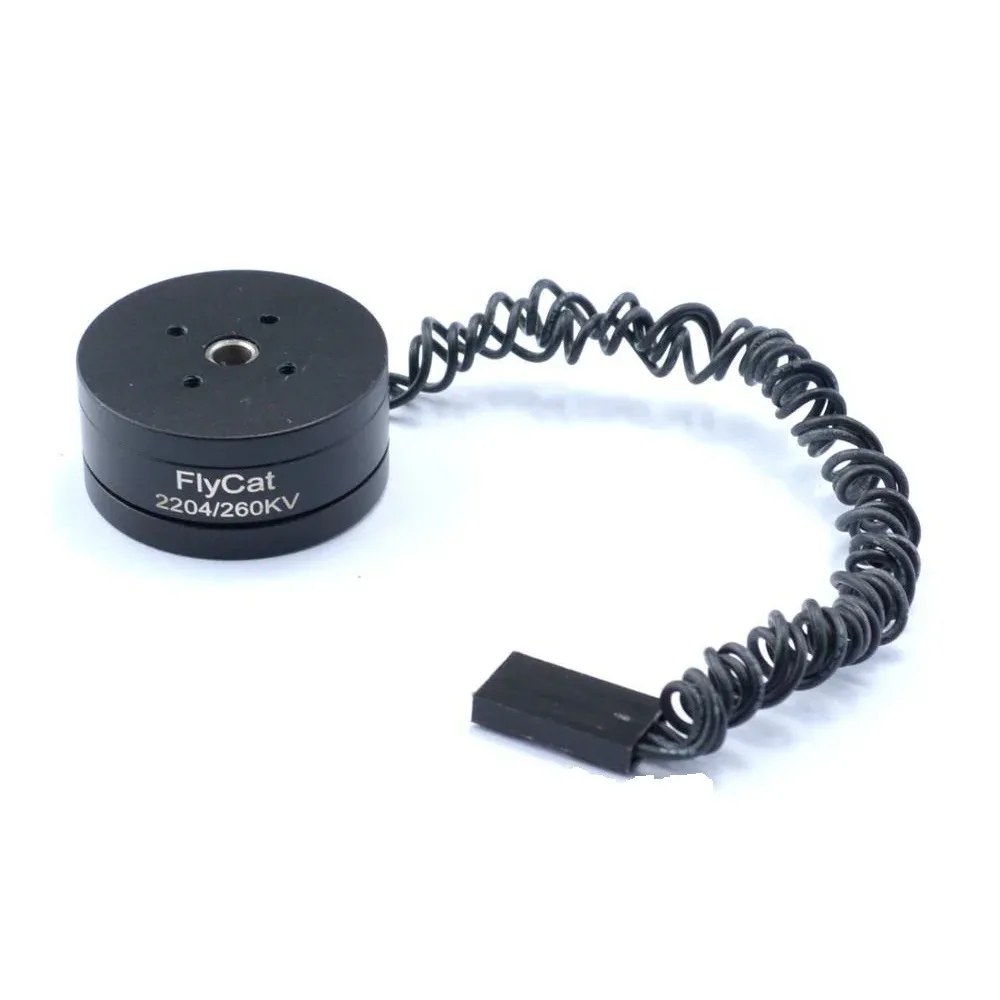

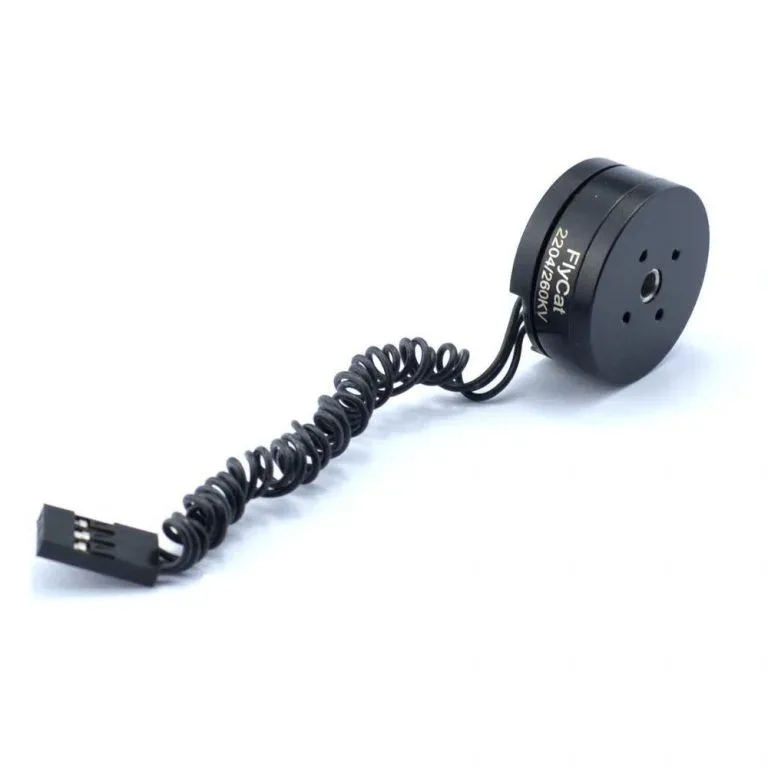

This motor features a servo-style connector for easy integration with a gimbal controller. Designed to endure significant drag, it includes a flexible cable for efficient balancing. The wire and connector assembly is a Plug-N-Play system.
Build your gimbal right the first time with this high power-to-weight ratio Brushless 2204 260KV Gimbal Motor and elevate your setup with Quantum Quality.
The 2204 260KV Gimbal Brushless Motor is ideal for GoPro class cameras (100-200g). It boasts superb fit and finish, a lean profile for easy integration, and preloaded bearings for precision mounting.
| Model | 2204 |
|---|---|
| Operating Voltage (VDC) | 12~24 |
| Max. Operating Current (mA) | 600 |
| Motor KV (RPM/V) | 260 |
| Rotation Direction | Both |
| Load Capacity(gm) | 100 ~ 200 |
| Connector Type | Servo(Futaba/JR) |
| Cable Length (cm) | 30 |
| Length (mm) | 28 |
| Width (mm) | 28 |
| Height (mm) | 13 |
| Weight (gm) | 26 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 3.5 × 3.5 × 2 cm |
Package includes:
1 x 2204 260KV Gimbal Brushless Motor
