This is the 5mm variant of the 2 X 3 18650 Battery Holder with 18.5MM, Bore Diameter in Battery Holders, Battery Pack Accessories & Holders. Available at ₹11.92 (₹10.10 + GST) with free shipping across India.
PRODUCT DESCRIPTION

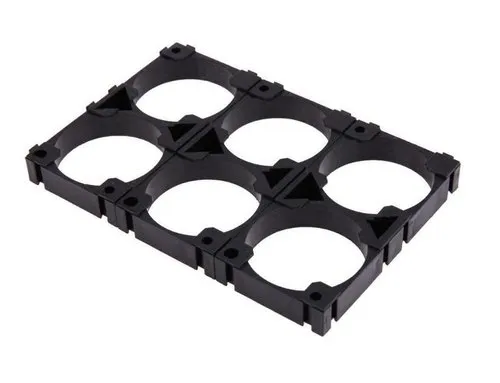

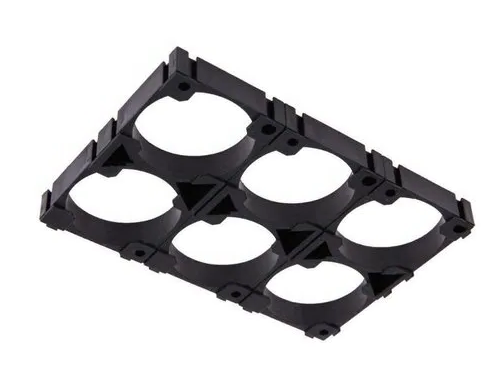

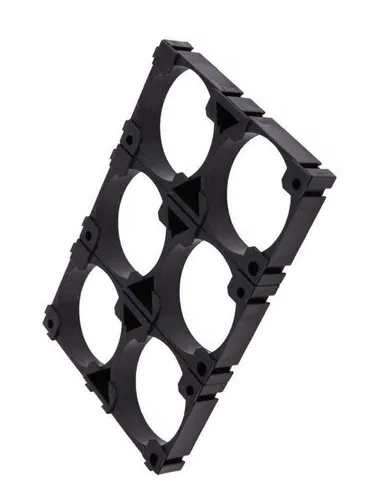

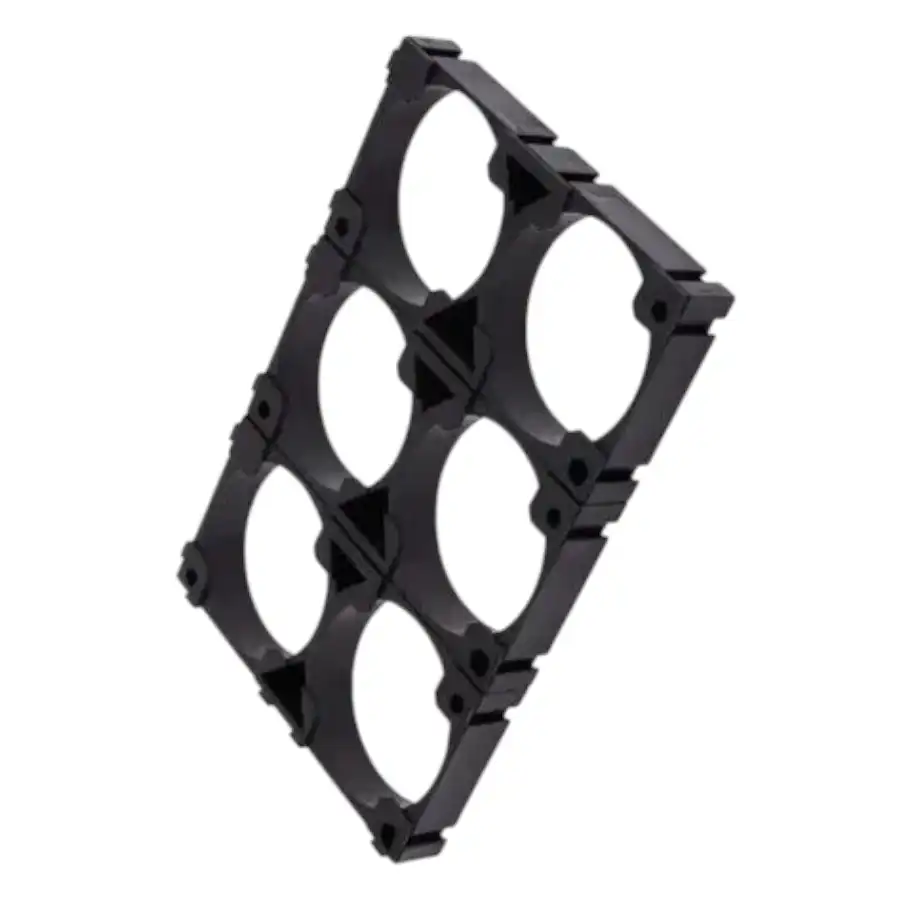

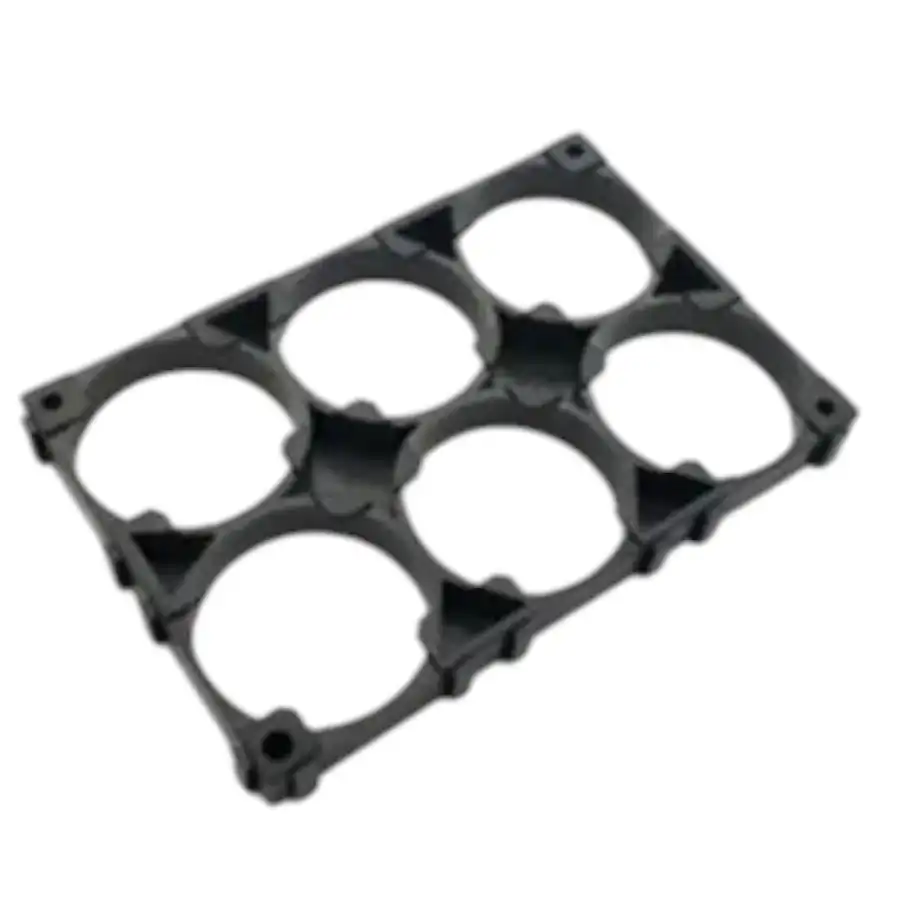

18650 3×2 Battery Cell Spacer/Holder is a cylindrical battery spacer, made of flame retardant ABS PC materials, with high-temperature resistance and crack resistance.
There are slots on the edge of the holder, can be combined into many different sizes and shapes of the battery pack; after welding nickel tabs, the pack can pass the vibration test without any other connecting device. Make your battery pack Solid and Reliable!
This Battery Holder is compatible with our 18650 Li-ION Batteries which you need to buy separately.
Note!! Every Single battery cell needs 2 Spacer for one up and one down buy it accordingly.
Features:
- There are slots on the edge of the holder to combine them into many different sizes and shapes of the battery pack.
- Application: Design for Radiating Complex Battery Packs. Safe and Stable, Perfect Build for eBike!
Advantages:
- Very simple to operation
- Very flexible, it is easy to assemble any type of battery packs
- Radiating during high rate discharge.
- Makes your battery pack Solid and Reliable!
Specification:
| Compatible Battery Size | 18650 |
|---|---|
| Material | ABS |
| Bore Diameter [B] (mm) | 18.5mm |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 10 × 9 × 1 cm |
Package Includes:
1 x 18650 3×3 Battery Cell Holder
2 X 3 18650 Battery Holder with 18.5MM, Bore Diameter Overview
This 2×3 18650 battery holder is a modular spacer designed to house six standard 18650 cells in a compact 2-by-3 arrangement. Made from flame-retardant ABS/PC with 18.5 mm bore diameter, it streamlines the build of radiating battery packs for eBikes and other high-power applications.
Key Features of 2 X 3 18650 Battery Holder with 18.5MM, Bore Diameter
- Flame-retardant ABS/PC material offers high-temperature resistance and crack prevention
- Precision 18.5 mm bore diameter secures each 18650 cell snugly
- Edge slots enable modular combination into various pack sizes and shapes
- Dual-spacer design (one top, one bottom per cell) ensures consistent alignment
- Vibration-resistant: welded nickel-tab packs pass vibration tests without extra fixtures
- Fast shipping from Zbotic—in stock and dispatched within 24 hours
Applications and Use Cases
- Custom eBike battery pack assembly with optimal heat dissipation
- DIY portable power banks and emergency backup packs
- Modular solar energy storage arrays for off-grid systems
- Battery modules for robotics projects and electric scooters
- High-capacity flashlight and lantern battery clusters
How to Use 2 X 3 18650 Battery Holder with 18.5MM, Bore Diameter
Place each 18650 cell into the holder’s 18.5 mm bores using two spacers per cell (one at the top, one at the bottom). Align cells, insert nickel strips across terminals, and spot-weld to form a solid 2×3 pack. Snap additional holders together via the edge slots to expand capacity or reshape your battery configuration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many spacers are required for a single 2×3 battery pack?
You need 12 spacers in total—two per cell (one at the positive end and one at the negative end) to fully secure all six cells.
Can multiple holders be linked for larger battery arrays?
Yes, the integrated edge slots allow you to snap holders together horizontally or vertically, creating custom configurations for higher voltage or capacity.
Will these holders fit protected 18650 cells?
Absolutely. As long as the cell diameter does not exceed 18.5 mm, both protected and unprotected 18650 cells will fit securely in the bores.
