2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch

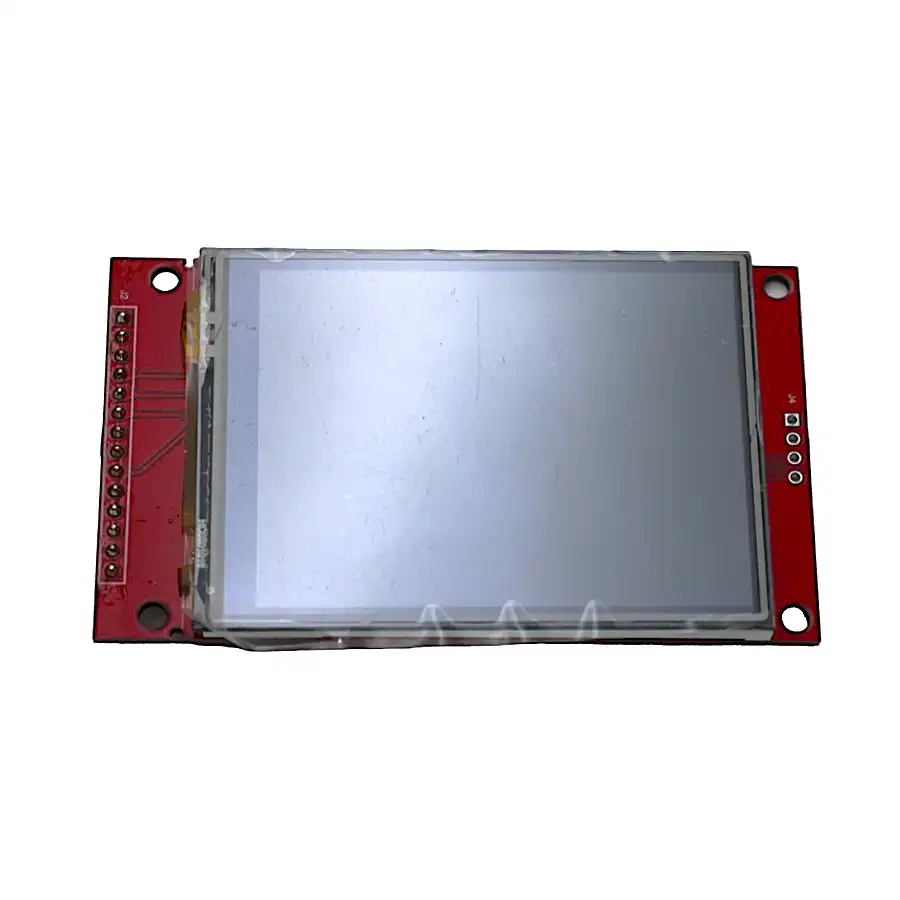

This is a big (2.8″ diagonal), bright and colorful TFT display! It has 240×320 pixels, each with individual RGB control, giving it much higher resolution than a black and white 128×64 display.
You can use the display in two modes: 8-bit or SPI. For 8-bit mode, you need 8 digital data lines and 4 or 5 digital control lines to communicate with the display (12 lines in total). SPI mode only needs 5 pins (SPI data in, data out, clock, select, and d/c), but it is slower than 8-bit mode. Moreover, you need 4 more pins for the Non-Touchscreen (2 digital, 2 analog).

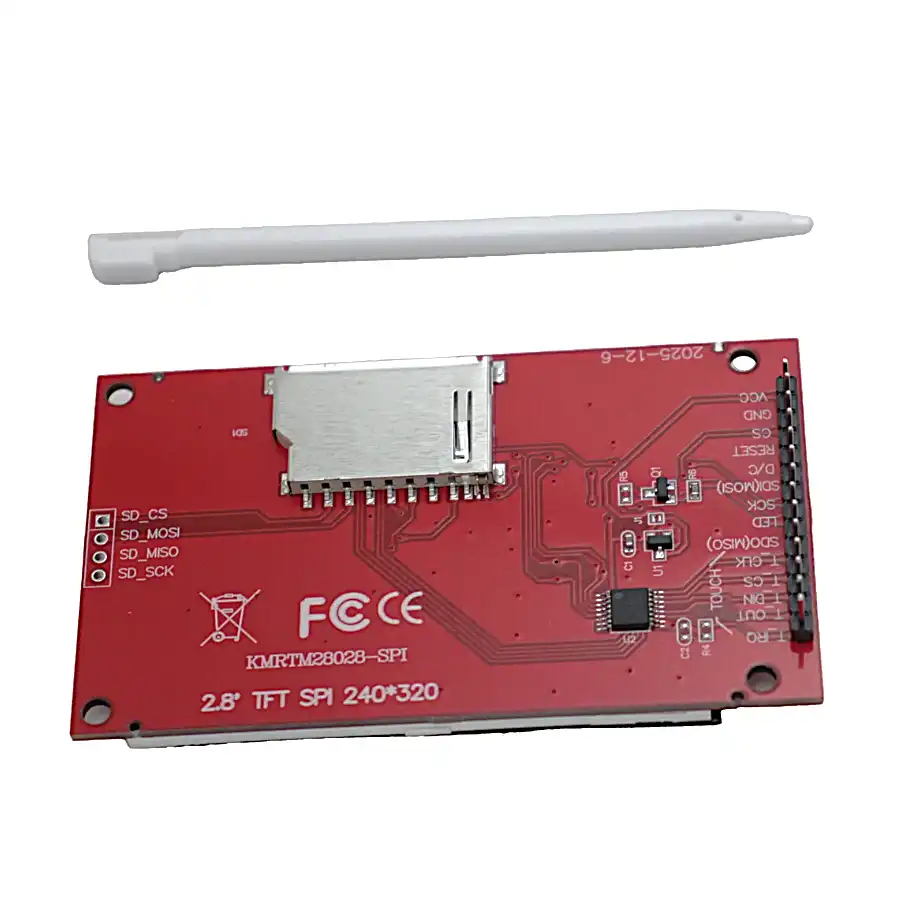

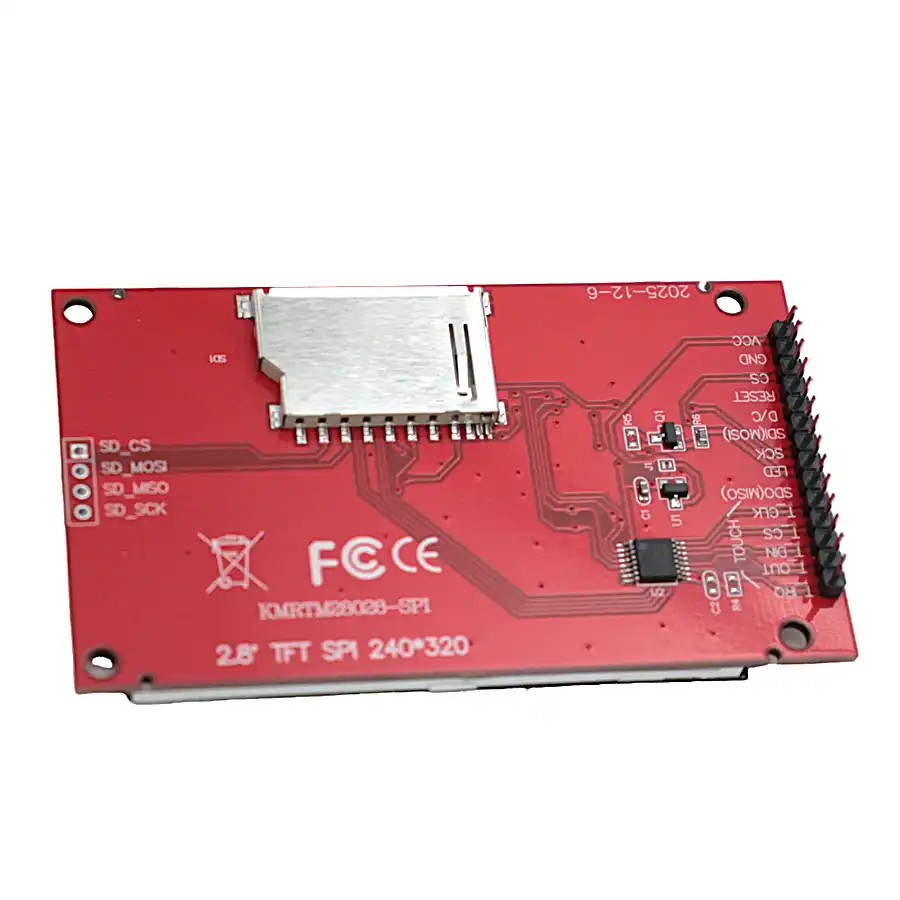

We have designed an easy-to-use breakout board for this 2.8 inch SPI Non-Touch Screen Module. It has SPI connections on one end and 8-bit on the other. Both are compatible with 3-5V logic levels and have high-speed level shifters, so you can use them with any microcontroller. If you choose SPI mode, you can also use the onboard MicroSD card socket to display images.
Features :
- It shows the color depth of 262K/65K.
- Need at least 4 IOs from your MCU
- The display has a wide viewing angle.
- Big display with good resolution.
Specification:
| Touch Screen | No |
|---|---|
| Input Voltage (V) | 3.3 to 5 |
| Pixel Resolution | 240 x 320 |
| PCB Size (mm) | 85×48 (LxW) |
| Display Size | 2.8″ |
| Weight | 31 |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package Includes:
1 x 2.8-inch SPI Non-Touch Screen Module TFT Interface 240 x 320
Arduino I2C Scanner: Find and Debug I2C Devices
Table of Contents What Is I2C and How Does It Work? The Arduino I2C Scanner Sketch Common I2C...
Read More →
Arduino Voltage Regulator Projects: LM7805 and LM317 Guide
Power supply design is one of the most overlooked yet most critical aspects of any Arduino project. Connecting...
Read More →
Arduino PWM Tutorial: Analogwrite, Frequency & Duty Cycle
Pulse Width Modulation (PWM) is one of the most powerful techniques in the Arduino programmer's toolbox. Whether you...
Read More →Technical Specifications
| Display Size | 2.8" |
|---|---|
| Interface / Protocol | SPI |
| Resolution | 240x320 |
| Package Quantity | 320 pcs |
| SKU | AI2771 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The 2.8 inch SPI Screen Module TFT Interface 240 x 320 without Touch is a versatile display for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
