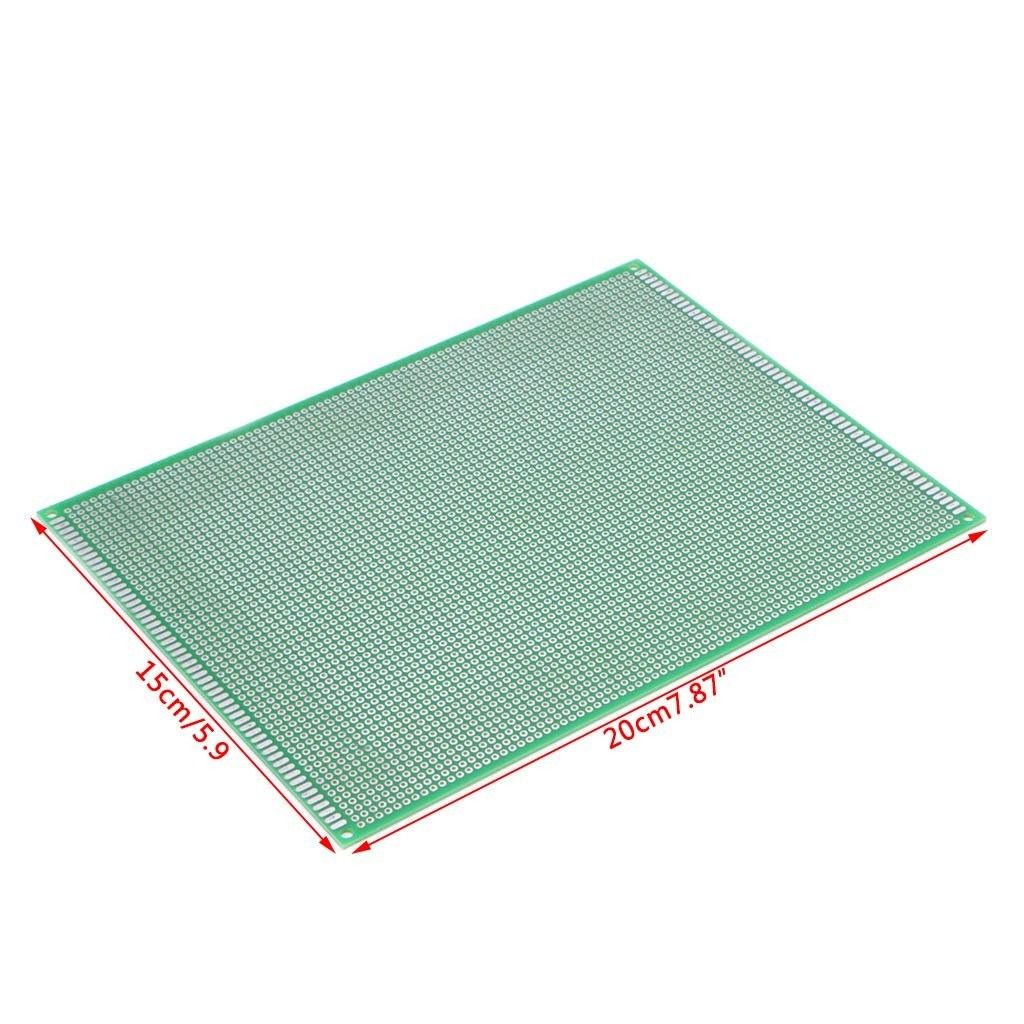

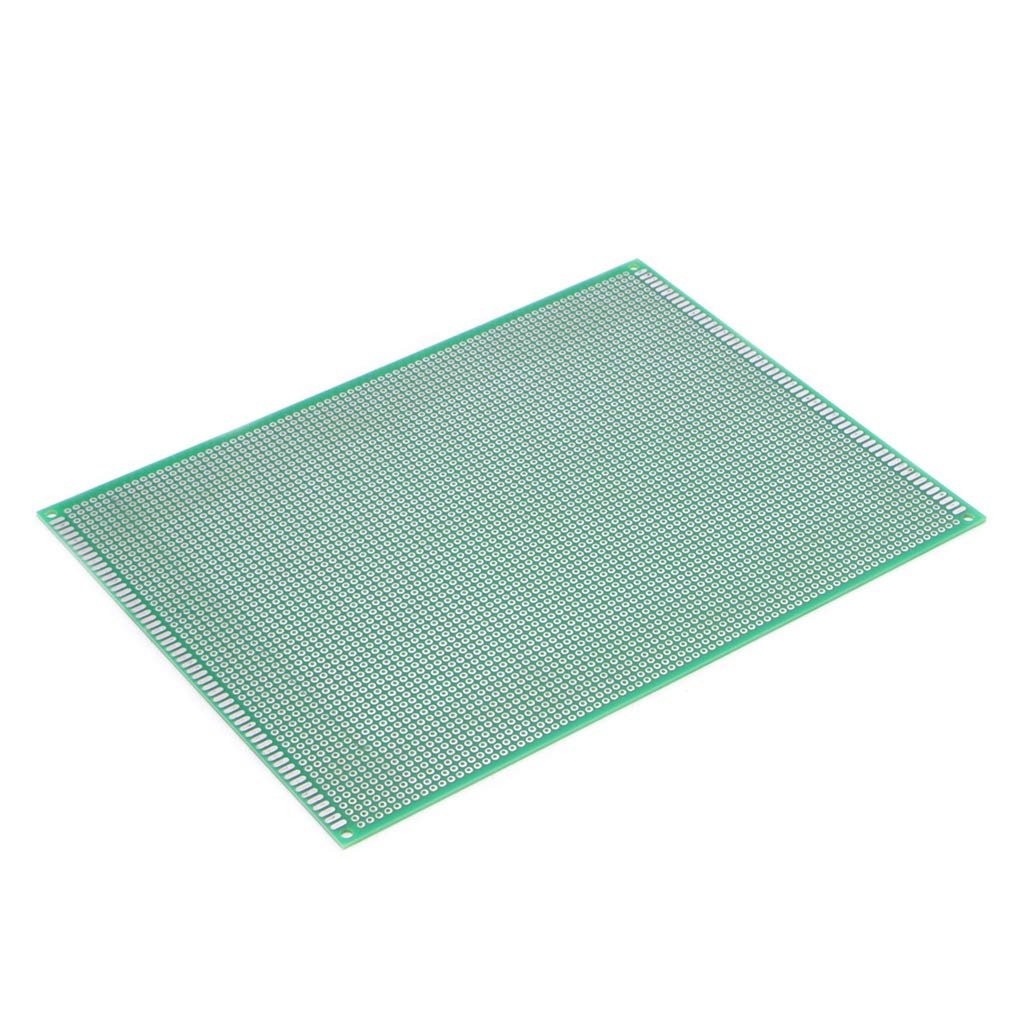

This is a 15 x 20 cm Universal PCB Prototype Board, featuring a double-sided design and high-quality construction. It is made from durable FR4 material with standard 0.1″ spacing between through holes. The board is finished with HASL (Hot Air Solder Leveling) and precision CNC drilling, ensuring reliability and ease of use for your prototyping needs.
Note: Product Image may vary from actual product
Specification
| Base Material | FR4 |
|---|---|
| Copper Thickness (mm) | 1-4 oz |
| Length (mm): | 20 |
| Width (mm): | 15 |
| Board Thickness | 1.6 |
| Min. Hole Size (mm) | 0.3 |
Package Includes :
1 x 15*20 Universal PCB Prototype Board Double-Sided
15 x 20 cm Universal PCB Prototype Board Double-Side Overview
The 15 x 20 cm Universal PCB Prototype Board Double-Side is a versatile FR4 substrate designed for building and testing electronic circuits. Its double-sided copper surfaces and precision CNC-drilled holes make it ideal for through-hole prototyping, modifications, and small production runs.
Key Features of 15 x 20 cm Universal PCB Prototype Board Double-Side
- Size: 150 mm x 200 mm, providing ample area for complex circuit layouts.
- Double-sided copper: 1–4 oz copper thickness offers reliable conductivity on both sides.

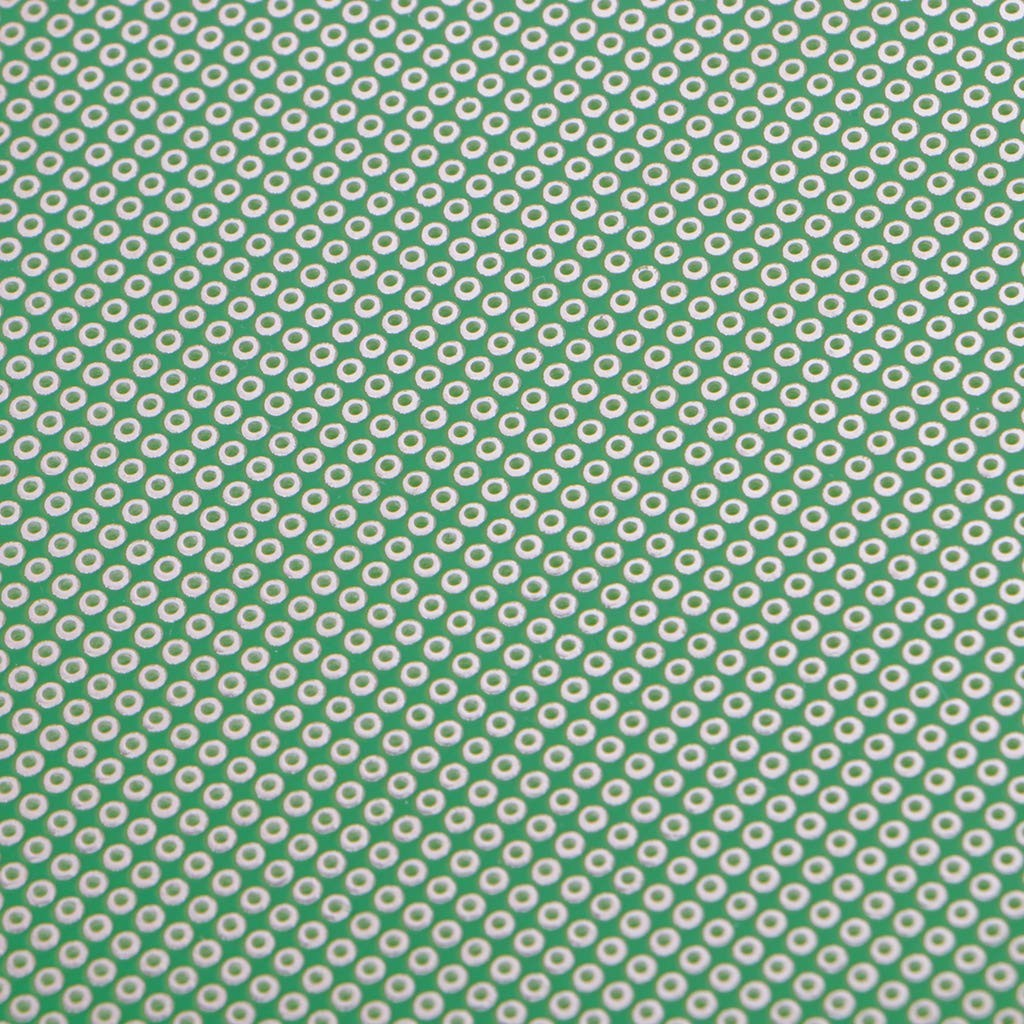

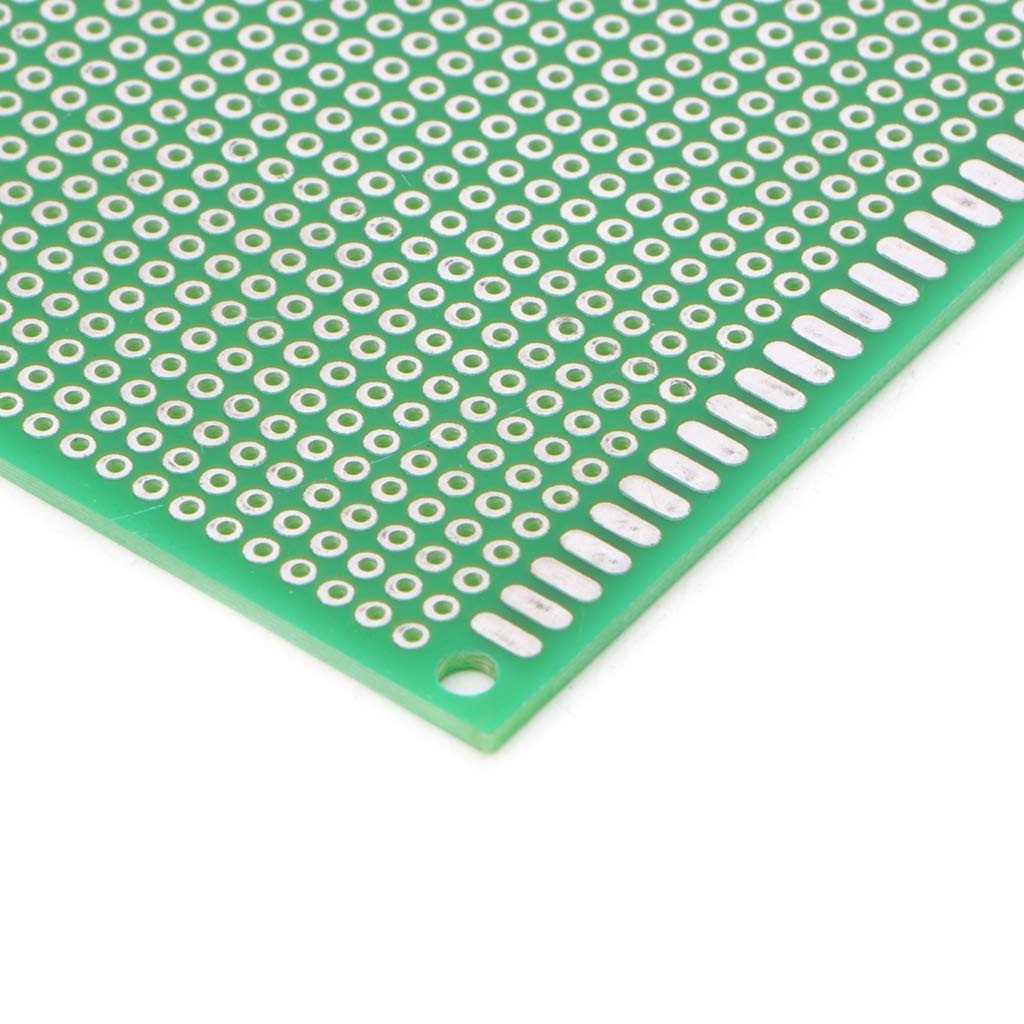

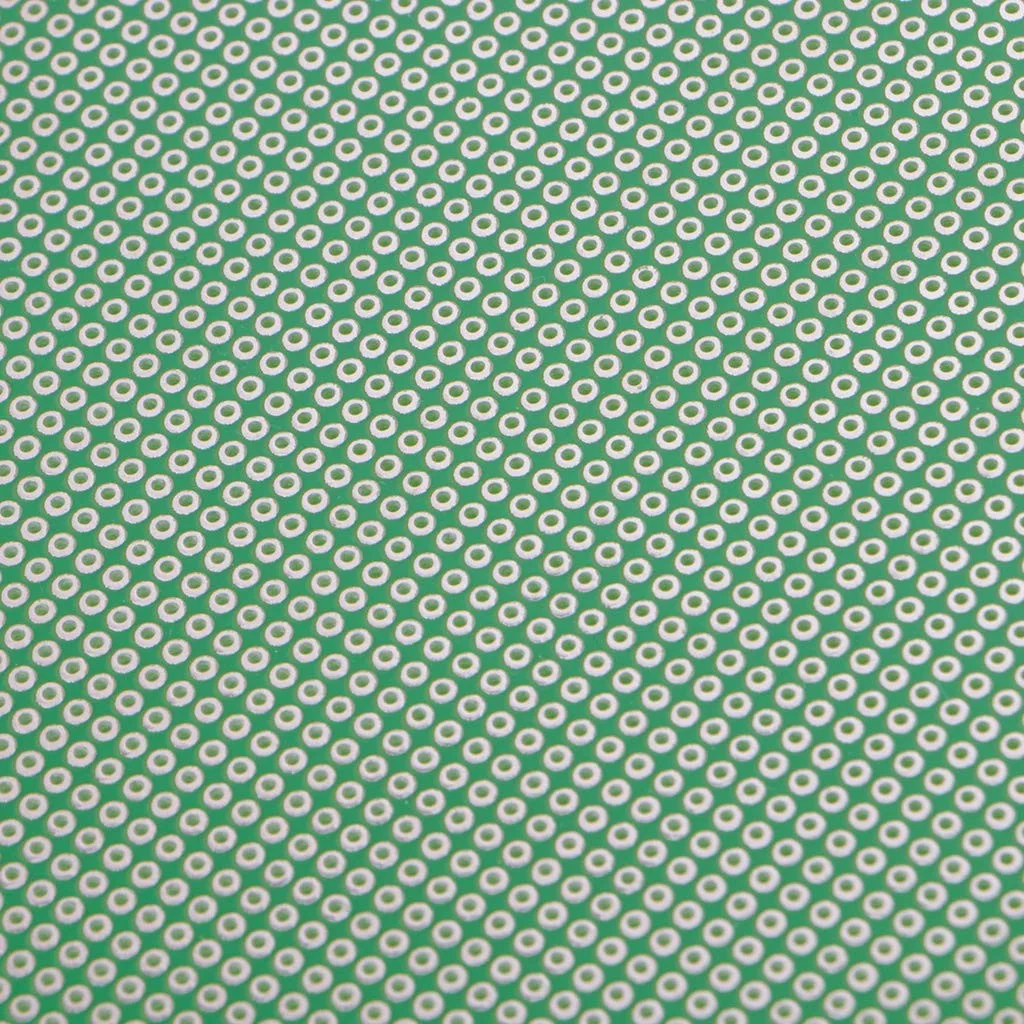

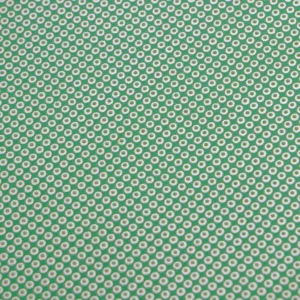

- Standard 2.54 mm (0.1″) hole pitch with 0.3 mm minimum hole diameter for through-hole components.
- HASL finish and precision CNC drilling ensure consistent solderability and hole alignment.
- 1.6 mm board thickness on durable FR4 material for rigidity and heat resistance.
- Green solder mask for clear visibility of traces and easier component placement.
- Fast shipping from Zbotic with genuine quality and proper packaging to prevent damage.
Applications and Use Cases
- Building custom Arduino shields or Raspberry Pi add-on boards with 0.1″ headers.
- Prototyping power supply modules and voltage regulation circuits.
- Creating LED driver boards for lighting projects and displays.
- Developing sensor interface panels for robotics and automation experiments.
- Testing discrete component layouts before moving to custom PCB fabrication.
- Assembling small audio amplifier or signal processing circuits.
How to Use 15 x 20 cm Universal PCB Prototype Board Double-Side
Begin by marking component positions on the green solder mask, then drill any additional holes if needed. Insert through-hole parts through the 2.54 mm grid and solder on either side using the HASL finish for smooth wetting. For double-side connections, use plated through-holes or wire links to complete the circuit, then trim edges to fit your enclosure.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the hole spacing and diameter on this prototype board?
The board features a standard 2.54 mm (0.1″) hole pitch with a minimum drilled hole size of 0.3 mm, accommodating most through-hole headers and component leads.
How sturdy is the FR4 material under soldering temperatures?
With a 1.6 mm thickness and high-quality FR4 substrate, this board resists warping and delamination during soldering, ensuring reliable connections on both sides.
Can I cut this PCB to fit custom enclosure dimensions?
Yes, you can trim the board using a fine-tooth saw or PCB cutter. After cutting, file the edges smooth to prevent rough edges or delamination.
Multimeter Guide: Voltage, Current and Resistance Measurement for Beginners
Multimeter Guide: Voltage, Current and Resistance Measurement for Beginners A multimeter guide covering voltage, current and resistance measurement...
Read More →
Wire Gauge Chart AWG to mm²: Indian Standard Comparison Guide
Wire Gauge Chart AWG to mm²: Indian Standard Comparison Guide Understanding wire gauge AWG to mm² conversion is...
Read More →
SEPIC Converter Explained: Flexible Input-Output Topology
SEPIC Converter Explained: Flexible Input-Output Topology When engineers need a DC-DC converter that can step voltage up or...
Read More →Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| Package Quantity | 20 pcs |
| SKU | AI6286 |
| Weight | 0.13 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 15 x 20 cm Universal PCB Prototype Board Double-Side is a versatile breadboard and zero pcbs used across a wide range of applications including circuit prototyping, electronics learning, temporary circuit testing, proof-of-concept builds, and lab experiments.
Common use cases:
- Building and testing circuits without soldering
- Learning electronics fundamentals
- Rapid prototyping of sensor circuits
This product is ideal for students, educators, and electronics hobbyists.
Technical Tip: Standard breadboards accept 22AWG solid-core wire. Ensure components are firmly seated. Use jumper wires for connections between rows.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
Ishan Batra (verified owner) –
Superb 15 x 20 cm Universal PCB! Essential for any electronics workbench. Good size variety.
Sanya Shah (verified owner) –
Good 15 x 20 cm Universal PCB. Works well for prototyping. Some holes could be cleaner.
Chitra Trivedi (verified owner) –
Perfect 15 x 20 cm Universal PCB for breadboarding. Spring contacts grip component leads firmly.
Akash Dave (verified owner) –
Excellent 15 x 20 cm Universal PCB! Perfect for prototyping. Holes are clean and spacing is accurate.
Naman Shetty –
Superb 15 x 20 cm Universal PCB! Essential for any electronics workbench. Good size variety.
Meera Verma –
Average 15 x 20 cm Universal PCB. Functional but some traces are thin. Handle with care.
Sonali Bisht (verified owner) –
Outstanding quality! This 15 x 20 cm Universal PCB is my go-to for all prototyping work.
Siddharth Garg (verified owner) –
Love this 15 x 20 cm Universal PCB. My prototype circuits look professional on this board.
Manish Patel (verified owner) –
Great 15 x 20 cm Universal PCB. Using it for all my circuit prototypes. Copper traces are clean.
Chetan Das (verified owner) –
Nice 15 x 20 cm Universal PCB. Standard quality for the price. Gets the job done.
