This is the Blue variant of the XF-25 Ultra Mini Breadboard Blue-(Pack of 2) in Breadboard and Zero PCBs. Available at ₹23.72 (₹20.10 + GST) with free shipping across India.

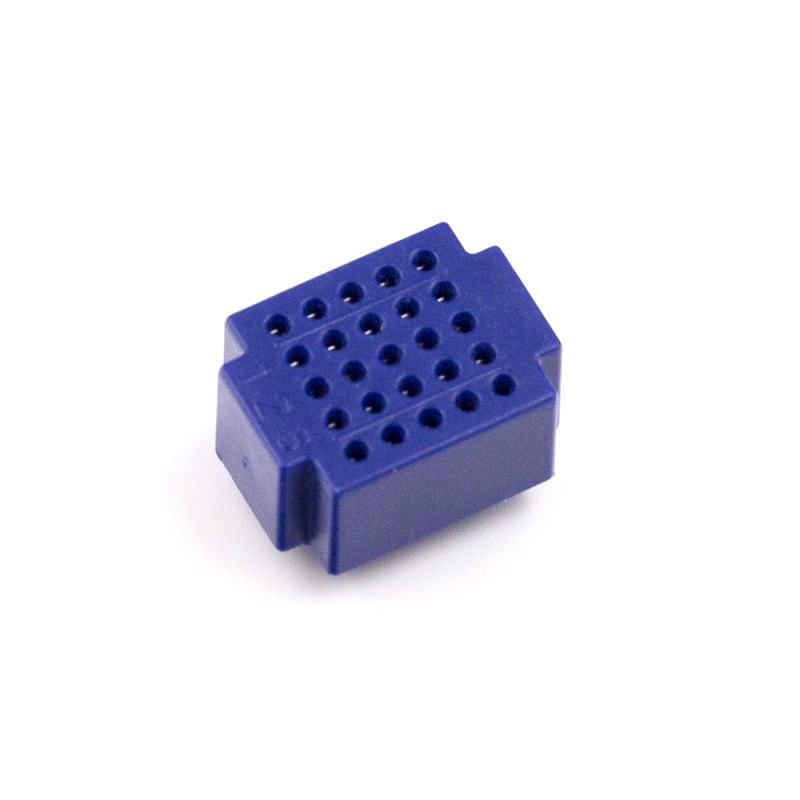

XF-25 Ultra Mini Breadboard
This is the XF-25 Ultra Mini Multi-color Block Building Breadboard. It has many advantages over the conventional breadboards. It is more material-efficient and eco-friendly with its small size. You can assemble the breadboards according to the circuit board size you need for your experiment. It works the same way as the old breadboard.
The Block Building Breadboard is 1.5x2cm in size. It requires the Base Plate For Block Building Breadboard to use.

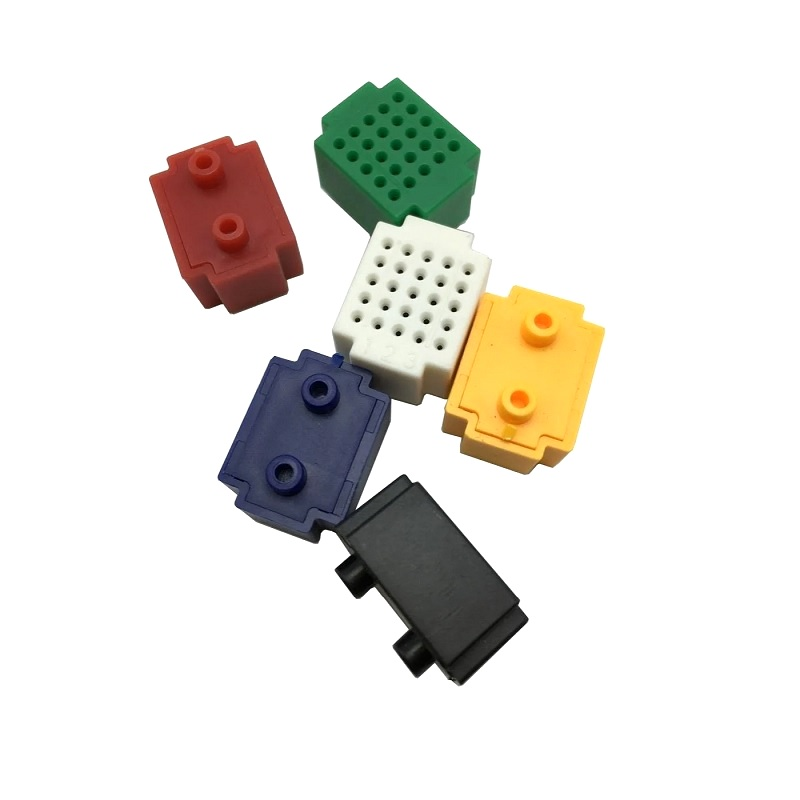

Each small piece of breadboard block has 25 tie points (5 x 5) and 2 small patch-holes on the back. The patch-holes are for attaching the Block Building Breadboard to the Base Plate For Block Building Breadboard. The base plate can fit up to 36 small building blocks (6 x 6) side by side.

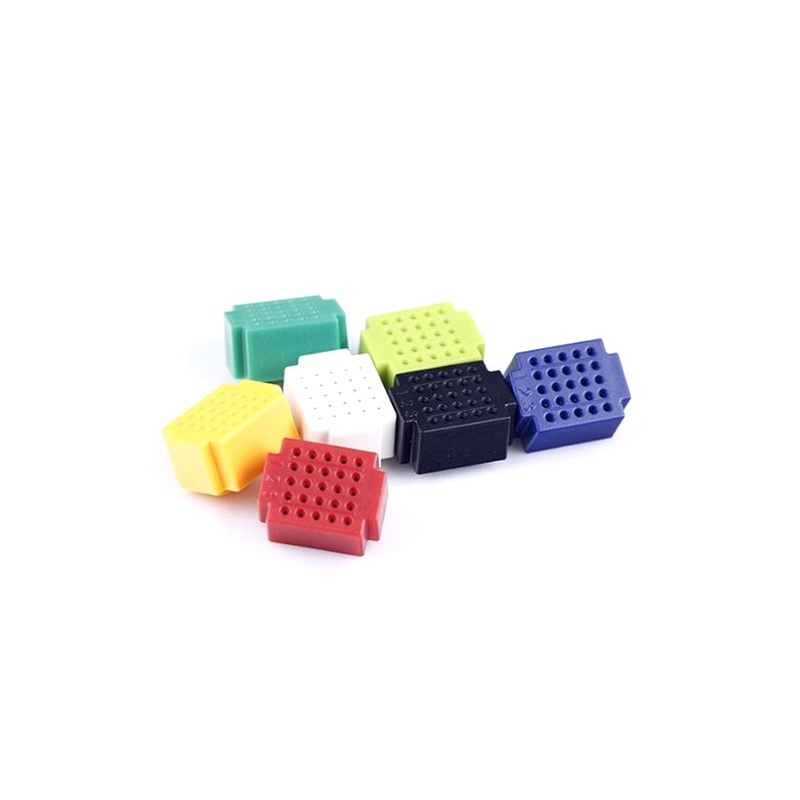

You can use different colors of the Block Building Breadboards on one Base Plate For Block Building Breadboard. Then you can place different components on these breadboards. This will make your experiment teaching very clear.
Explore the Category for Different colour varient and complete combo kit with base plate
Features:
- 1 Terminal Strip, Tie-point 25
- ABS plastic Material and Good Contact points
- Completely Reusable Flexible Structure
- Accepts a variety of wire sizes (29-20 AWG)
- 32 modular mini breadboard are pluggable in one piece of plate
- Accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components
- Make the model as you wish with the colourful breadboards.
- ZY-25 has many types of colour, in the experiment, you can put the capacitor in the green breadboard, put the resistor in the red breadboard, and so one, by doing this, it will make the education clearly do electronic experiments.
- Compared with the ordinary breadboard, ZY-25 looks more mini. But please don’t look at its small body, which has many advantages. First, ZY-25 saves a lot material, environment protecting. Second, you can choose the quantity of breadboard according to the need in the experiment you do
Specification:
| Black Dimension (L x W x H) mm | 20 x 15 x 12 |
|---|---|
| Colour | Blue |
| Tie Points | 25pt. on each Block |
| Material | ABS Plastic |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
Package Includes:

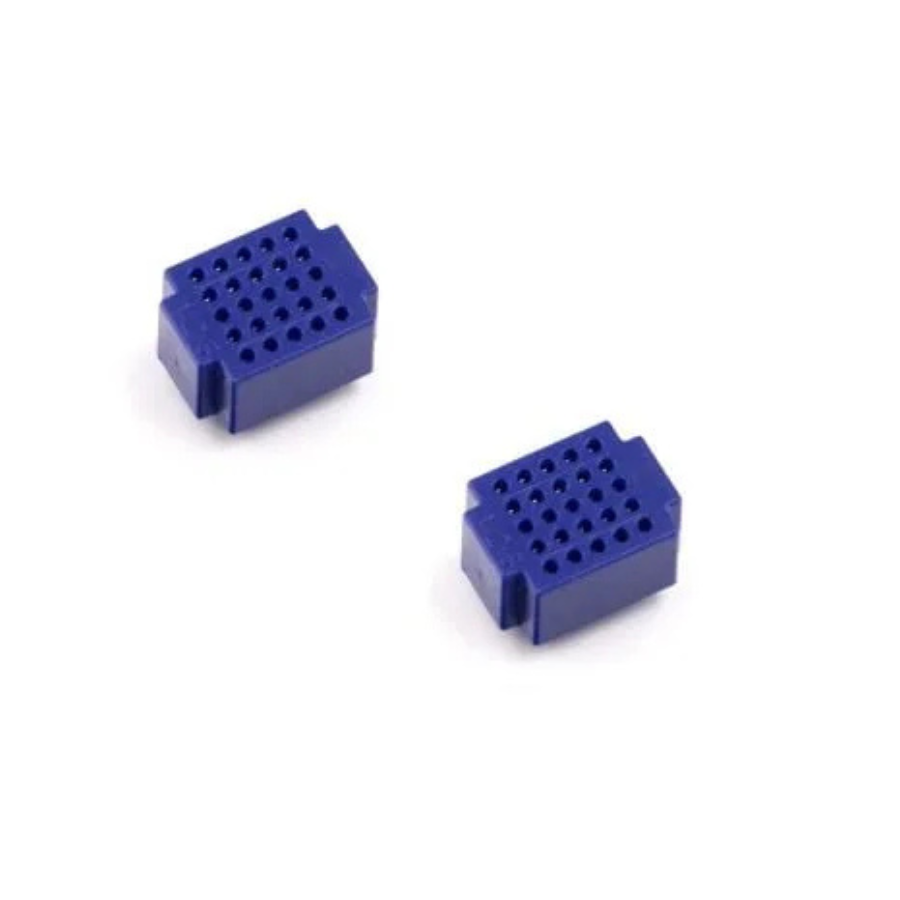

1 x XF-25 Ultra Mini Breadboard Blue- 2PCS
XF-25 Ultra Mini Breadboard Blue- Overview
The XF-25 Ultra Mini Breadboard Blue is a compact, modular prototyping board measuring just 1.5 × 2 cm per block. Each block provides 25 tie-points for quick circuit experiments and nests onto a dedicated base plate, making it ideal for custom-sized breadboard assemblies.
Key Features of XF-25 Ultra Mini Breadboard Blue-
- Pack of 2 individual blue breadboard blocks, each with 25 tie-points (5 × 5 grid)
- Durable ABS plastic construction with reliable metal contacts
- Reusable, flexible structure for assembling custom breadboard layouts
- Two patch-holes on back for secure attachment to Base Plate For Block Building Breadboard
- Accepts wire sizes from 29 to 20 AWG for a variety of prototyping needs
- Fast shipping from Zbotic—order ships within 24 hours
Applications and Use Cases
- Rapid prototyping of small LED, resistor, and jumper-wire circuits
- Building compact sensor or module test platforms for Arduino/Raspberry Pi
- Educational electronics labs and classroom demonstrations
- Custom-sized breadboard formations for wearable or space-constrained projects
- Field repairs and on-site circuit testing—no soldering required
How to Use XF-25 Ultra Mini Breadboard Blue-
Peel and align the back patch-holes of each XF-25 block onto the Base Plate For Block Building Breadboard, then press firmly to secure. Insert component leads or jumper wires into the 25 tie-points, arranging multiple blocks side by side to expand your prototyping area as needed. Once your circuit is complete, simply detach blocks for reuse in future projects.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: Do I need any additional parts to start using the XF-25 blocks?
A: Yes, the XF-25 blocks require the Base Plate For Block Building Breadboard to mount multiple blocks securely. The base plate holds up to 36 blocks in a 6 × 6 arrangement.
Q: Can I reuse these blocks after disassembling a circuit?
A: Absolutely. The ABS plastic blocks and their metal contacts are designed for repeated insertion and removal of wires without degradation.
Q: What wire gauges are compatible with the XF-25 breadboard?
A: Each tie-point accepts standard jumper wires and component leads from 29 AWG up to 20 AWG, covering most prototyping needs.
CMOS vs TTL Logic: Speed, Power and Voltage Comparison
CMOS vs TTL Logic: Speed, Power and Voltage Comparison When designing any digital circuit, one of the first...
Read More →
How to Read Resistor Color Code: Step-by-Step Tutorial
You picked up a small cylindrical component from your parts box and you are not sure what value...
Read More →
DIY Acrylic Robot Manipulator Mechanical Arm
DIY Acrylic Robot Manipulator Mechanical Arm Introduction: Robotics and automation are becoming essential in industries, education, and research....
Read More →Technical Specifications
| Model | XF-25 |
|---|---|
| Package Quantity | 2 pcs |
| Color | Blue |
| SKU | AI2665 |
| Weight | 0.0026 kg |
| Availability | In Stock |
Applications & Use Cases
The XF-25 Ultra Mini Breadboard Blue-(Pack of 2) is a versatile breadboard and zero pcbs used across a wide range of applications including circuit prototyping, electronics learning, temporary circuit testing, proof-of-concept builds, and lab experiments.
Common use cases:
- Building and testing circuits without soldering
- Learning electronics fundamentals
- Rapid prototyping of sensor circuits
This product is ideal for students, educators, and electronics hobbyists.
Technical Tip: Standard breadboards accept 22AWG solid-core wire. Ensure components are firmly seated. Use jumper wires for connections between rows.
