Product Description
This is XF-25 Ultra Mini Multi-color Block Building Breadboard. It is a small and eco-friendly alternative to the conventional breadboards. It allows you to assemble the breadboards according to the circuit size you need for your experiment. It works the same way as the old breadboard.

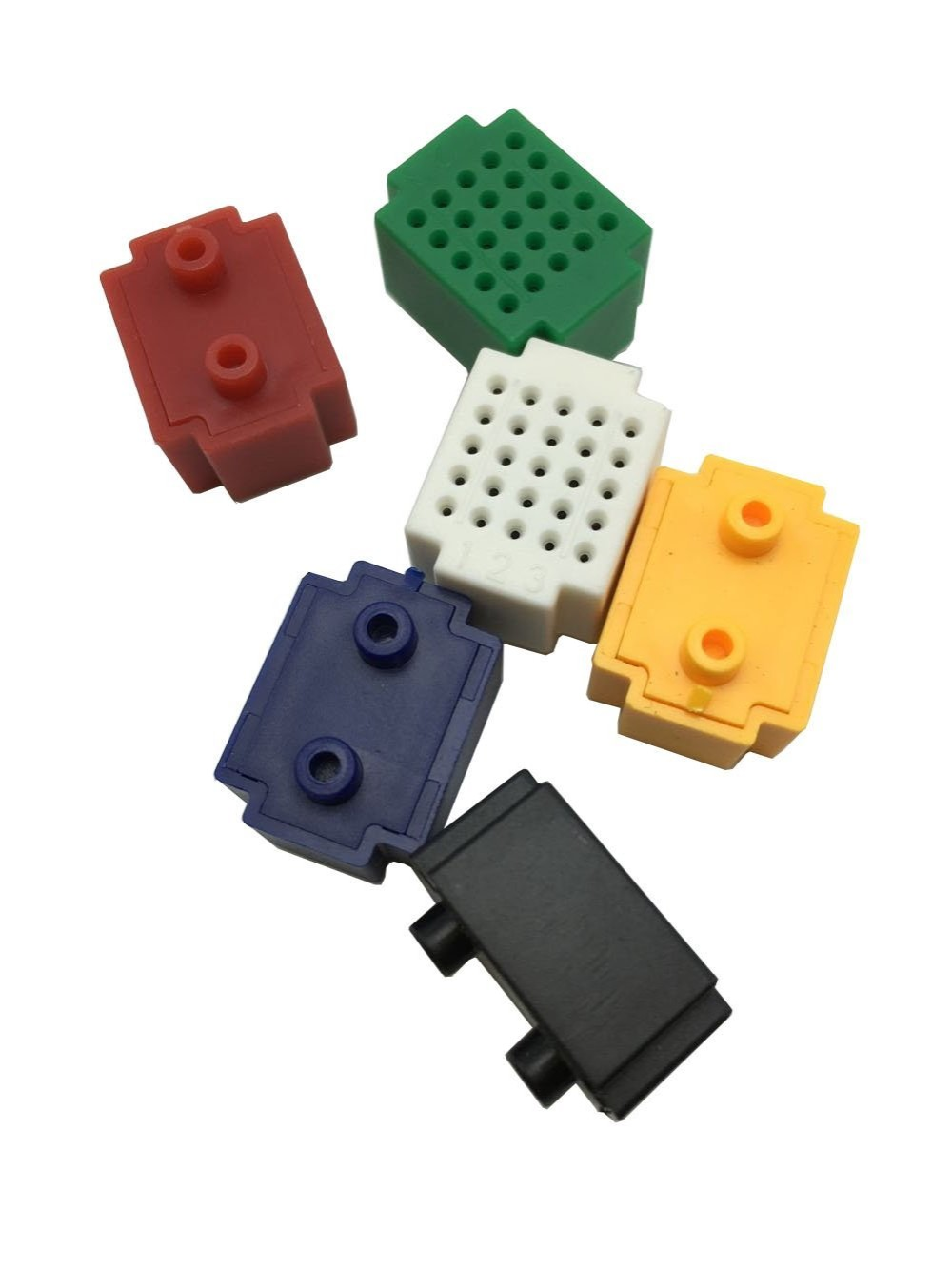

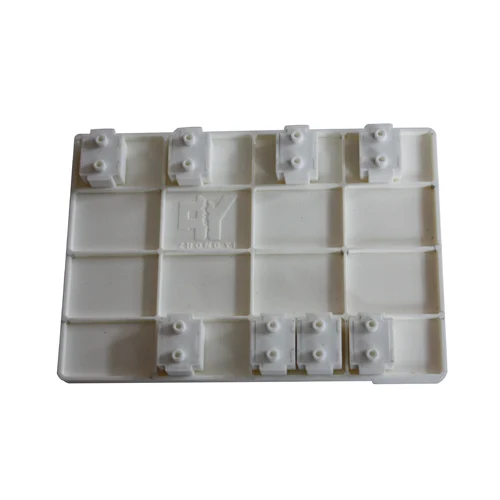

The Block Building Breadboard is 1.5x2cm in size. It can be attached to the Base Plate For Block Building Breadboard with two small patch-holes on the back. Each breadboard block has 25 tie points (5 x 5) for connecting components. The base plate can fit up to 36 breadboard blocks (6 x 6) if placed side by side.

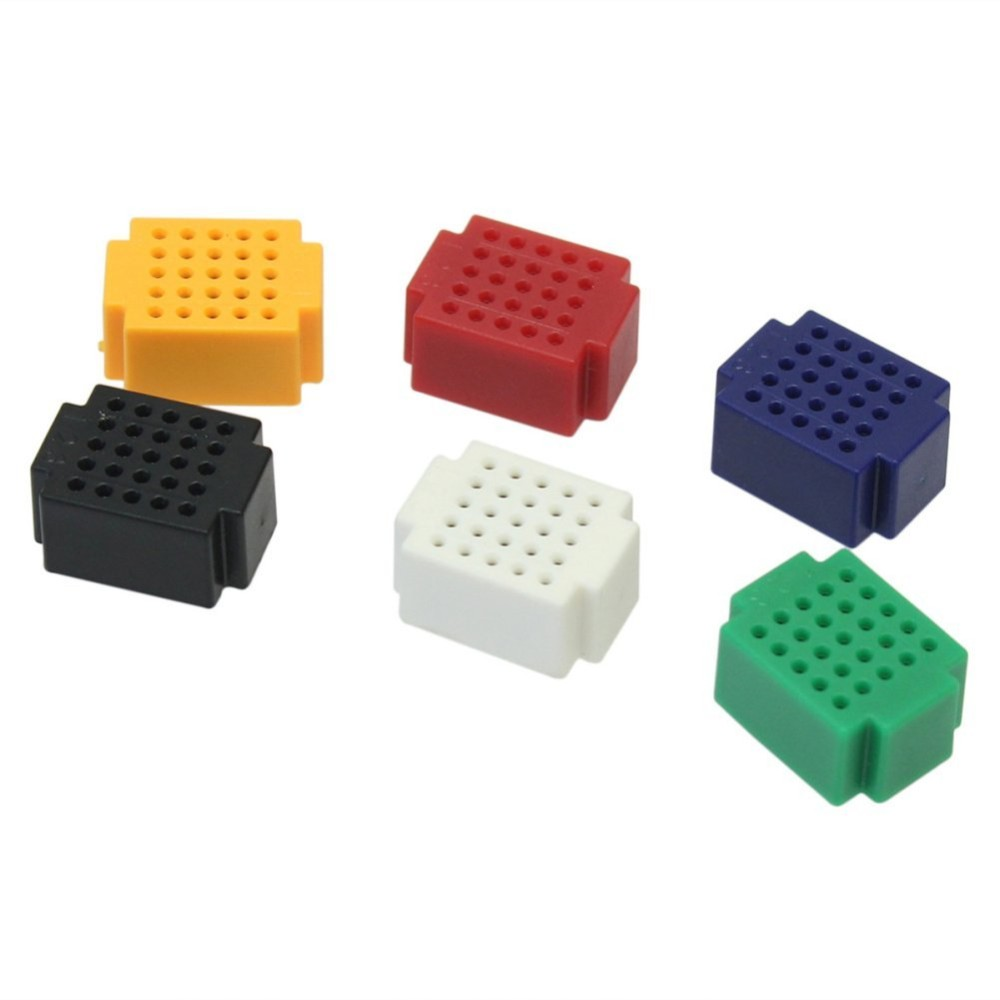

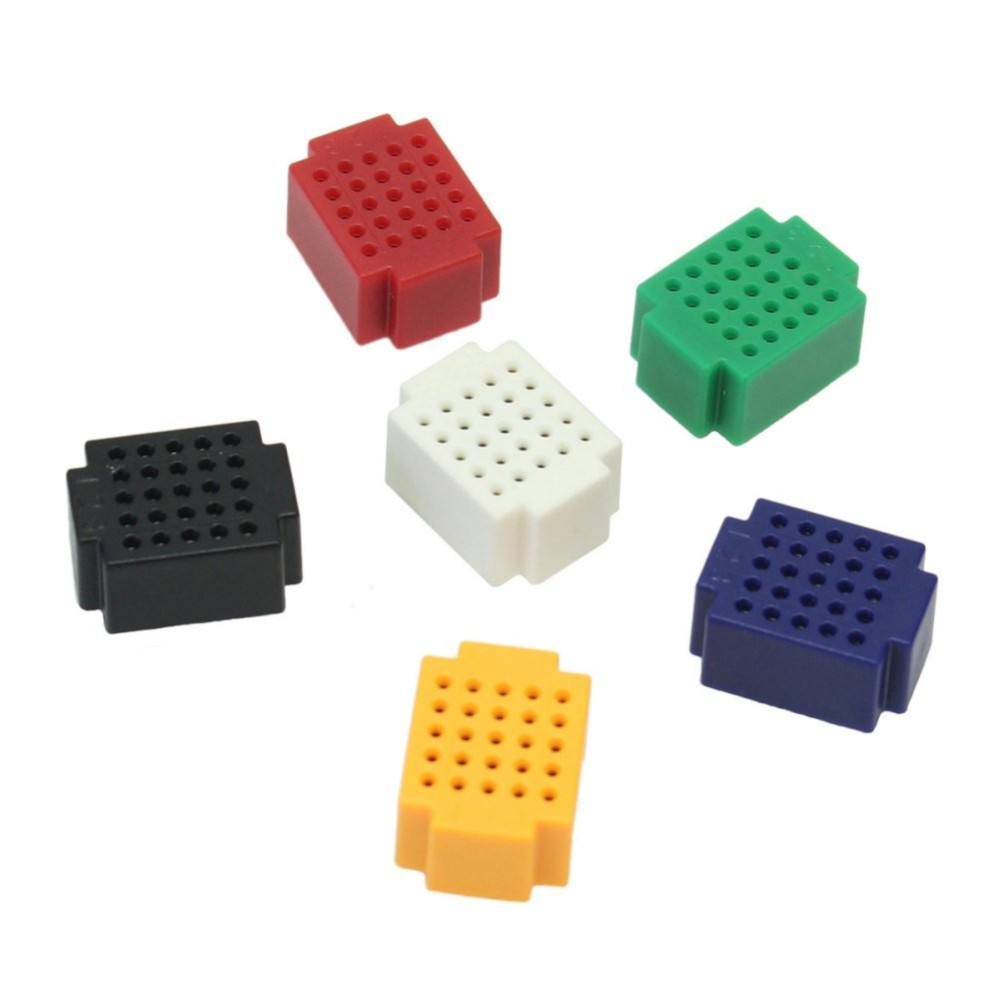

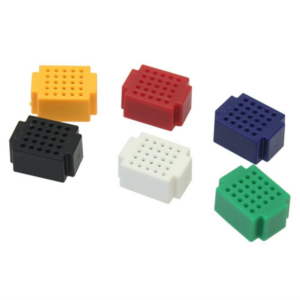

You can use different colors of the Block Building Breadboards on one base plate to make your experiment more organized and clear.

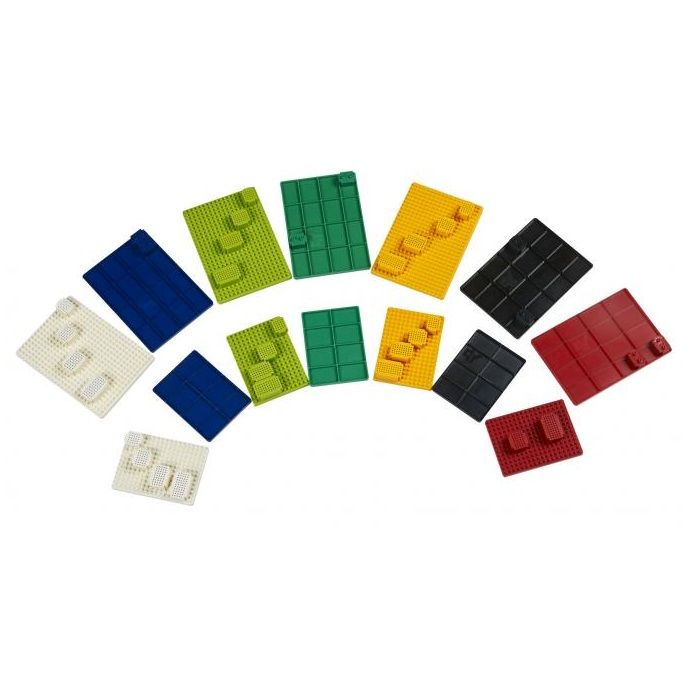

Note: The Baseplate and Blocks come in multicolor it will be ship Randomly
Features:
- 1 Terminal Strip, Tie-point 25
- ABS plastic Material and Good Contact points
- Completely Reusable flexible Structure
- Accepts a variety of wire sizes (29-20 AWG)
- 32 modular mini breadboard are pluggable in one piece of plate
- Accept transistors, diodes, LEDS, resistors, capacitors and virtually all types of components
- Make the model as you wish with the colorful breadboards.
- ZY-25 has many types of color, in the experiment, you can put the capacitor in the green breadboard, put the resistor in the red breadboard, and so one, by doing this, it will make the education clearly do electronic experiments.
- Compared with the ordinary breadboard, ZY-25 looks more mini. But please don’t look at its small body, which has many advantages. First, ZY-25 saves a lot material, environment protecting. Second, you can choose the quantity of breadboard according to the need in the experiment you do
Package Includes:
1 x Base Plate
5 x Mini Breadboard Building Block
XF-25 Ultra Mini Multi-color Block Building breadboard Overview
The XF-25 Ultra Mini Multi-color Block Building breadboard is a compact 1.5 × 2 cm prototype module featuring 25 tie-points in a 5 × 5 grid. Designed as an eco-friendly, snap-together alternative to standard breadboards, each colorful block can be assembled on a base plate to match the size of your circuit experiment.
Key Features of XF-25 Ultra Mini Multi-color Block Building breadboard
- 25 tie-points per block (5 × 5 layout) for reliable component connections
- ABS plastic construction with good contact springs for durability
- Modular 1.5 × 2 cm blocks snap onto a base plate via two rear patch-holes
- Accepts a range of wire gauges (29–20 AWG) for diverse prototyping needs
- Available in multiple colors for clear circuit organization
- Genuine product from Zbotic with fast shipping across India
Applications and Use Cases
- Building and testing small analog or digital circuits
- Educational kits for teaching electronics fundamentals
- Color-coding power rails, signal lines, or component groups
- Rapid reconfiguration of circuit layouts during design iterations
- Wearable electronics prototypes with space constraints
- Layering multiple blocks to expand large-scale projects on one base plate
How to Use XF-25 Ultra Mini Multi-color Block Building breadboard

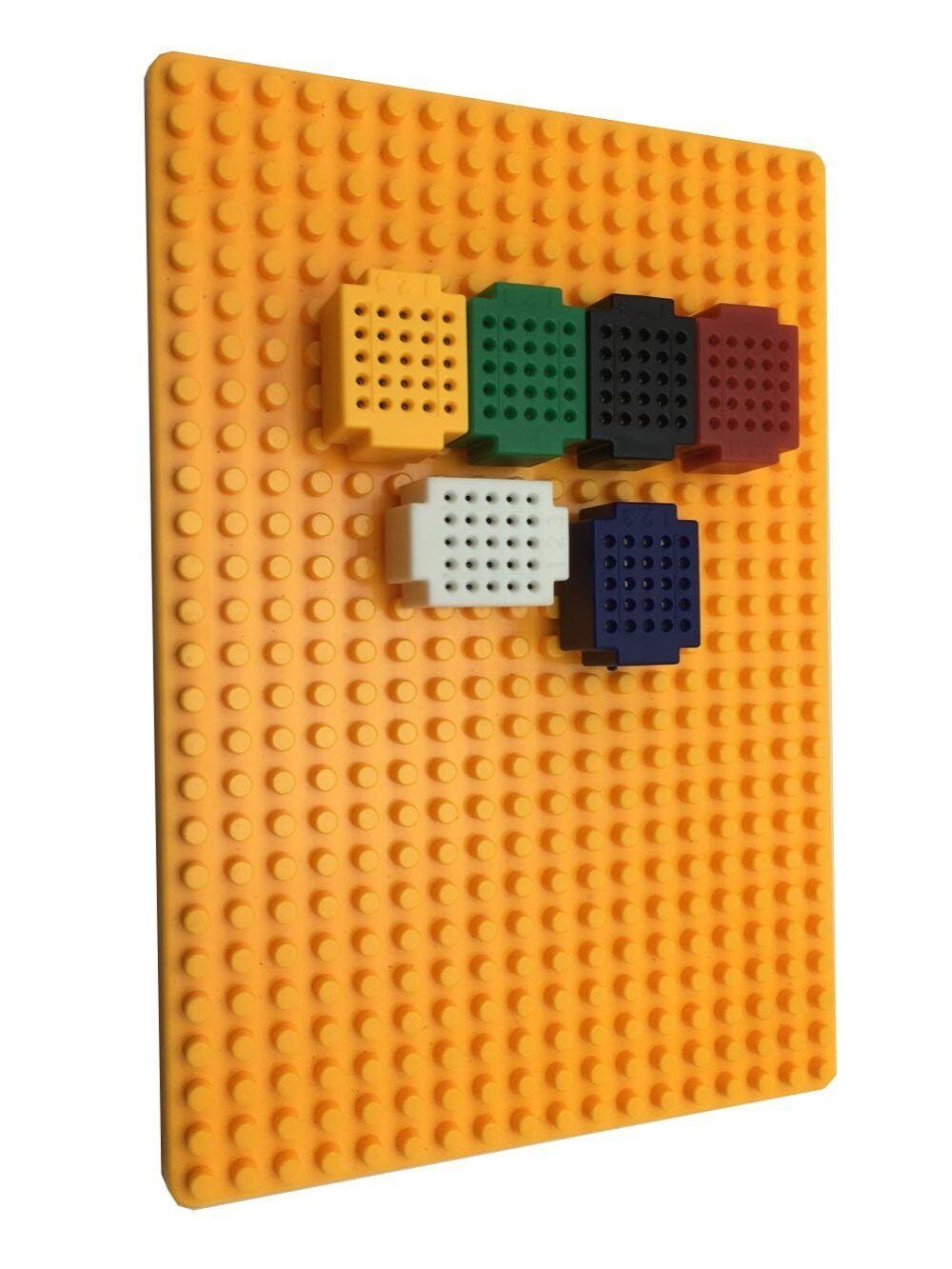

Simply attach each block’s rear patch-holes onto the Base Plate For Block Building Breadboard, arranging up to 36 blocks in a 6 × 6 grid as needed. Insert component leads or jumper wires into the 25 tie-points, then snap together additional colored blocks to expand or reorganize your circuit layout on the fly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire sizes are compatible with the XF-25 blocks?
The XF-25 breadboard blocks accept jumper wires in the 29–20 AWG range, accommodating most standard prototyping leads.
Can these mini blocks be used without the base plate?
While you can insert components directly into a standalone block, the recommended setup is to mount them on the base plate for stable alignment and easy reconfiguration.
How many XF-25 blocks fit on a single base plate?
A full base plate holds up to 36 blocks in a 6 × 6 arrangement, letting you scale your project from a single block up to a larger grid.
