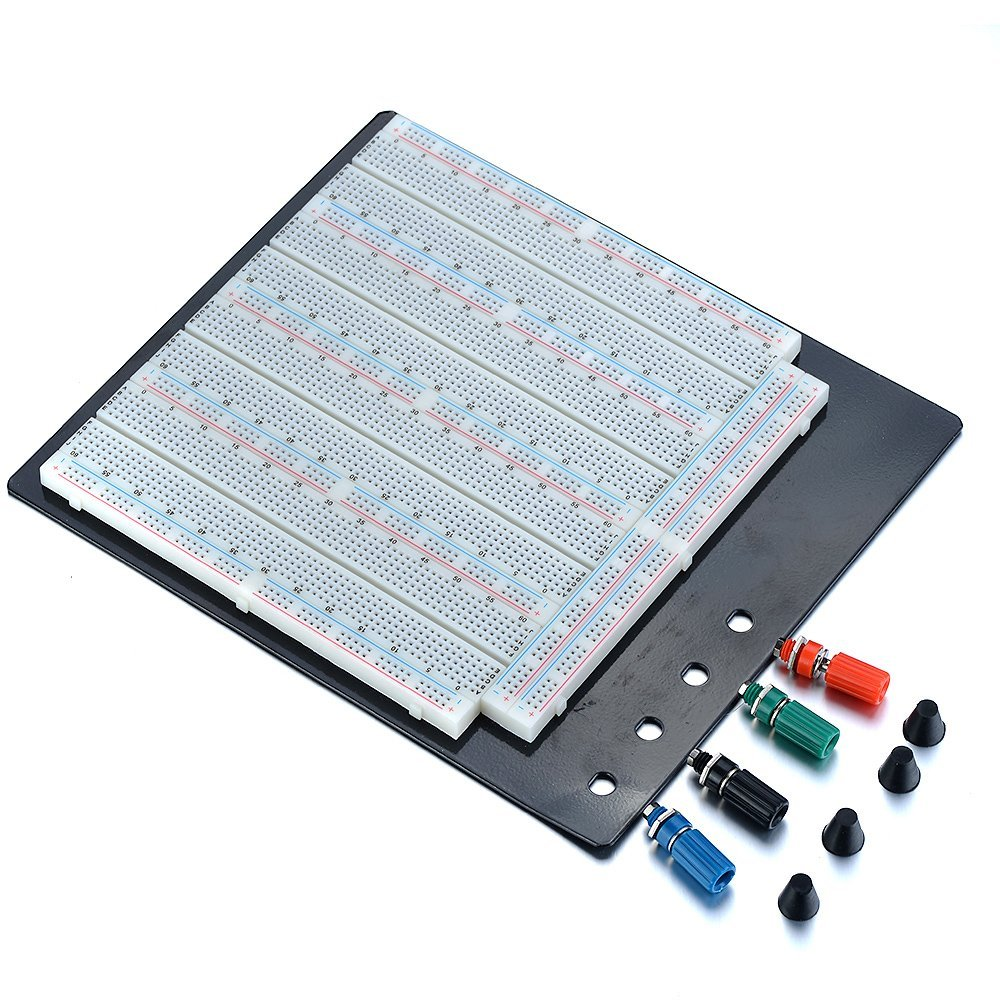

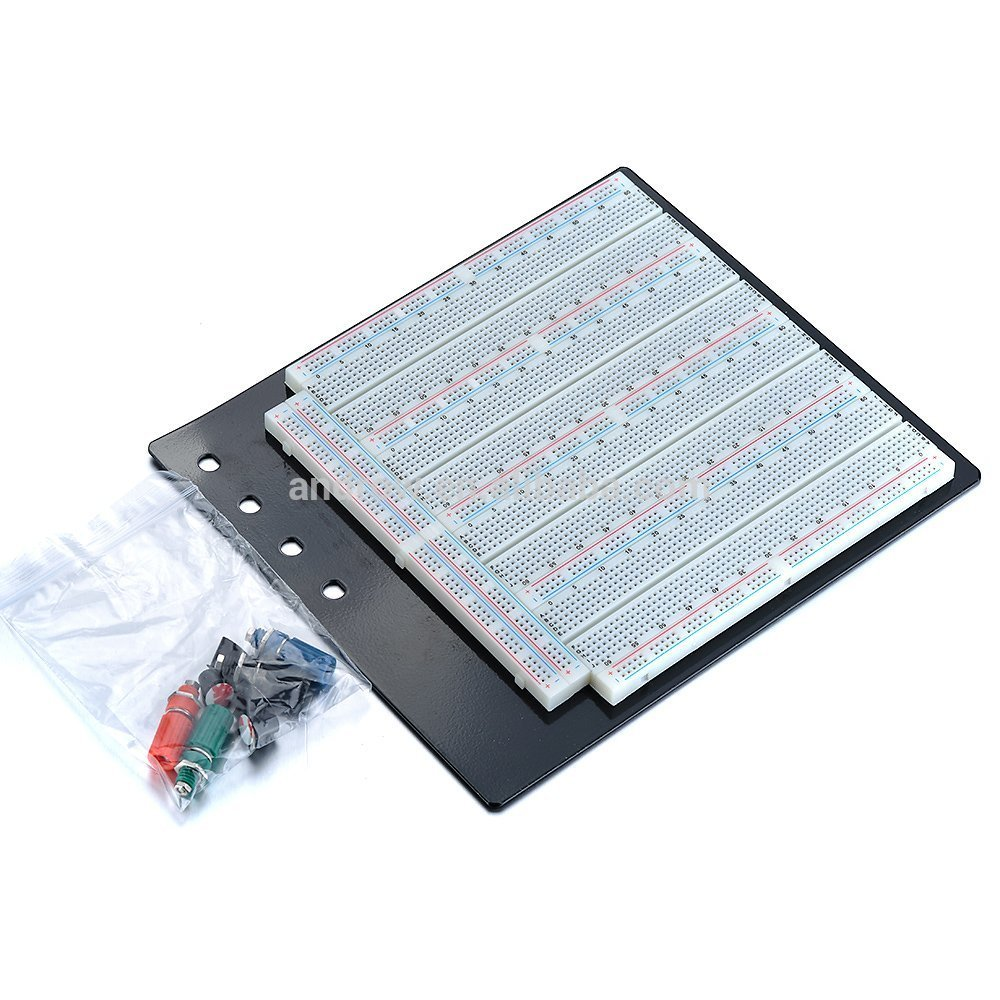

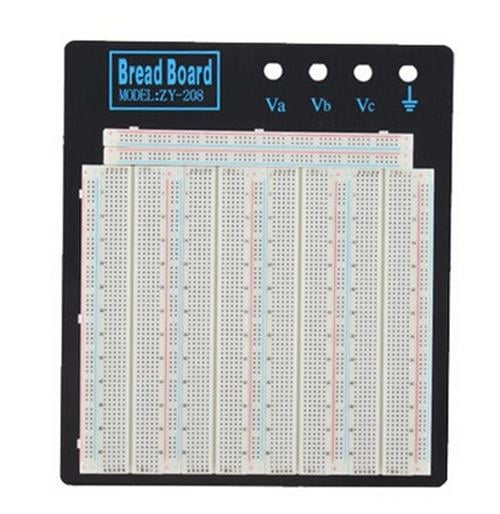

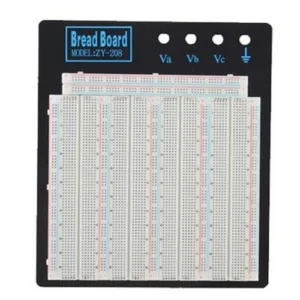

ZY-208 3220 Points Solderless Breadboard (by 4pcs 830pts MB-102)
Introducing the ZY-208 Solderless Breadboard Set, a versatile solution for rapid prototyping of electronic circuits without the need for soldering. This kit includes four separate breadboards, each providing 830 points, totaling to 3220 points across all boards.
Key Features:
- Dual Terminals: Each board is equipped with two terminals for easy connection of power sources or external components.
- 2520 Jacks: With a total of 2520 jacks spread across the four boards, ample space is provided for inserting and interconnecting electronic components.
- Four Distribution Rails: Featuring four distribution rails, each offering 700 jacks, ensuring efficient power distribution throughout the breadboard assembly.
- Sturdy Bottom Plate: The boards are supported by a durable black aluminum bottom plate, providing stability during prototyping sessions.
- Quality Spring Clips: Reliable connections are ensured by high-quality spring clips made from phosphor bronze with nickel plating.
- Included Jumper Wires: The set comes with matching jumper wires, 0.8 mm in diameter, facilitating easy and flexible connections between components.
- Versatile Compatibility: Accepting most through-hole parts and wires up to #22 gauge, the breadboards accommodate a wide range of components.
- Easy Circuit Modification: Circuit assembly and disassembly are simplified, allowing for quick adjustments and iterations in circuit designs.
For optimum results, it’s recommended to utilize solid wires, with pre-cut jumper wire kits or premium jump wires available for added convenience.
The ZY-208 Solderless Breadboard Set offers a dependable and efficient platform for prototyping electronic circuits, catering to the needs of hobbyists, students, and professionals alike.
Specifications and Features:
- Four terminal: 2520 jacks
- Seven allocations: 700 jacks
- Four terminals
- Phosphor bronze plating spring clip
- Matching jumper, the diameter of 0.8mm
- Use: experiment, test
- Features: recycling, recycling, Color clear structure, easy to use
| Plastic Parts Material | ABS |
|---|---|
| Dimensions | 23cmx22cm |
| Weight (gm) | 700 |
| Shipping Weight | 0.7 kg |
| Shipping Dimensions | 24 × 23 × 2 cm |
Package Includes:
1 x ZY-208 3220pts Breadboard (by 4pcs 830pts MB-102)
ZY-208 3220 Points Solderless Breadboard Overview
The ZY-208 3220 Points Solderless Breadboard Set includes four MB-102 style breadboards, each offering 830 tie points for a combined total of 3220. It’s designed for quick electronic prototyping without solder, allowing you to insert and rearrange components and jumpers instantly.
Key Features of ZY-208 3220 Points Solderless Breadboard
- Four individual 830-point breadboards totaling 3220 tie points for large or multi-project setups
- Dual power terminals per board with four distribution rails providing 700 jacks each for efficient power routing
- 2520 standard component jacks across the set for resistor, IC, and module placement
- Phosphor bronze plating spring clips for strong contact force and corrosion resistance
- Compatible with 0.8 mm diameter jumper wires for secure connections
- Genuine product, fast shipping from Zbotic with order dispatch within 24 hours
Applications and Use Cases
- Rapid prototyping of Arduino, Raspberry Pi, or microcontroller circuits
- Educational electronics labs for teaching students circuit design basics
- Testing sensor modules, LEDs, and display interfaces before soldering
- DIY robotics control boards requiring expandable breadboarding area
- Power distribution networks using dedicated rails for multi-voltage experiments
- Temporary wiring for troubleshooting and component verification
How to Use ZY-208 3220 Points Solderless Breadboard
Peel off the protective backing to stick the breadboards onto your work surface or remove the base to slide into a project enclosure. Insert jumper wires and component leads into the 0.8 mm jacks, distributing power via the two rails on each board. Use the phosphor bronze spring clips to hold resistors, ICs, and sensors firmly in place. Combine boards side by side when you need more tie points for complex circuits.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many tie points does the ZY-208 offer?
The ZY-208 provides a total of 3220 tie points across four 830-point solderless breadboards.
What material are the spring clips made of?
The spring clips use phosphor bronze plating to ensure strong contact pressure and long-term reliability.
Which jumper wire diameter fits these breadboards?
These boards are designed for standard 0.8 mm diameter jumper wires, offering a snug and stable connection.
