AI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (MAX + Single Visible Light )
Description:

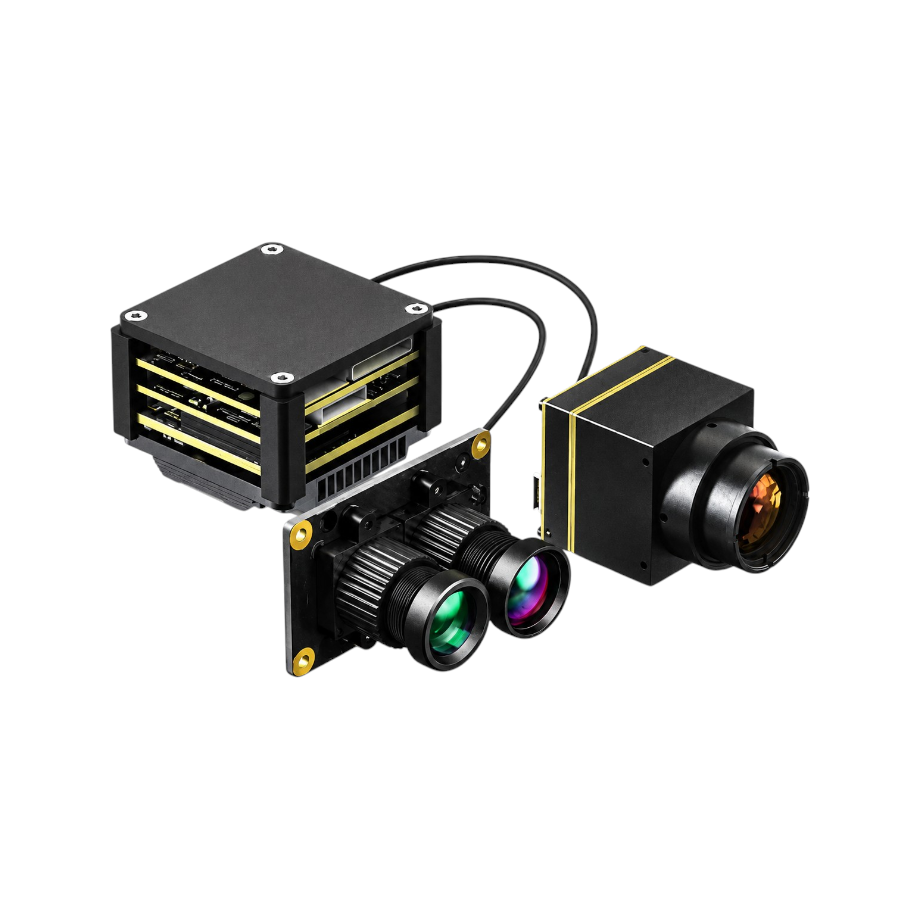

The AI VisionCube Max Plus is an advanced AI-powered target tracking and lock guidance module designed for FPV drones and UAV platforms. Equipped with a high-resolution visible-light camera and a thermal imaging camera, it provides reliable target detection, identification, and tracking capabilities in both daytime and low-visibility environments. The onboard AI processor enables real-time target recognition and automatic lock-on functionality, ensuring precise tracking during dynamic flight operations.
Specifications:
| Specification | Details |
|---|---|
| Camera | Visible Light (Short Focus) |
| Spatial Recognition | Air-to-Ground Recognition |
| Target Recognition Types | Human, Vehicle (Default) |
| Target Detection Range | Vehicle: Up to 450 m Human: Up to 170 m |
| Minimum Target Tracking Pixel | 16 × 16 pixels |
| Average Tracking Speed of Dynamic Target | Up to 80 km/h |

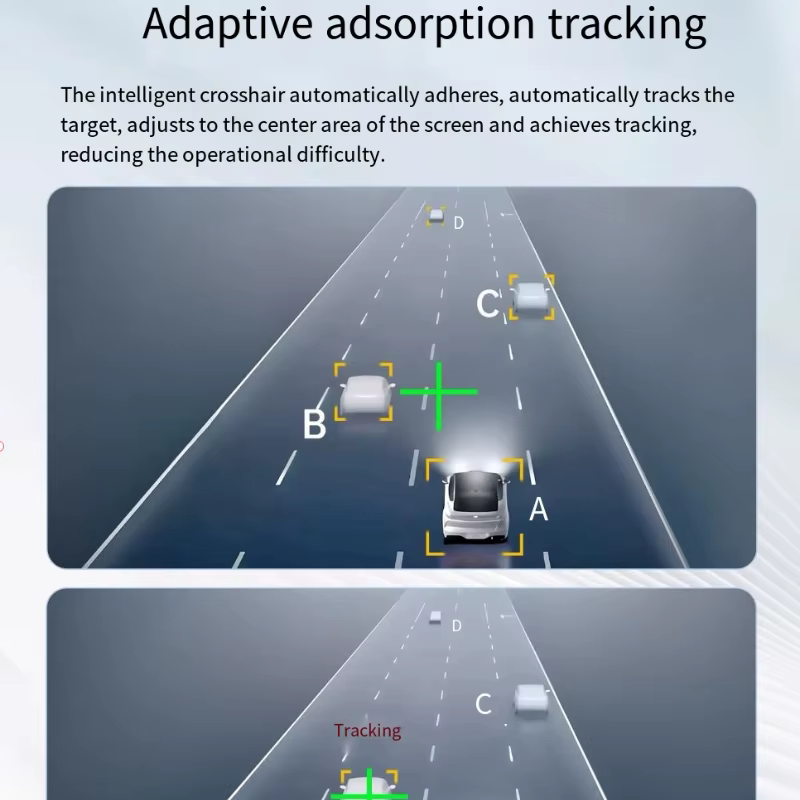

| Intelligent Adhesive Tracking | Supports crosshair fuzzy locking for close-range adhesive tracking |
| Trajectory Prediction & Memory Tracking | Supports trajectory prediction and feature memory tracking |
| Maximum Target Recognition | 50 Targets |

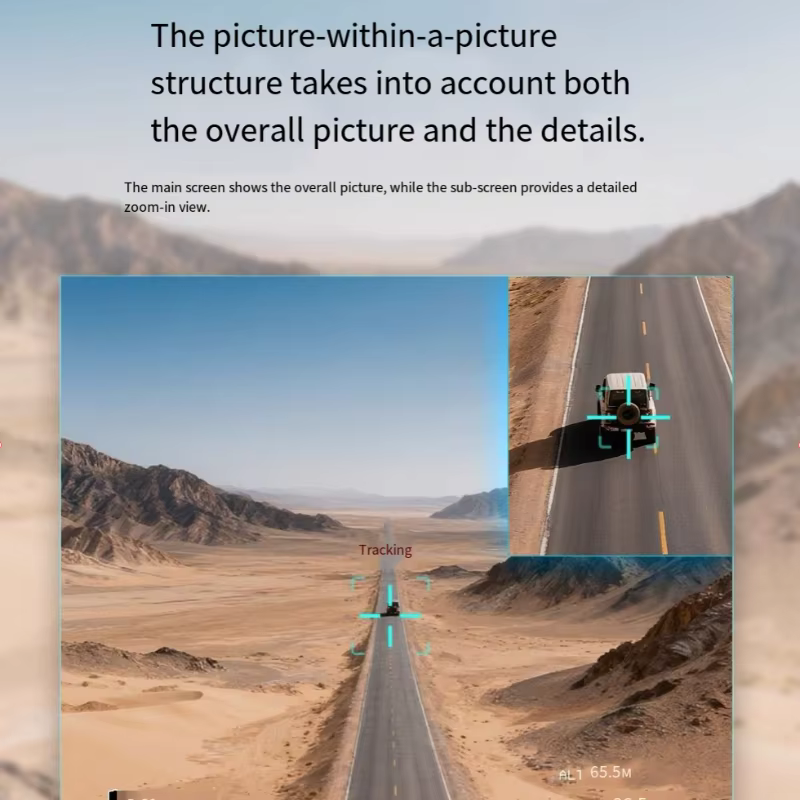

| Picture-in-Picture (PiP) | Supported |
| VTX Analog | Supported |
| Optical Fiber Type | Analog |
| Recommended FPV Display Size | 7 inches or larger |
Specification Table
| Specification | Details |
|---|---|
| Camera | Visible Light (Short Focus) |
| Spatial Recognition | Air-to-Ground Recognition |
| Target Recognition Types | Human, Vehicle (Default) |
| Target Detection Range | Vehicle: Up to 450 m Human: Up to 170 m |
| Minimum Target Tracking Pixel | 16 × 16 pixels |
| Average Tracking Speed of Dynamic Target | Up to 80 km/h |
| Intelligent Adhesive Tracking | Supports crosshair fuzzy locking for close-range adhesive tracking |
| Trajectory Prediction & Memory Tracking | Supports trajectory prediction and feature memory tracking |
| Maximum Target Recognition | 50 Targets |
| Picture-in-Picture (PiP) | Supported |
| VTX Analog | Supported |
| Optical Fiber Type | Analog |
| Recommended FPV Display Size | 7 inches or larger |
Key Features:
- Dual-Spectrum Imaging (Visible)
- AI-Powered Target Recognition
- Automatic Target Lock & Tracking
- Real-Time Object Classification
- Day/Night Operational Capability
- Low-Latency Performance
- Rugged Field-Ready Design
- Suitable for Professional UAV Applications
Attachments:
Package Includes:
1x AI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (MAX + Single Visible Light )
Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| SKU | AI8269 |
| Weight | 0.2964 kg |
| Availability | In Stock |
Applications & Use Cases
The AI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (MAX + Single Visible Light ) is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
