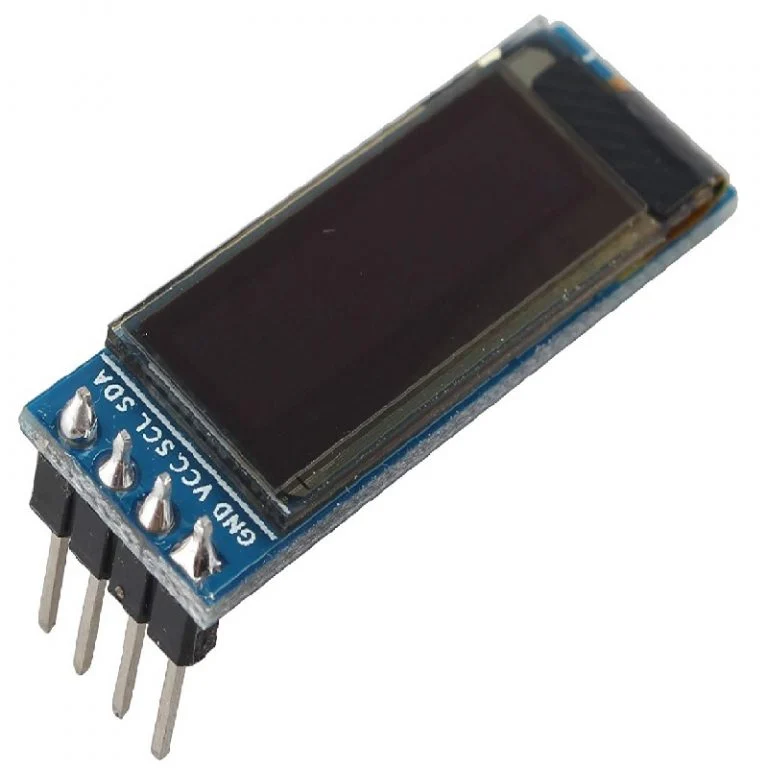

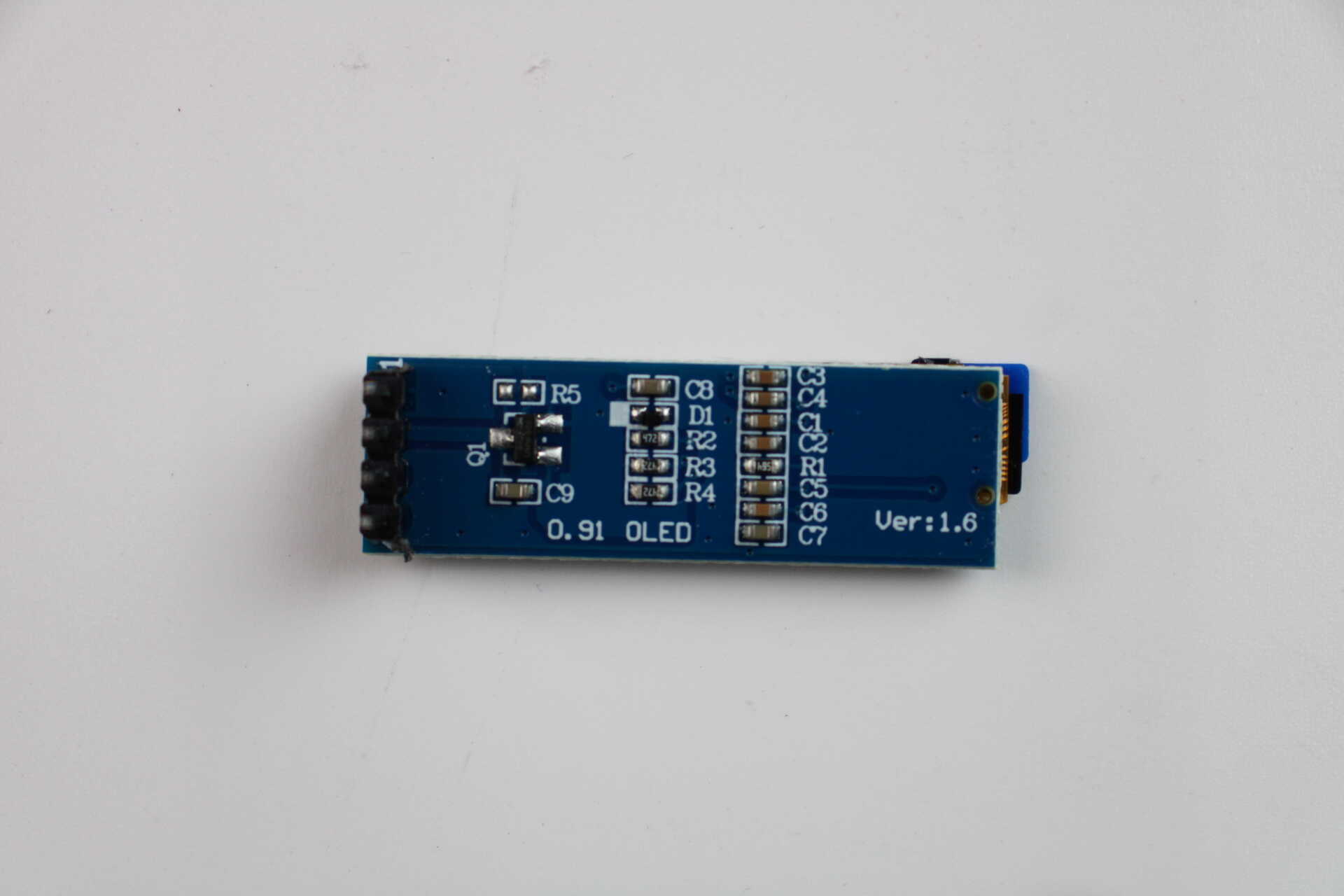

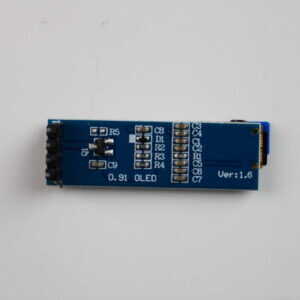

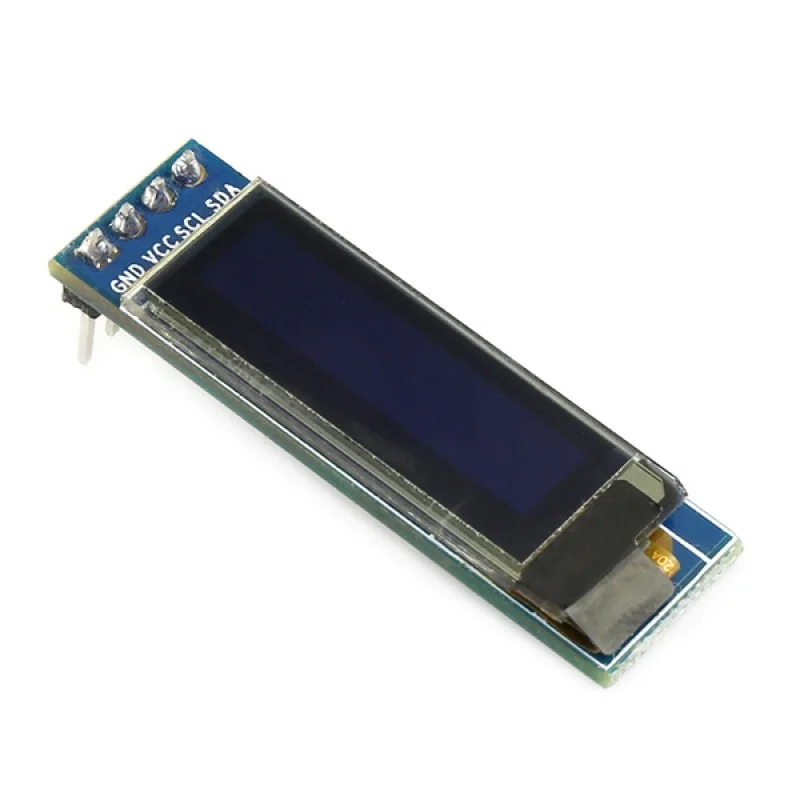

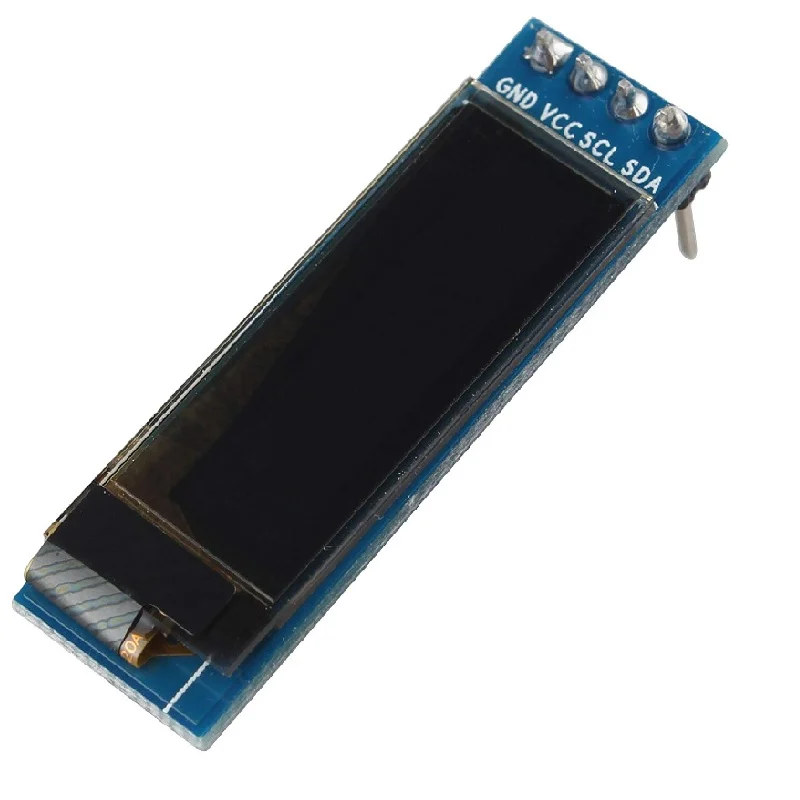

0.91 inch I2C/IIC Serial 4-Pin OLED Display Module-WHITE
This 0.91” I2C OLED Display is an OLED monochrome 128×32 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. The driver IC is SSD1306 with the I2C interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3V-5V microcontroller, such as Arduino.
Pin Definition:
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.
Specification:
Display Size | 0.91 Inch |
---|---|
Resolution | 128 x 32 Pixels |
Controlling Chip | SSD1306 |
Display Area | 22.384 x 5.584mm |
Driving Voltage | 3-5V |
Interface Type | IIC |
Operating Temperature | -40º~70º Celsius |
Pixel Color | White |
Length (mm) | 38.0 |
Width (mm) | 12.0 |
Height (mm) | 2.6 |
Weight (gm) | 3 |
Package Includes:
1 x 0.91 Inch I2C/IIC OLED Display
