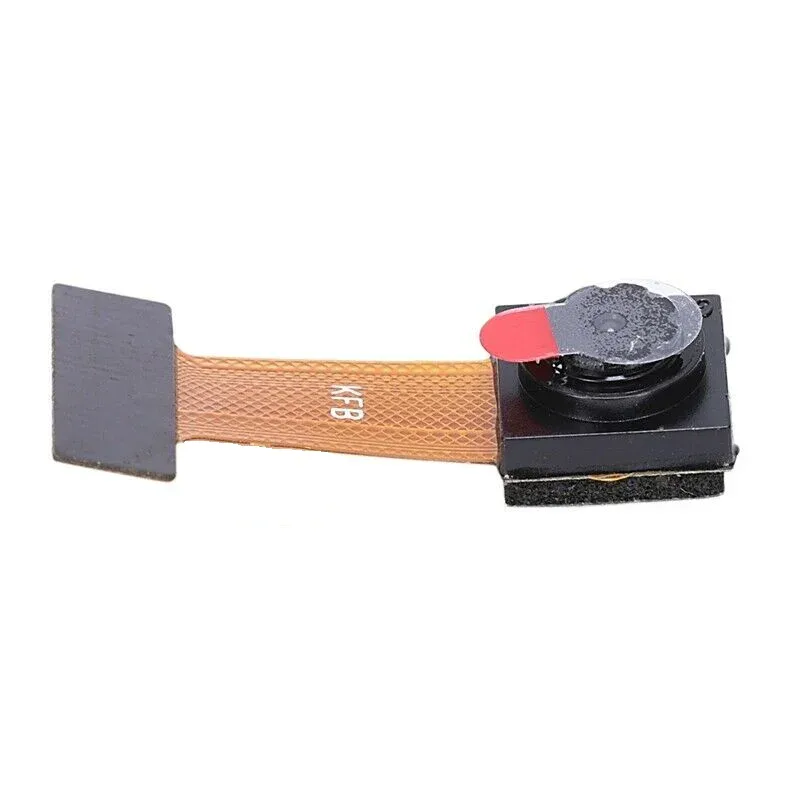

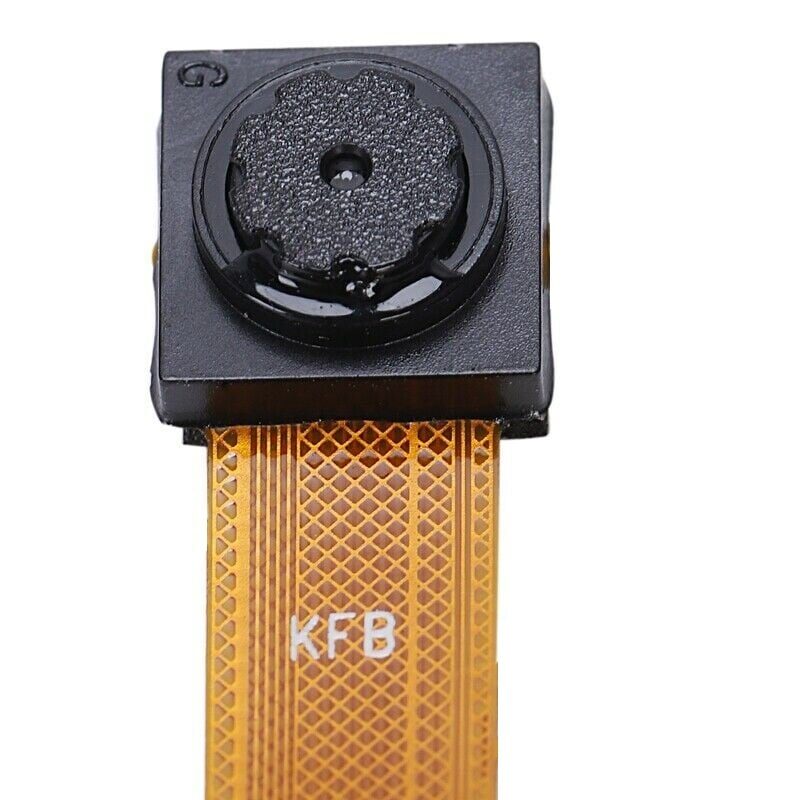

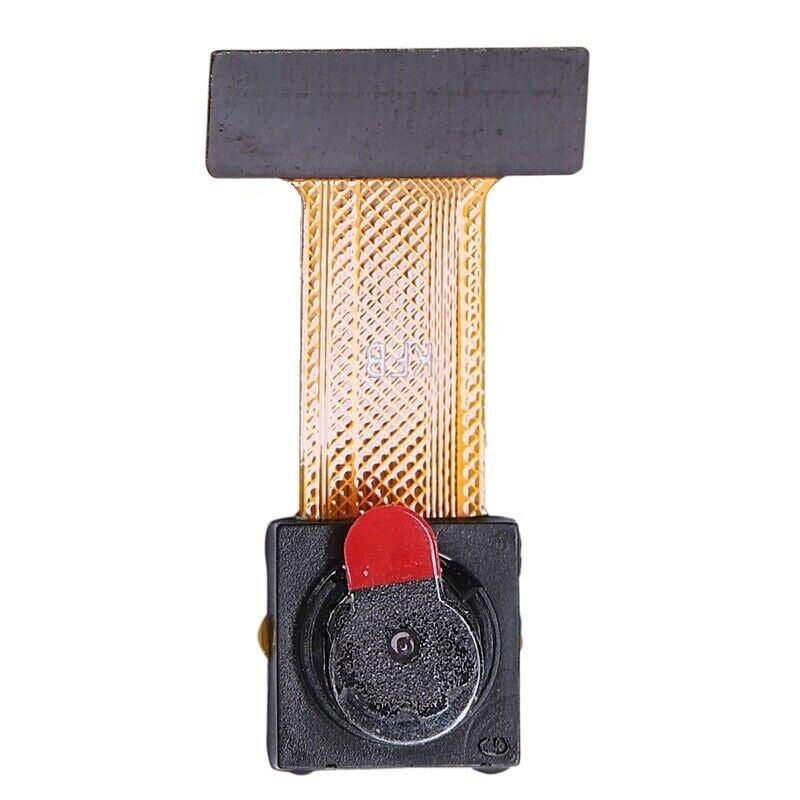

The 0.3MP OV7670 Camera Module with High-Quality SCCB Connector is a low voltage CMOS image sensor; that provides the full functionality of a single-chip VGA(Video Graphics Array) camera and image processor in a small footprint package. The OV7670/OV7171 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats; controlled through the Serial Camera Control Bus (SCCB) interface.
This 0.3MP OV7670 Camera Module has an image array capable of operating at up to 30 frames per second (fps) in VGA; with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance; color saturation, hue control and more, are also programmable through the SCCB interface.
In addition, OV7670 CAMERA CHIPs use proprietary sensor technology to improve image quality by reducing; or eliminating common lighting/electrical sources of image contamination; such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.
Applications:
- Cellular and Picture Phones.
- Toys.
- PC Multimedia.
- Digital Still Cameras.
Features:
- High sensitivity for low-light operation.
- Low operating voltage for embedded portable apps.
- The standard SCCB interface is compatible with the I2C interface.
- Supports VGA, CIF, and resolutions lower than CIF for RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats.
- VarioPixel® method for sub-sampling.
- Automatic image control functions includes : Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC).
- Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming.
- ISP includes noise reduction and defect correction.
- Supports LED and flash strobe mode.
- Supports scaling.
- Lens shading correction.
- Flicker (50/60 Hz) auto-detection.
- Saturation level auto adjust (UV adjust).
- Edge enhancement level auto-adjust.
- De-noise level auto-adjust.
- Sleep Power consumption: <20μA.
- Stable operation: 0 ° C to 50 ° C.
- Browse mode line by line.
- Electronic exposure 1 line to 510 lines.
- Output format: (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data.
- Material: plastic + metal.

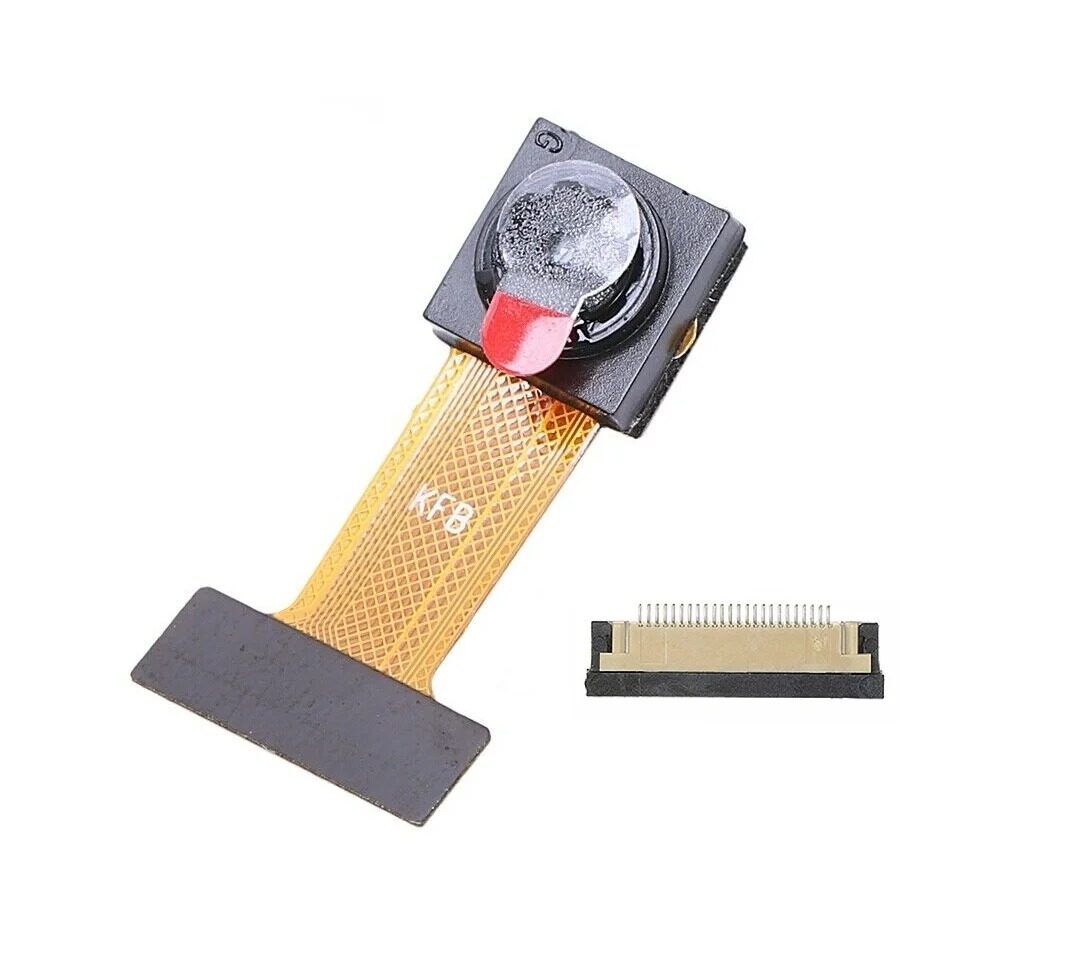

Package Includes:
1 x 0.3MP OV7670 Camera Module.

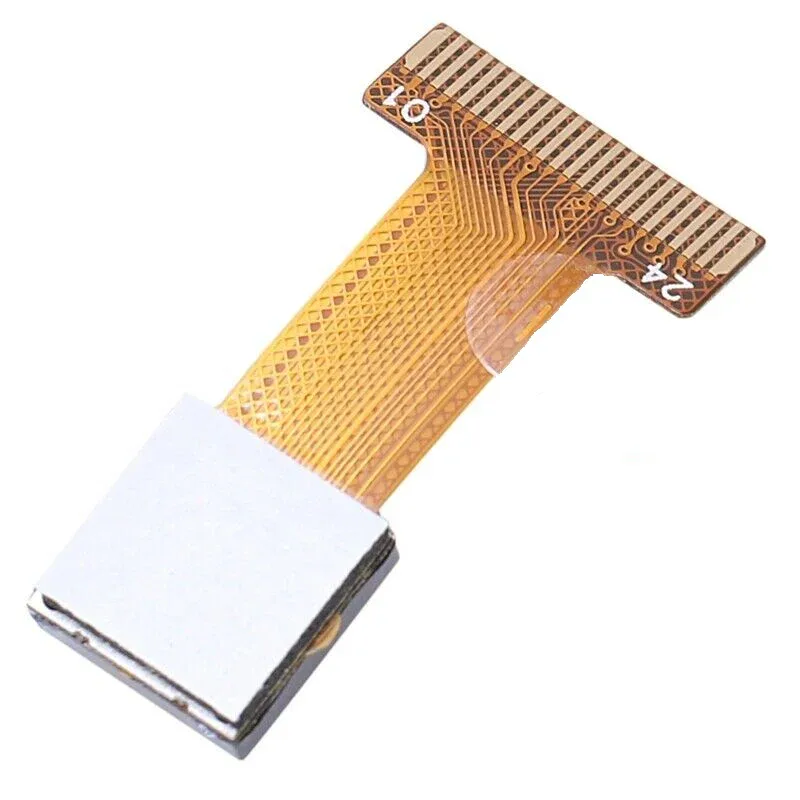

1 x SCCB (Serial Camera Control Bus) Connector(24 pin).
Troubles with ESP32 Boot Loops: How to Diagnose and Fix
An ESP32 boot loop fix is something every maker eventually needs. You flash your code, the board restarts,...
Read More →
ESP32 DAC Tutorial: Generate Analog Signals and Audio Output
The ESP32 DAC (Digital-to-Analog Converter) is a powerful built-in feature that sets the ESP32 apart from most other...
Read More →
ESP32 Dual Core Programming: Split Tasks Across Both Cores
One of the most underused features of the ESP32 is its dual-core architecture. While most Arduino sketches run...
Read More →Technical Specifications
| Model | OV7670 |
|---|---|
| SKU | AI1512 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The 0.3MP OV7670 Camera Module with High Quality SCCB Connector is a versatile iot cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
