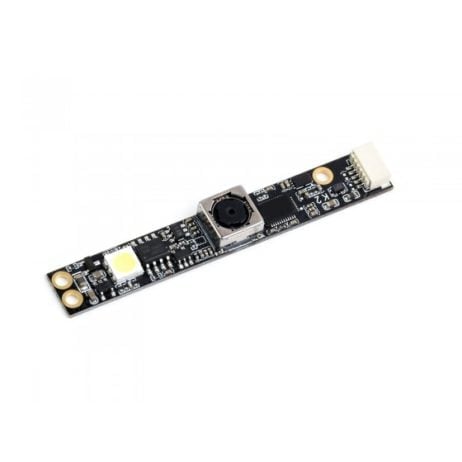

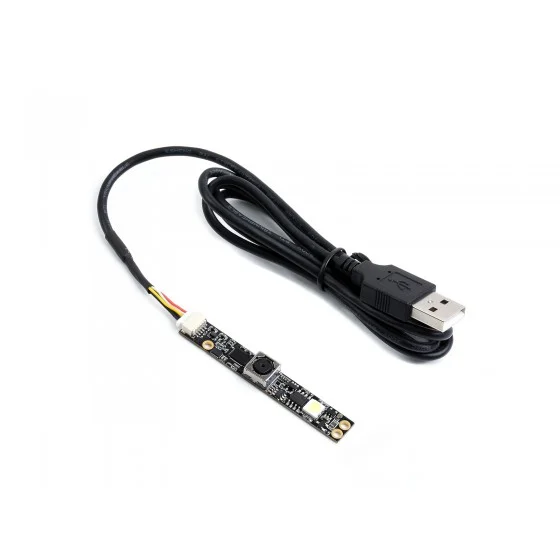

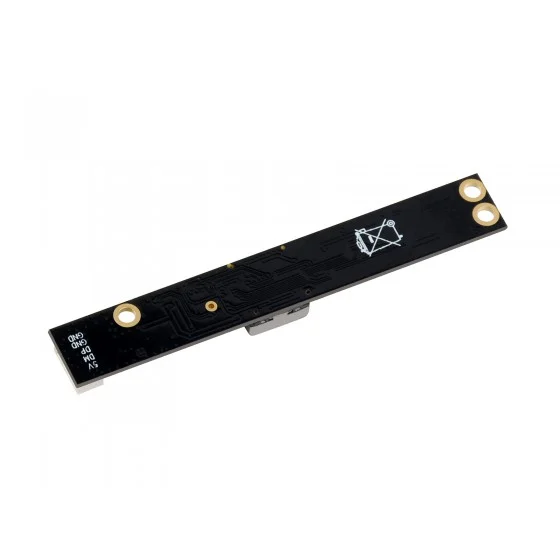

Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Available In AF

Name: Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Available In AF
Brand: WAVESHARE
SKU: AI0798
Price: 2450.86 INR
Availability: OutOfStock
Rating: 4.63 (19 reviews)

Description:

5MegaPixel Auto Focus CMOS camera module with JPEG output. The camera module is based on OmniVision OV5640 image sensor and can be used with Any shields and other platforms like Freescale i.MX6 develops the board.

The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It provides full-frame, sub-sampled, windowed, or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.

The OV5640 has an image array capable of operating at up to 15 frames per second (fps) in 5-megapixel resolution with complete user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, defective pixel canceling, noise canceling, etc., are programmable through the SCCB interface or embedded microcontroller.

Applications:

Cellular phones
PDAs
Toys
Other battery-powered products
ARM-based platforms

NOTE:

Choose OV5640 5MP USB Camera (B) for Auto-focus, and Select OV5640 5MP USB Camera (C) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same.

Specification:

Sensor	OV5640
Interface	USB 2.0
Camera Details	size 1/4 inch Aperture: (F) 2.8 Focal length: (EFL) 3.29 mm Field of view: (FOV) 68° Distortion: < 1%
Focusing (B)	AF Auto-Focus (C): FF Fixed-Focus
Image	Format support MJPG, YUV422
Resolution	Static image2592 × 1944 Video recording: 15 FPS 2592 × 1944 30 FPS: 1920 × 1080 30 FPS: 1280 × 720
Operating voltages	5V ± 5%
Camera size	8.5 × 8.5 mm
Module size	9 × 62 mm

Features:

Working voltage：5V ± 5%
Working Temperature：0°C ~ 50°C
Support OS Windows, Linux, Mac OS
Working with Raspberry Pi
Working with jetson nano developer kit
Interface: USB2.0

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Packages Includes:

1 x Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF

Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Overview

The Waveshare OV5640 5MP USB Camera is a USB 2.0 plug-and-play module based on the OmniVision OV5640 sensor, offering 5 megapixel stills and 1080P video recording. Ideal for Raspberry Pi, Jetson Nano and other USB-enabled development platforms, it features an auto-focus lens and JPEG output.

Key Features of Waveshare OV5640 5MP USB Camera, 1080P Video Recording,

5 MP OV5640 CMOS sensor with 1/4″ optical format for high-resolution imaging
Auto‐focus (AF) lens module for sharp capture at varying distances
USB 2.0 interface with UVC compliance—no extra drivers needed on Linux boards
Full-frame 2592×1944 stills and 1080P MJPEG video recording up to 30 fps
Works out-of-the-box with Raspberry Pi, Jetson Nano and other UVC-compatible systems
Fast shipping across India from Zbotic—in stock and ready to dispatch

Applications and Use Cases

Live video streaming or video conferencing on single-board computers
Computer vision and machine learning prototyping with OpenCV and TensorFlow
Robotics vision systems for object detection and navigation
DIY surveillance or time-lapse photography projects
Educational STEM kits and camera modules for student labs
Embedded imaging on Jetson Nano for edge AI inference

How to Use Waveshare OV5640 5MP USB Camera, 1080P Video Recording,

Simply connect the camera’s USB 2.0 cable to your host board’s USB port and power up. The module appears as a UVC device (e.g., /dev/video0) on Linux-based systems. Use standard utilities like fswebcam, guvcview or OpenCV scripts to stream video or capture JPEG stills. Auto-focus can be controlled via V4L2 commands or left in continuous mode for hands-free focusing.

Why Buy from Zbotic?

Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the Waveshare OV5640 USB camera compatible with Raspberry Pi?

Yes. It follows the USB Video Class (UVC) standard, so Raspbian recognizes it automatically without installing extra drivers. Simply plug it into a USB 2.0 port and access it via /dev/video0.

What image resolutions and formats are supported?

The module captures still images up to 2592×1944 pixels in JPEG format and records 1080P video over MJPEG at up to 30 fps via USB 2.0.

How do I adjust or trigger autofocus?

The onboard AF lens can be set to continuous or triggered focus using V4L2 controls (v4l2-ctl commands) on Linux. No manual lens adjustment is required unless fine-tuning for macro-scale subjects.

Tags: Buy Online India Camera Module iot camera OV5640 Waveshare Zbotic

Technical Specifications

Brand	WAVESHARE
Model	OV5640
Interface / Protocol	USB, BLE
Connector Type	USB-C
SKU	AI0798
Weight	0.06 kg
Availability	Out of Stock

Applications & Use Cases

The Waveshare OV5640 5MP USB Camera, 1080P Video Recording, Available In AF is a versatile iot cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.

Common use cases:

Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups

This product is ideal for electronics enthusiasts, engineers, and students.

Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
