Description:

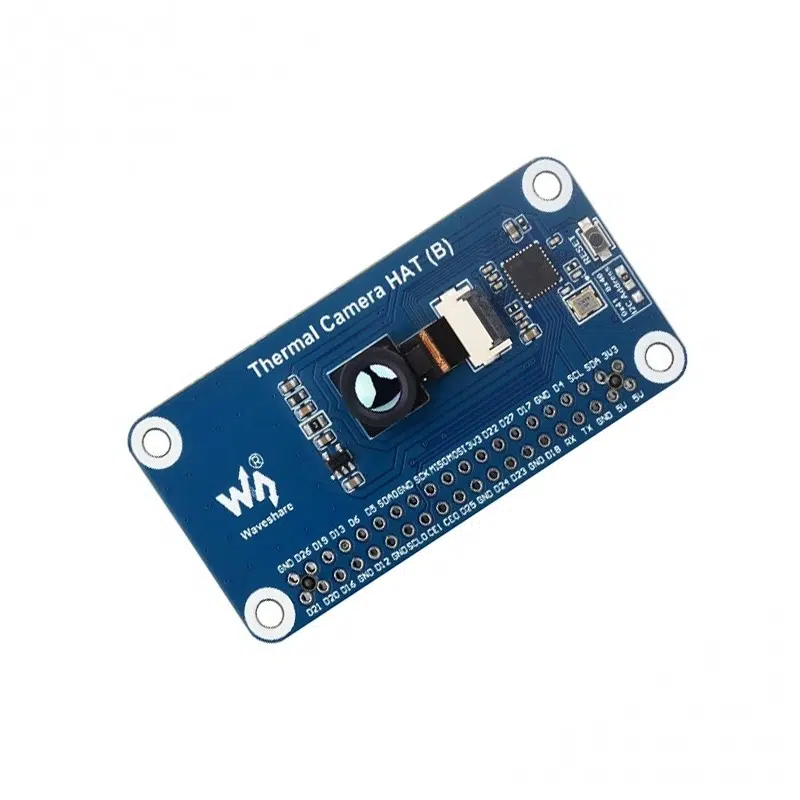

The Waveshare Long-wave IR Thermal Imaging Camera HAT (B) for Raspberry Pi features an 80×62 pixel array and supports thermal imaging with 45° or 90° FOV options. Using hybrid technology (microbolometer and thermopile), it provides accurate non-contact temperature measurements with a ±1.5°C accuracy. The camera offers continuous thermal video streams at up to 25 FPS and is ideal for applications like fever detection, security monitoring, industrial temperature control, and smart home integration. It connects via a 40-pin GPIO header and operates within a temperature range of -40°C to 85°C.
Useful Link:
https://www.waveshare.com/wiki/Thermal_Camera_HAT
Features:
-
Hybrid Technology: Microbolometer + thermopile for accurate thermal imaging.
-
Thermal Imaging: Detects IR distribution, calculates object surface temperatures, and generates thermal images.
-
Shutterless Design: Continuous thermal imaging and video stream output.
-
Pixel Calibration: Each pixel is calibrated for uniformity and temperature accuracy.
-
Noise Equivalent Temperature Difference (NETD): 125mK at 1Hz refresh rate.
-
Video Stream: Up to 25 FPS thermal imaging output.
-
FOV Options: 45° (basic) or 90° (wide-angle) lens for different applications.
Applications:
-
Non-contact Temperature Monitoring: Long-term temperature tracking.
-
Fever Detection: Useful for health monitoring (e.g., for infants, elderly).
-
Smart Home & Security: Thermal monitoring in smart buildings, lighting, and security systems.
-
Industrial Control: Temperature management, heat trend analysis, and motion detection.
-
Intruder Detection: Security applications with motion detection and analysis.
Specification:
| Resolution: | 80×62 pixels |
|---|---|
| Field of View (FOV): | 45° or 90° |
| Operating Temperature (°C): | -40°C to 400°C |
| Power Rating: | 5V |
Package Includes:
-
1 x Thermal-45 Camera HAT (B)
-
2 × 20 PIN female header
-
1 x Screws pack
