Product Description:

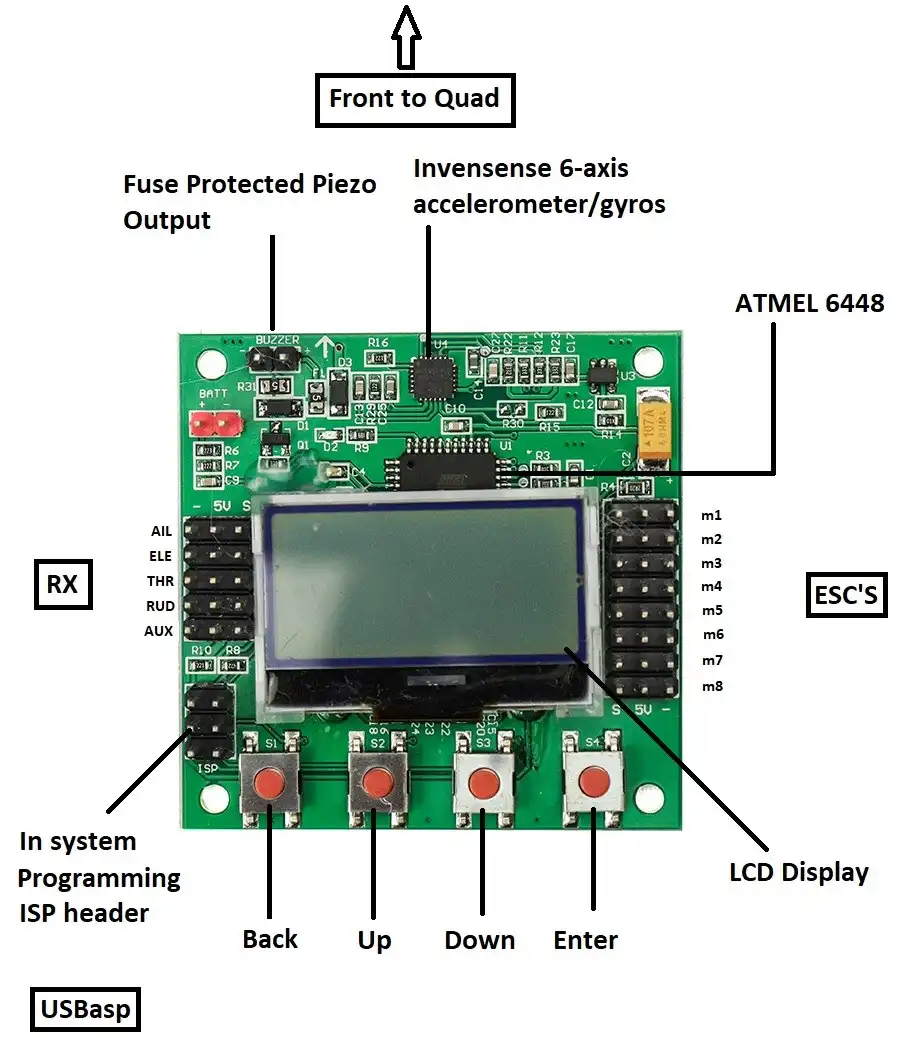

KK2.1.5 Multi-rotor LCD Flight Control Board with 6050MPU and Atmel 644PA
The KK2 1.5 Flight Controller Board, equipped with a 6050 MPU and an Atmel 644PA, is an enhanced version of the original KK flight control boards. Featuring a user-friendly LCD screen and intuitive software, it simplifies installation and configuration. Users can select from a variety of pre-installed multi-rotor craft types, verify motor layout and propeller direction, calibrate ESCs and radio, and follow on-screen instructions for setup.
The gyro system of the KK2 has been upgraded to a more sensitive 6050 MPU system, offering increased stability and an auto-level feature. The KK2 1.5 operates on an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64KB of memory.
For guidance on using the KK2 1.5 Flight Controller, please refer to the manual.
Note:
- This product is available in 2 types, having black & pink buttons, which will be shipped randomly. Most probably, you’ll get a board with pink buttons.
- It is always recommended to update to the latest software version as part of your initial setup. (this is different than v1.6 for 2.0)
Features:
- Auto Level
- Standard 6 Pin AVR Interface
- 1520us (5 channels) Signal from the receiver
Firmware Version: 1.6:
- Pre-installed firmware., Dualcopter, Tricopter.
- Y6, Quadcopter +, Quadcopter X, Hexcopter +, Hexcopter X, Octocopter +, Octocopter X.
- X8 +, X8 X, H8, H6, V8, V6.
- Flying Wing.
- Singlecopter 2M 2S, Singlecopter 1M 4S.
- Custom Mix via the “Mixer Editor” option:
- The Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.
Specifications:
| Model | KK2 |
|---|---|
| Input Voltage (V) | 4.8V-6.0V |
| Firmware | Pre-installed firmware |
| Sensor | 6050 MCU |
| Processor | Atmel 644PA |
| Micro-SD Card Slot | No |
| Length (mm): | 52 |
| Width (mm): | 52 |
| Height (mm): | 12 |
| Weight (g): | 26 |
Package Includes
- 1 x KK2 1.5 Flight Controller Board W/ 6050 MPU BOARD.
- 1 x Piezo buzzer.
- 2 x servo wire
Attachments:
( ⮝ click to download )
Video:
How to Build an Agriculture Spray Drone (DIY Guide)
An agriculture spray drone can cover one acre in under 10 minutes, reduce chemical usage by 30–40% through...
Read More →
ExpressLRS vs ELRS vs FrSky: Best RC Link System 2026
ExpressLRS vs FrSky vs Other RC Link Systems: Best Choice for Indian Drone Pilots in 2026 Choosing the...
Read More →
Drone Weight Optimization: Every Gram Counts in FPV
Table of Contents Understanding Drone Weight Optimization Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Model | KK2 |
|---|---|
| SKU | AI0237 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The KK2.1.5 Multi-rotor LCD Flight Control Board with 6050MPU and Atmel 644PA is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
