This is the Black variant of the Z22 V3 Aluminum Folding Arm Tube Joint black in Drone Frame and Accessories. Available at ₹1,198.05 (₹1,141.00 + GST) with free shipping across India.
Looking for Z22 V3 Aluminum? Z22 V3 Aluminum Folding Arm Tube Joint black is available at Zbotic with fast shipping across India.

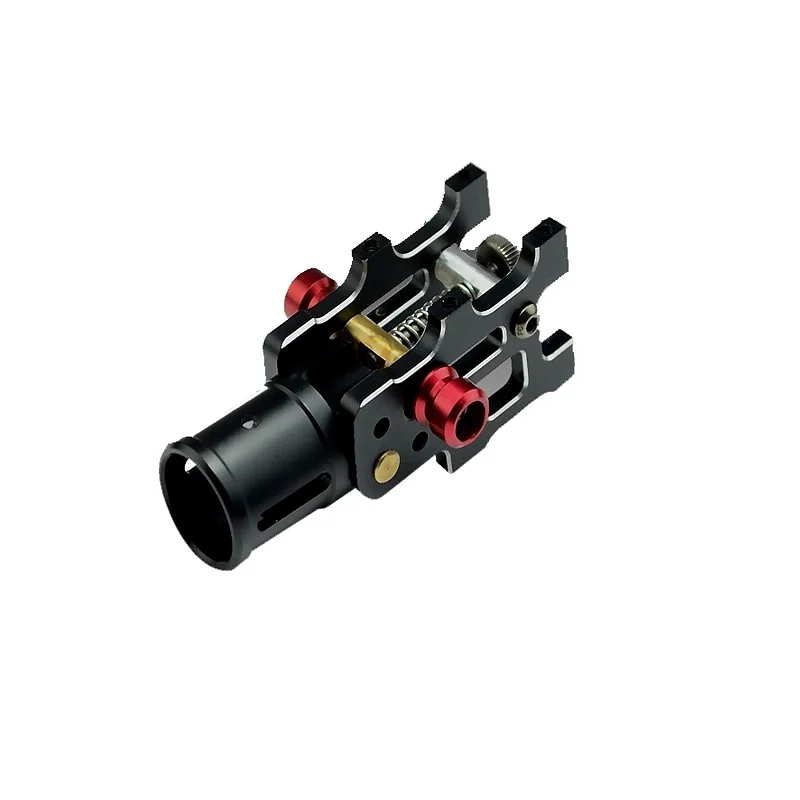

The Z22 V3 Aluminum Folding Arm Tube Joint is a square backrest with thick CNC metal parts, better strength, not easy bending deformation, will not produce the phenomenon of virtual spaces after locking! The lengthened backrest solved before tightening the screws after a rebound phenomenon cannot be!
The double screw locking structure, to solve the carbon tube and folding seat-bit virtual phenomenon more closely and the moving shaft is changed from the copper shaft to a higher strength stainless steel shaft, which solves the phenomenon that the bending of the shaft is easy for a period of time.
Features:
- A 5-Degree up-tilt angle is applied.
- This item suit for Auto Edition RC Quadcopter Hexacopter Multicopter.
- Easy to use and 100% Brand New.
- With Screws for Center plate installing usage.

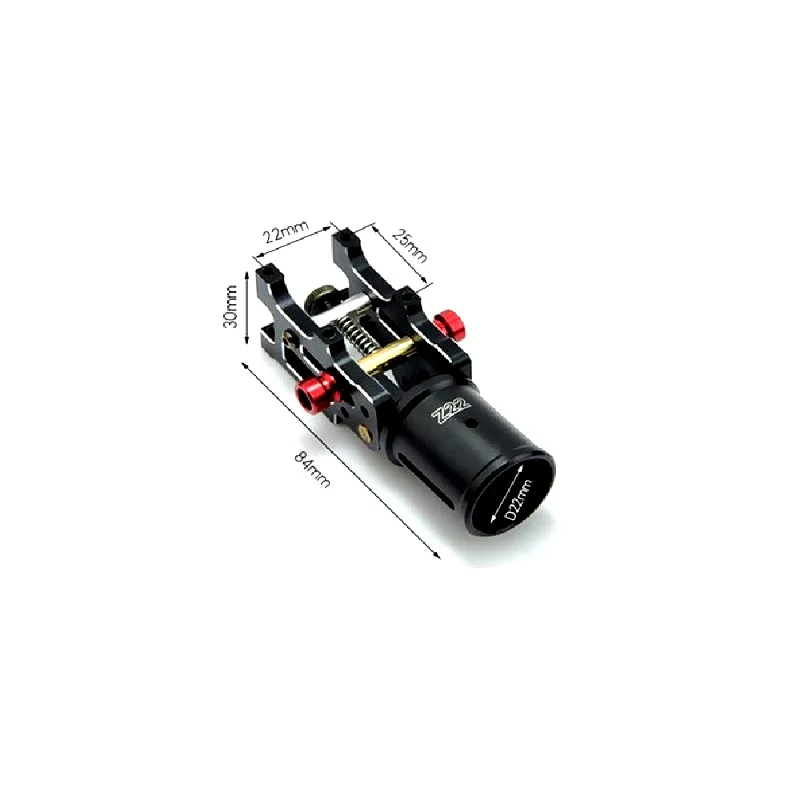

specification-
| Outer Diameter(mm) | 26 |
|---|---|
| Inner Diameter(mm) | 22 |
| Length(mm) | 85 |
| Width(mm) | 25 |
| Height(mm) | 30 |
Package Includes:
1 x Z22 V3 Aluminum Folding Arm Tube Joint
Z22 V3 Aluminum Folding Arm Tube Joint black Overview
The Z22 V3 Aluminum Folding Arm Tube Joint black is a precision CNC-machined hinge designed for 22×26 mm carbon tube drone arms. It provides a robust folding mechanism with stainless steel shaft reinforcement, ensuring reliable arm deployment and storage without deformation or play.
Key Features of Z22 V3 Aluminum Folding Arm Tube Joint black
- High-strength CNC aluminum construction resists bending and deformation
- Square, lengthened backrest eliminates rebound issues when tightening
- Double screw locking structure for a secure grip on the 22 mm inner diameter tube
- Upgraded stainless steel folding shaft for long-term durability
- 5° up-tilt angle for optimized prop clearance and arm alignment
- Comes with mounting screws for center-plate installation
- Lightweight at just 69 g per joint; fits 26 mm outer diameter tubes
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Retrofit or upgrade folding arms on custom multirotor drone frames
- Field replacement parts for damaged or worn arm joints
- Compact transport design for photography and surveying UAVs
- DIY FPV racer builds requiring quick assembly and disassembly
- Prototyping modular drones with interchangeable arms
How to Use Z22 V3 Aluminum Folding Arm Tube Joint black
Begin by sliding your 22 mm carbon tube into the joint’s bore, align the lengthened backrest with the drone’s center plate, and secure it using the included screws. Tighten both locking screws evenly to engage the double screw clamp, then verify smooth folding action on the stainless steel shaft and a consistent 5° up-tilt arm position.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What tube dimensions does the Z22 V3 joint support?
It fits carbon tubes with a 22 mm inner diameter and up to 26 mm outer diameter, providing a snug clamp via its double screw mechanism.
What materials are used in this folding arm joint?
The main body is CNC-machined aluminum, while the folding hinge shaft is made from high-strength stainless steel to resist wear and bending.
How much tilt angle does this joint provide?
The Z22 V3 joint features a built-in 5° up-tilt angle, improving propeller clearance and ensuring proper arm alignment under load.
