This is the 24V variant of the YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min in Water TDS, pH, Flow, Level and Pressure Sensor. Available at ₹390.58 (₹331.00 + GST) with free shipping across India.
Product Description

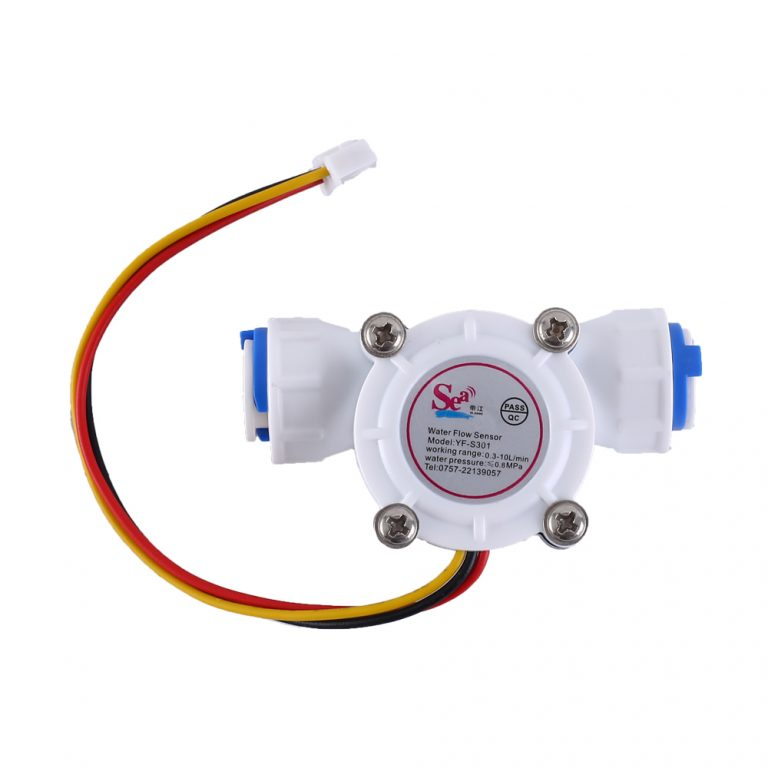

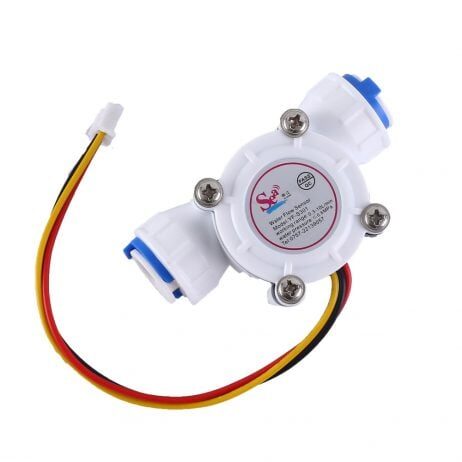

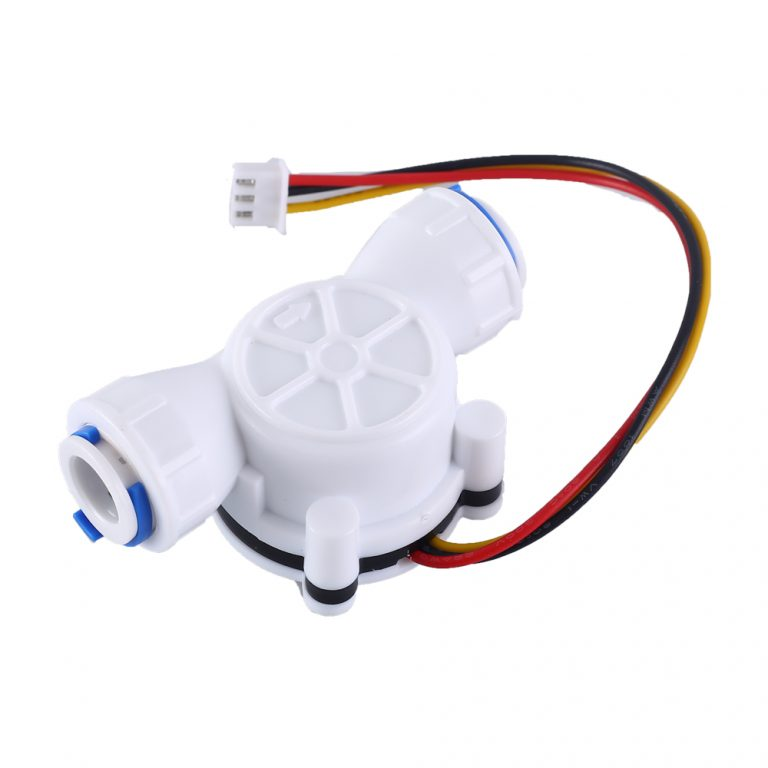

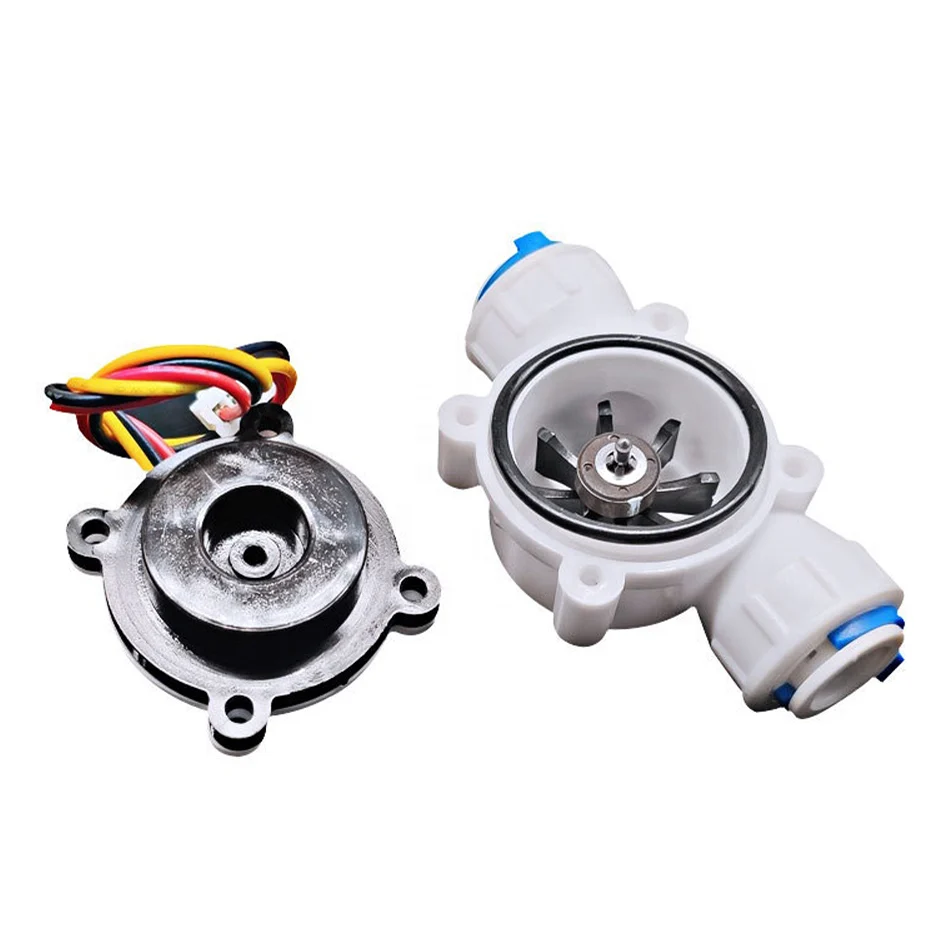

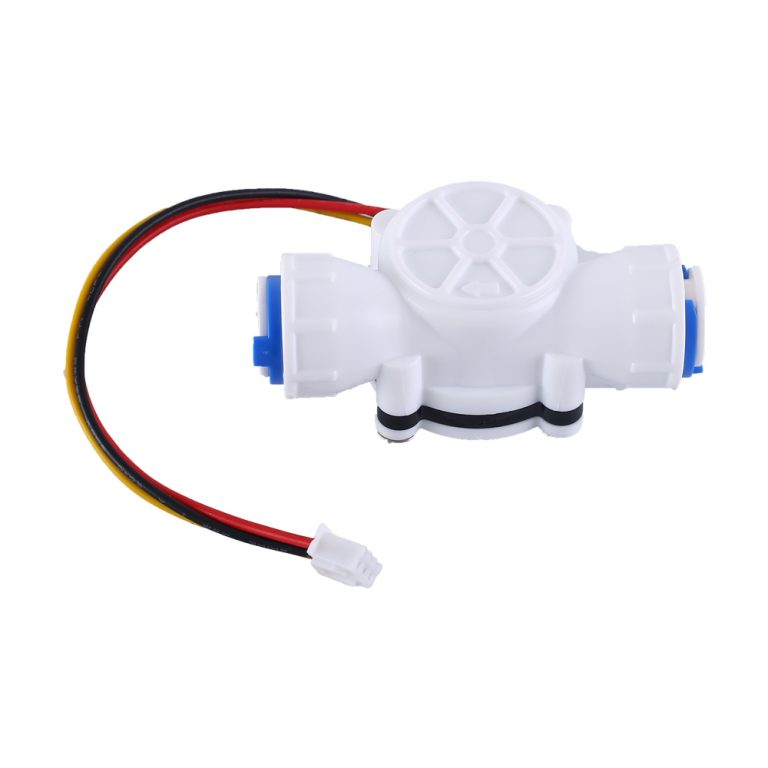

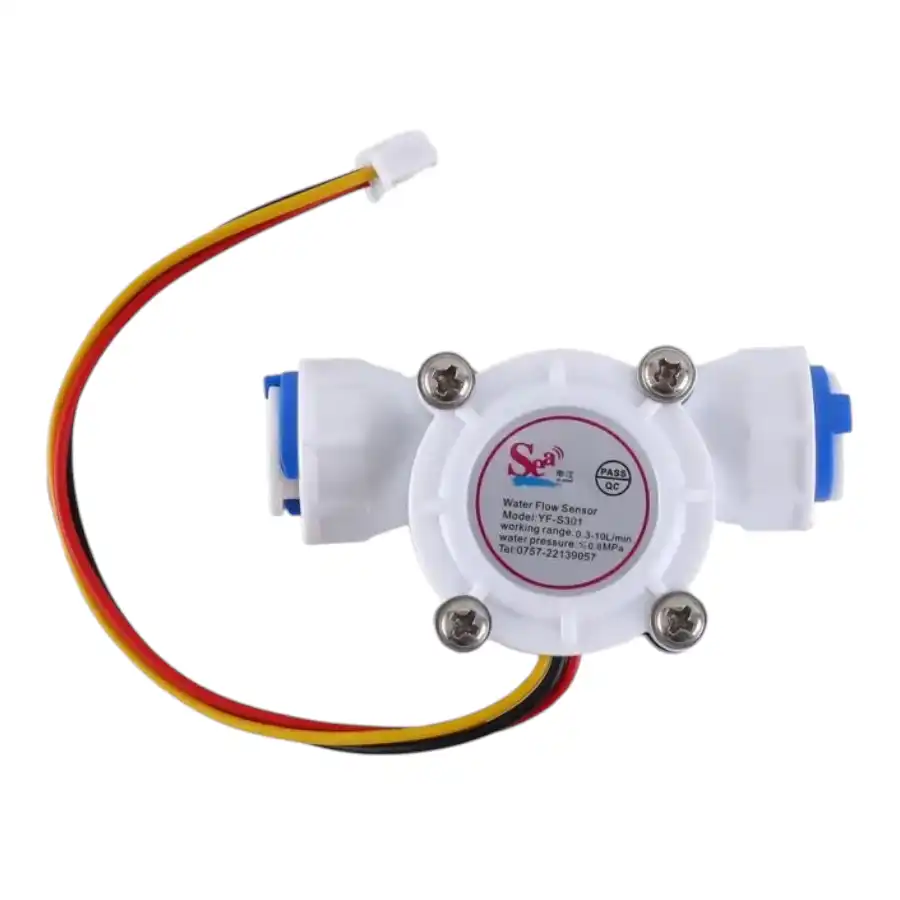

The YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min is a device that measures the flow of water in a pipe. It has a hall effect sensor that produces an electric pulse for each rotation. The sensor is isolated from the water and protected from moisture and damage. The device is light, compact, and easy to install. It meets the SGS testing standards for materials. It works stably under high temperatures and low water pressures. It has three wires: red for positive, black for negative, and yellow for pulse signal.
Application:
Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, beer machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump, IC meter, steam equipment, irrigation equipment, water system, campus card self-service sale (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment, etc.
Note:
- When magnetic material is close to the sensor, its characteristics may vary.
- In order to avoid particle debris, the sensor must be installed after a filter.
- The flow sensor can be installed in any direction. it has to avoid a strong vibrating and shaking environment, so as not to affect the accuracy.
Features:
- Lightweight, Small in size, easy to install.
- With stainless steel axis in the wheel, abrasion resistant.
- Sealing ring design to prevent water leaks.
- Compliant with RoHS standard.
- Wide range of applications.
Package Includes:
1 x YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min
Strain Gauge Theory: Wheatstone Bridge for Force Sensors
Force measurement is at the heart of countless engineering applications — from precision weighing scales and industrial load...
Read More →
Piezoelectric Vibration Sensor: Knock Detection with Arduino
Table of Contents Introduction to Piezoelectric Vibration Sensing The Piezoelectric Effect Explained Piezo Sensor Modules vs Bare Elements...
Read More →
Float Switch Wiring: Tank Level Control with Arduino Relay
Float switches are among the simplest, most robust liquid level sensors available. A float switch uses a buoyant...
Read More →Technical Specifications
| Model | YFS301 |
|---|---|
| SKU | AI2652 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The YFS301 7-24V Water Flow Sensor Flowmeter 0.3-10L/Min is a versatile water tds, ph, flow, level and pressure sensor used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
