This is the XT90 connector variant of the XT90 Male Connector with Housing-1 pcs. in Battery Connector. Available at ₹86.14 (₹73.00 + GST) with free shipping across India.
Description:

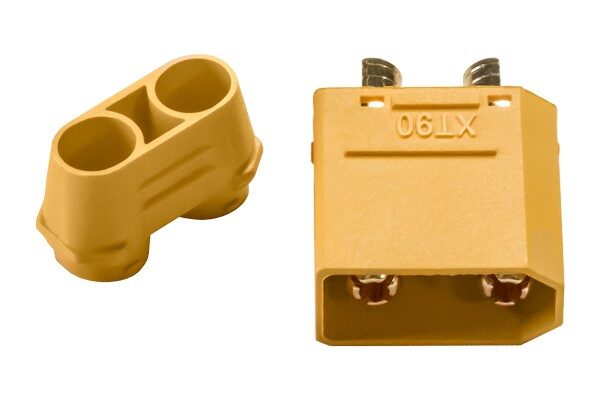

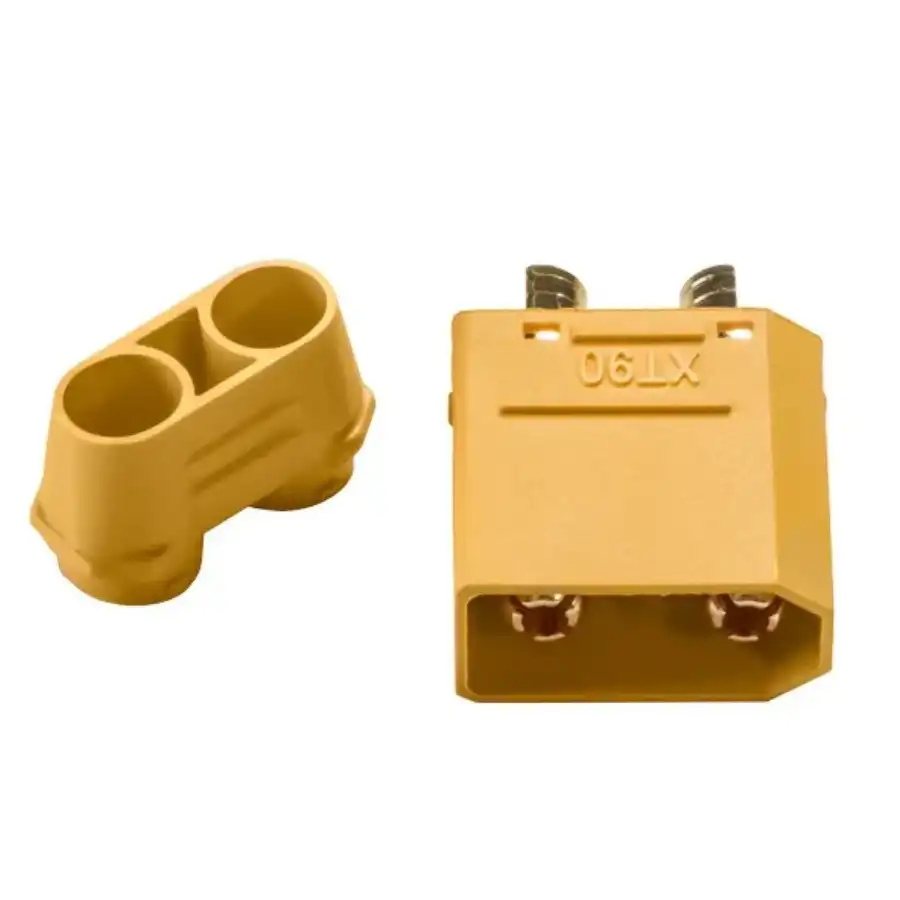

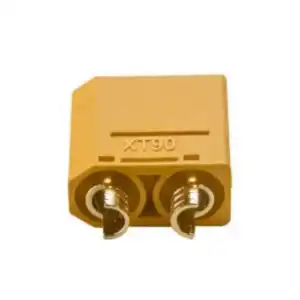

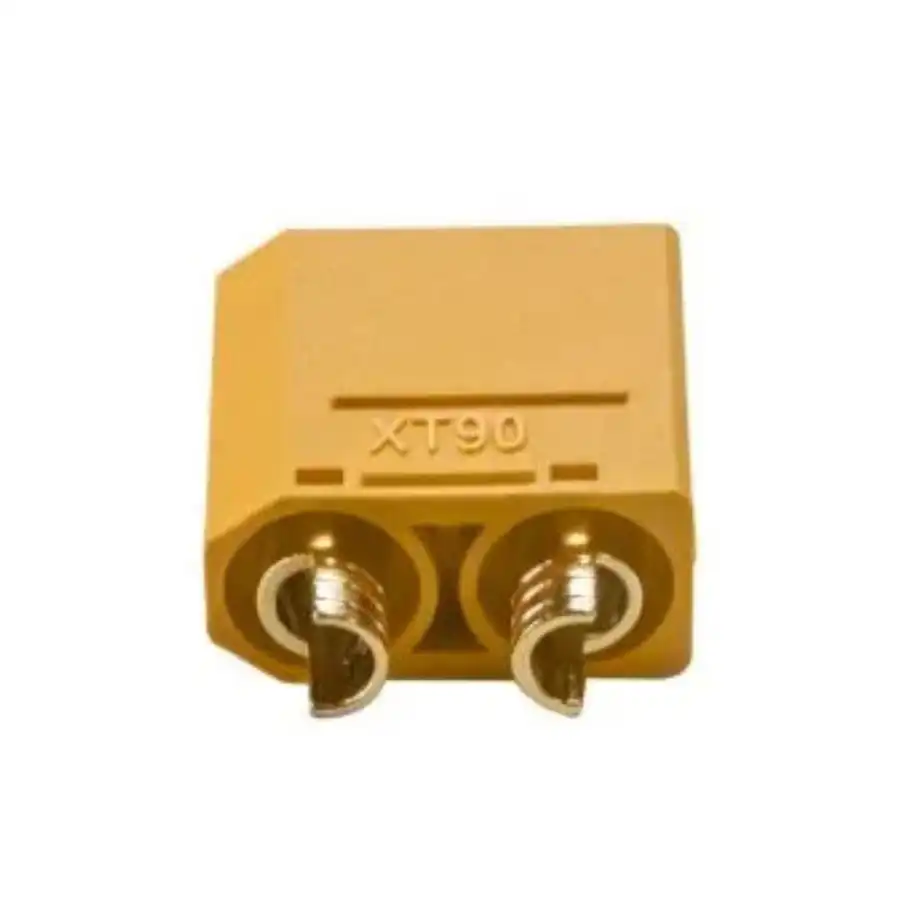

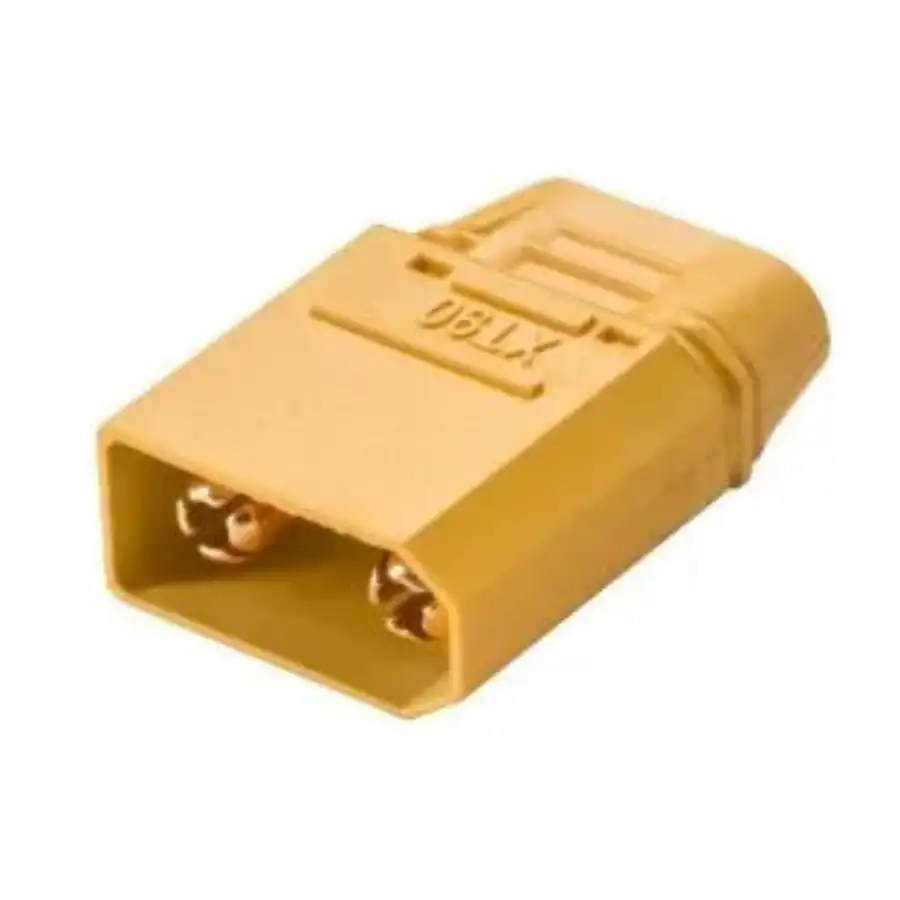

XT90 Male Connector with Housing is made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT90 ensures a solid high-amp connection, perfect for applications up to and beyond 90A constant. The XT90 offers a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market. Don’t starve your high-amp power system, switch to XT90 connectors today!
XT90 connectors have a high-temp Nylon casing that houses the gold plated spring connectors which get placed into the injection mold during the manufacturing process. Since the housing is molded around the connectors it ensures that the connectors always stay aligned so that you can quickly and easily plug in and unplug. The XT90 connectors provide a solid, high-amp connection – perfect for applications up to and beyond 90 amps!
IMPORTANT: “These are not cheaply copied XT90 plugs. These original Nylon XT90 plugs, manufactured by AMASS, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.”
Specifications and Features:
- Metal connector size: 4.5mm
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 8AWG wires
- Semicircular solder terminals make it easy to install wires
- Able to sustain 90A continuous current
Package Includes:
- 1 x XT90 Male Connector with Housing-1 pcs.
5V Power Supply Options: USB, Buck Converter, LDO
Table of ContentsUSB Power Adapters Buck Converter Modules LDO Regulators for 5V Linear vs Switching Comparison Powering Arduino...
Read More →
Multi-Chemistry Charger: NiMH, Li-Ion, and LiFePO4
A multi-chemistry charger can safely charge NiMH, Li-Ion, and LiFePO4 batteries by switching between fundamentally different charging algorithms....
Read More →
Wireless Charging Module Qi: Build a Charging Pad Project
Wireless Charging Module Qi: Build a Charging Pad Project Imagine placing your phone or any custom device on...
Read More →Technical Specifications
| Model | XT90 |
|---|---|
| Connector Type | XT90 |
| Package Quantity | 1 pcs |
| SKU | AI2071 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XT90 Male Connector with Housing-1 pcs. is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
