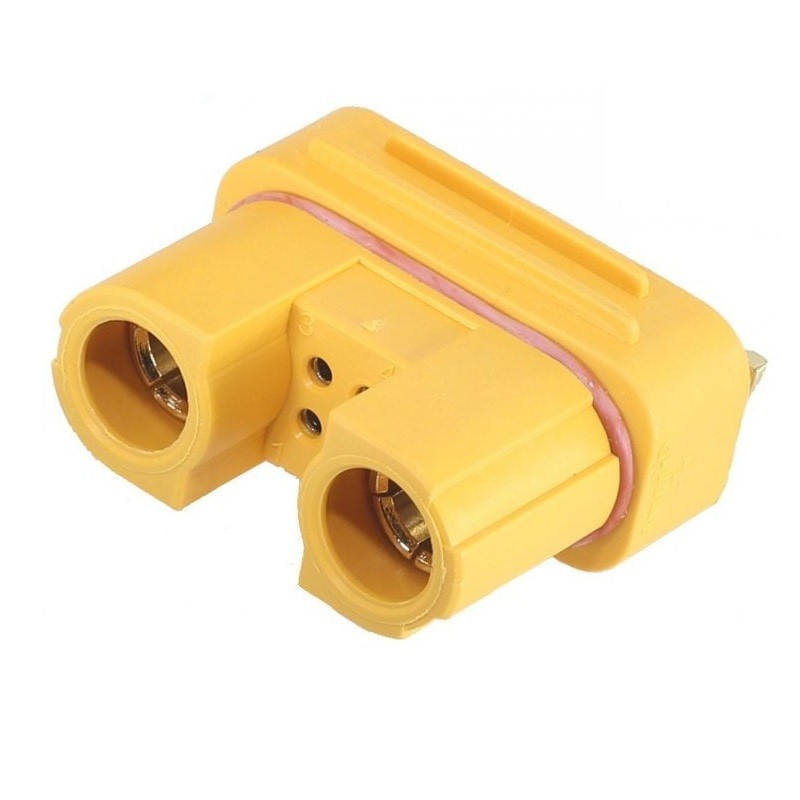

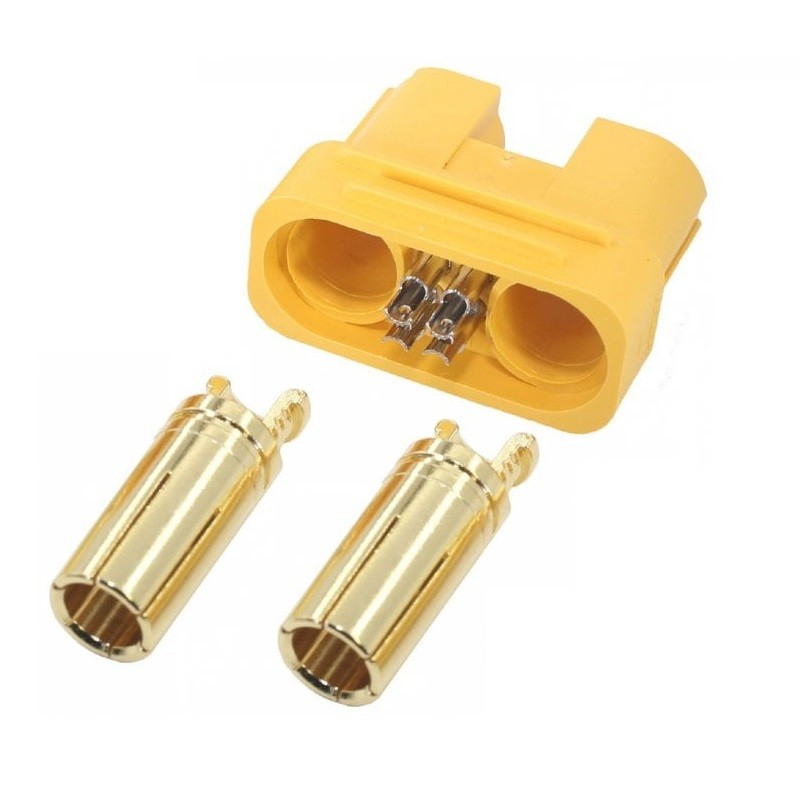

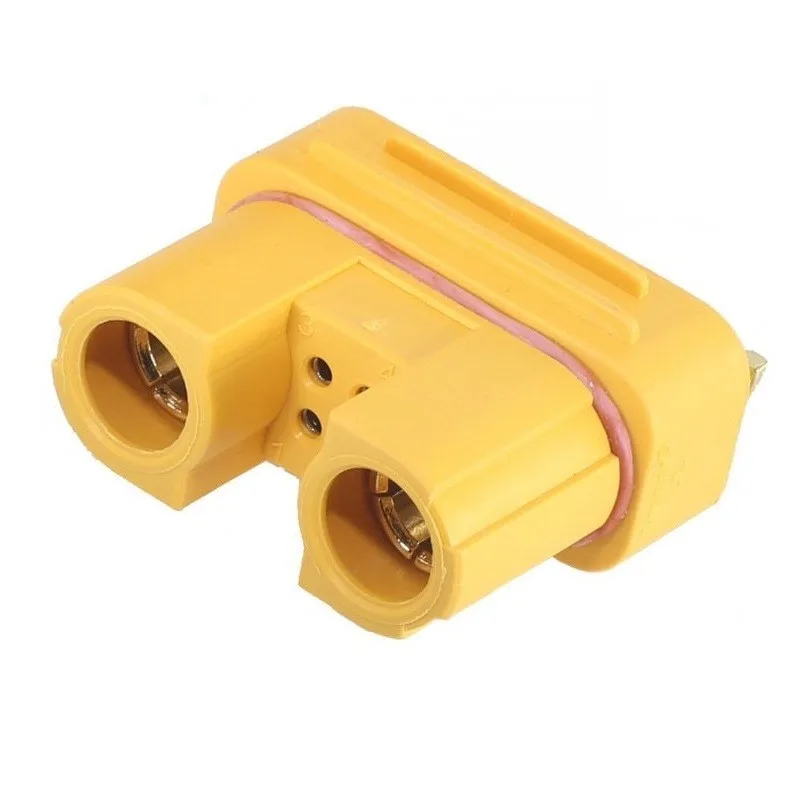

Amass AS150U Female Connector
These are Original high-quality Amass AS150U Female connectors for power and signal, 6 pins, 2 pin 150A.
The AS150U Female connector by Amass offers exceptional reliability and efficiency for your electrical connections. Engineered to deliver seamless performance even in demanding applications, this connector ensures a secure and stable connection. Trust Amass for high-quality connectors that meet your needs with precision and durability.
Suitable connectors for UAV or VTOL with motors and servos, batteries on the wings.
Features:
- Contact Material: Brass Gold-plated Copper
- Body Material: Nylon/PA
- Easy to use
- Quality product
Specifications:
| Instantaneous Current | 140A |
|---|---|
| Rated Current | 75A |
| Contact resistance | ≤0.8mΩ |
| Rated voltage | DC 500V |
| Flame Retardant Rating | UL94 V0 |
| Recommended Use | Lithium Battery, Controller, Charger |
| Metal Material | Copper Plating |
| Recommended wire gauge | 8 AWG |
| Insulation Material | PA6 |
| Operating Temperature | -20°C to 120°C |
Package Includes:
1 x Amass AS150U Female Connector (Original)
