Product Description

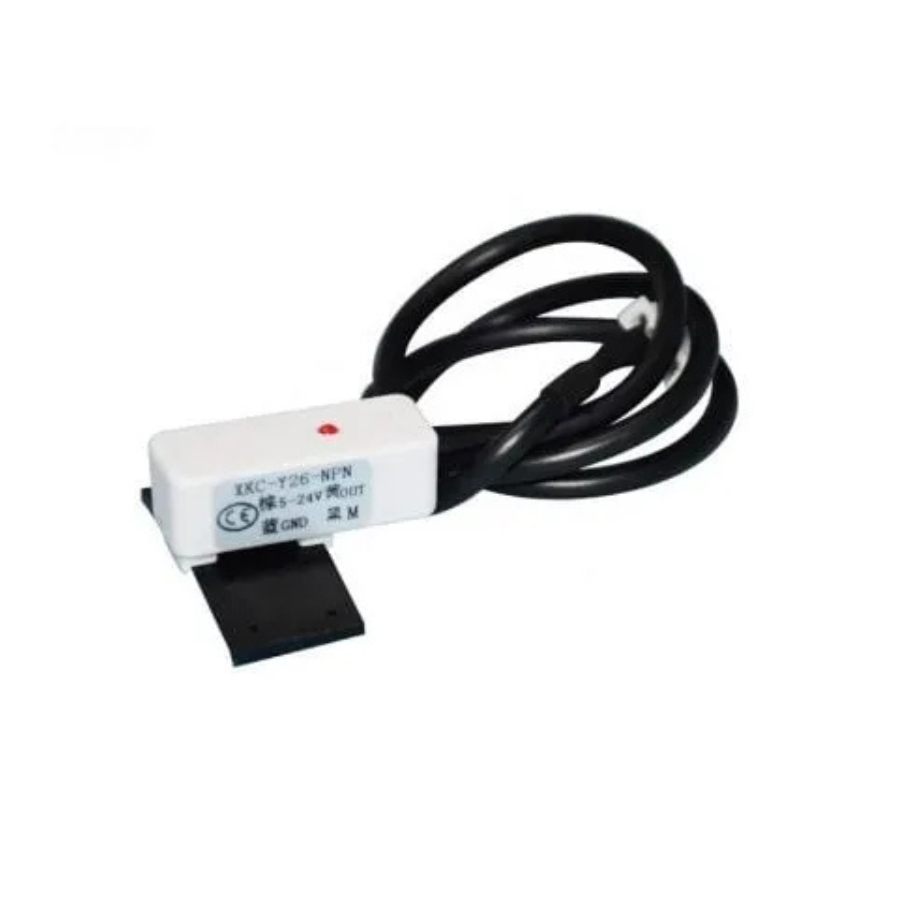

This is a XKC-Y26 NPN 24V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM.
This sensor uses advanced signal processing technology and a high-speed signal processing chip to detect the liquid level in an airtight container without being affected by the thickness of the container wall. The sensor can be installed under the container (at high or low level) without drilling holes in non-metallic containers. It is easy to install and versatile. It can measure the liquid level of various toxic, acidic, alkaline, and high-pressure liquids in sealed containers. It does not have any special requirements for the liquid medium or the container material.
Applications:
- Water tower
- Sewage treatment
- Drone irrigation
- Medical equipment
- Aquarium
- Smart Appliances

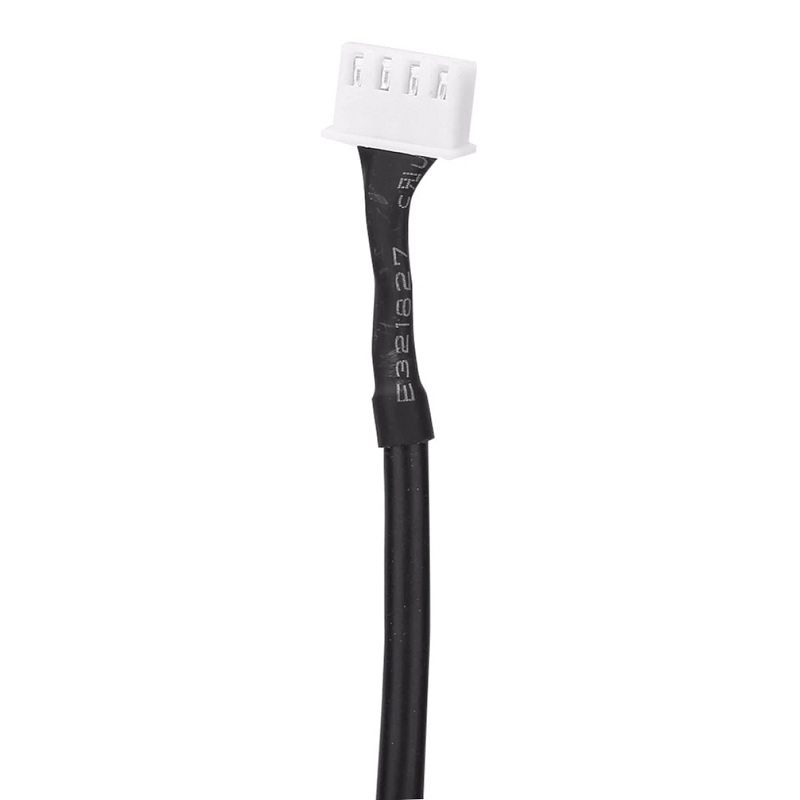

Pin connections:
- Brown wire- 24V
- Blue wire – Ground
- Yellow wire – Buzzer negative (Buzzer positive connected to Vcc)
- Black wire – NC/NO
Features:

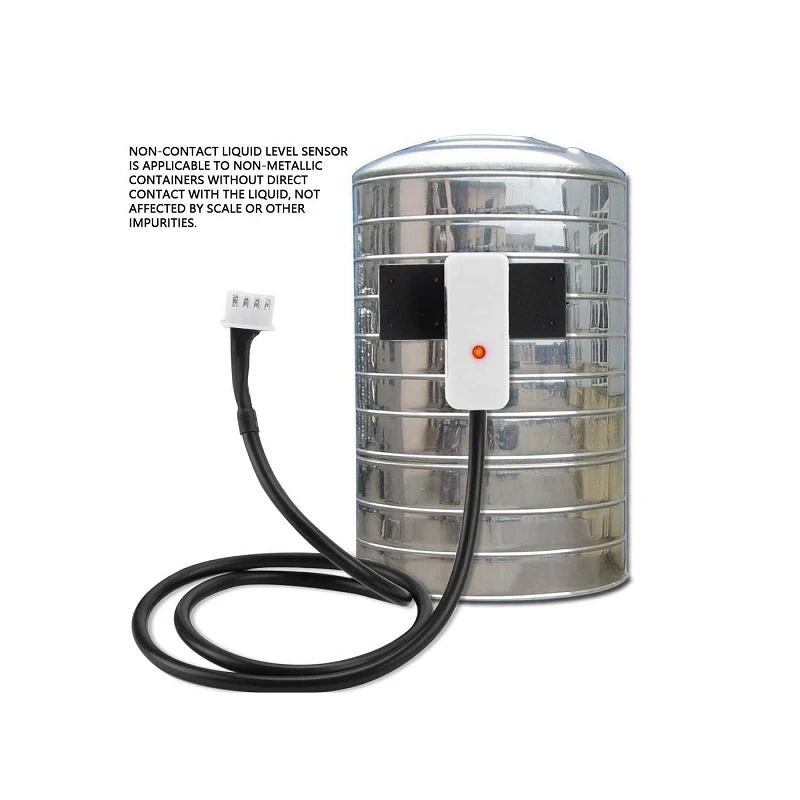

- The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
- High stability, high sensitivity.
- Compatible with most 24V power adapters.
Specification:
| Model | XKC-Y26 NPN |
|---|---|
| Input Voltage (V) | 24 |
| Max Output Current (mA) | 1~100 |
| Response Time | 500mS |
| Operating Temperature Range (°C) | 0~85 |
| Working Humidity Range | 5~100% |
| Material | ABS |
| Cable Length (cm) | 49 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
Package Includes:

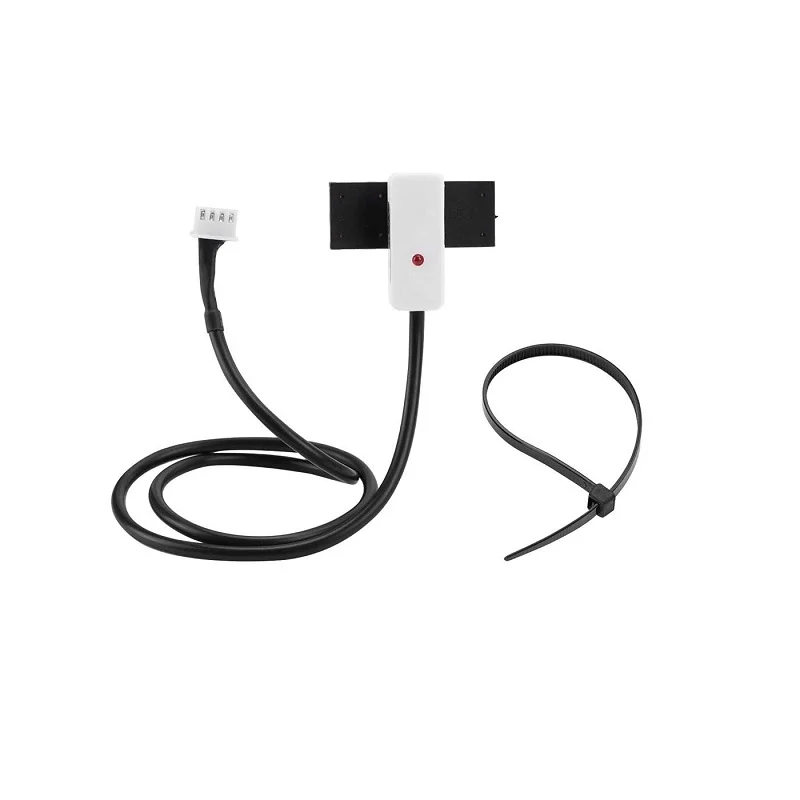

1 x XKC-Y26 NPN 24V 50CM Intelligent Non-Contact Liquid Level Sensor
