This is the 5mm variant of the XH-A 2.5mm 3 pin Wafer Male Connector DIP Straight in Male Pin Connector. Available at ₹0.71 (₹0.60 + GST) with free shipping across India.

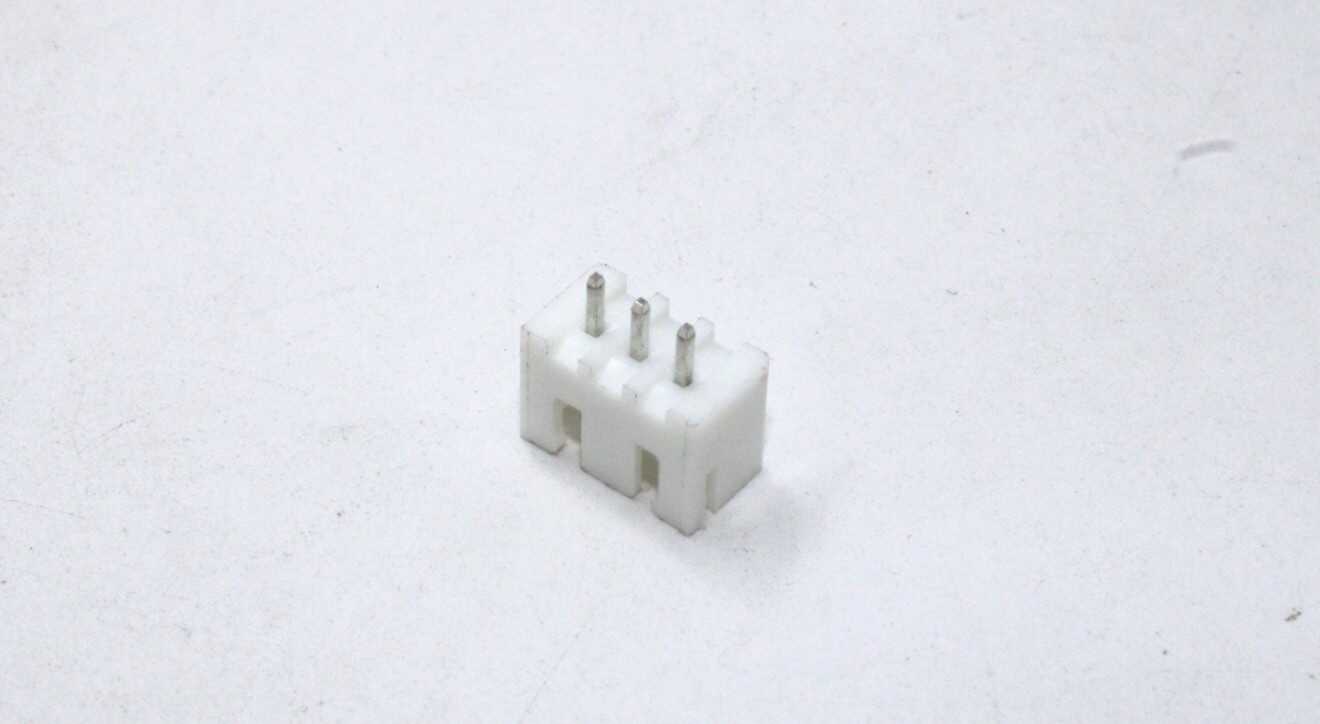

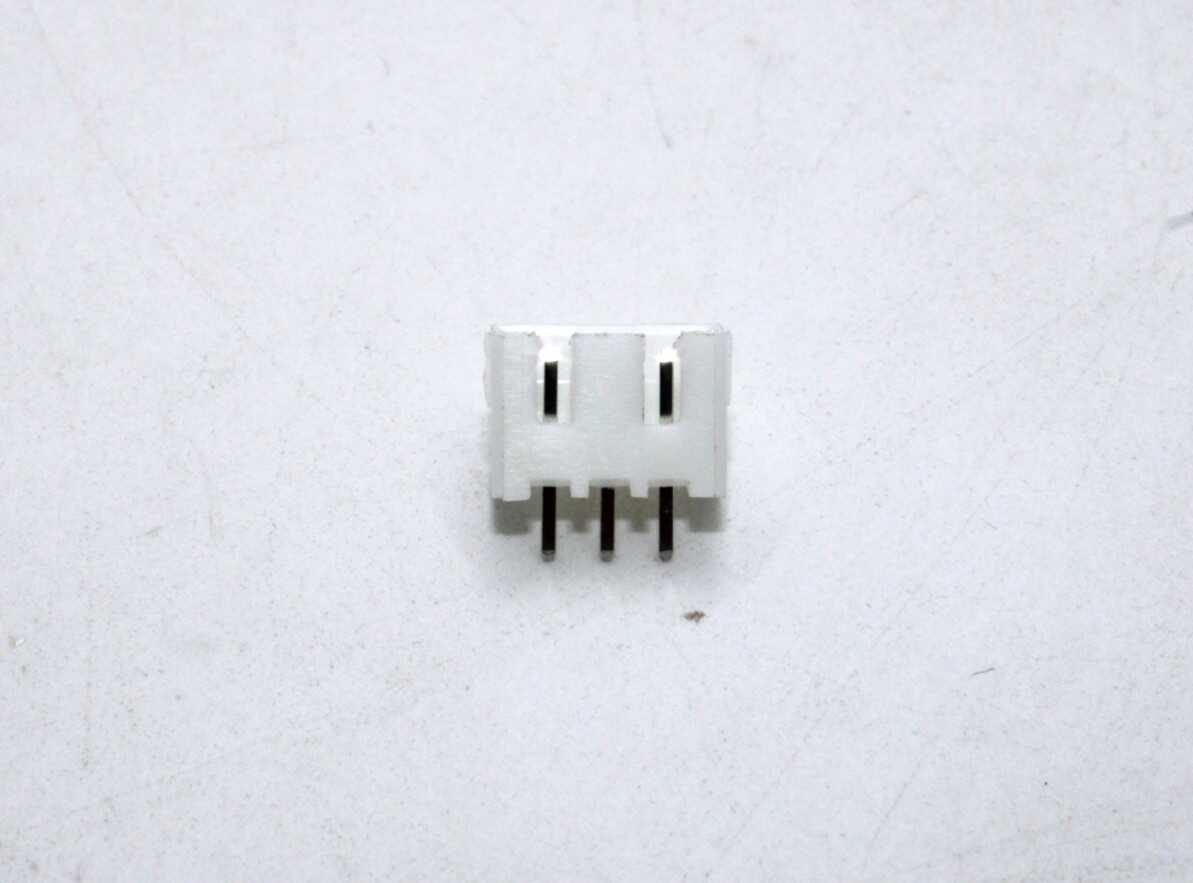

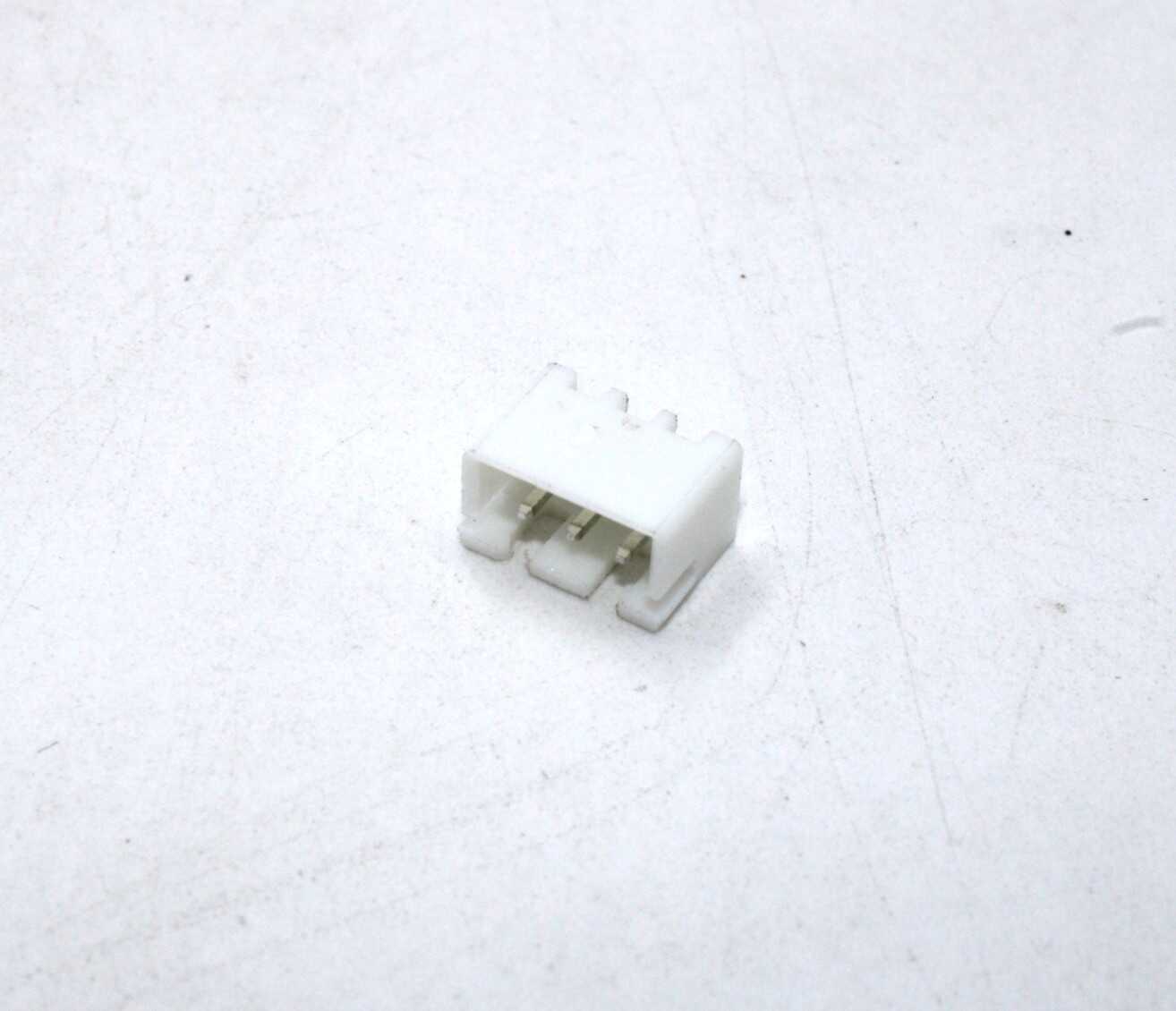

The XH-A 2.5mm 3 pin Wafer Male Connector DIP Straight, part of Boyu’s XH-A series, features a through-hole design with a straight orientation. With a maximum rated current of 3A AC/DC and a rated voltage of 250V AC/DC, this connector ensures reliable and efficient electrical connections. It offers a contact resistance of 20MΩ and an insulation resistance of 1000MΩ, making it ideal for various applications. The connector is designed to operate within a temperature range of -25 to 85°C, ensuring optimal performance in diverse environments.
Specifications :
| Manufacturer: | Boyu |
|---|---|
| Rated Current (A) | 3A AC, DC |
| Rated Voltage (V): | 250V AC, DC |
| Contact Resistance | 20mΩ |
| Insulation Resistance (MOhm) | 1000 |
| Operating Temperature (°C) | -25 to 85 |
Features:
- XH-A-2.5mm-3 pin Wafer Male Connector.
- Brand: Boyu, MPN: XH-A.
- Through-hole design with a straight orientation.
- Rated Current: 3A AC/DC.
- Rated Voltage: 250V AC/DC.
- Contact Resistance: 20MΩ.
- Insulation Resistance: 1000MΩ.
- Temperature Range: -25 to 85°C.
Package Includes:
1 x XH-A-2.5mm-3 pin Wafer Male Connector Through Hole Straight.
Technical Specifications
| Size | 2.5mm |
|---|---|
| Pin Count | 3-pin |
| SKU | AI6463 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The XH-A 2.5mm 3 pin Wafer Male Connector DIP Straight is a versatile male pin connector used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
