Looking for Xf5806 Switch? Xf Model xf5806 5.8g 40ch 25/100/200/400mw Video Switchable FPV VTX Transmitter is available at Zbotic with fast shipping across India.
Xf5806 Switch – Product Description
- Xf model xf5806 5.8g 40ch 25/100/200/400mw video Switchable FPV VTX transmitter
Features:
- Material: Composite Material
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Connectors/Wiring
- Use: Vehicles & Remote Control Toys
- Remote Control Peripherals/Devices: Receivers
- For Vehicle Type: Airplanes
- Four-wheel Drive Attributes: Assemblage
Package Includes :
- 1 x Video Switchable FPV VTX Transmitter
Xf Model xf5806 5.8g 40ch 25/100/200/400mw Video Switchable Overview

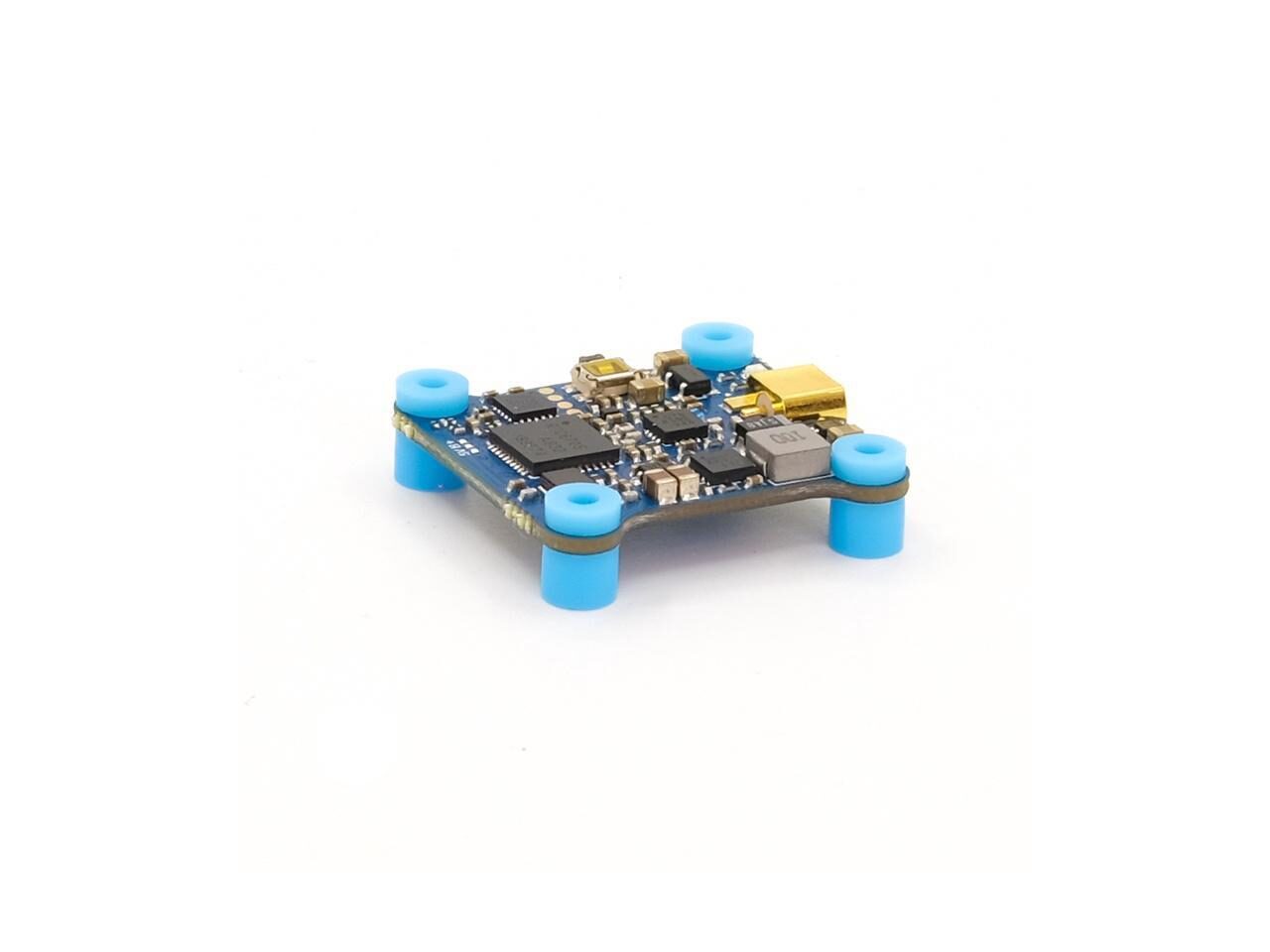

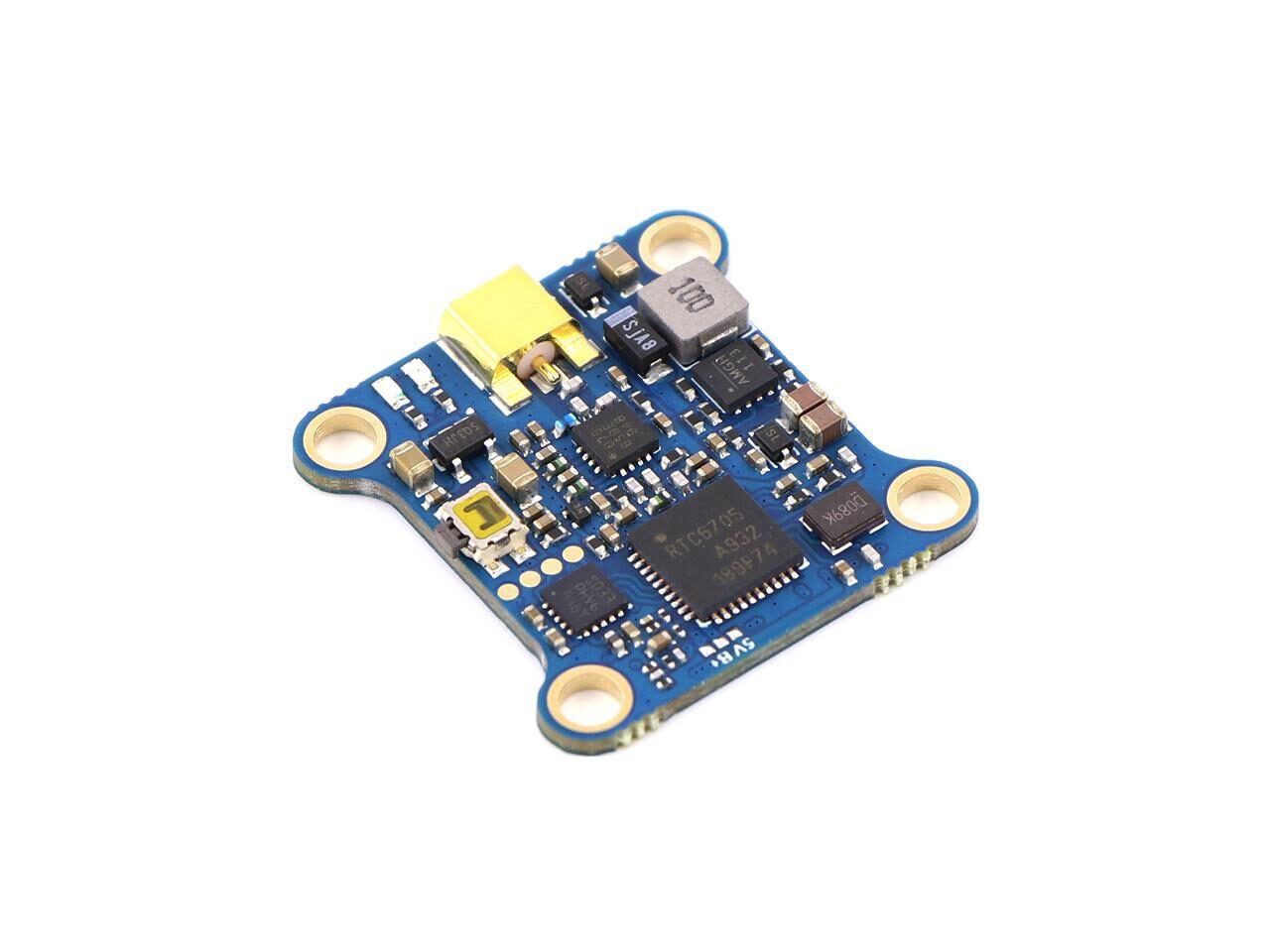

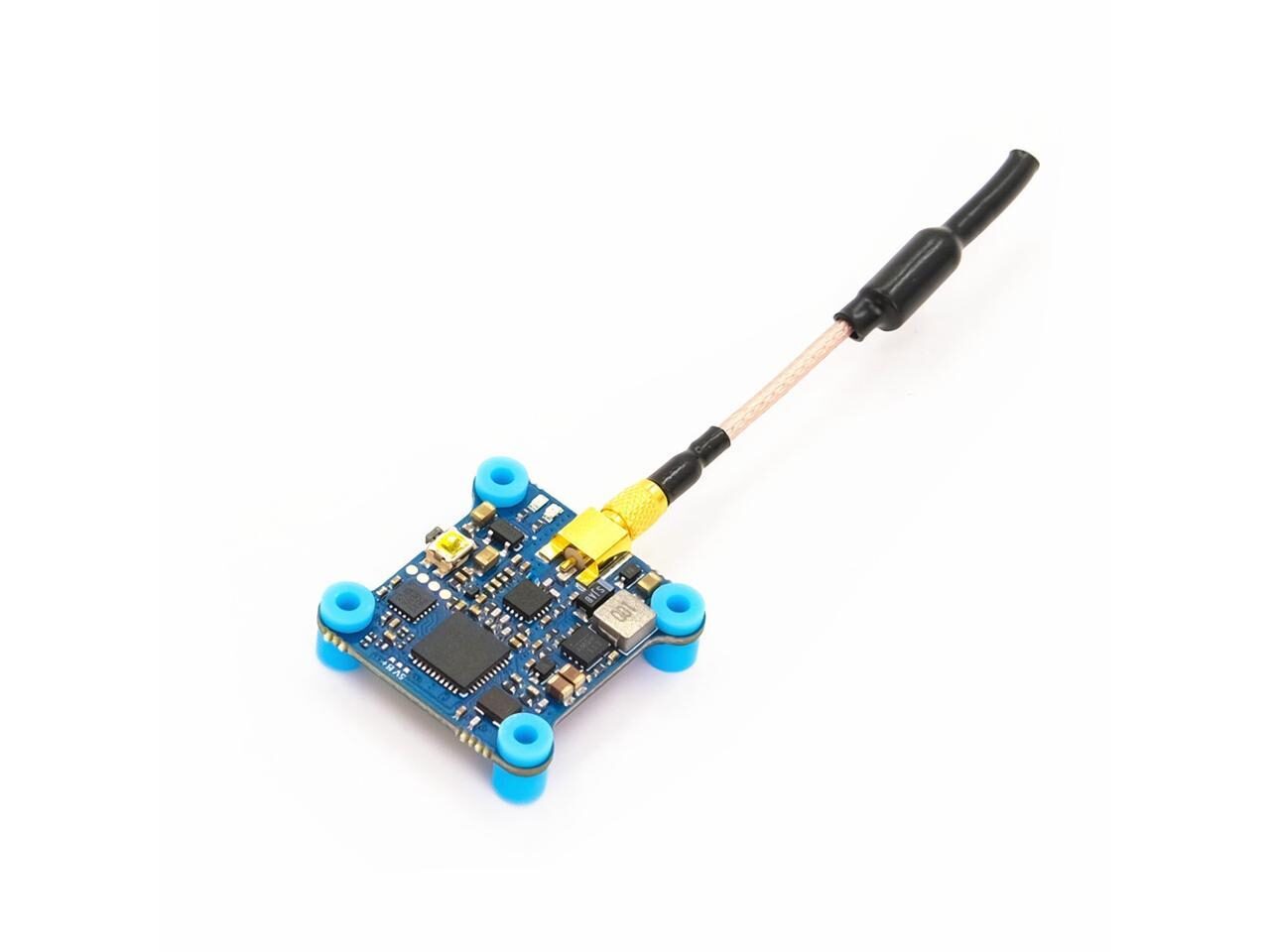

The Xf Model xf5806 V2 is a compact 5.8 GHz FPV video transmitter designed for racing and freestyle drones. It offers 40 adjustable channels and four switchable output power levels (25/100/200/400 mW) to suit beginners and long-range pilots alike.
Key Features of Xf Model xf5806 5.8g 40ch 25/100/200/400mw Video Switchable
- Wide input range 7–26 V (2–6S LiPo) with onboard 5 V BEC for camera power
- 40 channels covering all standard FPV bands (A/B/E/F/R)
- Switchable output power: 25, 100, 200, 400 mW to balance range and battery life
- Supports both PAL and NTSC video formats for global compatibility
- TBS SmartAudio V2 protocol for in-flight channel and power adjustments
- MMCX antenna connector and solder-pad wiring for a secure, low-profile installation
- 20 × 20 mm mounting holes fit most FPV frames
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- FPV racing drones requiring quick channel and power changes
- Long-range freestyle flights where variable output is critical
- Fixed-wing RC airplanes with limited space and weight budget
- DIY FPV goggleground stations and test benches
- FPV photography rigs that switch between low and high power on the fly
How to Use Xf Model xf5806 5.8g 40ch 25/100/200/400mw Video Switchable
Solder your battery voltage (7–26 V), ground and camera video signal to the designated pads, then mount the VTX using its 20 × 20 mm holes. Connect the MMCX antenna, power on your flight controller and use TBS SmartAudio V2 commands via OSD or a compatible transmitter to select channels and adjust output power. Ensure proper cooling and antenna clearance during operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I switch channel and power levels?
Use TBS SmartAudio V2 commands through your flight controller’s OSD or a compatible radio transmitter to cycle through all 40 channels and select between 25, 100, 200 or 400 mW output.
What mounting options are available?
The xf5806 features standard 20 × 20 mm mounting holes compatible with most FPV frames. Its lightweight composite housing and MMCX connector make antenna changes straightforward.
Can I power the VTX directly from my LiPo battery?
Yes. The transmitter accepts 7–26 V input (2–6S LiPo) and provides a regulated 5 V BEC output to power your FPV camera or other low-voltage accessories.
FPV Freestyle Tricks Tutorial: Rolls, Flips and Split-S
FPV Freestyle Tricks Tutorial: Rolls, Flips and Split-S FPV freestyle is one of the most exciting forms of...
Read More →
How to Build a Long Range FPV Wing (DIY Guide India)
How to Build a Long Range FPV Wing (DIY Guide India) Long range FPV fixed wing flying is...
Read More →
Drone Blackbox Analysis: Debug Crashes and Tune PIDs
Table of Contents Understanding Drone Blackbox Analysis Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Channels | 40-channel |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI1269 |
| Weight | 0.012 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Xf Model xf5806 5.8g 40ch 25/100/200/400mw Video Switchable FPV VTX Transmitter is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
