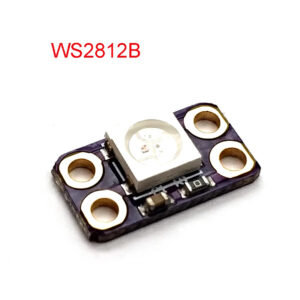

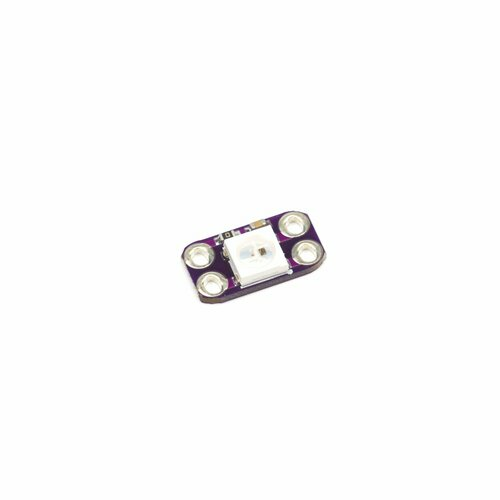

WS2812B RGB LED Module 4pin

Product description:

WS2813B is a set of control circuit and light-emitting circuit in one intelligent external control LED light source. Its appearance and a 5050LED lamp beads the same, each component is a pixel. The pixel contains intelligent digital interface data latch signal shaping amplifier driver circuit, also includes a high-precision internal oscillator and 12V high-voltage programmable current control section, effectively ensure the color of the pixel light of the same height.

Data protocol using single-line return to zero code communication, pixel reset after power-on, DIN side to accept the data transmitted from the controller, first sent over 24bit data is extracted by the first pixel, sent to the internal pixel Data latches, the remaining data through the internal plastic processing circuit plastic amplification amplified through the DO port output forwarded to the next cascade of pixels, each passing a pixel transmission, the signal is reduced by 24bit. Pixels using auto-shaping forwarding technology, making the number of pixels cascaded from signal transmission restrictions, only the limited signal transmission speed requirements.

LED with low-voltage drive, environmental protection and energy saving, high brightness, scattering angle, consistency, low power, long life and so on. The control circuit integrated in the LED above, the circuit has become more simple, small size, easier to install.

Main feature:

● Intelligent reverse polarity protection, reverse power supply will not damage the IC.

● IC control circuit and LED light source share a power supply.

● Control circuit and RGB chip integrated in a 5050 package of components, constitute a complete external control pixel.

● Built-in signal shaping circuit, any one pixel after receiving the signal after the waveform shaping and then output to ensure that the line waveform distortion will not be accumulated.

● Built-in power-on reset and power-down reset circuit.

● Each pixel of the three primary colors can achieve 256 brightness display 16,772,716 colors to complete the true color display, the scanning frequency of not less than 400Hz / s.

● Serial cascade interface, through a signal line to complete the data reception and decoding.

● Any two-point transmission distance of no more than 5 meters without adding any circuit.

● When refresh rate is 30 frames per second, the number of concatenation is not less than 1024.

● Data transmission speed up to 800Kbps.

● The color of light is highly consistent and cost-effective.
