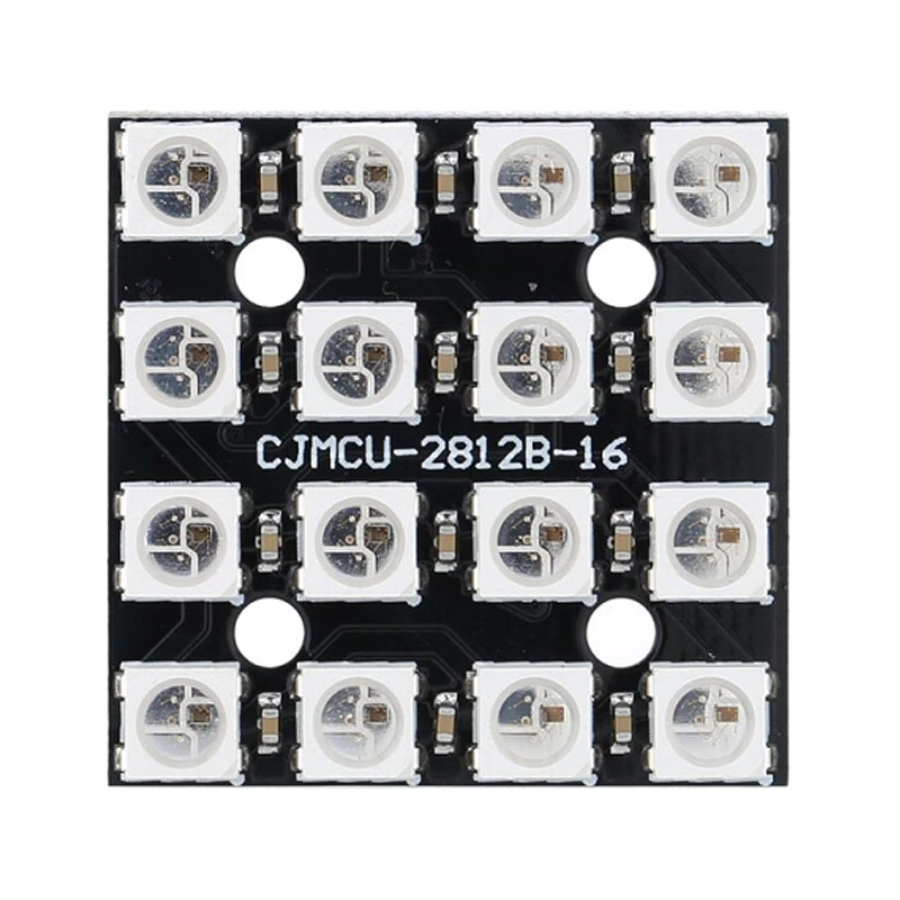

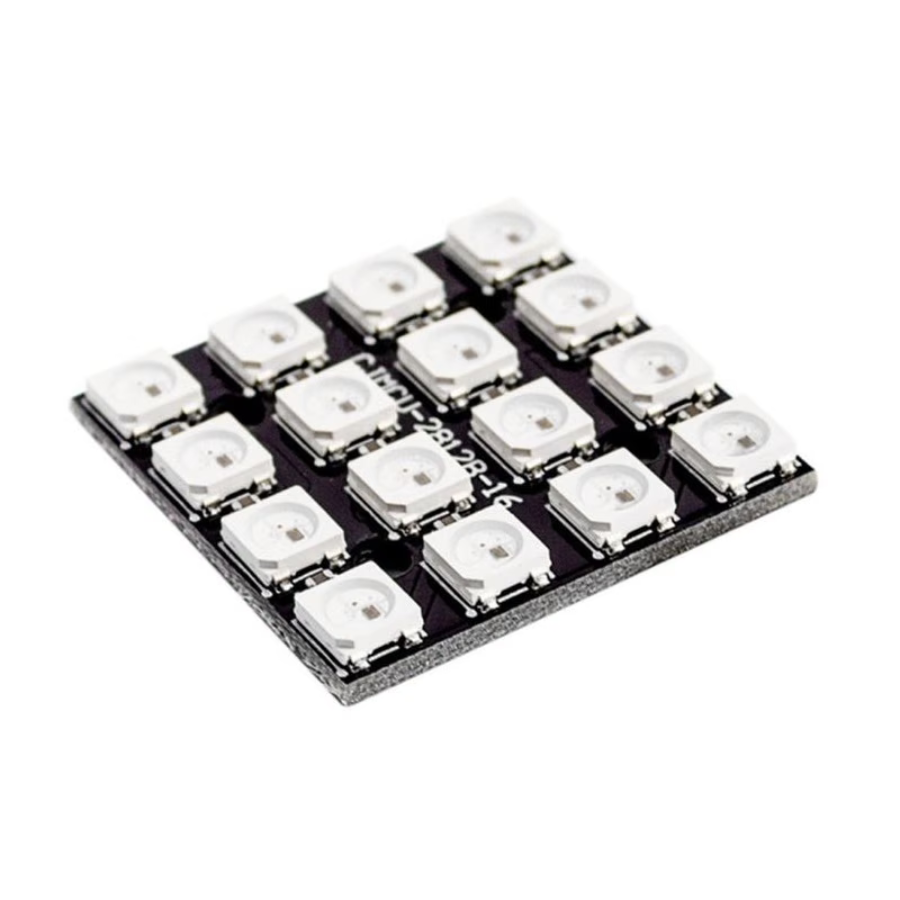

WS2812B 4×4 RGB LED Module

PRODUCT DESCRIPTION

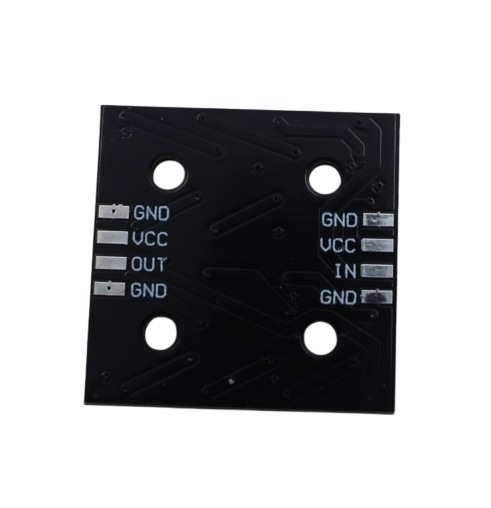

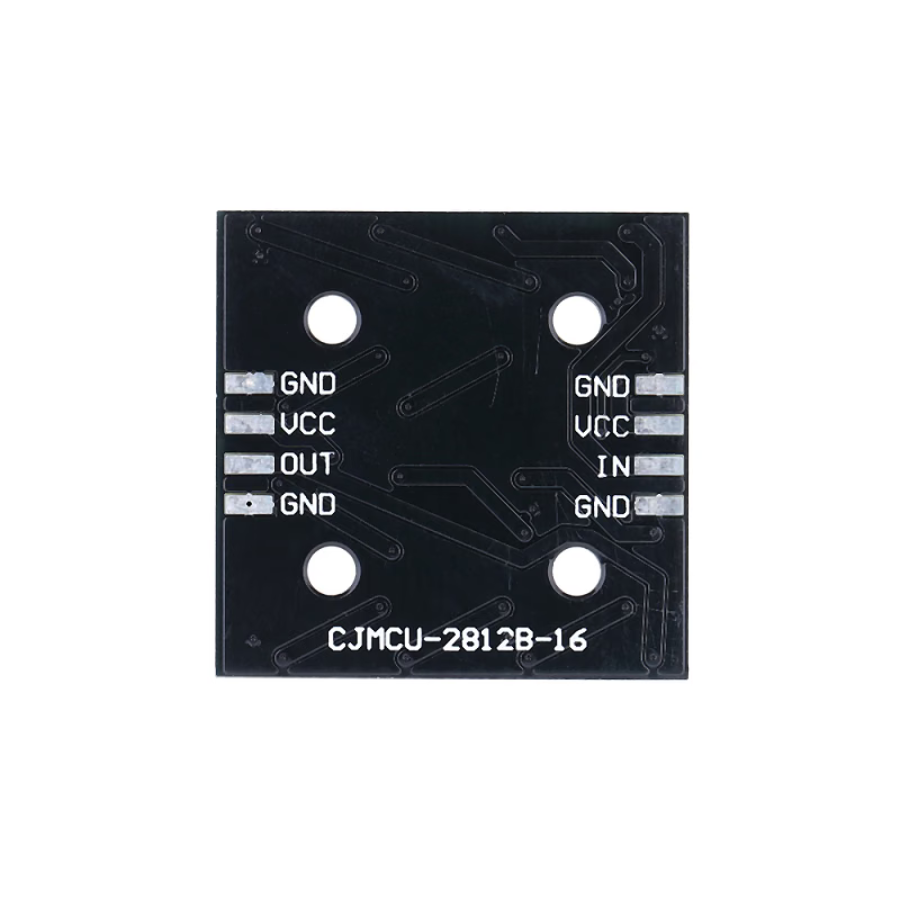

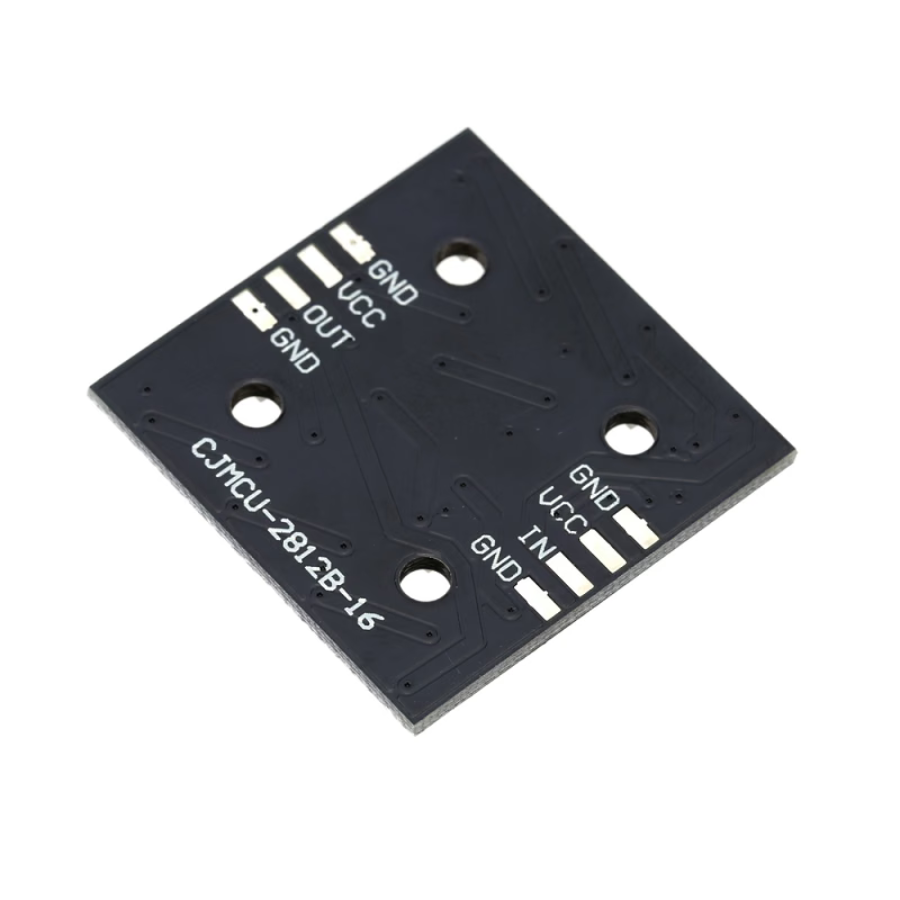

The WS2812B 4 x 4 RGB LED Module is a circular board featuring built-in full-color lights and a sleek black design. It boasts 16 ultra-bright smart NeoPixels LEDs arranged on a circular PCB with a 68mm outer diameter. These RGB ring lights are designed for easy connection, allowing one’s output pin to cascade to another’s input pin (DI-DO).

With this setup, a single chip can control numerous LED lights, as each one has an integrated driver chip, rendering it both intelligent and addressable. Each LED operates on a constant current drive of 18mA, ensuring consistent color even with voltage fluctuations. The absence of a need for an external resistor to limit current streamlines the RGB ring’s design, making it slim, simple, and user-friendly. The RGB ring operates on a 5V power supply.

The single wire communication alleviates the load on the I/O port, while the RGB WS2812B driver chip reduces the circuitry to just one capacitor, enhancing the overall experience. Additionally, this RGB ring can be linked to other RGB lamps with the same chip via a straightforward Dout input port, free from shape constraints.

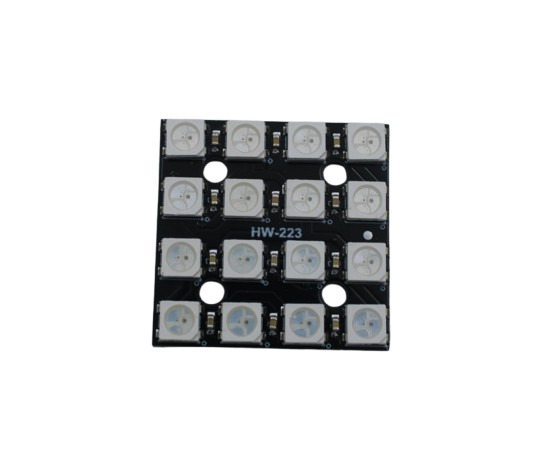

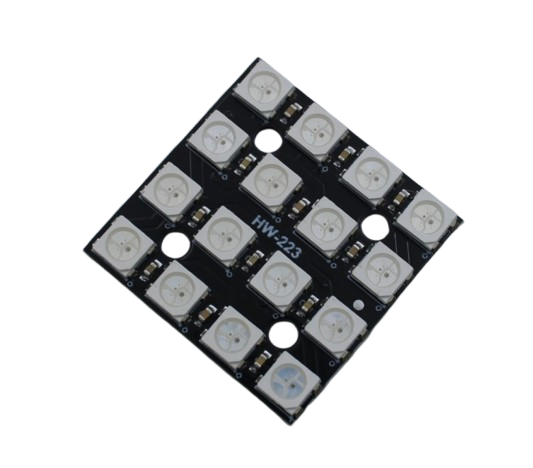

Note : HW-223 printed on module functionality remains same.

Features:

1. The LED and the control circuit have a common power source.
2. The control circuit and the RGB chip are integrated into a 5050 component package, which allows for complete pixel control.
3. The built-in signal reshaping circuit ensures that the wave-form distortion does not accumulate after passing to the next driver.
4. The built-in electric reset circuit and the power lost reset circuit prevent errors due to power fluctuations.
5. Each pixel of the three primary colors can achieve 256 brightness levels, resulting in 16M colors for full-color display, and the scan frequency is at least 400Hz/s.
6. The cascading port transmits the signal by a single line.
7. The transmission signal does not require any additional circuit for distances greater than 5m between any two points.
8. The cascade number is at least 1024 points when the refresh rate is 30fps.
9. The data transmission speed is 800Kbps.
10. The light color is highly consistent.
11. The module is a full-color soft light strip.
12. The LED can be used for decorative lighting, indoor/outdoor LED video screens with irregular shapes.

Specification:

Package Includes:

1 x WS2812B 4 x 4 RGB LED Module
