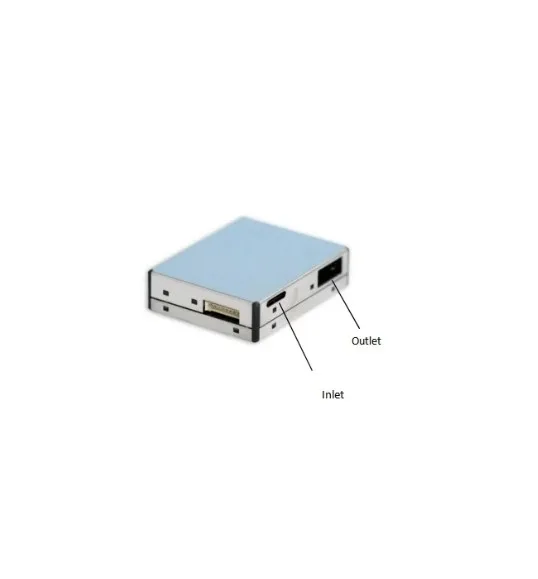

Winsen ZH06 Laser Dust Sensor

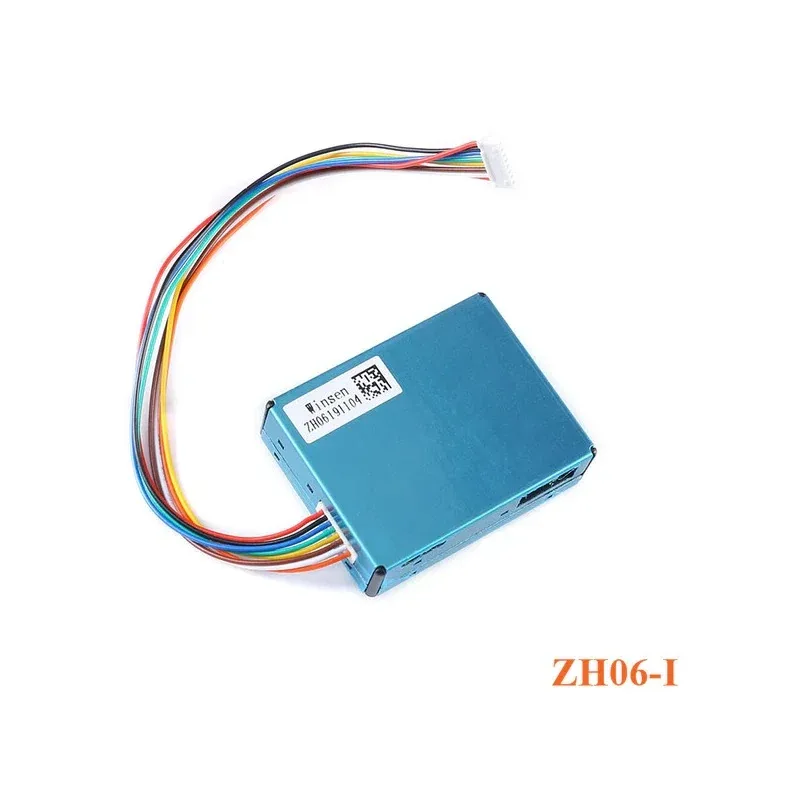

Winsen ZH06 – I Laser Dust sensor module is a compact and reliable sensor that uses laser scattering to measure the dust particles in the air. It has consistent and stable performance and supports UART & PWM output modes. It is simple to operate and suitable for various applications.
Applications:
Air purifiers, ventilation systems, portable instruments, air quality monitoring equipment, air conditioner, and smart home fields.
The Winsen ZH06 Laser Dust Sensor is a compact air quality sensor that uses laser scattering to detect particulate matter concentrations of PM1.0, PM2.5 and PM10. Designed for stable performance and low power consumption, it provides both UART and PWM outputs for integration into air purifiers, HVAC systems, portable monitoring devices and more.
Key Features of Winsen ZH06 Laser Dust Sensor
Measures PM1.0, PM2.5 and PM10 simultaneously for comprehensive air quality analysis
Laser scattering technology delivers accurate concentration data with real-time response
Dual communication modes: UART for digital data and PWM for analog-style signals
Low power operation at 4.9V to 5.5V, ideal for battery-powered applications
Particle resolution down to 0.3 μm for detecting fine dust
Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
Air purifiers and filtration systems for home and office environments
HVAC and ventilation control to maintain indoor air quality
Portable handheld monitors for field testing pollution levels
Smart home integrations for automated air quality alerts
Industrial safety equipment for workplace dust monitoring
How to Use Winsen ZH06 Laser Dust Sensor
Connect the ZH06 – I sensor to a 5V power supply (4.9–5.5V range), then interface with your microcontroller via UART (TX/RX) or read PWM output through an analog input pin. Mount the sensor in a location with unobstructed airflow, allow a 30-second warm-up for the laser to stabilize, then begin polling particle concentration values at desired intervals.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What particle sizes can the ZH06 detect?
The Winsen ZH06 Laser Dust Sensor measures particulate matter in three size ranges: PM1.0, PM2.5 and PM10, with a minimum detectable diameter of 0.3 μm.
Which output interfaces are available on this sensor?
This model offers both UART (serial digital data) and PWM (pulse-width modulated analog signal) outputs, allowing flexible integration with microcontrollers and data loggers.
What supply voltage does the ZH06 require?
The sensor operates reliably within a 4.9V to 5.5V supply range, drawing low current suitable for battery-powered and always-on air quality monitoring systems.
The Winsen ZH06 Laser Dust Sensor is a versatile gas and dust sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
Building a gas leak alarm for LPG/methane
Monitoring indoor air quality (CO2, VOC)
Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
