Description:

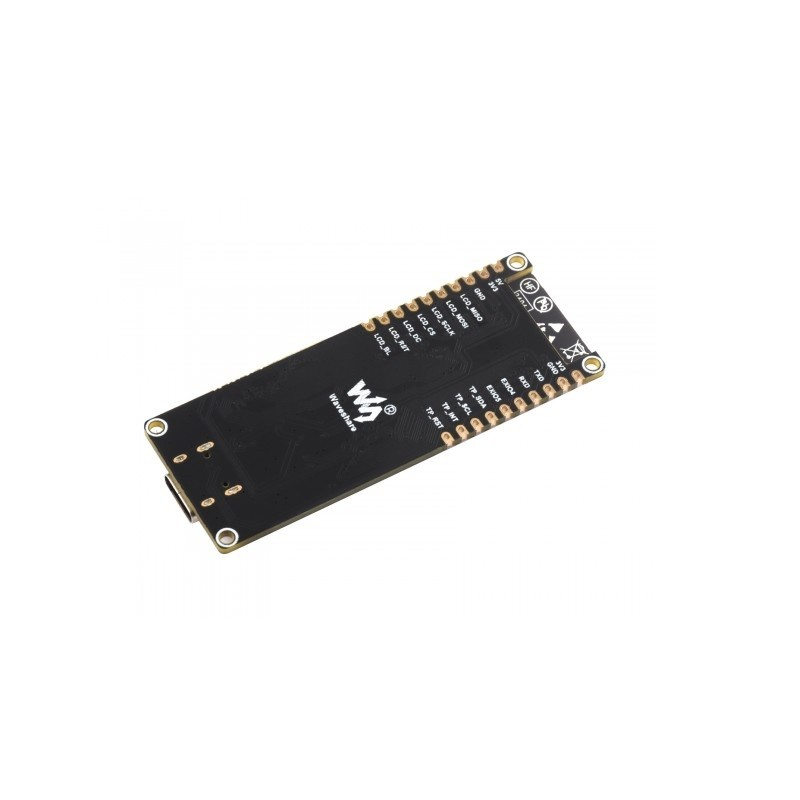

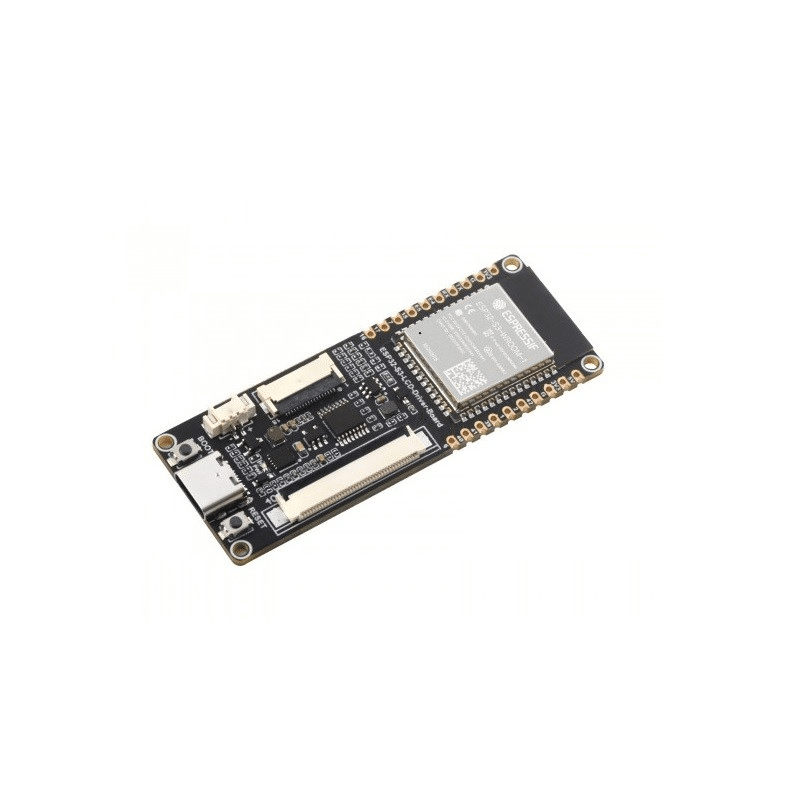

The ESP32-S3-LCD-Driver-Board is a compact-size microcontroller development board with 40Pin 3SPI+RGB565 and 18Pin SPI LCD connectors.
Adopts ESP32-S3-WROOM-1-N8R8 module, which is equipped with Xtensa 32-bit LX7 dual-core processor with 240MHz running frequency, built-in 512KB SRAM (TCM) and 8MB PSRAM; Onboard ETA6096 high-efficiency Lithium battery recharge manager and MX1.25 lithium battery header, adapting 20pin GPIO header which is compatible with 18Pin SPI screen. Supports expanding various peripheral devices and is easy to use.
You can choose Arduino-IDE, ESP-IDF, or other development environments in software so that you can easily and quickly get started and apply it to the product.
Features:
- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz.
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory.
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use.
- Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability.
- Onboard Lithium battery recharge manager ETA6096 and MX1.25 lithium battery header.
- Castellated module allows soldering direct to carrier boards.
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios.
Specification:
| USB | Type-C connector |
|---|---|
| Model Name | 32-bit LX7 dual-core processor, ESP32-S3-WROOM-1-N8R8 |
| Clock Speed | 240 MHz |
| Flash Memory: | 8MB |
Package Includes:
- ESP32-S3-LCD-Driver-Board x1
- 20pin male pinheader (yellow) x1
ESP32 Troubleshooting: Boot Loop, Brownout and Flash Fix
ESP32 troubleshooting boot loop brownout flash errors are among the most frustrating experiences for IoT developers and hobbyists...
Read More →
ESP32-S3 Complete Guide: Features, Pinout and Projects
ESP32-S3 Complete Guide: Features, Pinout and Projects The ESP32-S3 is Espressif's most powerful single-chip IoT solution — a...
Read More →
Blynk 2.0 vs Thingspeak: IoT Dashboard Comparison 2026
Choosing between Blynk 2.0 and ThingSpeak for your IoT dashboard is one of the first decisions every ESP32...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 240MHz |
| Package Quantity | 7 pcs |
| Color | Blue |
| SKU | AI7632 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The WaveshareESP32-S3 RGB LCD Driver Board, 32-bit 240MHz LX7 Dual-Core Processor, 8MB PSRAM and Flash, WiFi & Bluetooth Support, Optional for RGB Touch Display Module is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
