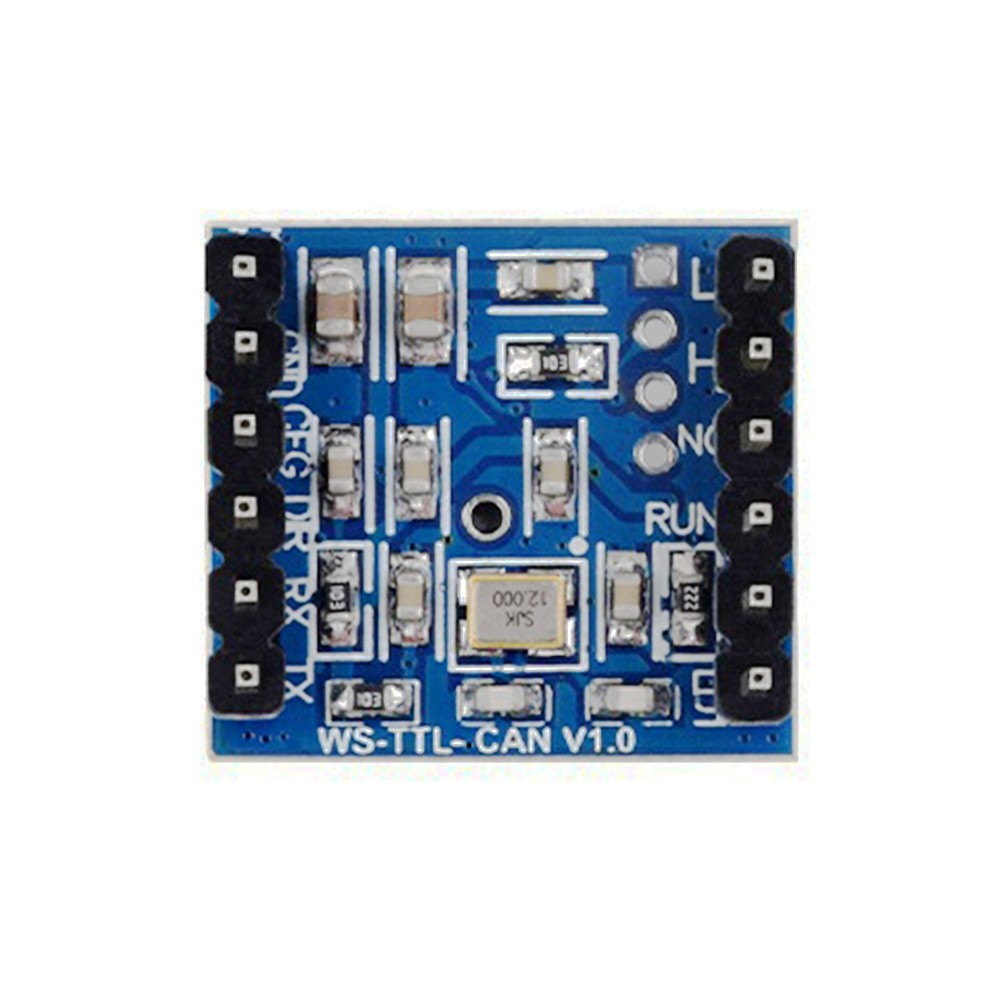

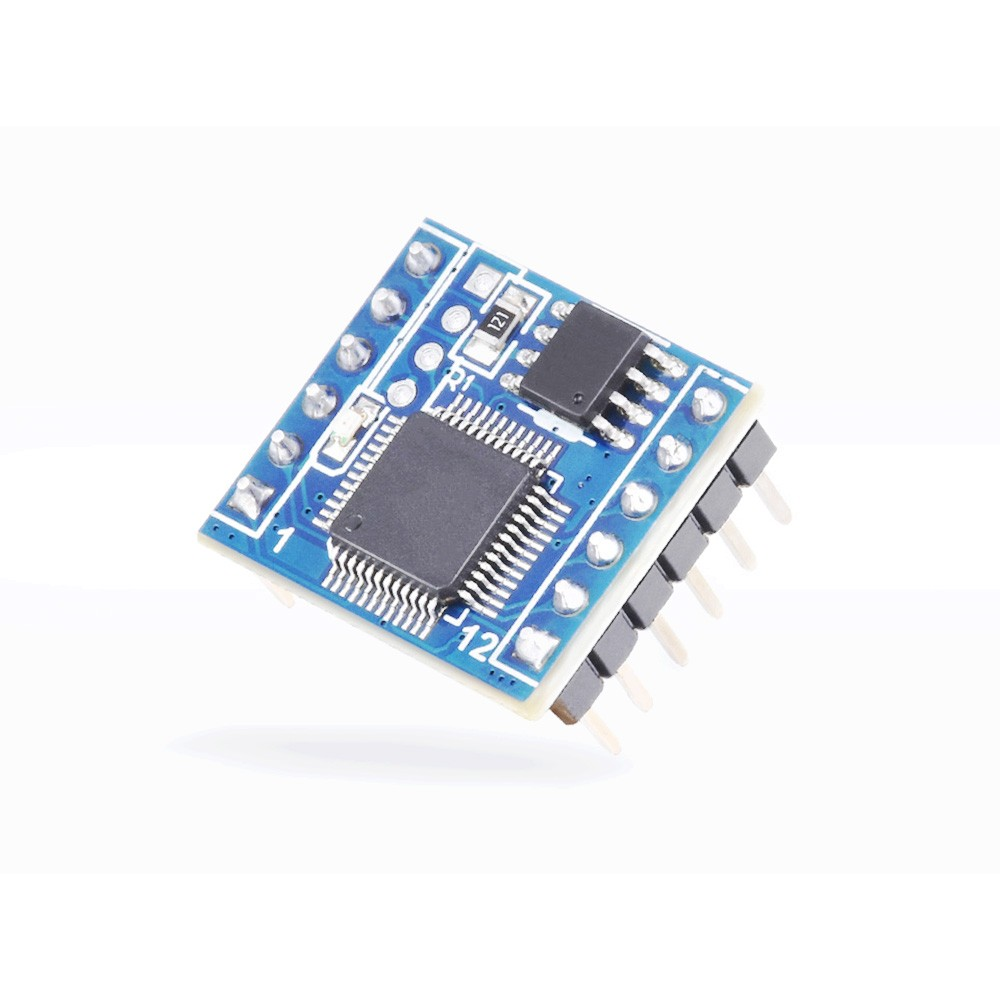

WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration.
Features:
- Support the bidirectional data communication between CAN and TTL.
- The device parameters are configurable through TTL.
- ESD Protection, Anti-surge Protection, Excellent EMC Performance.
- 14 groups of configurable filters.
- Four operation modes: transparent conversion, transparent conversion with identifiers, format conversion, and Modbus RTU protocol conversion.
- Offline detection and automatic recovery functionality.
- Compliance with CAN 2.0B specifications, compatible with CAN 2.0A; complies with ISO 11898-1/2/3 standards.
- Baud rate range: 10kbps ~ 1000kbps.
- CAN buffer capacity of 1000 frames to prevent data loss.
- High-speed conversion: At a serial port baud rate of 115200 and CAN rate of 250kbps, the CAN sending speed can reach up to 1270 extended frames per second (close to the theoretical maximum of 1309). At a serial port baud rate of 460800 and CAN rate of 1000kbps, the CAN sending speed can exceed 5000 extended frames per second.
Package Includes:
1 x Waveshare TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | UART, CAN, TTL |
| SKU | AI7633 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
