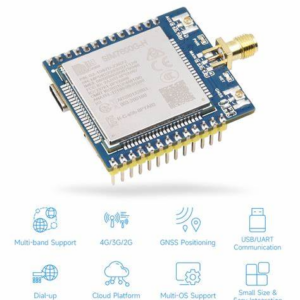

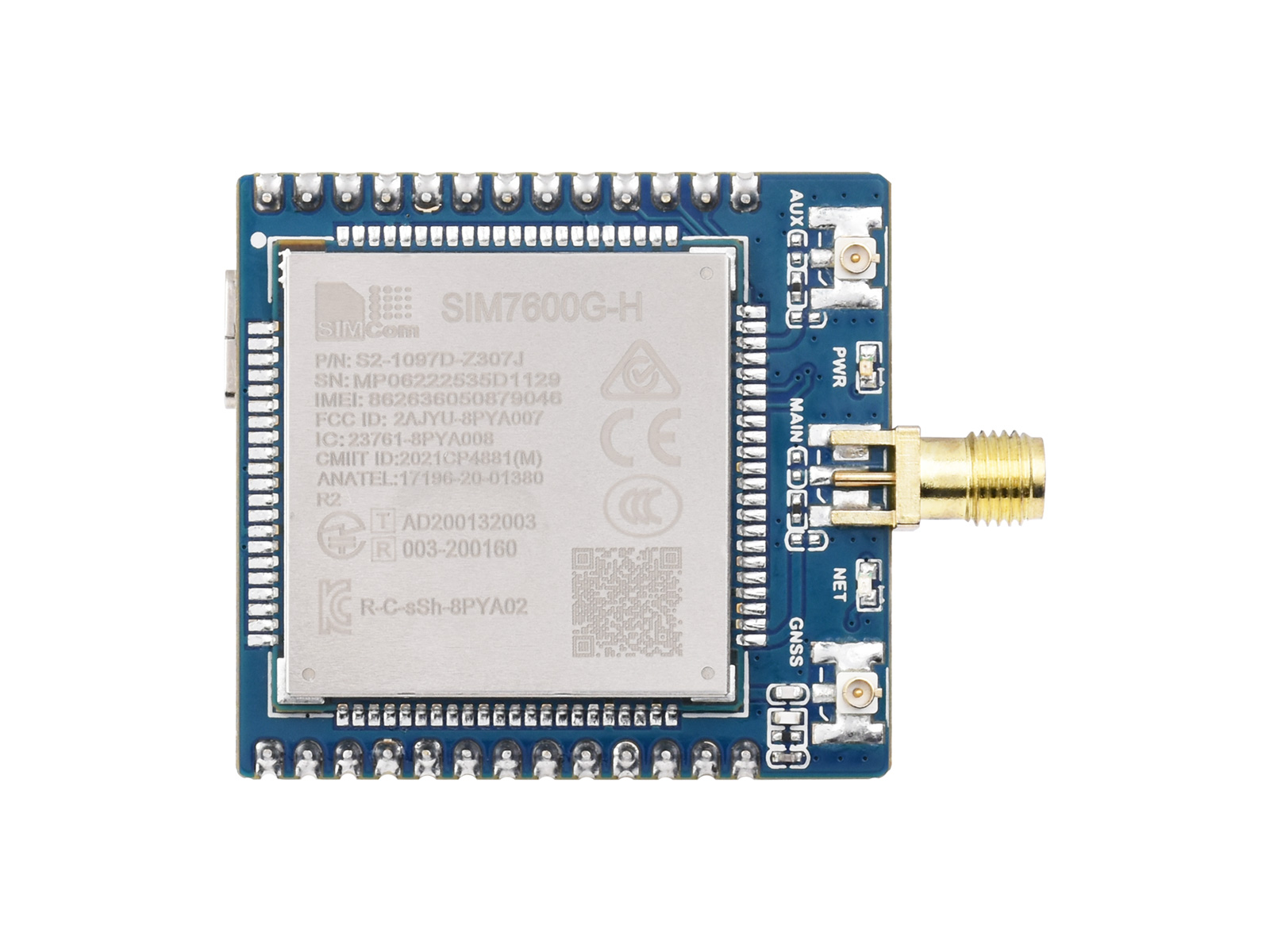

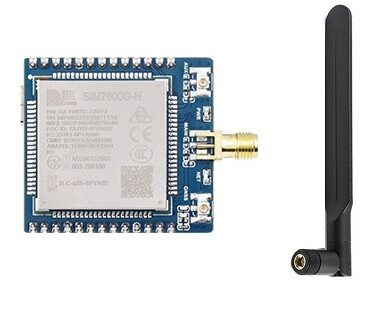

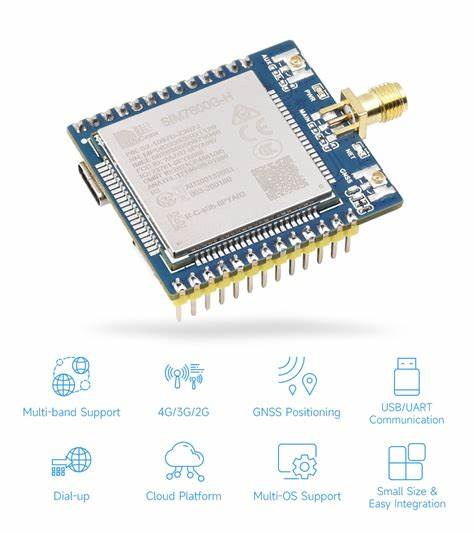

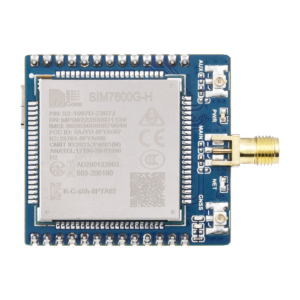

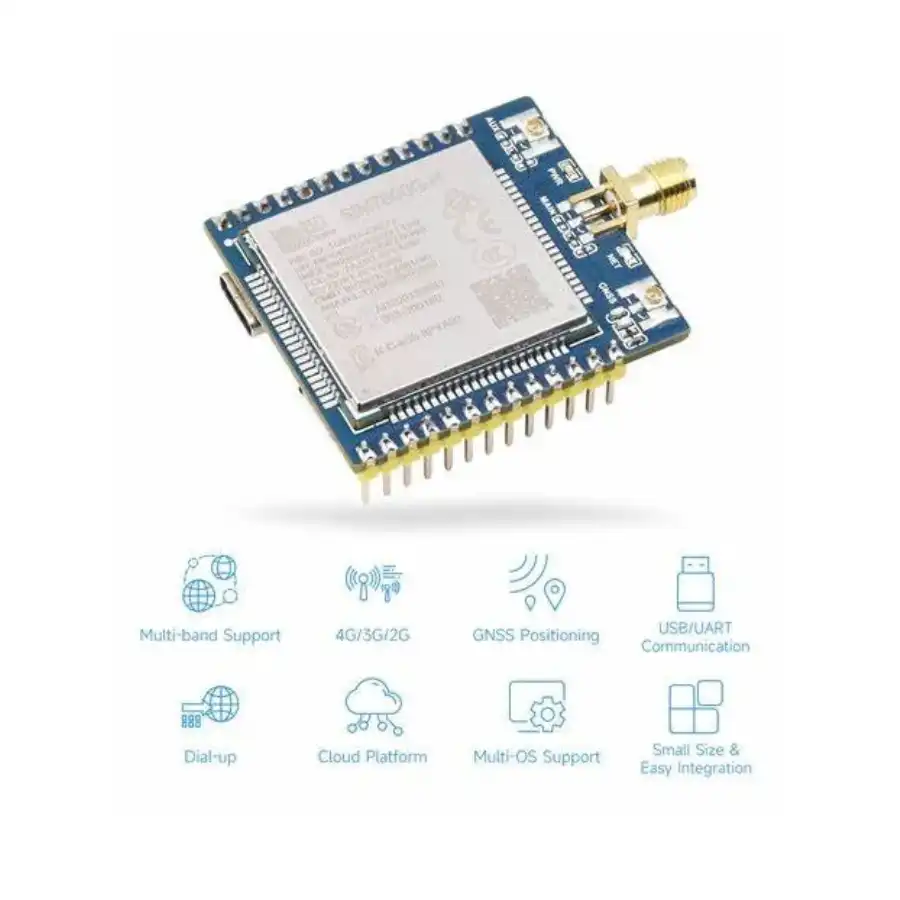

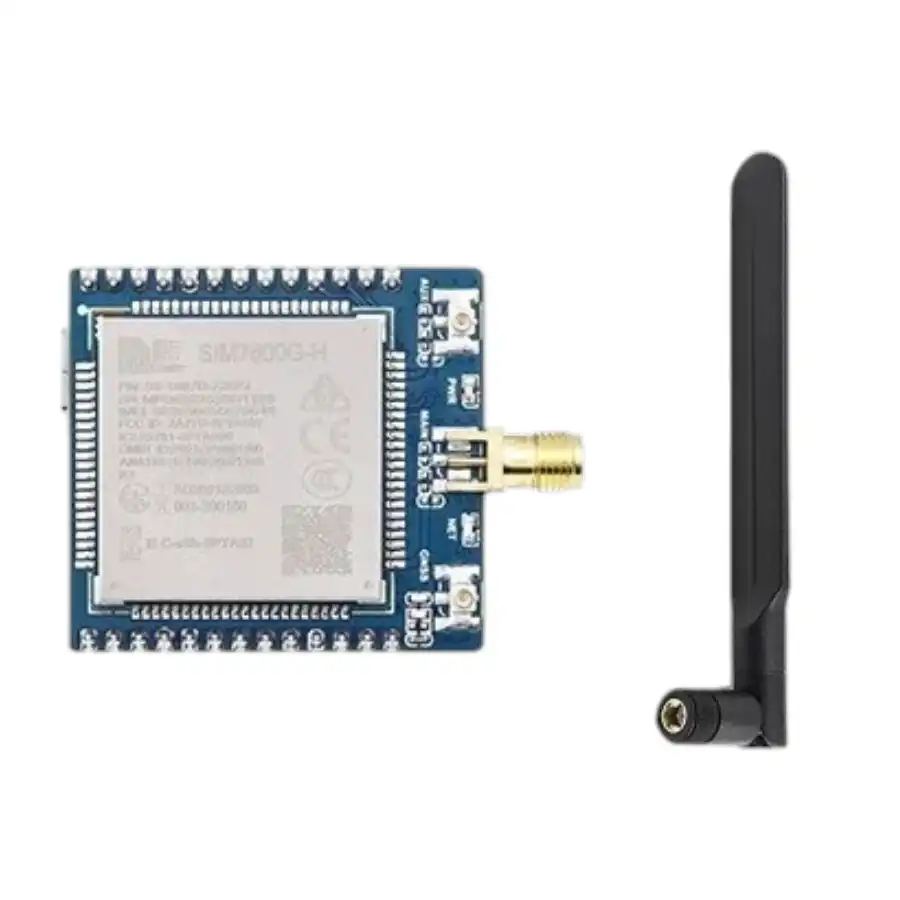

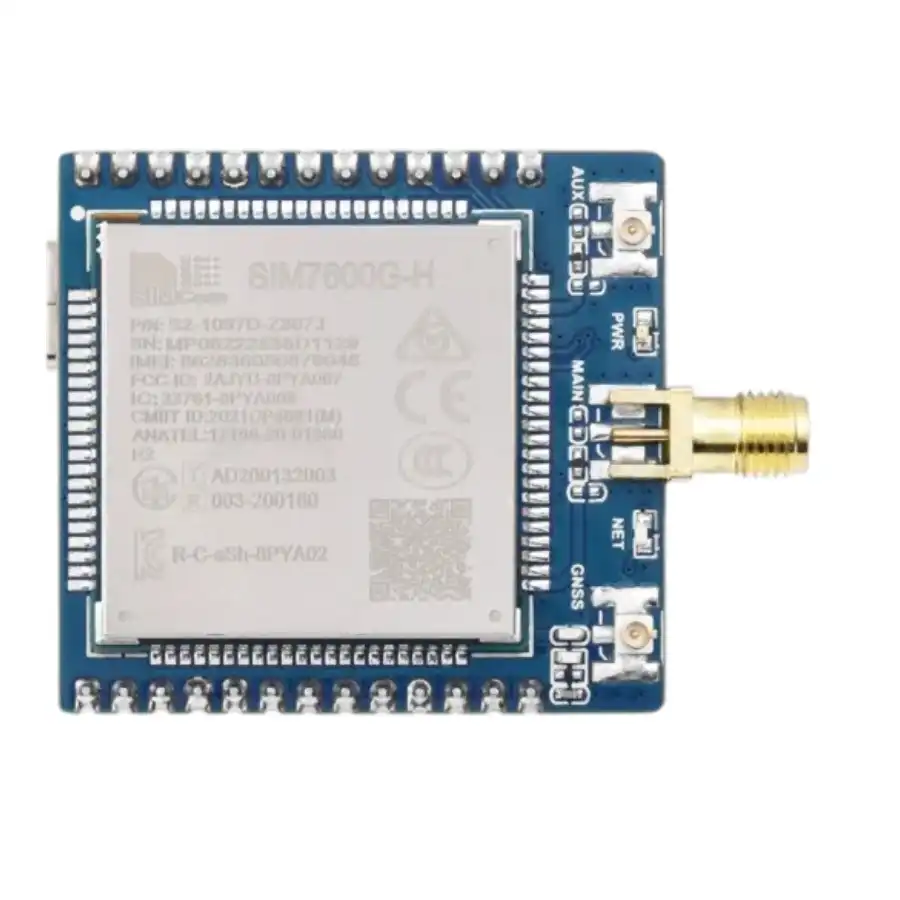

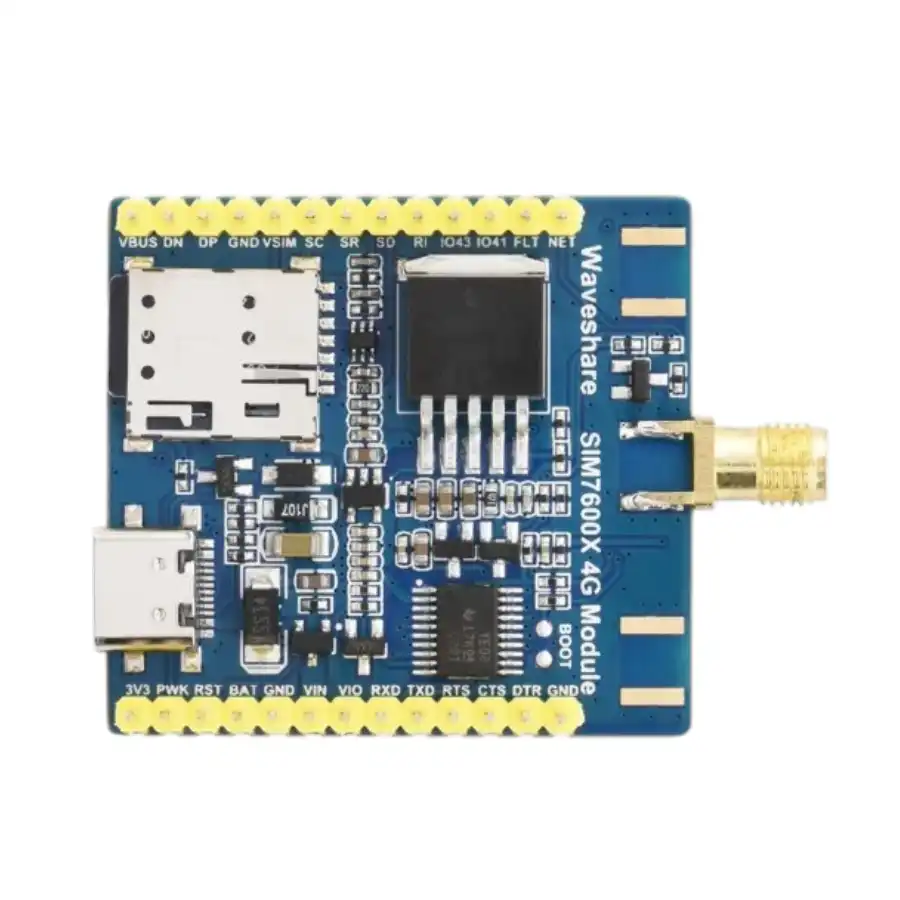

Waveshare SIM7600G-H 4G Communication Module, Multi-band Support, Compatible with 4G/3G/2G, With GNSS Positioning
Introducing the Waveshare SIM7600G-H 4G Communication Module: your gateway to seamless connectivity in the digital world. With its multi-band support, this module is compatible with 4G/3G/2G networks, ensuring you stay connected no matter where you are.
Equipped with GNSS positioning, including GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning, you can always pinpoint your location accurately.
This versatile module supports a wide range of functionalities including dial-up, telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, and more, making it perfect for various communication needs.
With its onboard USB and UART interface, you can easily access the internet, communicate with cloud platforms, and utilize GNSS positioning.
Designed with convenience in mind, the SIM card slot supports both 1.8V and 3V SIM cards and is positioned near the edge of the board for easy access.

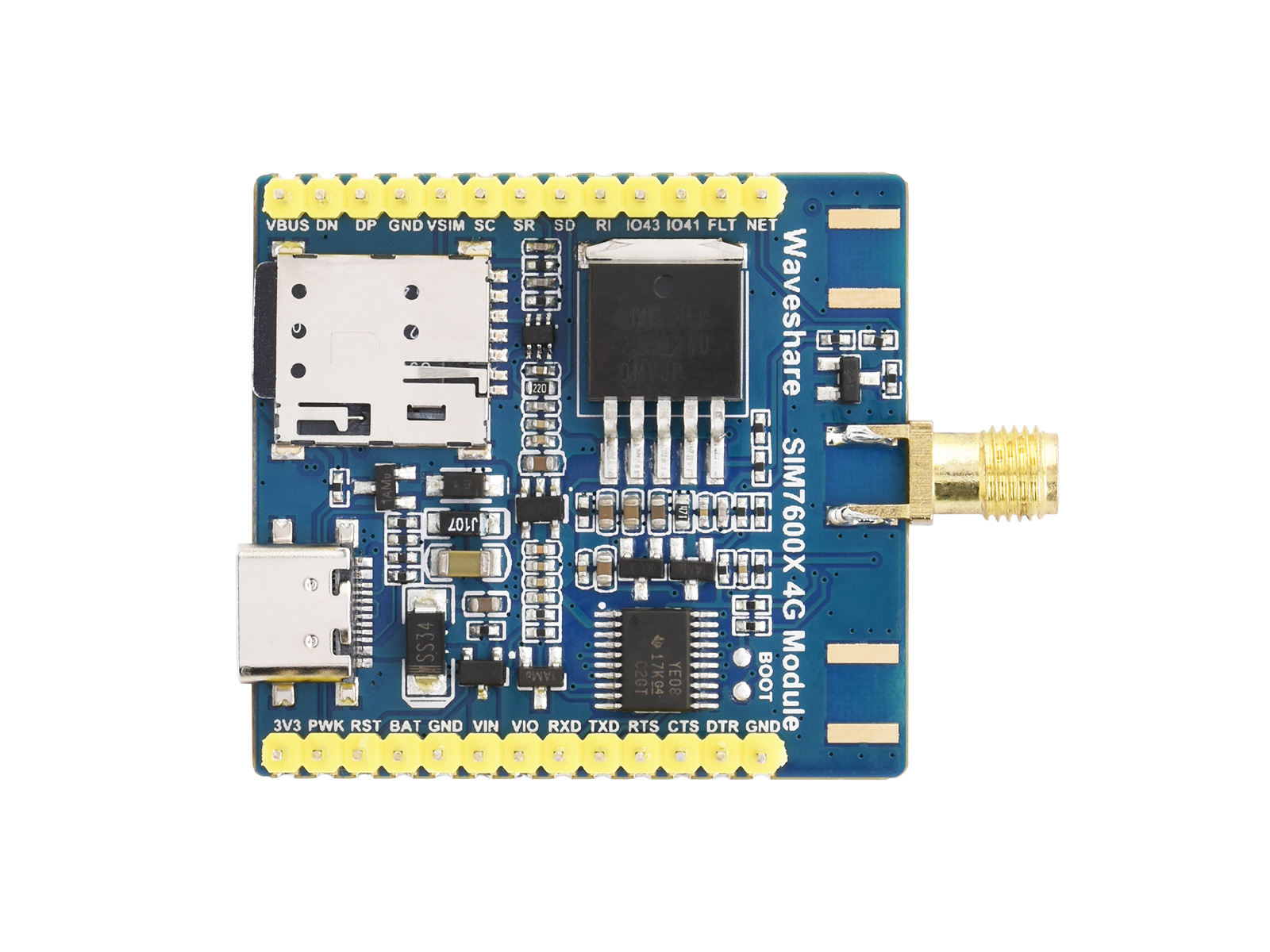

The module features castellated holes with immersion gold design, allowing for easy integration into your devices either by soldering directly or inserting via the pin header.
Compatibility is not an issue with this module, as it adapts USB/UART/SIM card/GPIO control pins, making development and debugging a breeze, while ensuring better expansibility.
Whether you’re working with STM32, ESP32, Arduino, or other 3.3V/5V MCU motherboards, compatibility is assured.
Operating between -30°C to 80°C, this module is robust enough to withstand harsh industrial environments.
Experience stability and reliability like never before with the Waveshare SIM7600G-H 4G Communication Module. Upgrade your connectivity solutions today.
Features:
- Multi-band Support: Compatible with 2G/3G/4G networks, ensuring connectivity across various bands for reliable communication.
- Comprehensive Communication Support: Dial-up, telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc., providing versatility for different communication needs.
- GNSS Positioning: Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning, ensuring accurate location tracking.
- USB and UART Interface: Facilitates dial-up internet access, cloud platform communication, and GNSS positioning, offering convenient connectivity options.
- Compact Design: Castellated holes with immersion gold design for easy integration into devices via soldering or pin header insertion, minimizing space requirements.
- Versatile Compatibility: Adapts USB/UART/SIM card/GPIO control pins for seamless integration and development across various platforms, including STM32, ESP32, Arduino, etc.
- Wide Operating Voltage Range: Supports 5~26V wide voltage power supply and 3A high current output, ensuring stable operation in industrial environments.
- Onboard Nano SIM Card Slot: Supports both 1.8V and 3V SIM cards, positioned near the edge of the board for easy access and installation.
- Temperature Resilience: Operating temperature range of -30°C to 80°C, ensuring reliability even in extreme environmental conditions.
- Built-in Protection Circuits: Includes TVS protection for the SIM card, power supply isolation, reverse power supply protection, ensuring safety and reliability during operation.
- LED Indicators: 2x LED indicators for easy monitoring of the module’s operating status, providing visual feedback for quick diagnostics.
- Online Development Resources: Comes with a manual and examples for Raspberry Pi, Jetson Nano, Arduino, STM32, facilitating easy development and integration into projects.
Specifications:
| Specification | Details |
|---|---|
| Product Model | Waveshare SIM7600G-H 4G Communication Module |
| Network Compatibility | 2G/3G/4G |
| GNSS Positioning Support | GPS, BeiDou, Glonass, GALILEO, QZSS, LBS |
| Communication Protocols | Dial-up, telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc. |
| Interfaces | USB, UART, Nano SIM card slot |
| Operating Voltage Range | 5~26V |
| Current Output | Up to 3A |
| Operating Temperature | -30°C to 80°C |
| Protection Circuits | TVS protection for SIM card, power supply isolation, reverse power supply protection |
| Indicators | 2x LED indicators for status monitoring |
| Compatibility | STM32, ESP32, Arduino, and other 3.3V/5V MCU motherboards |
| SIM Card Compatibility | Supports 1.8V and 3V SIM cards |
Package Include:
1 x Waveshare SIM7600G-H 4G Communication Module, Multi-band Support, Compatible with 4G/3G/2G, With GNSS Positioning
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | SIM7600G-H |
| Interface / Protocol | BLE, 4G |
| SKU | AI1805 |
| Weight | 0.14 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare SIM7600G-H 4G Communication Module, Multi-band Support, Compatible with 4G/3G/2G, With GNSS Positioning is a versatile other esp wifi modules used across a wide range of applications including WiFi connectivity for microcontrollers, IoT sensor nodes, remote monitoring, OTA firmware updates, and cloud-connected devices.
Common use cases:
- Adding WiFi to an existing Arduino project
- Building a cloud-connected weather station
- Enabling remote firmware updates
This product is ideal for IoT developers and electronics hobbyists.
Technical Tip: ESP-WROOM-32 modules need proper decoupling capacitors and antenna clearance for reliable WiFi performance.
