Description:
Global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. One adapter board can connect FOUR cameras on a single Raspberry Pi board, and includes support for the High-Quality Camera.
The sensor’s global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection. With this capability, device manufacturers can implement a monochrome or NIR camera device and reduce memory use by using the Y8 stream format. A monochrome camera can serve as the underlying physical camera of a logical multi-camera device to achieve better low-light noise characteristics.
The Raspberry Pi Camera Module 2 replaced the original Camera Module in April 2016. The v2 Camera Module has a Sony IMX219 8-megapixel sensor (compared to the 5-megapixel OmniVision OV5647 sensor of the original camera). The Camera Module 2 can be used to take high-definition video, as well as stills photographs.
Useful link:
To use this camera, please follow this tutorial for hardware and software setup.
Applications:
-
Security
-
High dynamic range imaging
-
Unattended surveillance
-
Stereo vision
-
Machine vision
-
Automation
Features:
-
Sensor: Monochrome global shutter OV9281
-
Pixel Size: 3 μm x 3 μm
-
Active array size: 1280 x 800
-
Optical Size: 1/4 inch
-
Focusing Range: 65mm ~ infinite
-
IR Sensitive: Visible light only, built-in 650nm IR cut filter
-
Output interface: 1-lane MIPI serial output with Arducam SDK
-
Output formats: RAW 8/10
-
Maximum image transfer rate: 1280 x 800@120 fps with the Official driver/Arducam SDK
-
Board Size: 40mm x 40mm
-
Lens Specs: FoV – 166°(D), EFL – 0.83mm, F.NO – 2.0
Specification:
| Item Type: | Camera Module |
|---|---|
| Model: | Mono Camera |
| Resolution: | 1MP |
| Focal Length (mm): | 3.15, 3.15mm |
| Sensor | OV9281 |
| CMOS Size | 1/4 inch |
| Camera Type: | Mono |
| Resolution (pixels) | 1MP (1280 × 800) |
| Shutter | Global Shutter |
| Aperture (F) | F2.5 |
| Distortion | < 7.5% |
| Angle (FOV) | 120°(D) |
| Focus | Fixed focus |
Package Includes:
-

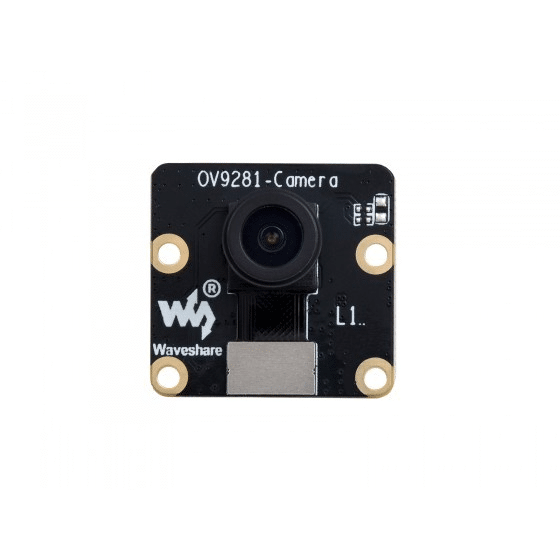

1 x Waveshare OV9281-120 Mono Camera for Raspberry Pi, Global Shutter, 1MP
IoT Fleet Management: GPS Tracking for Delivery Vehicles
Table of Contents Introduction and Overview Hardware Components Required GPS Module Integration with ESP32 Cloud Platform Setup Real-Time...
Read More →
ESP32 OTA Firmware Update: Push Updates Over the Air
One of the most powerful features of the ESP32 is its built-in support for ESP32 OTA firmware update...
Read More →
ESP32 Telegram Bot: Control Hardware with Chat Commands
Imagine controlling your home appliances, reading sensor data, or toggling LEDs simply by sending a message on Telegram....
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | OV9281-120 |
| SKU | AI7682 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare OV9281-120 Mono Camera for Raspberry Pi, Global Shutter, 1MP is a versatile iot cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
