Product description:
Introducing the OV7670 VGA CMOS Camera Image Sensor Module, a compact and highly sensitive camera module designed for capturing and processing images with precision. Built around the OV7670 image sensor, this module offers versatile features and functionalities for various imaging applications.
With the ability to output the entire frame, sample data, and support various resolutions in 8-bit format through SCCB bus control, users have complete control over image quality, data format, and transmission mode. The module can achieve VGA image quality with a maximum frame rate of up to 30 frames per second, ensuring smooth and clear image capture.
The OV7670 employs a low-cost image sensor DSP capable of operating at 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels, with preprocessing capabilities configurable via the Serial Camera Control Bus (SCCB). This preprocessing enhances image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, tail, and floating away, resulting in clear and stable color images.

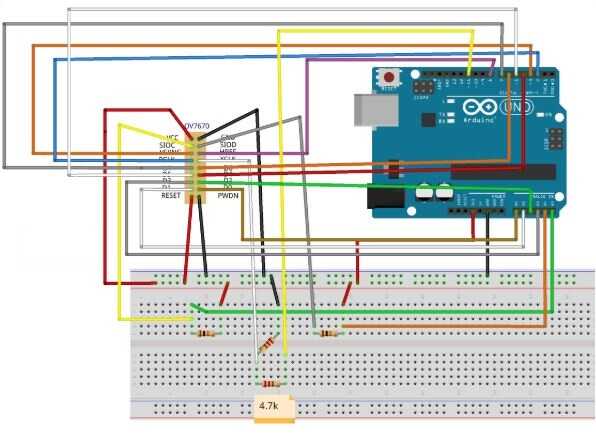

Connection Diagram:
Features:
- Model: OV7670 640X480 VGA CMOS Camera
- Pixel Coverage: 3.6um x 3.6um
- Dark Current: 12 mV/s at 6°C
- Supports VGA, CIF, and various formats from CIF to 40 x 30
- Vario Pixel method for sub-sampling
- Auto Image Control: AEC, AGC, AWB, ABF, ABLC
- Image Quality Control: Color saturation, hue, gamma, sharpness, anti-blooming
- ISP includes noise reduction and defect correction
- Supports image scaling and lens shading correction
- Flicker 50/60Hz auto-detection
- Automatic adjustment for color saturation level, edge enhancement level, and de-noise level
- High sensitivity for low light applications
- Low voltage suitable for embedded applications
- Standard SCCB interface, compatible with I2C interface
Specifications:
| Lense Viewing Angle (FOV) | 25º |
|---|---|
| Operating Temperature (°C) | -30 to 70 |
| Operating Voltage (VDC) | 2.5 ~ 3.0 |
| Pixel Resolution | 640 X 480 |
| S/N Ratio (dB) | 46 |
| Video Output | YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit) |
| Dimensions (LxWxH) mm | 35 x 35 x 30 |
| Weight (g): | 13 |
Experience the versatility and precision of the OV7670 VGA CMOS Camera Image Sensor Module, ideal for a wide range of imaging applications.
Package Includes
- 1 x OV7670 VGA CMOS Camera Image Sensor Module
Datasheet:
( ⮝ click to download )
Technical Specifications
| Model | OV7670 |
|---|---|
| SKU | AI0039 |
| Weight | 0.01 kg |
| Availability | In Stock |
