Description:
This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80×62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Four versions are available: options for HAT version with Raspberry Pi 40PIN GPIO header and USB version with Type-C port. Also provides basic version and wide angle version with 45° / 90° FOV.
Applications:
-
High precision long-term non-contact temperature online monitoring
-
IR thermal imaging devices, IR thermometers
-
Smart home, intelligent building, intelligent lighting
-
Industrial temperature control, security & safety, intrude/motion detection
-
Small Target Thermal Analysis, Heat Trend Analysis and Solutions
Features:
-
Adopts the hybrid technology of microbolometer and thermopile, 80×62 array pixels
-
Continuous operation and thermal imaging video stream due to shutterless design
-
Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
-
Up to 25FPS (Max) thermal imaging video stream output
-
Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
Useful Link:
https://www.waveshare.com/wiki/Thermal_Camera_HAT
Specifications:
-
Power supply: 5V
-
Operating current: 61mA@5V
-
Wavelength range: 8~14μm
-
Operating temperature: -20~85℃
-
Target temperature: -20~400℃
-
Refresh rate: 25 FPS (Max)
-
Noise equivalent difference temperature: 150mK
-
Measuring Accuracy: ±2℃ (ambient temp. 10~70℃)
Package Includes:
-

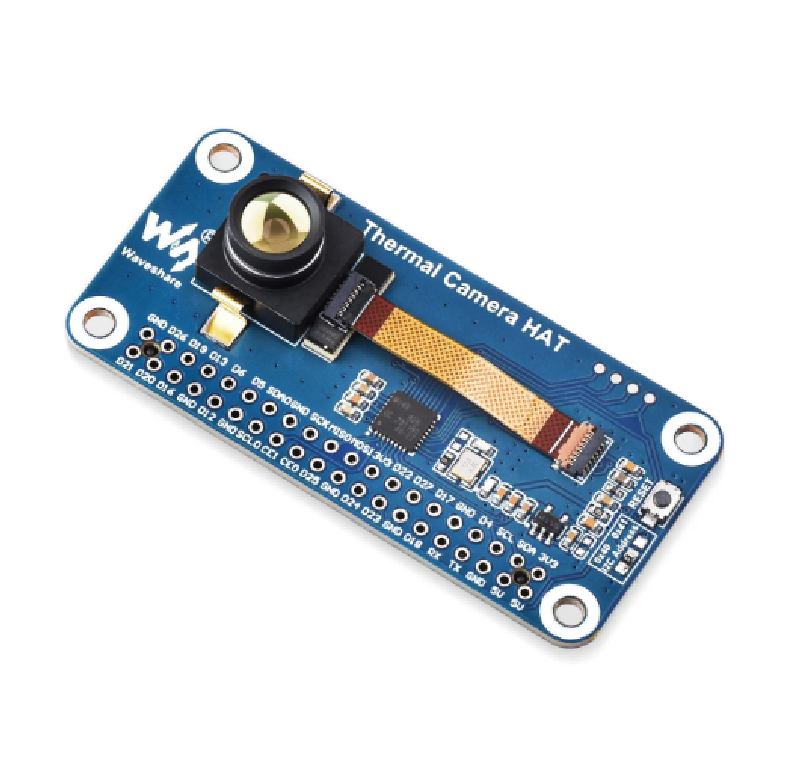

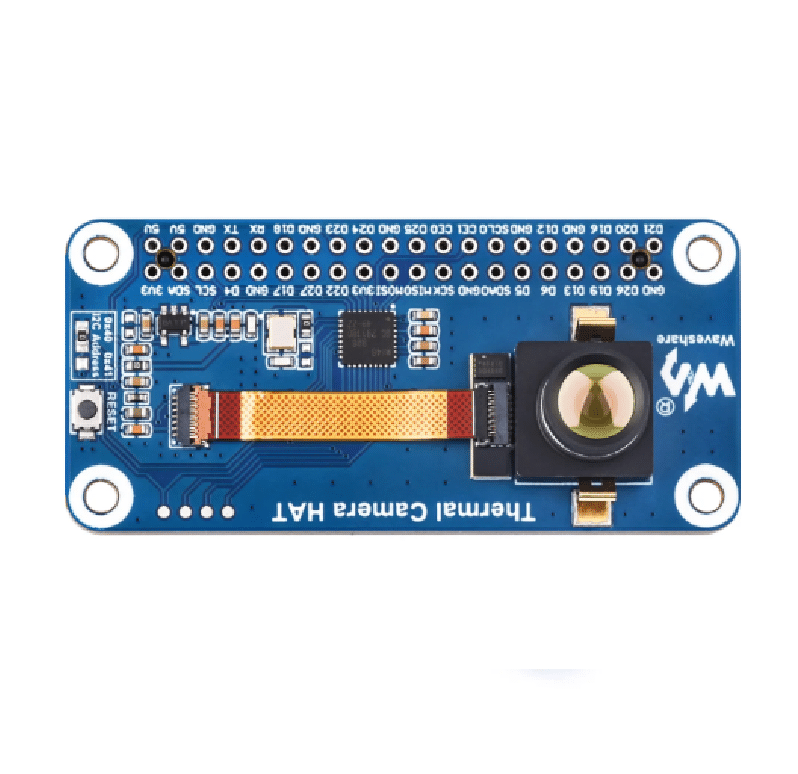

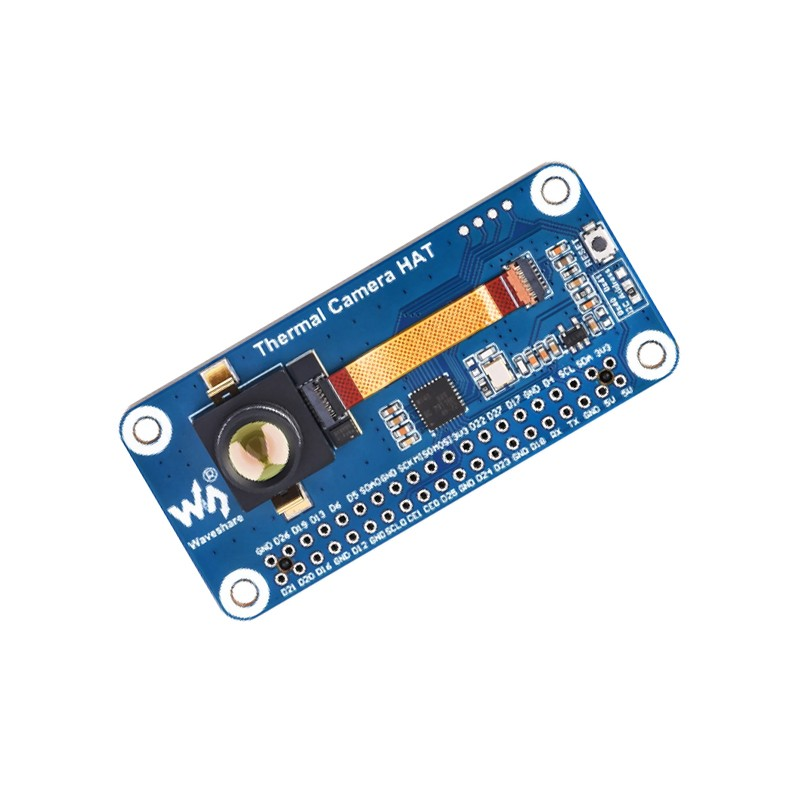

1 x Thermal Camera HAT
-

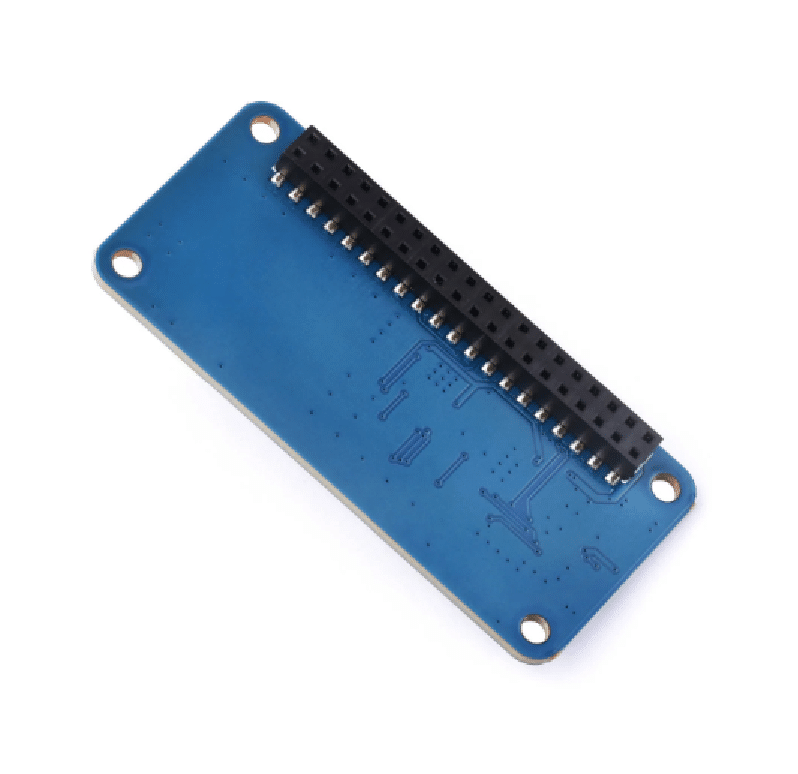

1 x 40PIN female header
-
1 x FPC 15 PIN cable 0.3mm pitch ~100mm
-
1 x Screws pack
-
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI7639 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Long-wave IR Thermal Imaging Camera Module Basic version (45° FOV) 80×62 Pixels for Raspberry Pi with 40PlN GPIO Header is a versatile thermal cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
