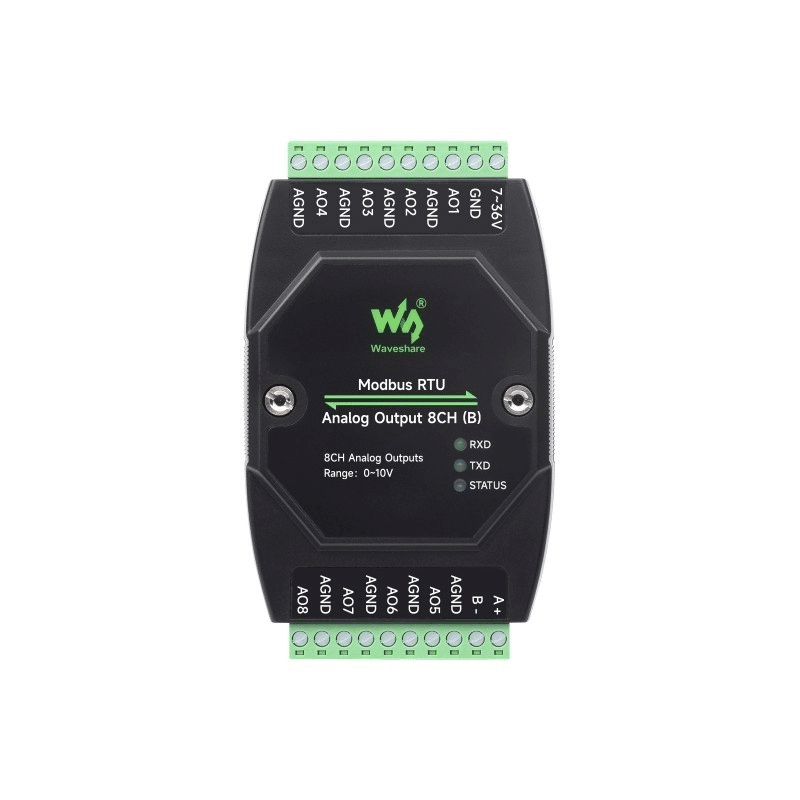

The Waveshare Industrial 8-Ch Analog Output Module offers 12-bit DA conversion, enabling simultaneous voltage output across 8 channels. It supports a wide voltage power supply of DC 7~36V, making it ideal for precise industrial applications requiring consistent and reliable analog signal generation.
Features:
- Simultaneous voltage output on 8 channels.
- High precision DA (Digital to Analog) conversion with 12-bit resolution.
- Operates with a DC 7~36V power supply.
- Robust design for industrial applications.
- Accurate voltage output for precise control and measurement.
- Compatible with various communication protocols.
- Simple integration into existing systems.
- Small footprint for easy installation in confined spaces.
- Built-in safety feature to prevent damage.
- Consistent and reliable operation under different conditions.
Specifications:
| Communication Mode | RS485 |
|---|---|
| Baud Rate (bps) | 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 |
| Power Supply (V) | 7 ~ 36 |
| Output Voltage (V) | 0 ~ 10 |
| Max. Output Current (A) | 0 ~ 20 |
Package Includes:
- 1 x Modbus RTU Analog Output 8CH
- 1 x Power supply terminal adapter
- 1 x Screwdriver
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Operating Voltage | 36V |
| SKU | AI7497 |
| Weight | 0.24 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Industrial 8-Ch Analog Output Module, 12-bit DA Conversion, Supports 8-ch Simultaneous Voltage Output DC 7~36V Wide Voltage Power Supply is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
