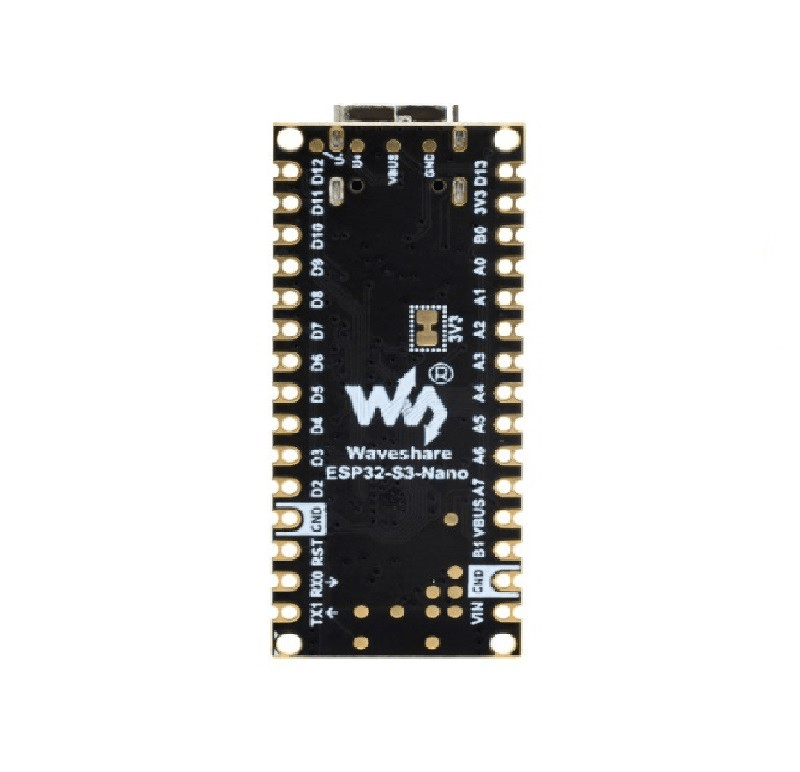

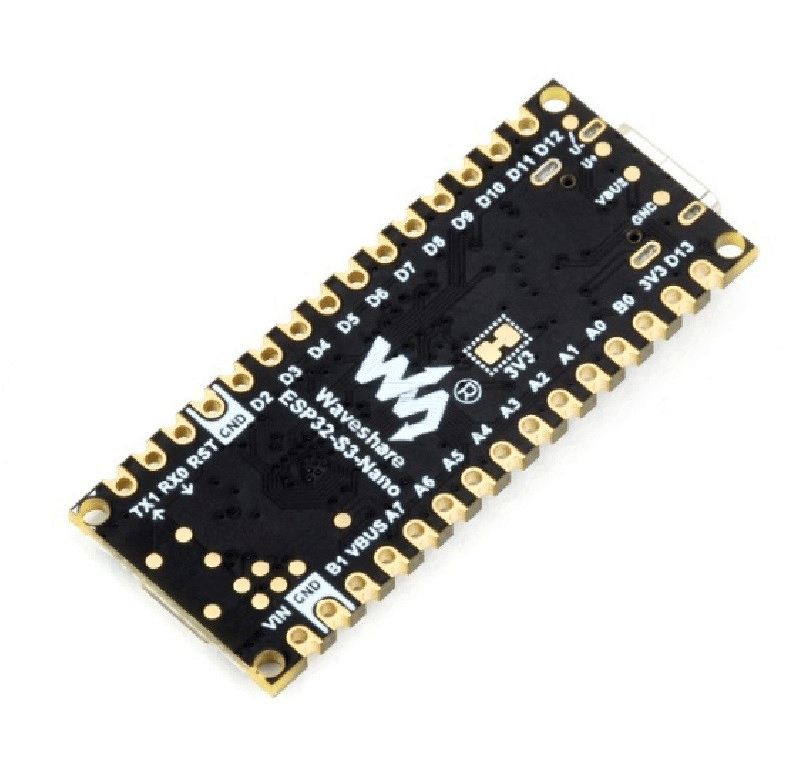

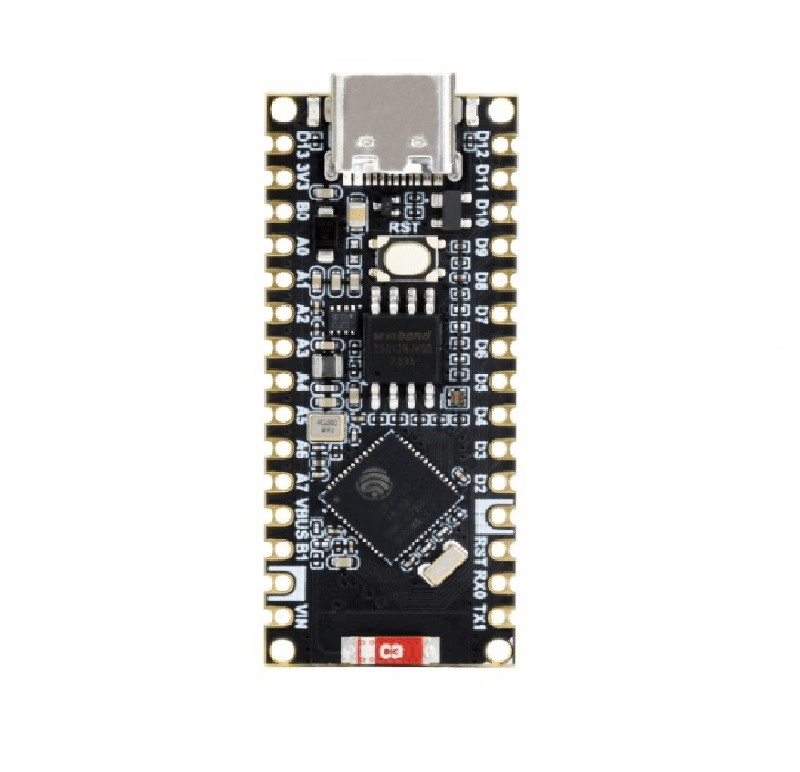

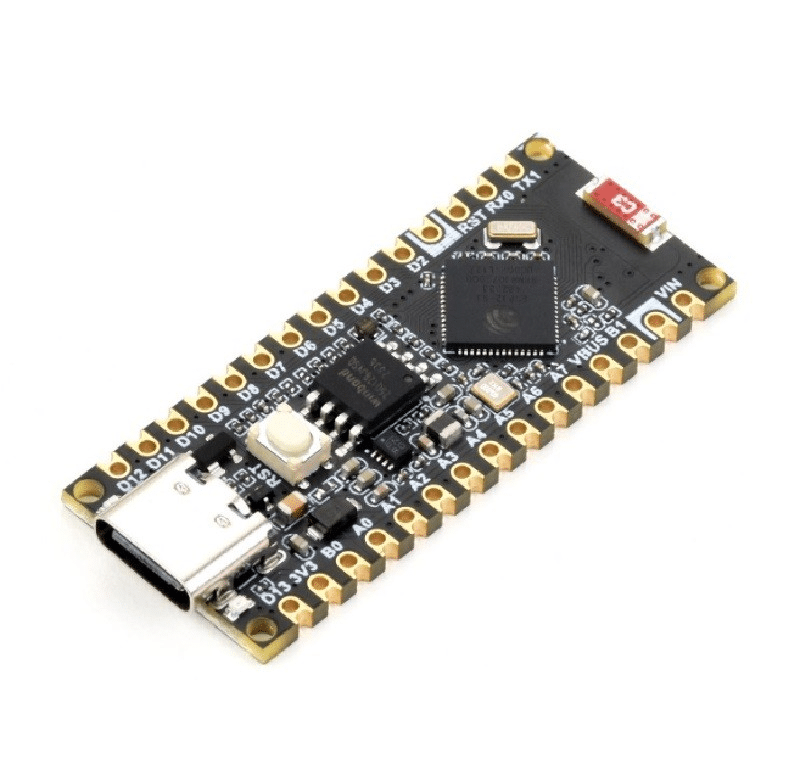

The Waveshare ESP32-S3-Nano Development Board (without headers) is compatible with Arduino Nano ESP32. It is compact and powerful, making it ideal for IoT and MicroPython applications. Its small size ensures easy integration into your projects.
Features:
- ESP32-S3R8 chip with Xtensa® 32-bit LX7 dual-core processor, running at up to 240 MHz
- Integrated memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash
- Wireless communication: 2.4GHz Wi-Fi and Bluetooth LE dual-mode with superior RF performance
- Programming flexibility: Supports seamless switching between Arduino and MicroPython
- Arduino IoT Cloud compatibility: Monitor and control projects from anywhere using the Arduino IoT Cloud app
- HID support: Emulates keyboards or mice via USB for easier PC interaction
Specifications:
| Item Type | ESP32 Based, Nano |
|---|---|
| Flash Memory | 16MB |
| Clock Frequency (MHz) | 240 |
| Model Name | ESP32-S3-NANO |
| Microcontroller | ESP32-S3R8 (Dual-core 32-bit Xtensa LX7) |
| Operating Voltage (V) | 3.3 |
| UART | 2 |
| Storage | ESP32-S3R8: 384kB ROM, 512kB RAM, 16MB Flash, 8MB PSRAM |
| Reset Button (Y/N) | Vertical |
| PWM | 5 |
| I2C | 1 |
| SPI | 1 |
| Input Power (W) | 6~21V |
Package Includes:
- 1 x ESP32-S3-Nano
- 1 x 40PIN male pinheader (black)
ESP32 LoRa Gateway: Packet Forwarding to The Things Network
Building an ESP32 LoRa gateway packet forwarding TTN solution is the bridge between low-power field sensors and the...
Read More →
IoT Air Quality Monitor: TVOC and CO2 with SCD40 Sensor
Indoor air quality is a growing concern across India, especially in cities like Delhi, Mumbai, and Bengaluru where...
Read More →
ESP32 LTE 4G Module: SIM7600 for Remote IoT Connectivity
When your IoT deployment site has no Wi-Fi and no Ethernet, the ESP32 SIM7600 4G LTE IoT combination...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Interface / Protocol | BLE |
| SKU | AI7526 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3-Nano Development Board without headers compatible with Arduino Nano ESP32 is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
