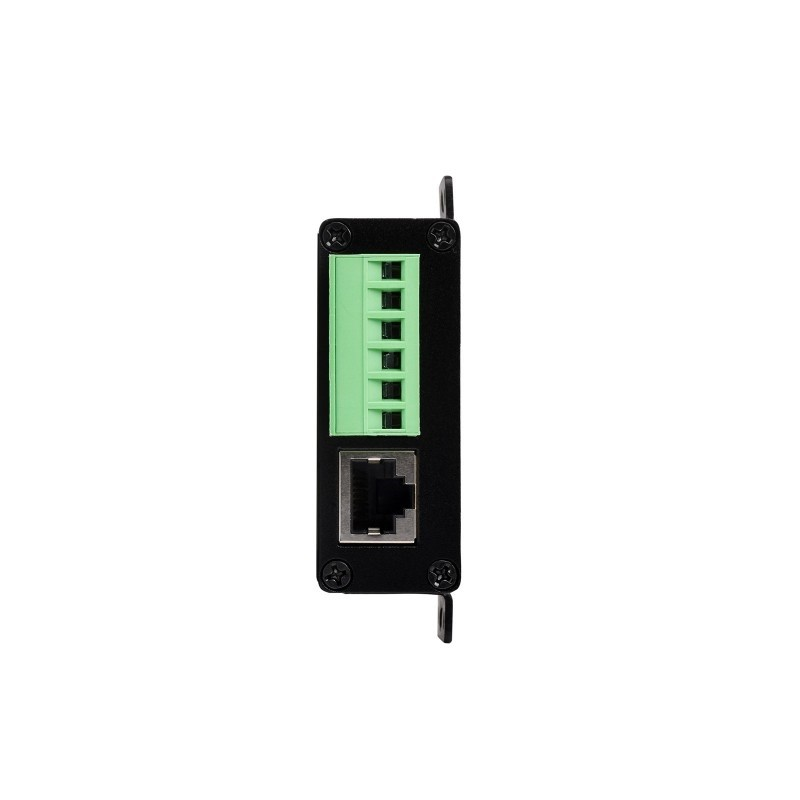

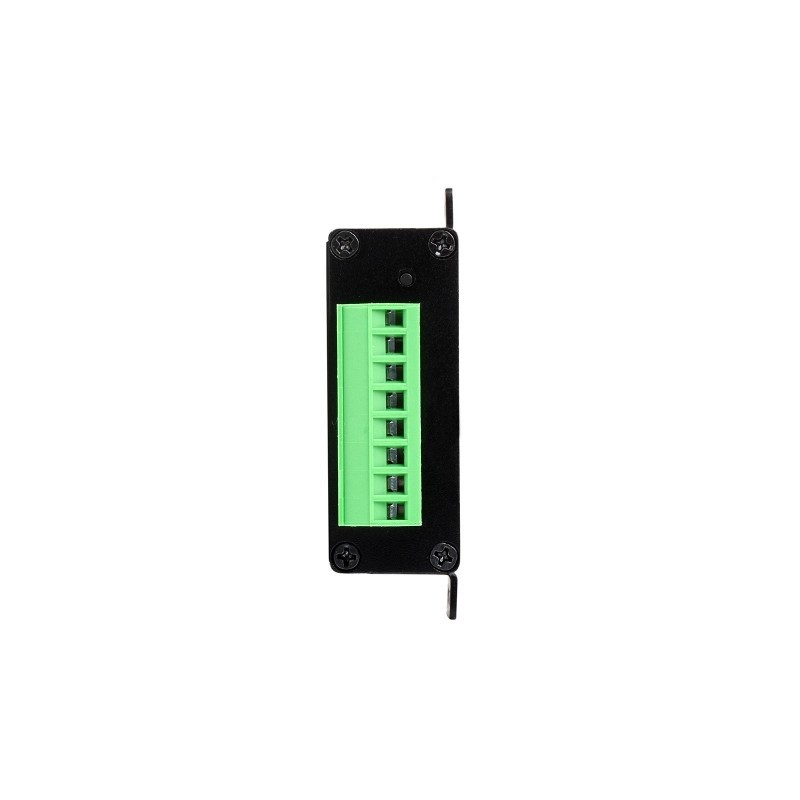

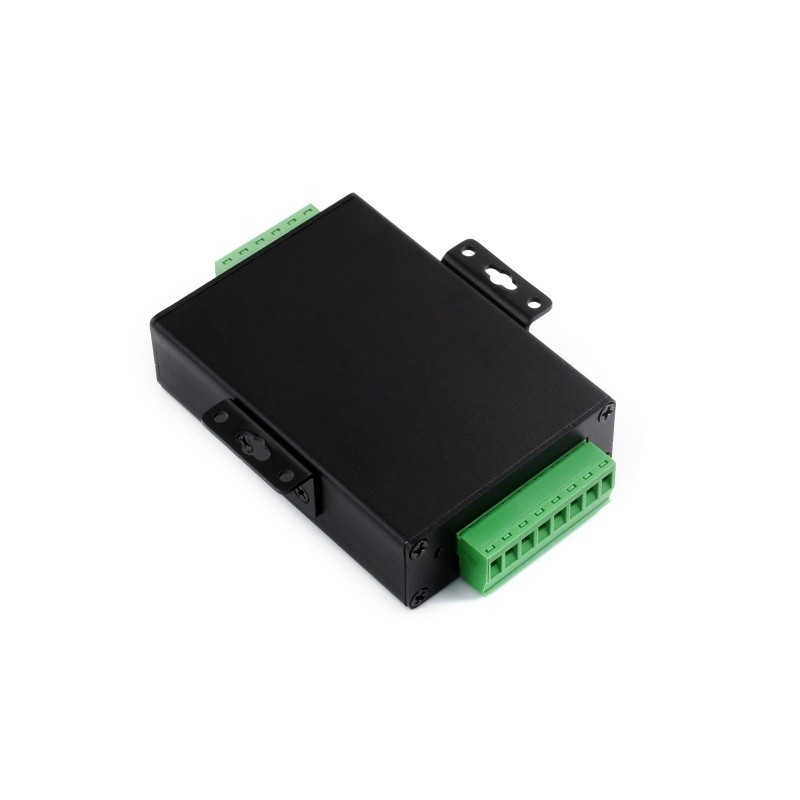

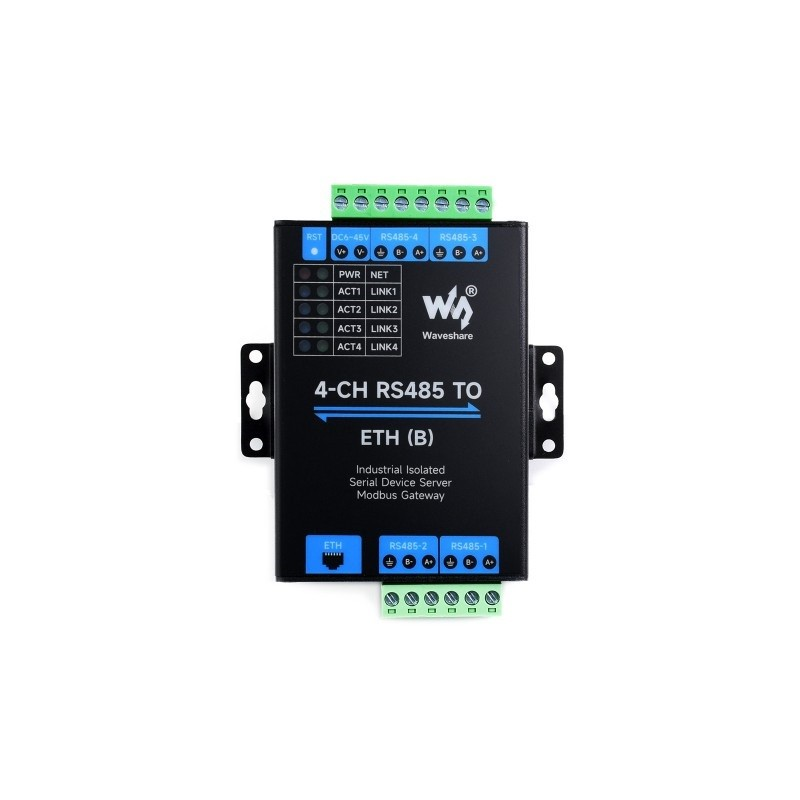

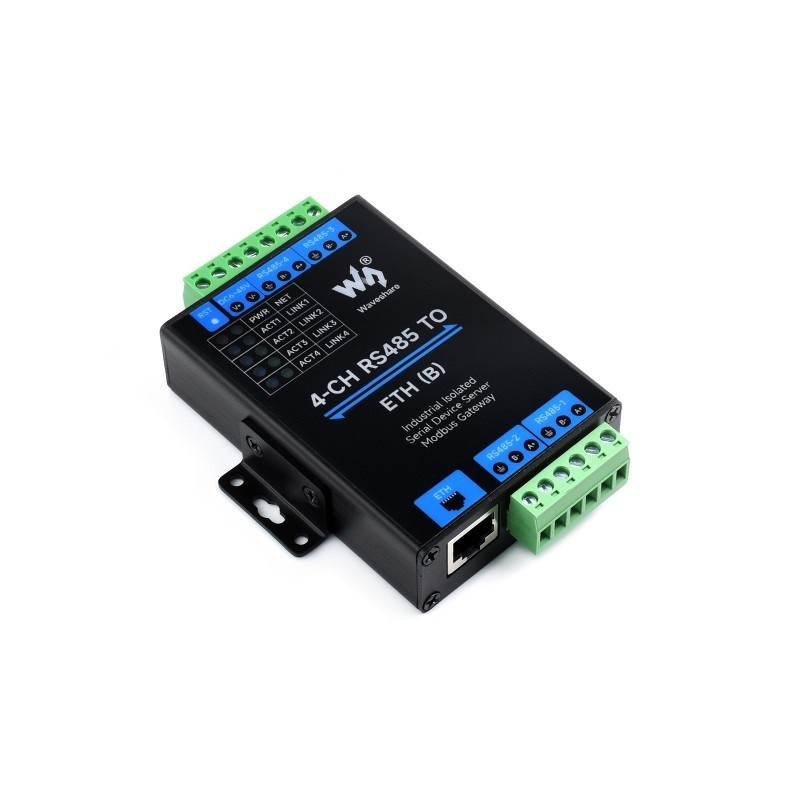

Waveshare 4-Ch RS485 to RJ45 Ethernet Serial Server, 4 Channels RS485 Independent Operation, Rail-mount Industrial Isolated Serial Module, is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port (PoE version optional), small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios.
Features:
- 4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission.
- Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.
- Adopts screw terminal for stable power input.
- Wall-mount and rail-mount case design, easy to install, for quick deployment and expansion.
Useful link:
Specification:
| Function: | Bi-directional transparent data transmission between RS485 and Ethernet |
|---|---|
| Communication Mode | RS485 port × 4, Ethernet port × 1 |
| Power Supply (V) | 6 ~ 45 |
| Ethernet | 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
| Baud Rate (bps) | 300 ~ 115200 |
| Data Bit | 5 ~ 9 |
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
| Configuration: | host, web browser, device management functions library |
| Operating Mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
| Operating Temperature (°C) | -40 to +85 °C |
| Dimensions (L x W x H) mm | 91.0 × 64.5 × 24.2 |
Package Includes:
1 x 4-CH RS485 TO ETH (B)
1 x Rail-mount buckle
1 x Screwdriver
1 x Screws pack
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | RS485 |
| Interface / Protocol | RS485 |
| SKU | AI6702 |
| Weight | 0.26 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 4-Ch RS485 to RJ45 Ethernet Serial Server, 4 Channels RS485 Independent Operation, Rail-mount Industrial Isolated Serial Module, is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
