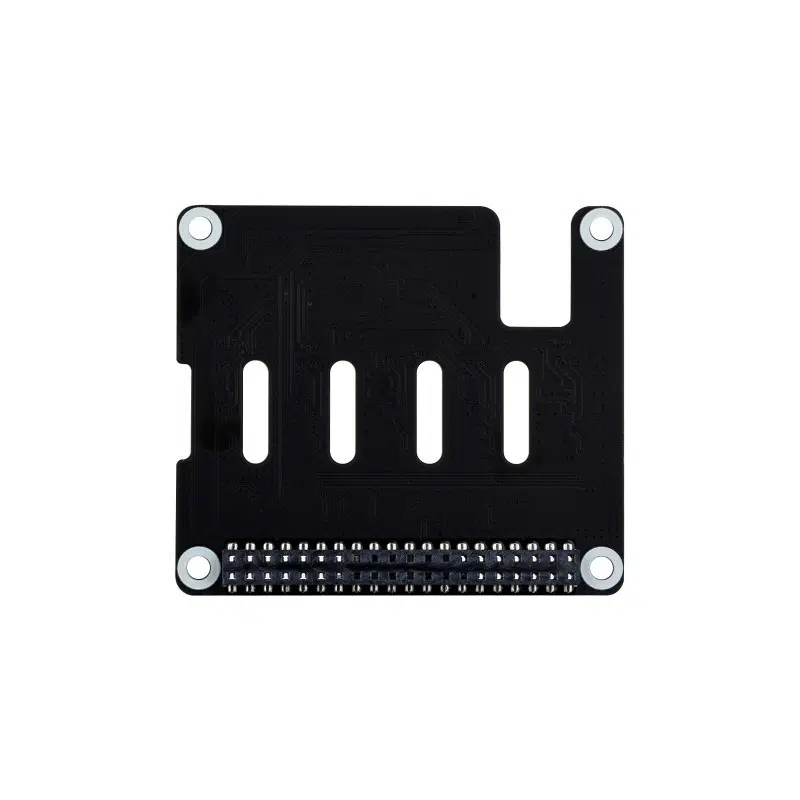

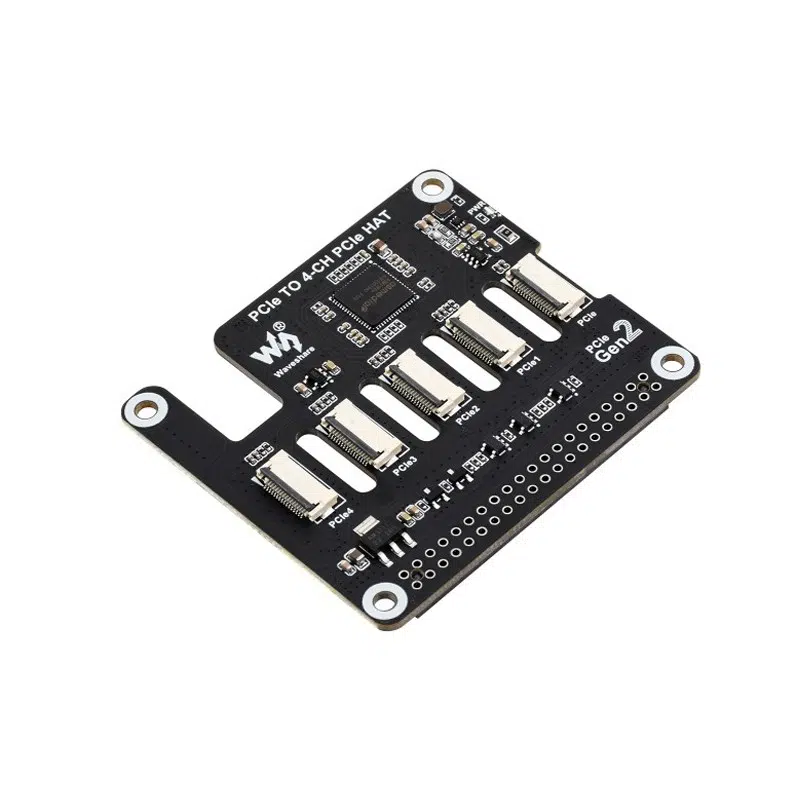

Waveshare 4-Ch PCIe FFC Adapter Board for Raspberry Pi 5 expands the PCIe Interface Of The Pi 5 To 4-Ch PCIe FFC Connectors
Unlock the full potential of your Raspberry Pi 5 with the Waveshare 4-Ch PCIe FFC Adapter Board. This powerful expansion board transforms the single PCIe interface of the Pi 5 into four flexible FFC connectors, making it easy to stack and connect multiple Waveshare 4-Ch PCIe FFC Adapter Boards. Whether you’re adding SSDs, network cards, or PoE modules, this adapter provides the flexibility and speed (PCIe Gen2) you need for advanced DIY and industrial applications.
Built with power monitoring and EEPROM on board, it ensures stability, performance, and hassle-free integration. Compact in design and easy to install using the 16-pin FFC cable connection. It’s ideal for developers, makers, and tech enthusiasts looking to supercharge their Raspberry Pi 5 setups.
Features:
- Expands Raspberry Pi 5 PCIe to 4-channel FFC connectors
- Supports stacking of multiple PCIe HATs
- Compatible with PCIe Gen2 (PCIe 2.0) speed
- Compact and stackable layout for space-saving builds
- Onboard EEPROM and power monitoring chip
- Designed specifically for Raspberry Pi 5 16-PIN PCIe interface
- Easy heatsink installation for better thermal management
Specification:
| Item Type: | Raspberry Pi HAT |
|---|---|
| Model: | PCIe TO 4-CH PCIe HAT |
| Compatibility: | Raspberry Pi 5 |
| Cable Type: | FFC |
| Input Supply Voltage (V) | 05 |
| Length (mm): | 65 |
| Width (mm): | 58 |
| Height (mm): | 10 |
Package Includes:
1 x PCIe TO 4-Ch PCIe HAT
1 x 2*20 Pin header
1 x Heatsink
1 x Standoff pack
5 x 16P-Cable-40mm
5 x 16P-Cable-70mm
