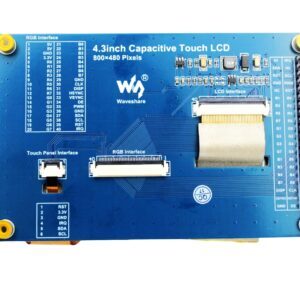

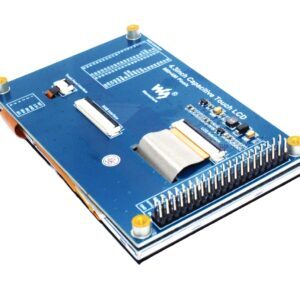

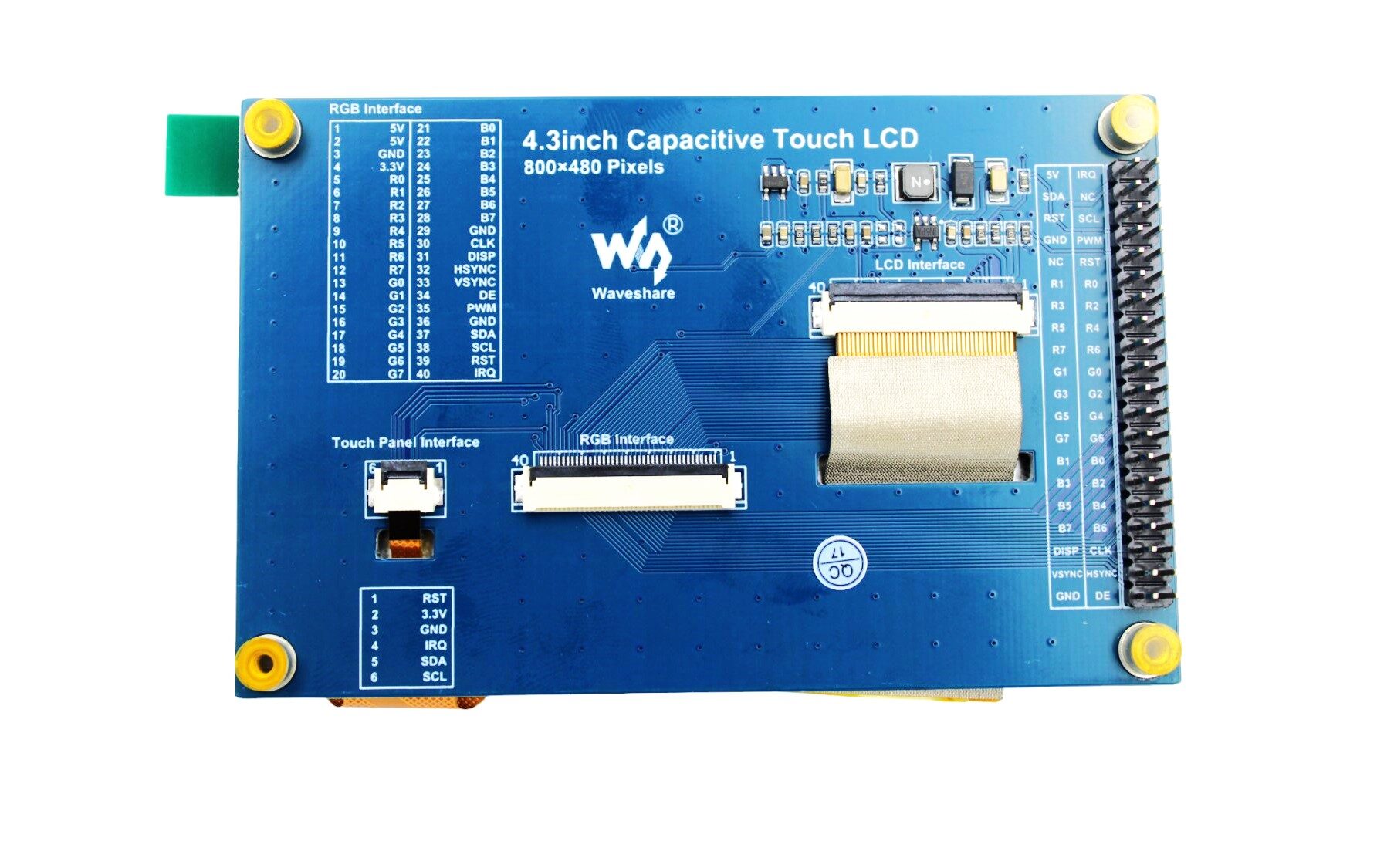

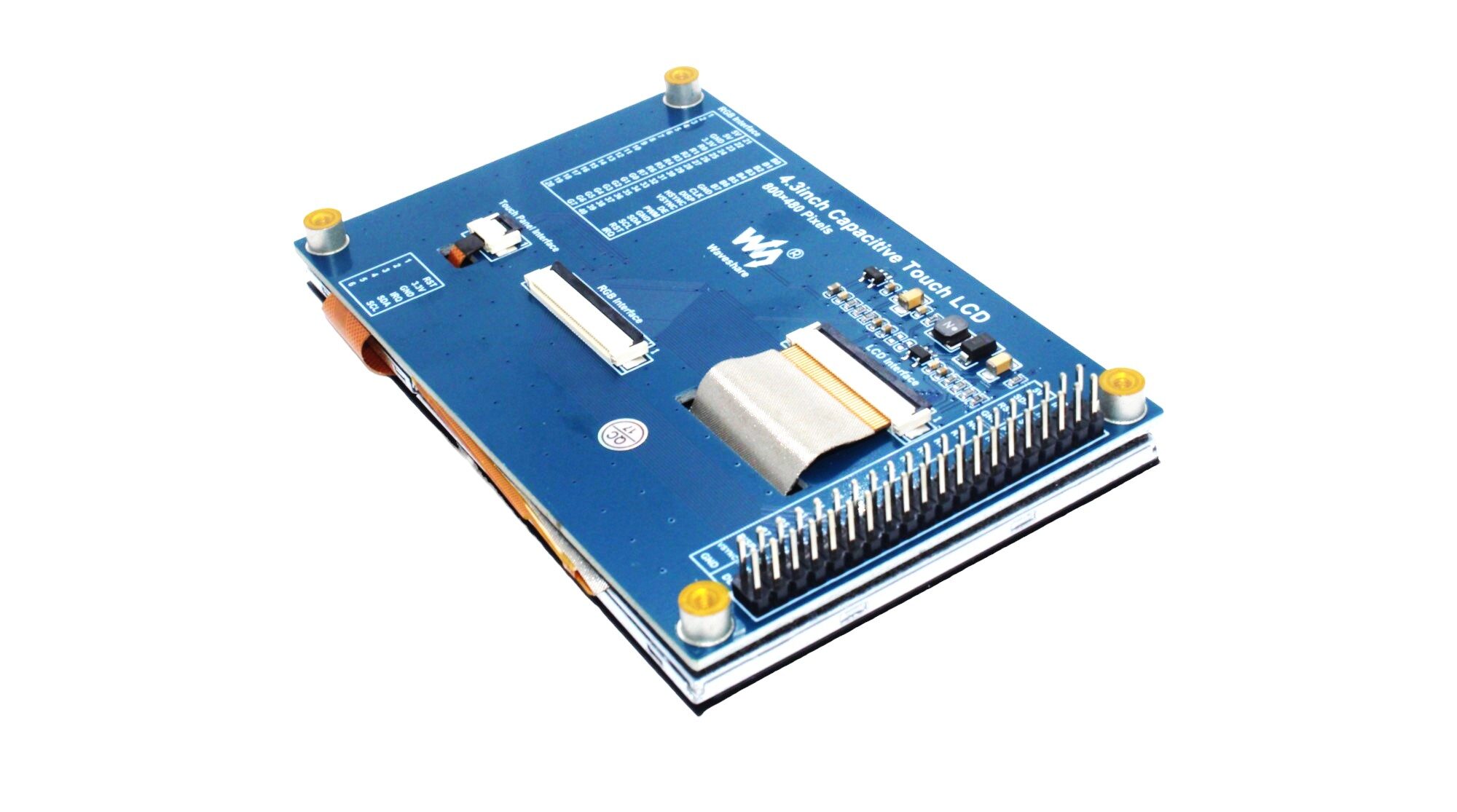

Waveshare 4.3 Inch Capacitive Touch LCD Display
This is a Waveshare 4.3 Inch Capacitive Touch LCD Display, 4.3inch diagonal, 800×480 pixels. It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via an I2C interface.
Features:
- 4.3-inch capacitive touch display, 800×480 resolution.
- The capacitive touch panel on the I2C bus, 5-points touch control, with touch, interrupt.
- 24-bit RGB display interface, 16,777,216 colors, fast refreshing.
- Comes with development resources and a manual (examples for STM32F4 / STM32F7).
Specification:
| Touch Screen Interface | I2C |
|---|---|
| Display Colors | 16,777,216 |
| Touch Controller | GT911 |
| Display Size (mm) | 95.04 (W) × 53.86 (H) |
| Dot Pitch (mm) | 0.1188 (W) × 0.1122 (H) |
| Backlight | LED |
| Resolution | 800 x 480 |
| Power Supply Voltage | 5V |
| Logic Level | 3.3V |
| Length (mm): | 106 |
| Width (mm): | 68 |
| Weight (g): | 90 |
Package Includes:
- 1 x 4.3inch Capacitive Touch LCD
- 1 x 40-pin FFC (opposite side contact)
- 1 x Screws pack (4pcs)
Waveshare 4.3 Inch Capacitive Touch LCD Display Overview
The Waveshare 4.3 Inch Capacitive Touch LCD Display is a high-definition 4.3″ TFT module featuring an 800×480 resolution panel with 16.7 million colors. Designed for embedded systems, it provides a 24-bit RGB video interface and a 5-point capacitive touch screen via I2C, ideal for interactive user interfaces.
Key Features of Waveshare 4.3 Inch Capacitive Touch LCD Display
- 4.3″ diagonal TFT display with 800×480 resolution for sharp graphics
- 24-bit RGB interface supporting 16,777,216 colors and fast refresh rates
- 5-point capacitive touch control powered by the GT911 controller over I2C
- Compact dimensions (95.04 × 53.86 mm) suit space-constrained projects
- Includes development resources and example code for STM32F4/F7 platforms
- Genuine Waveshare display, fast shipping from Zbotic India
Applications and Use Cases
- Touchscreen interface for Raspberry Pi and other SBC projects
- Human-Machine Interface (HMI) panels in industrial controllers
- Portable handheld gaming or multimedia devices
- Automotive dashboard prototypes and infotainment demos
- Home automation control panels with touch-based menus
- Educational robotics and STEM learning modules
How to Use Waveshare 4.3 Inch Capacitive Touch LCD Display
Connect the display’s 24-bit RGB pins to your host MCU or single-board computer’s parallel interface and power it with 5 V. Link the I2C lines to the GT911 touch controller for multi-point touch input. Install the provided drivers or libraries, upload the example code to your STM32F4/F7 board (or adapt for other platforms), and follow the manual to perform touch calibration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many touch points does this display support?
The capacitive panel uses the GT911 controller over I2C and supports up to 5 simultaneous touch points for gestures and multi-touch input.
What interface does the display use for video and touch?
Video data is delivered via a 24-bit RGB parallel interface, while touch signals are communicated through an I2C bus to the GT911 chip.
Are development examples included with the display?
Yes. Waveshare provides a detailed manual along with example projects for STM32F4 and STM32F7 series microcontrollers to help you get started quickly.
