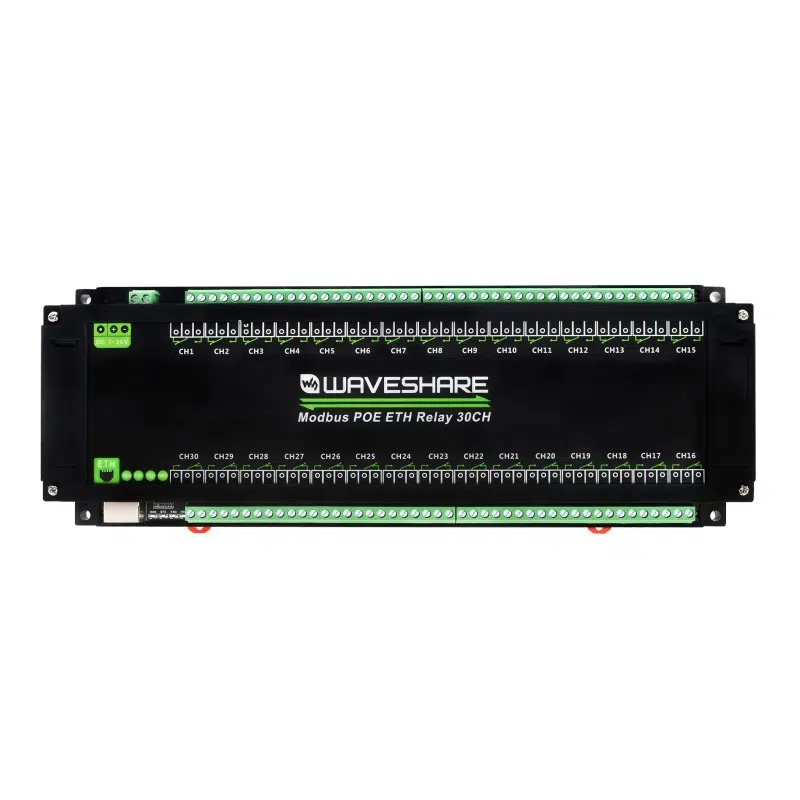

The Waveshare 30-Channel Ethernet Relay Module is a robust and versatile control solution designed for industrial automation and remote switching applications. It supports both Modbus RTU and Modbus TCP protocols, ensuring easy integration into a wide range of network environments and compatibility with existing control systems.
Features:
- Flash-on / Flash-off function: Allows turning a relay on for a set duration and automatically switching it off by passing an argument to the command
- DC 7~36V wide-range power input and PoE power supply support
- MQTT protocol control supported, with an Alibaba Cloud MQTT application demo included
- Onboard optocoupler isolation to prevent high-voltage circuit interference
- Equipped with a dedicated relay driver chip featuring built-in flyback diode protection for stable and strong driving capability
- Reverse-proof circuit to protect from accidental incorrect wiring
- High-quality relay, contact rating: ≤10A 250VAC / 30VDC
- Rail-mounted ABS plastic enclosure, safe and easy to install
- 4 LEDs and network indicators for MCU status and signal transmission monitoring
Specifications:
| Manufacturer | WAVESHARE |
|---|---|
| Power Supply | PoE port, DC 5.5*2.1 power port, or screw terminal |
| DC Power Range | 7~36V wide range |
Package Includes:
-
1 × Waveshare 30-Ch Ethernet Relay Module, Modbus RTU / Modbus TCP Protocol, PoE Port Communication, With Various Isolation and Protection Circuits
ESP32 Zigbee Coordinator: Control Smart Devices Locally
Setting up an ESP32 Zigbee coordinator for local smart home control is the path to true independence from...
Read More →
ESP32 I2C Multiple Sensors: Scan and Read Address Guide
One of the most powerful features of the I2C protocol is the ability to connect multiple sensors to...
Read More →
Troubleshoot ESP32 WiFi Drops and Reconnection Issues
If you are building an IoT project with an ESP32 and struggling with ESP32 WiFi disconnect troubleshoot fix...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI7541 |
| Weight | 1.15 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 30-Ch Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, With Various Isolation And Protection Circuits is a versatile industrial relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
