This is the 5inch variant of the Waveshare 3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel in TFT LCD Displays. Available at ₹2,219.58 (₹1,881.00 + GST) with free shipping across India.
Description:

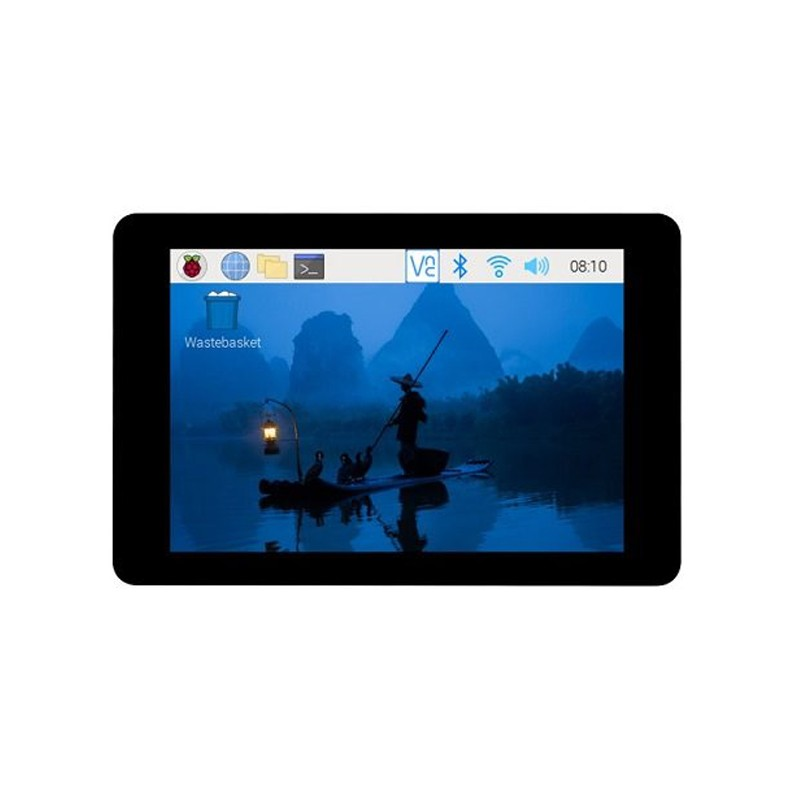

The 3.5-inch Capacitive Touch Display (F) is a high-quality touchscreen designed for the Raspberry Pi, featuring a vibrant IPS panel with a 320×480 resolution. It supports 5-point capacitive touch, offering smooth and responsive interaction for a wide range of applications. Built with durability in mind, the display includes a toughened glass panel for added protection and longevity.

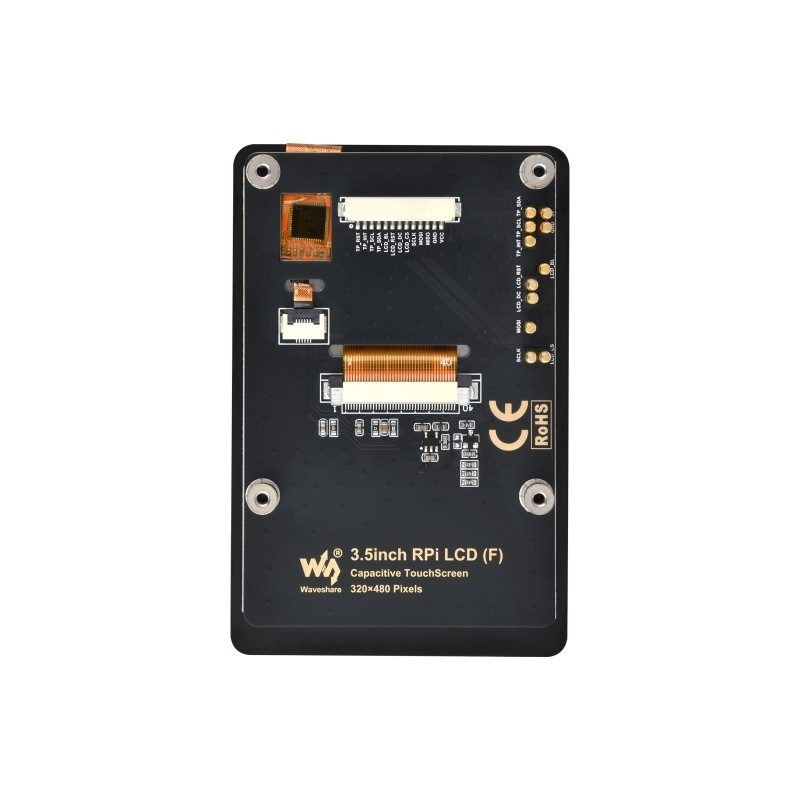

The immersion gold process on the PCB ensures enhanced signal quality and corrosion resistance. This display combines clarity, touch precision, and robust design, making it an excellent choice for embedded projects, control interfaces, and portable Raspberry Pi-based systems.
Features:
- 262K color display with 320 × 480 resolution for excellent visual effects
- High touch screen transmittance, fast response, sensitive touch, and long lifetime
- Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
- Supports Pigo pin communication and GH1.25 13PIN cable connection
- Adopts Immersion Gold process, nice looking, with better durability
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Specification:
| Model: | Touch Display |
|---|---|
| Touch Type | Capacitive Touch |
| Display Size (Inch): | 3.5 |
| Operating Voltage (V): | 5 |
| Display Driver | ST7796S |
| Display Interfaces | 4-wire SPI |
| Display Panel | IPS |
Package Includes:
1 x Waveshare 3.5inch Capacitive Touch Display (F)
Watchdog Timer Arduino: Prevent Program Freeze and Auto-Reset
Your Arduino sketch worked perfectly during testing. But after 3 days running unattended, it froze — the display...
Read More →
ESP32 OTA Update: Wireless Firmware Upload Guide
Esp32 Ota Update Wireless — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
ESP32 NTP Clock: Internet-Synced Precision Time Display
Esp32 Ntp Clock Internet Time — this detailed tutorial covers everything from hardware selection to complete working code,...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 3.5" |
| Color | Gold |
| SKU | AI7629 |
| Weight | 0.09 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
