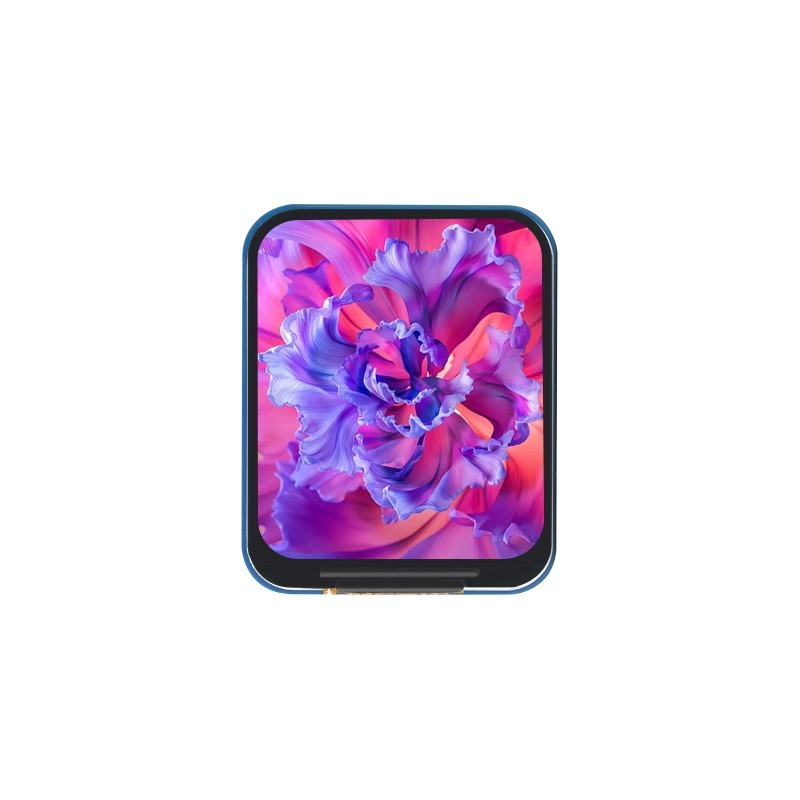

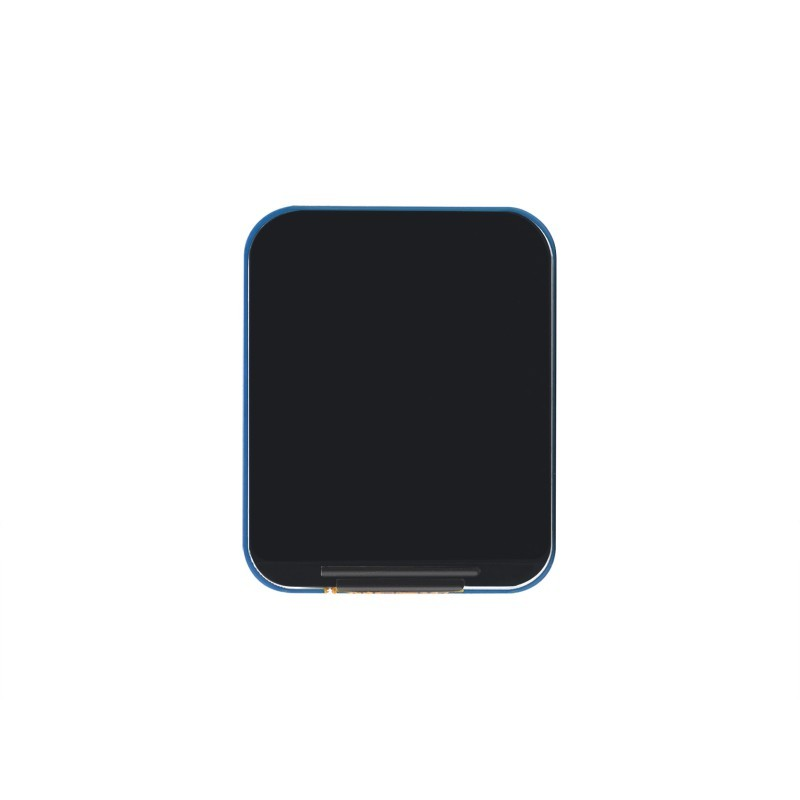

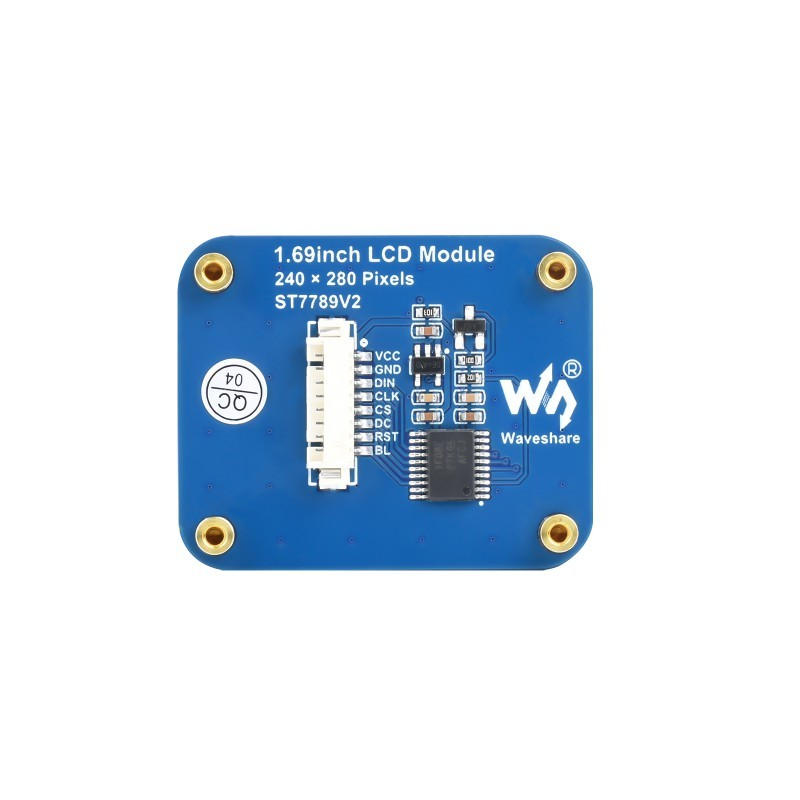

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors
The Waveshare 1.69-inch LCD Display Module is a compact and versatile display solution with a resolution of 240×280 pixels. It features a small form factor, making it suitable for various embedded systems and portable devices where space is limited.
The display utilizes an SPI (Serial Peripheral Interface) interface, which allows for fast and efficient communication with the host controller or microcontroller. This interface makes it compatible with a wide range of development platforms, including Arduino, Raspberry Pi, and other similar systems.
Features:
- 240×280 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications:
| Operating Voltage | 3.3V / 5V |
|---|---|
| Communication Interface | 4-wire SPI |
| Driver | ST7789V2 |
| Display Panel | IPS |
| Resolution | 240 × 280 pixels |
| Display Size | 27.97 × 32.63mm |
| Pixel Size | 0.11655 × 0.11655mm |
| Module | 31.50 × 39.00mm |
Package Includes:
1 x Waveshare 1.69inch LCD Display Module 240×280 Resolution, SPI Interface, IPS, 262K Colors
Waveshare 1.69inch LCD Display Module, 240×280 Resolution, Overview
The Waveshare 1.69inch LCD Display Module is a compact IPS panel featuring a sharp 240×280-pixel resolution and 262K color depth. Designed for embedded systems, it communicates over a 4-wire SPI interface and operates at 3.3V or 5V, making it ideal for portable electronics and DIY projects.
Key Features of Waveshare 1.69inch LCD Display Module, 240×280 Resolution,
- 1.69-inch IPS display with 240×280 pixel resolution for clear, wide-angle viewing
- Supports 262,144 colors (18-bit) for vivid graphics and smooth gradients
- 4-wire SPI interface with ST7789V2 driver chip for fast data transfer
- Dual voltage support (3.3V/5V) ensures compatibility with various microcontrollers
- Compact form factor perfect for handheld instruments and wearable devices
- Genuine Waveshare module in stock at Zbotic with fast shipping across India
Applications and Use Cases
- Wearable gadgets displaying health stats or notifications
- Portable data loggers showing sensor readings and timestamps
- Custom control panels for home automation or industrial monitoring
- Handheld gaming or media players with graphical interfaces
- Instrumentation displays for voltmeters, thermometers, and counters
- Arduino and Raspberry Pi projects requiring compact color screens
How to Use Waveshare 1.69inch LCD Display Module, 240×280 Resolution,
To set up, wire the module’s VCC to 3.3V or 5V supply and GND to your system ground. Connect the SPI pins (SCLK, MOSI), plus CS, DC and RESET lines to corresponding MCU pins. Install an ST7789V2 library (for Arduino, Raspberry Pi, etc.), initialize the display with the resolution parameters, and start sending pixel data in RGB565 format to render text and graphics.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltages does this module support?
The display can be powered from either a 3.3V or 5V rail. On-board voltage regulation and level shifting allow direct connection to most microcontroller I/O without additional hardware.
Which interface pins are required for connection?
The module uses a 4-wire SPI interface: SCLK (clock), MOSI (data), CS (chip select), DC (data/command), plus RESET. A backlight pin (BL) can be tied to VCC for full illumination.
Is there library support for popular development boards?
Yes. Compatible libraries for the ST7789V2 driver are available for Arduino, PlatformIO, and Raspberry Pi (Python). Example code can be found in Waveshare’s GitHub repository.
