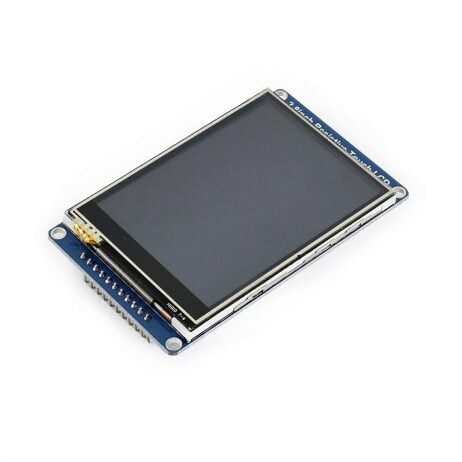

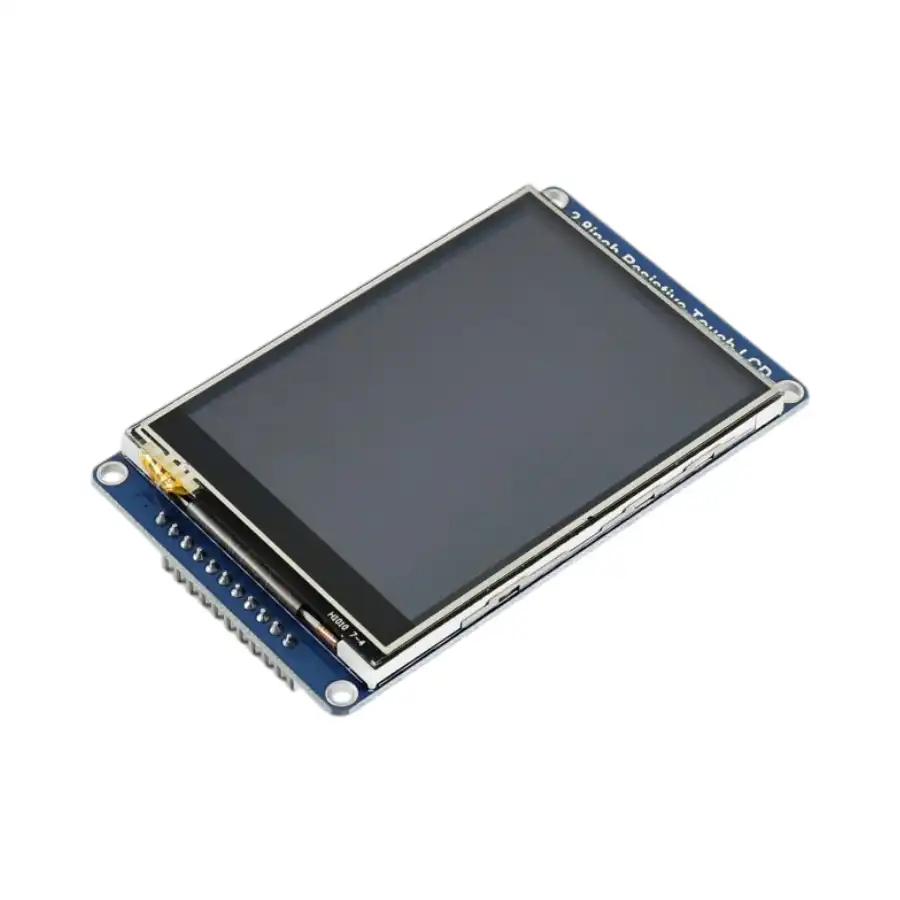

Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display
This multicolor graphic IPS LCD display features a 2.8-inch diagonal, 320×240 pixels, and a resistive touchscreen. The TFT display is large (2.8″ diagonal), vivid, and colorful, with individual RGB pixel control, offering significantly higher resolution than a monochrome 128×64 display. Additionally, it includes an onboard touch controller to enhance the touch experience.
Features:
- Onboard touch controller, smoother touch experience than solutions that directly use AD pins for touching.
- SPI interface requires a few pins.
- Programmable backlight control, power saving.
- Comes with development resources and a manual (examples for STM32/AVR/PIC).
Specifications:
| Display Colors | RGB, 65K colors |
|---|---|
| Resolution | 320 x 240 |
| Backlight | LED |

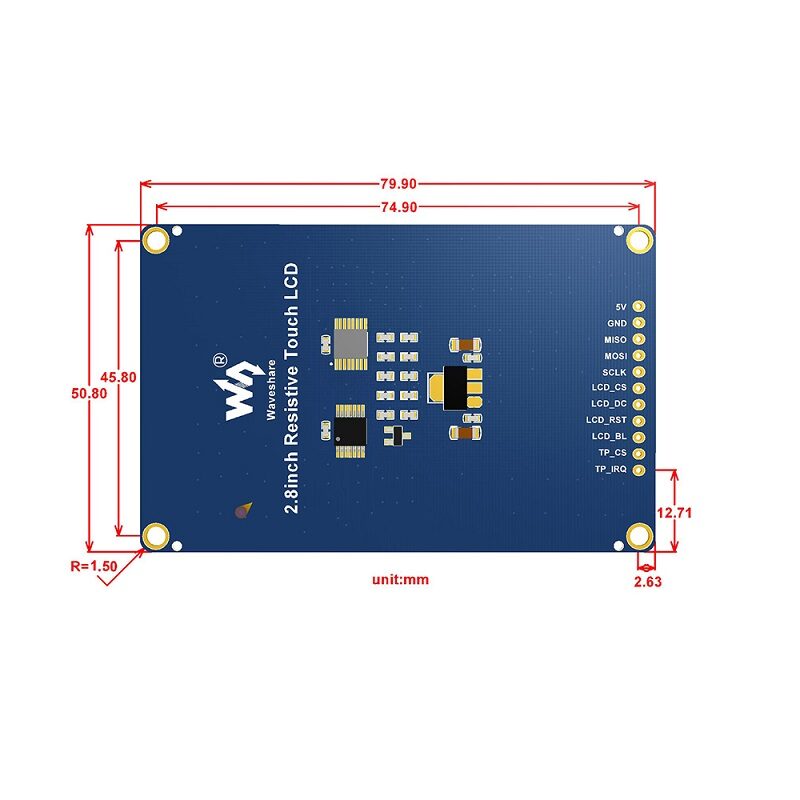

| Display Size (mm) | 57.6mm × 43.2mm |
| Touch Type | 4-wire Resistive |
| Power Supply Voltage | 5V |
| Logic Level | 3.3V |
| Length (mm): | 80 |
| Width (mm): | 51 |
| Weight (g): | 30 |
Package Includes:
1 x Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display
Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display Overview
The Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display is a compact IPS TFT module featuring a 4-wire resistive touchscreen and the HX8347D driver IC. Designed for embedded systems and DIY electronics, it delivers vivid 65K-color graphics and precise touch control over an SPI interface.
Key Features of Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display
- 2.8-inch IPS TFT panel with 320×240 pixel resolution for sharp, colorful graphics
- 4-wire resistive touchscreen with onboard touch controller for smooth, accurate input
- HX8347D driver IC ensuring stable display performance and color consistency
- SPI interface uses minimal MCU pins, simplifying wiring to Arduino, Raspberry Pi, or other controllers
- Programmable backlight control allows adjustable brightness and power savings
- Fast shipping across India from Zbotic—get your display in 24 hours*
Applications and Use Cases
- Portable handheld devices and user interfaces for DIY projects
- Control panels for home automation, industrial monitoring, or data logging
- Graphical dashboards on Arduino and Raspberry Pi-based robots or IoT prototypes
- Custom game consoles and retro arcade builds requiring touchscreen input
- Educational electronics kits demonstrating touch interaction and graphics rendering
How to Use Waveshare 2.8 Inch 320×240 Resistive Touch LCD Display
Connect the module’s SPI pins (MOSI, MISO, SCK, CS) and touch controller lines to your microcontroller, then supply power and ground. Install the compatible display library, configure the HX8347D driver settings, and run the built-in touchscreen calibration routine. Use the backlight control pin in your code to adjust brightness on the fly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which microcontrollers work with this 2.8″ TFT display?
This display uses an SPI interface and standard 4-wire touch signals, making it compatible with Arduino Uno/Mega, ESP32/ESP8266, Raspberry Pi, STM32, and other SPI-capable controllers. Ensure you have the HX8347D library or driver support for your platform.
How do I calibrate the resistive touchscreen?
After wiring power, ground, SPI, and touch pins, upload a calibration sketch or example from the Waveshare library. Follow on-screen prompts to press at indicated corners; the library will generate calibration data you can store in your microcontroller’s memory.
Can I adjust the backlight brightness via software?
Yes. The module provides a backlight control pin (B/L) that can be driven by a PWM output from your microcontroller. Varying the duty cycle adjusts brightness, allowing power-saving dimming or full-bright display modes.
