This is the 47inch variant of the Waveshare 1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface in TFT LCD Displays. Available at Original price was: ₹966.42.₹889.72Current price is: ₹889.72. (₹754.00 + GST) with free shipping across India.

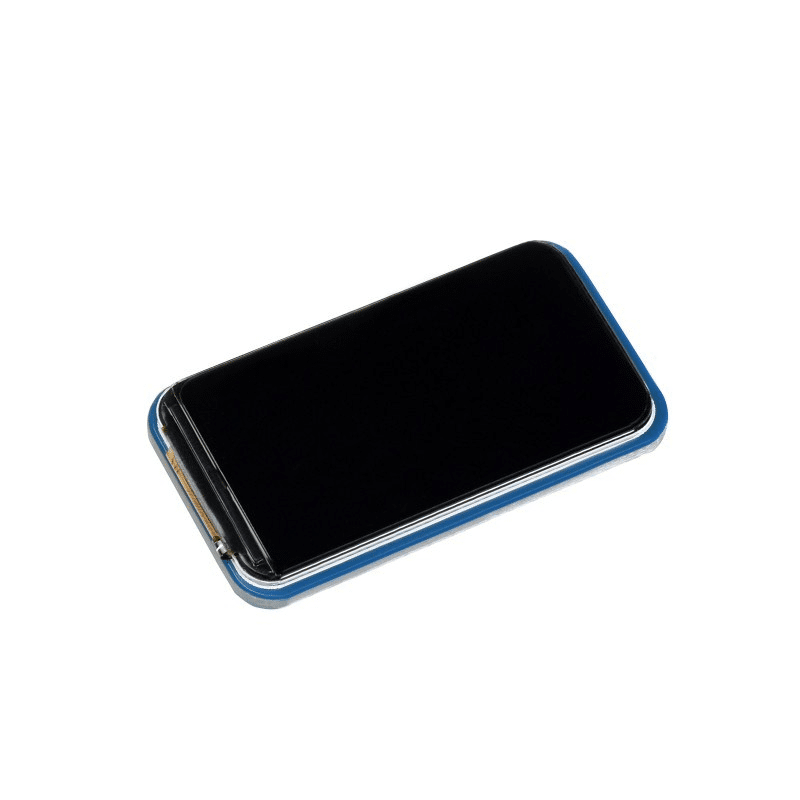

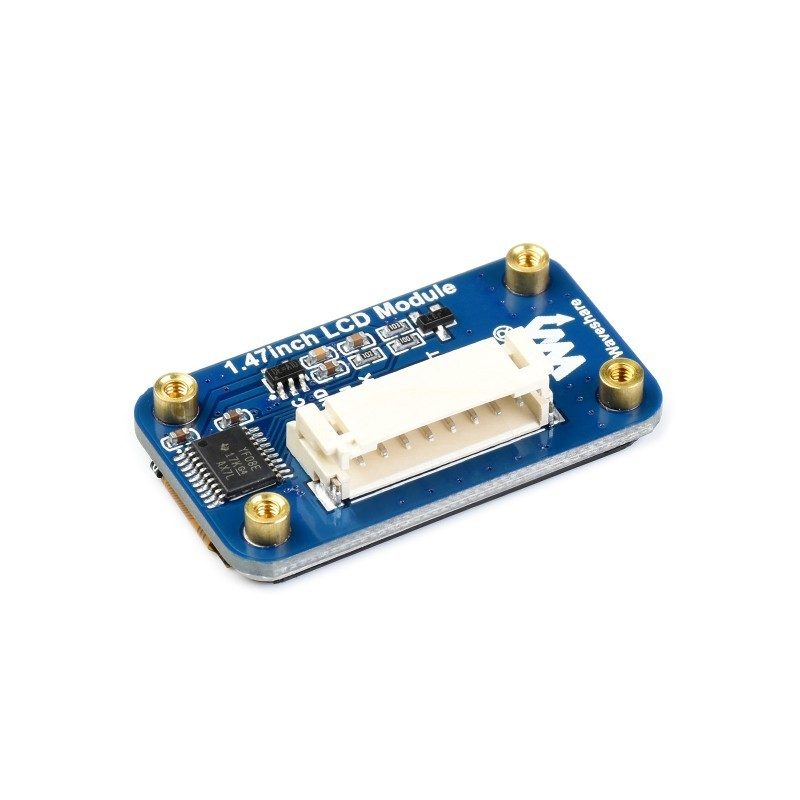

Waveshare 1.47inch LCD Display Module, Rounded Corners, 172×320 Resolution, SPI Interface. The built-in controller used in this LCD is ST7789V3, which is an LCD controller with 240 x RGB x 320 pixels, while the pixels of this LCD itself are 172(H)RGB x 320(V). There are two types of horizontal and vertical screens, so the internal RAM of the LCD is not fully used.
The LCD supports 12-bit, 16-bit and 18-bit input color formats per pixel, namely RGB444, RGB565, RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format.

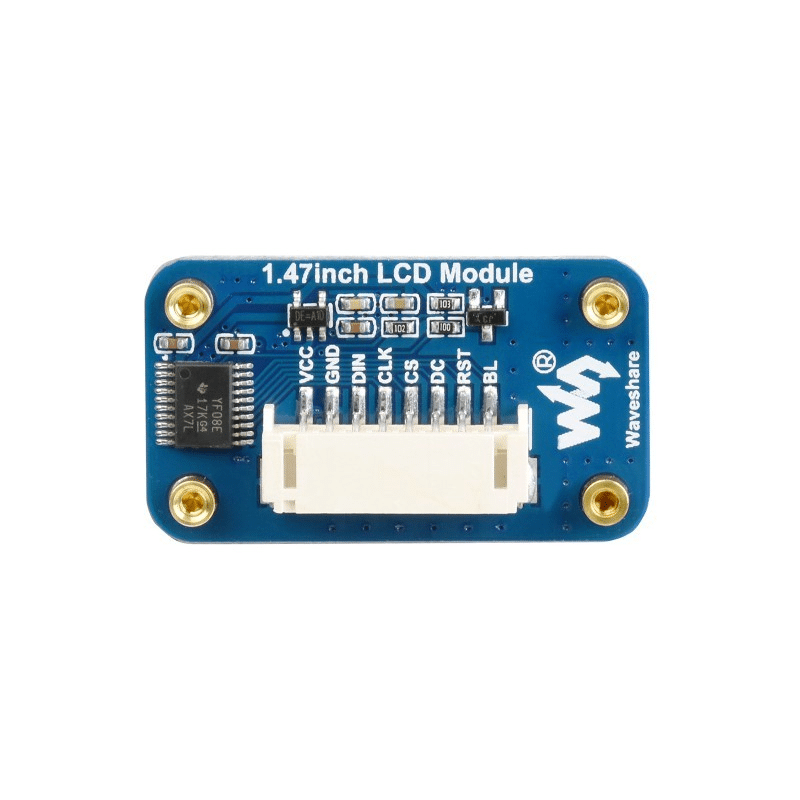

The LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.
Features:

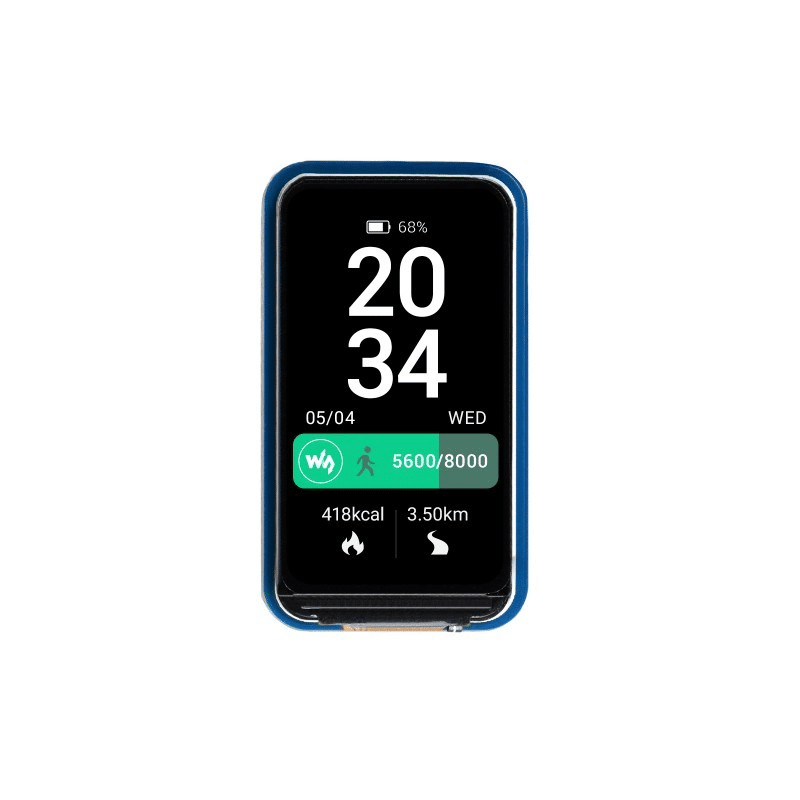

- 172×320 resolution, 262K RGB colors, clear and colorful displaying effect

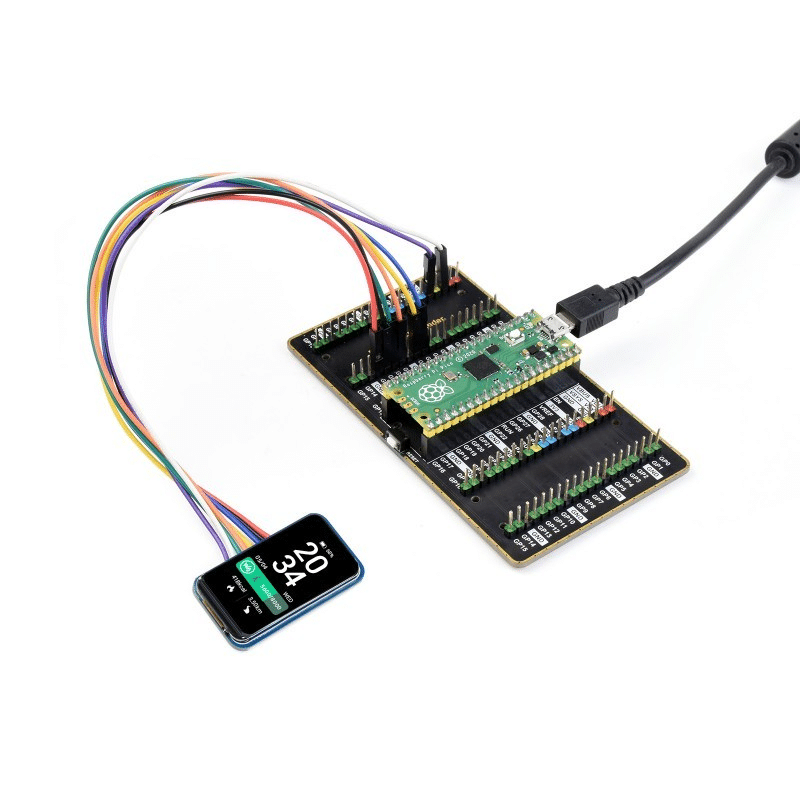

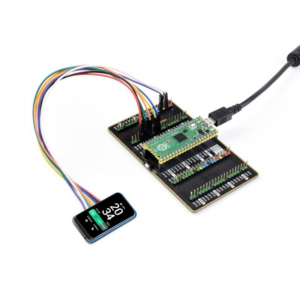

- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications:
| Model | LCD Display Module |
|---|---|
| Display Size (Inch) | 1.47 |
| Display Resolution | 172 × 320 |
| Operating Voltage (V) | 3.3V/5V |
| Communication Mode | 4-wire SPI |
| Display Panel | IPS |
| Pixel Pitch | 0.0337 × 0.1011mm |
| Driver IC | ST7789V3 |
Useful Links:
Package include:
- 1x 1.47inch LCD Module
- 1x PH2.0 8PIN cable
Arduino Nano Every: Better AVR or Overkill for Beginners?
The Arduino Nano Every quietly landed in 2019 as Arduino's replacement for the aging Nano. Same form factor....
Read More →
Arduino Mega 2560 Projects: When You Need More Pins
Table of Contents Why Choose the Arduino Mega 2560? Specifications and Pin Layout Setup Guide: IDE Configuration and...
Read More →
Arduino Multitasking Guide: millis() Instead of delay()
The single biggest step-up in Arduino programming skill is moving from delay() to millis()-based timing. While delay() is...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.47" |
| Interface / Protocol | SPI |
| Resolution | 172x320 |
| Package Quantity | 320 pcs |
| SKU | AI7557 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 1.47inch LCD Display Module, Rounded Corners, 172x320 Resolution, SPI Interface is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
