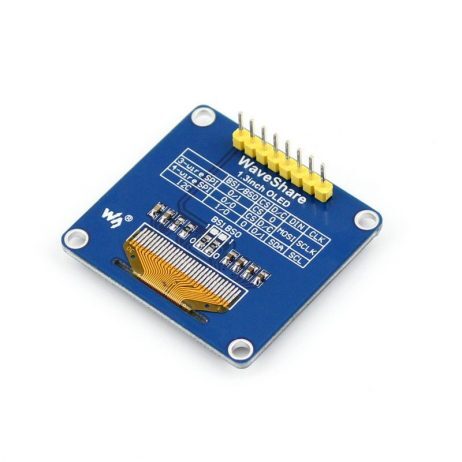

Waveshare 1.3 Inch OLED Display (B)

Looking for Waveshare 1.3 Inch Display? Waveshare 1.3 Inch OLED Display (B) is available at Zbotic with fast shipping across India.

This is a Waveshare 1.3 Inch OLED Display (B) module. It is a very high-contrast display with no backlight.  It is perfect when you need an ultra-small display. This module supports SPI/I2C communication interfaces. It supports various hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32.

Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. This module provides 3 kinds of driver interfaces; they are 3-wire SPI, 4-wire SPI, and I2C interface.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Pin Definition:

1.GND: Power ground
2.VCC: Power positive
3.SCL: Serial Clock Line
4.SDA: Serial Data wire.

Features:

1. Better quality
2. The IIC address can be changed, it is convenient to use with different machines.
3. Four square holes are easy to install

Package Includes:

1 x 1.3 Inch OLED Display (B)

About Waveshare 1.3 Inch Display

Waveshare 1.3 Inch OLED Display (B) is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by WAVESHARE, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: WAVESHARE
• SKU: AI1556
• Category: OLED Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Waveshare 1.3 Inch Display and other products.

Applications

Waveshare 1.3 Inch Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Waveshare 1.3 Inch Display today and start building.

Waveshare 1.3 Inch OLED Display Overview

The Waveshare 1.3 Inch OLED Display (B) is a compact high-contrast screen driven by the SH1106 chip. Designed for embedded systems, it offers sharp 128×64 graphics without backlight, making it ideal for low-power applications and sleek hardware interfaces.

Key Features of Waveshare 1.3 Inch OLED Display

• 1.3-inch diagonal OLED panel with 128×64 resolution for crisp text and graphics
• SH1106 driver chip ensuring stable display performance and longevity
• Supports 3-wire SPI, 4-wire SPI and I2C interfaces for flexible MCU connectivity
• Self-emissive display: high brightness, wide viewing angle and excellent contrast
• Ultra-thin form factor and wide temperature tolerance for portable or rugged projects
• Genuine Waveshare module with fast shipping from Zbotic across India

Applications and Use Cases

• Wearable devices: smartwatch screens, fitness trackers
• IoT control panels: status readouts for home automation
• Portable measurement tools: multimeters, environmental sensors
• Embedded prototypes: Arduino, STM32 or Jetson Nano dashboards
• Battery-powered gadgets: power banks, remote controllers

How to Use Waveshare 1.3 Inch OLED Display

Connect the module’s VCC and GND to your board’s 3.3 V power, select SPI or I2C wiring according to your interface (3-wire SPI: CLK, MOSI, CS; 4-wire SPI adds DC; I2C: SDA, SCL), install an SH1106-compatible library, then initialize the display in your sketch. Once configured, you can render text, graphics and animations via standard draw commands.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I use the Waveshare 1.3 Inch OLED Display with a Raspberry Pi over I2C?

Yes. Simply connect SDA and SCL on the display to the Pi’s I2C pins, enable I2C in raspi-config, install an SH1106 Python library, and adjust the address parameter (0x3C by default) before running demo scripts.

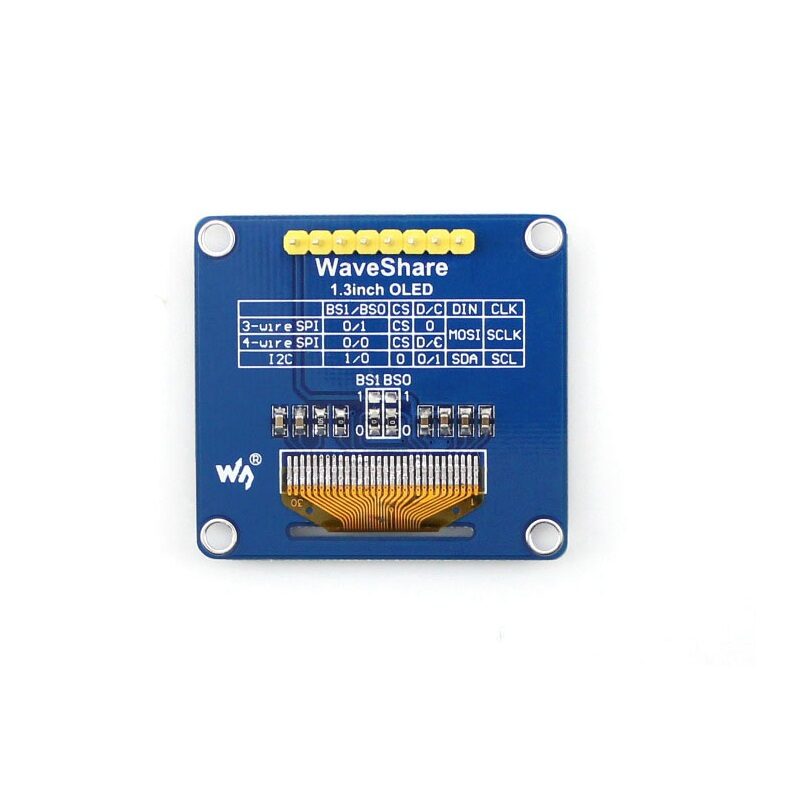

How do I switch between 3-wire SPI and 4-wire SPI modes?

Wiring determines the mode: for 3-wire SPI connect CLK, MOSI and CS; for 4-wire SPI also connect the D/C pin. In your code’s initialization, set the interface type to match wiring so the SH1106 driver uses the correct protocol.

Does this OLED module require a backlight for visibility?

No. Being an OLED, each pixel emits its own light. You get high contrast and brightness without a separate backlight, which reduces power consumption and simplifies mechanical design.
