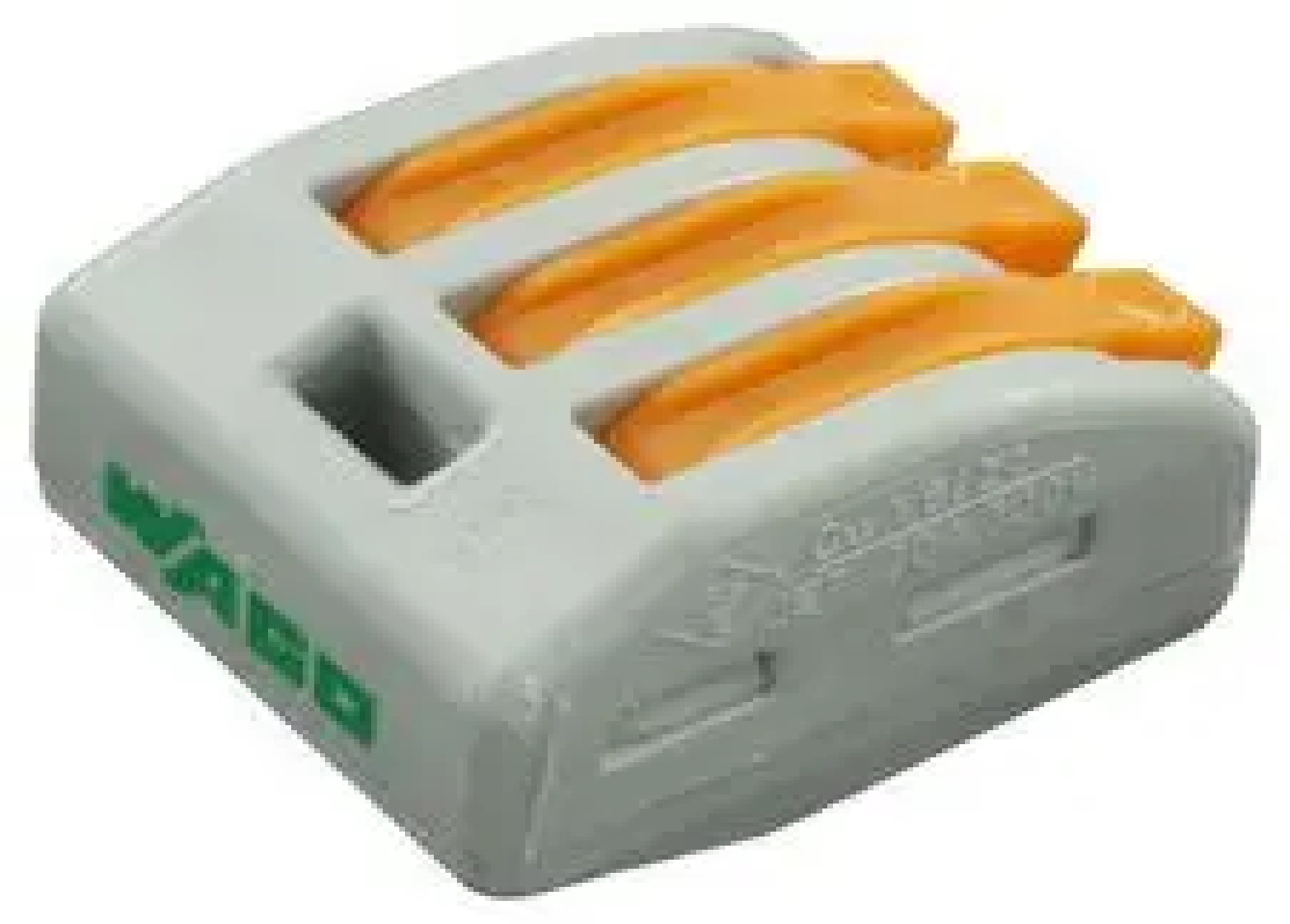

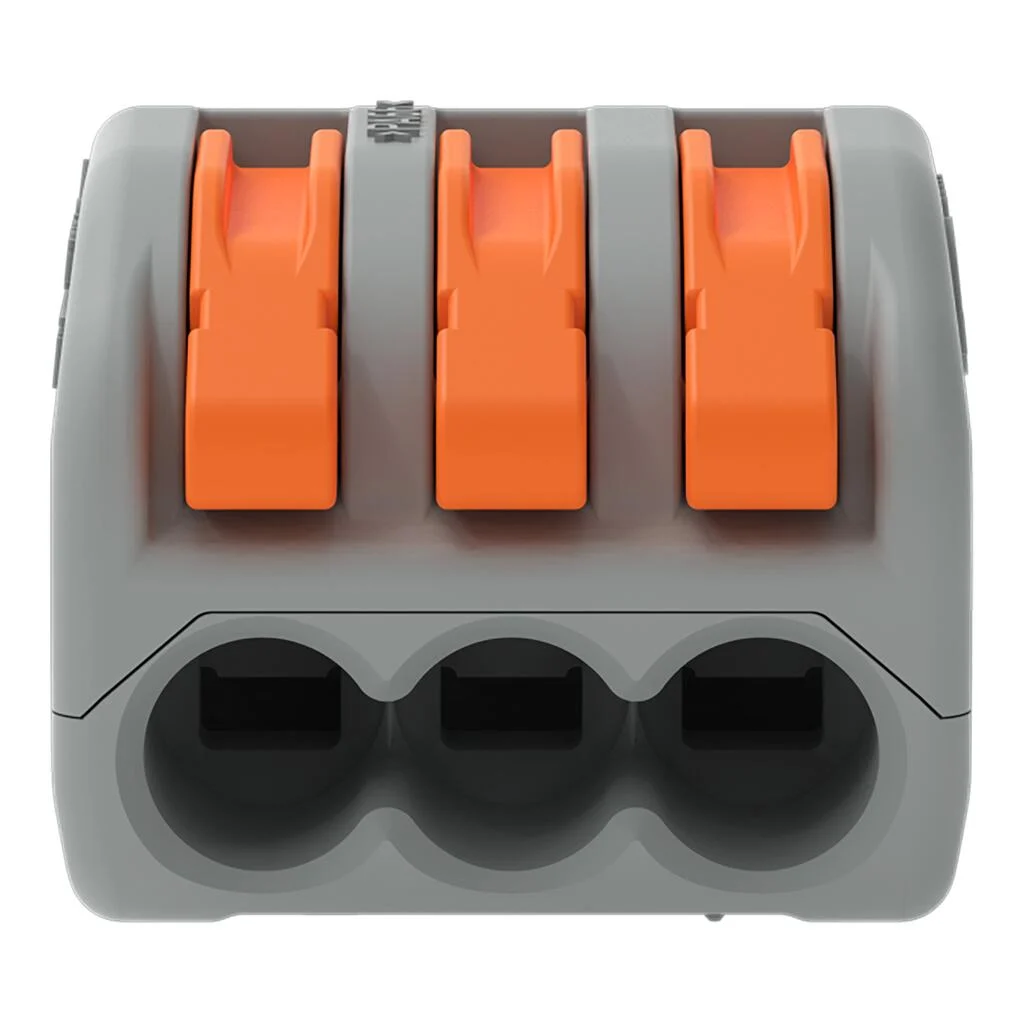

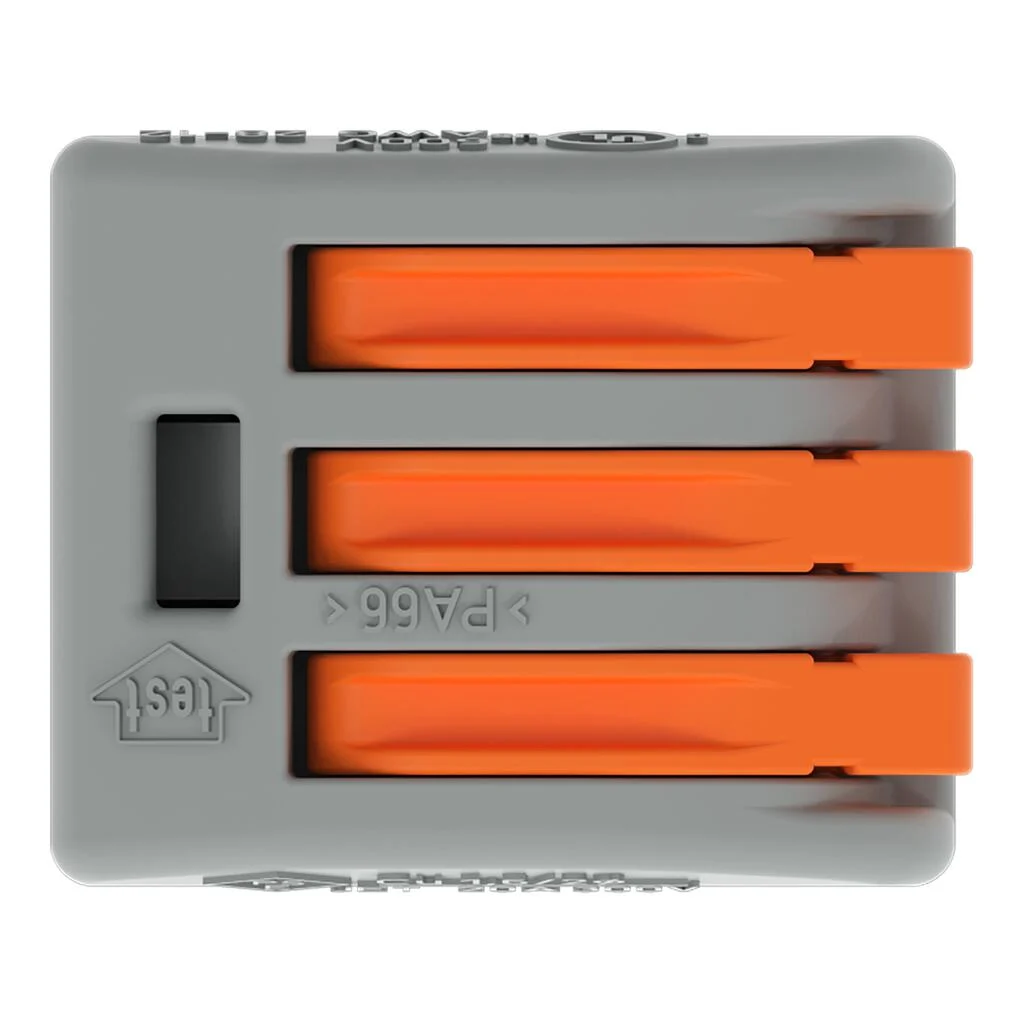

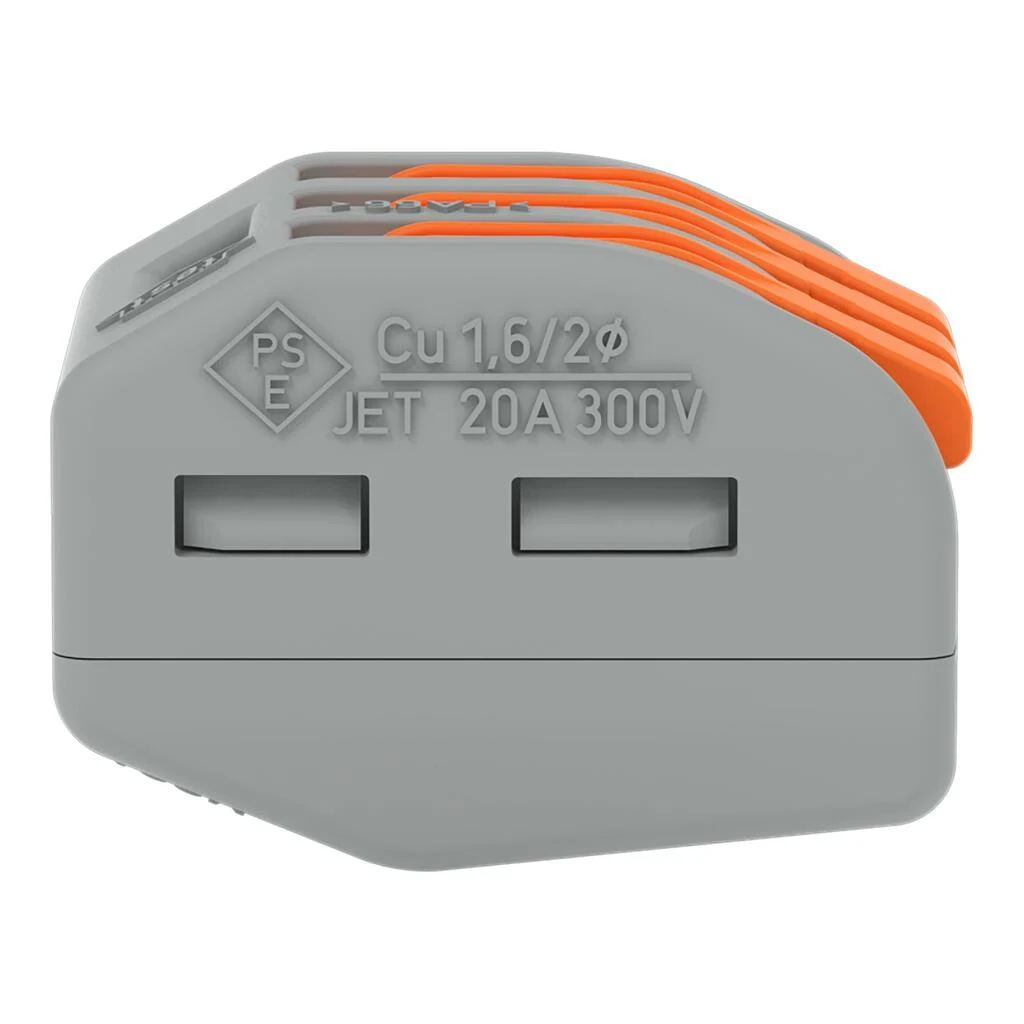

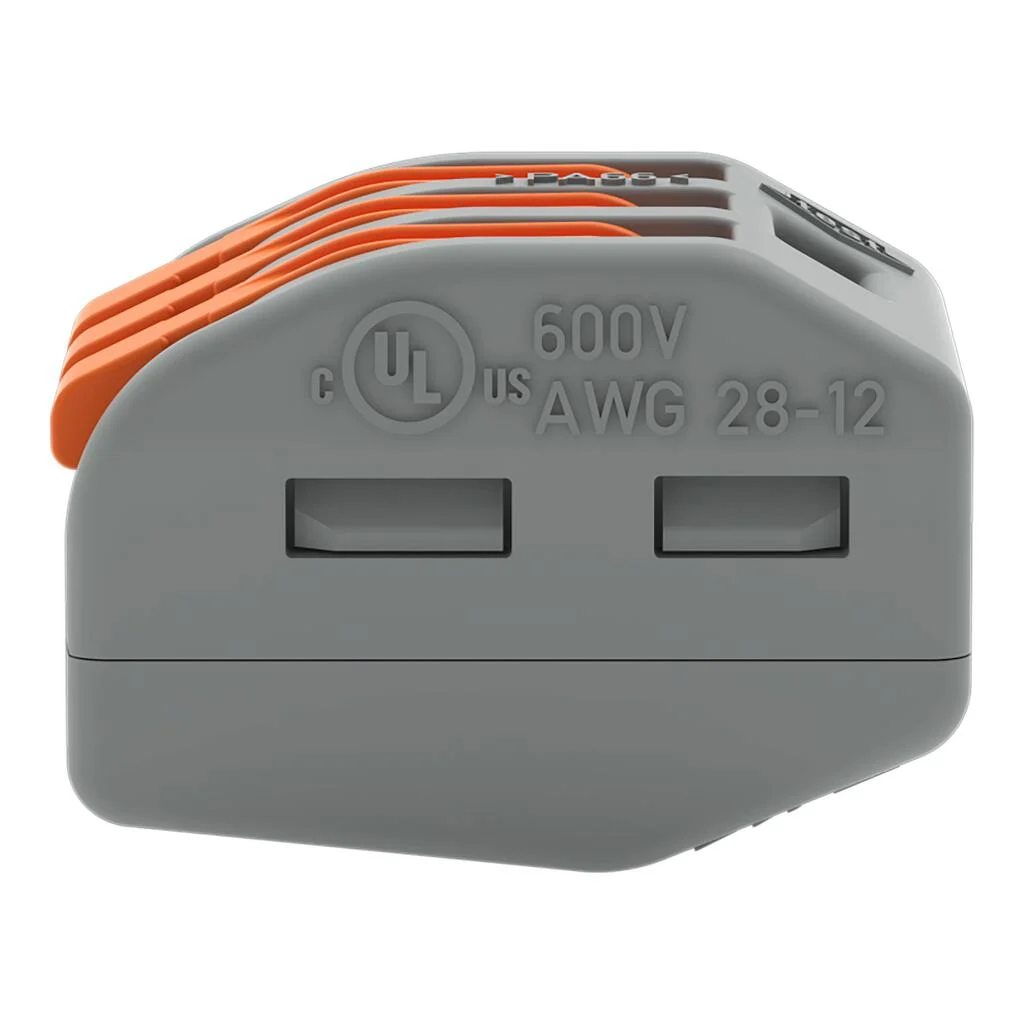

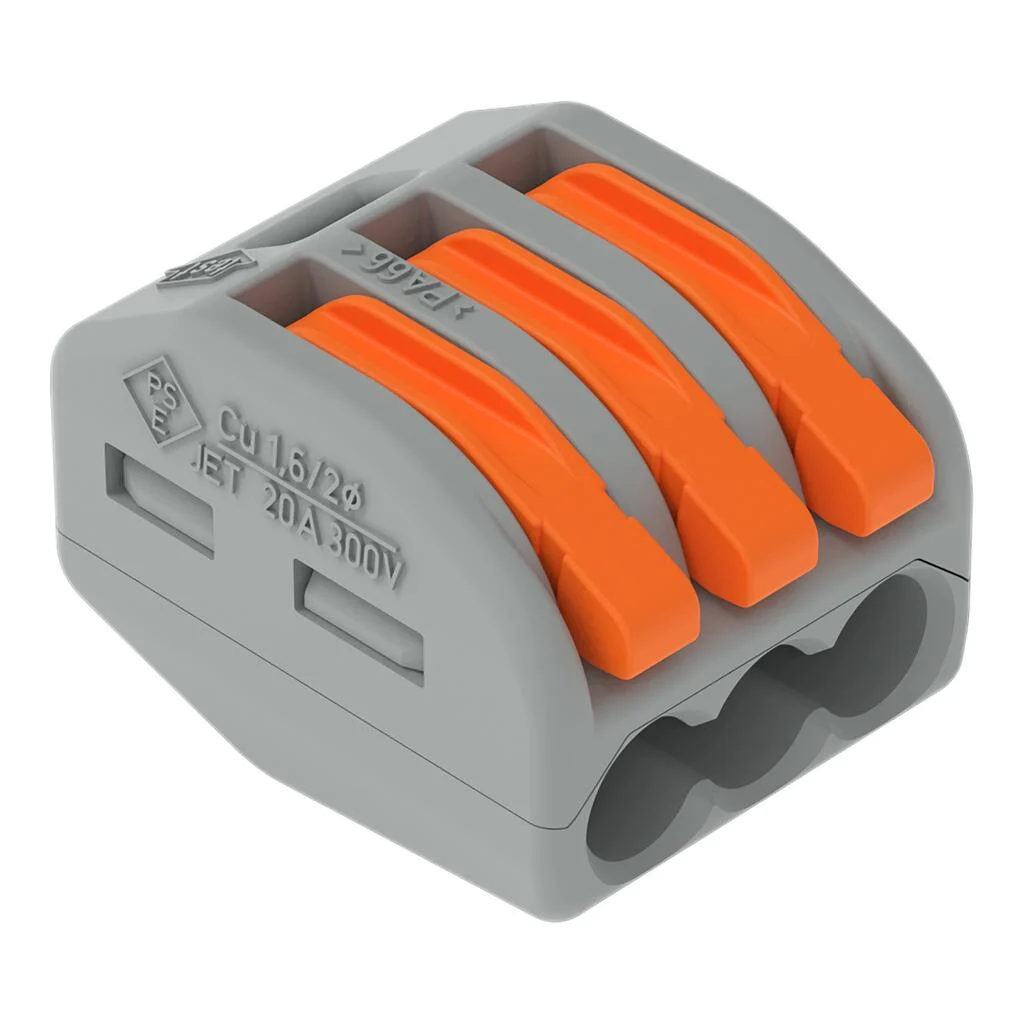

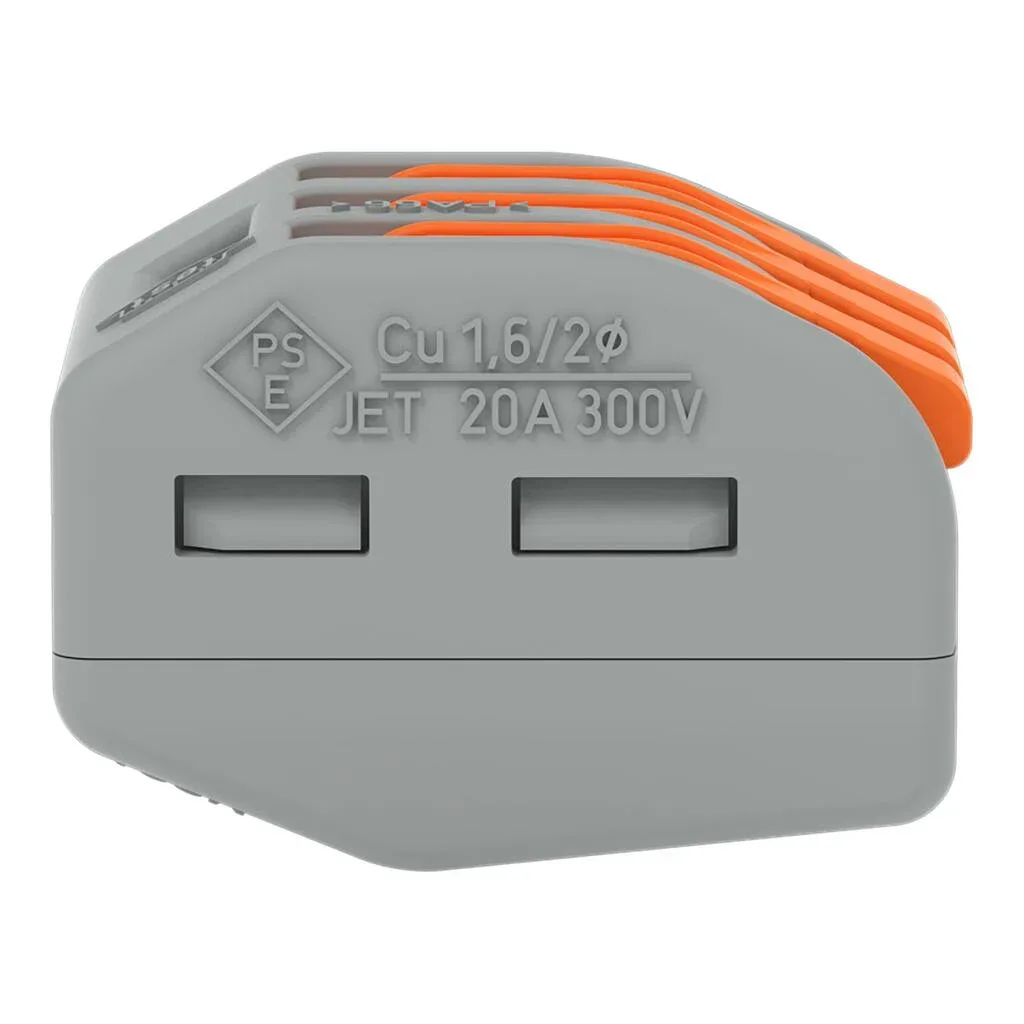

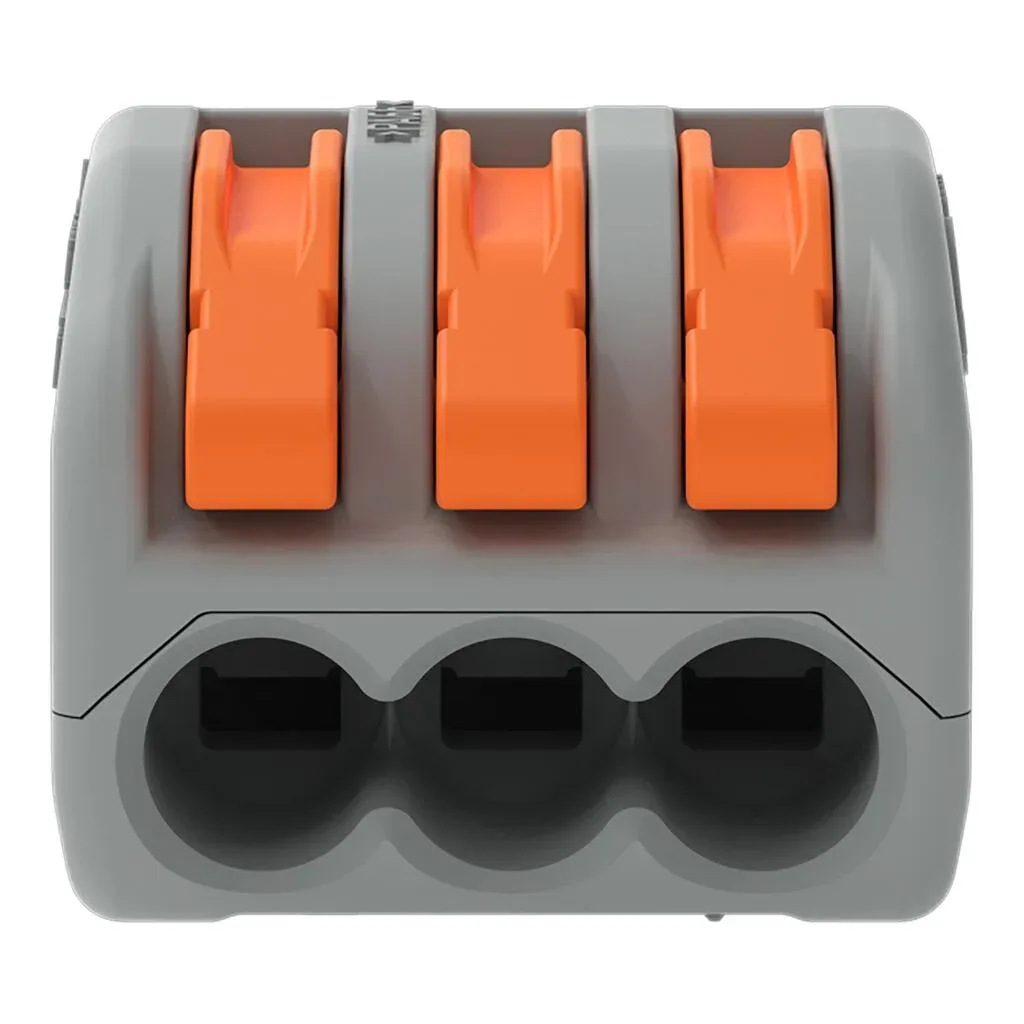

WAGO 222-413Connection Terminal
The WAGO 222-413 is a 3-conductor terminal block equipped with a cage clamp connection, designed for quick and tool-free wire terminations. This versatile connector accommodates solid, stranded, and fine-stranded cables, making it ideal for a wide range of wiring applications. Featuring a compact design and an easy-to-use lever mechanism, it simplifies installation and operation. Compatible with wire sizes from 28 AWG to 12 AWG, the WAGO 222-413 ensures reliable and secure connections for both professional and DIY projects.
Features:
- Compact connecting terminal accommodating up to 3 stripped flexible conductors.
- Supports conductor sizes from 0.08 to 4 mm², ensuring compatibility with a wide range of cables.
- Lever-operated design eliminates the need for tools during operation, enhancing convenience and efficiency.
- Voltage Rating: 400V, ensuring safe and reliable electrical connections.

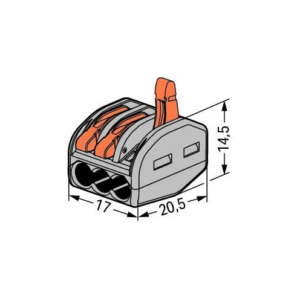

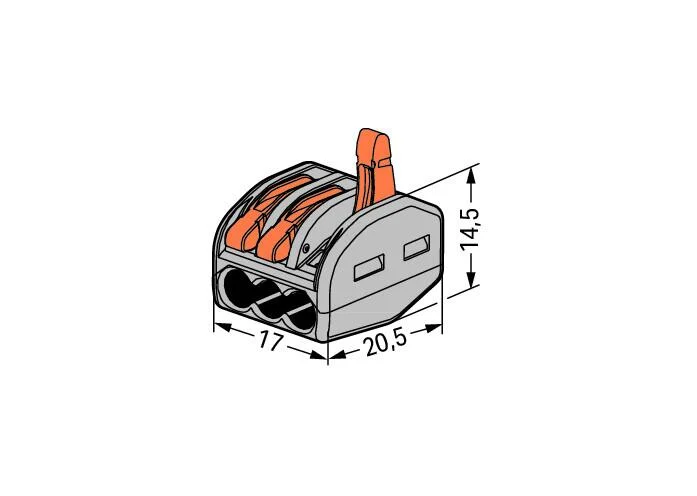

- Dimensions: W: 17mm x H: 14.5mm x D: 20.5mm, providing a compact footprint suitable for various installations.
- Ambient Temperature: Rated for up to 60°C, making it suitable for use in different environmental conditions.
- Color: Grey, offering a professional appearance and easy identification.
- Wiring Type: Side entry, facilitating convenient and efficient wiring configurations.
Upgrade your wiring projects with the WAGO 222-413 Connection Terminal, offering reliability, ease of installation, and versatility for a wide range of applications.
Specifications:
Specification | Details |
---|---|
Product Name | WAGO 222-413 Connection Terminal |
Terminal Type | 3-conductor terminal block |
Connection Type | Cage clamp |
Wire Compatibility | Solid, stranded, and fine-stranded cables |
Wire Size Compatibility | 28AWG to 12AWG |
Conductor Size | 0.08 to 4 mm² |
Operating Mechanism | Lever-operated, no tools required |
Voltage Rating | 400V |
Dimensions | Width: 17mm, Height: 14.5mm, Depth: 20.5mm |
Ambient Temperature | Up to 60°C |
Color | Grey |
Wiring Type | Side entry |
PACKAGE INCLUDES
1 X WAGO 222-413 Connection Terminal
