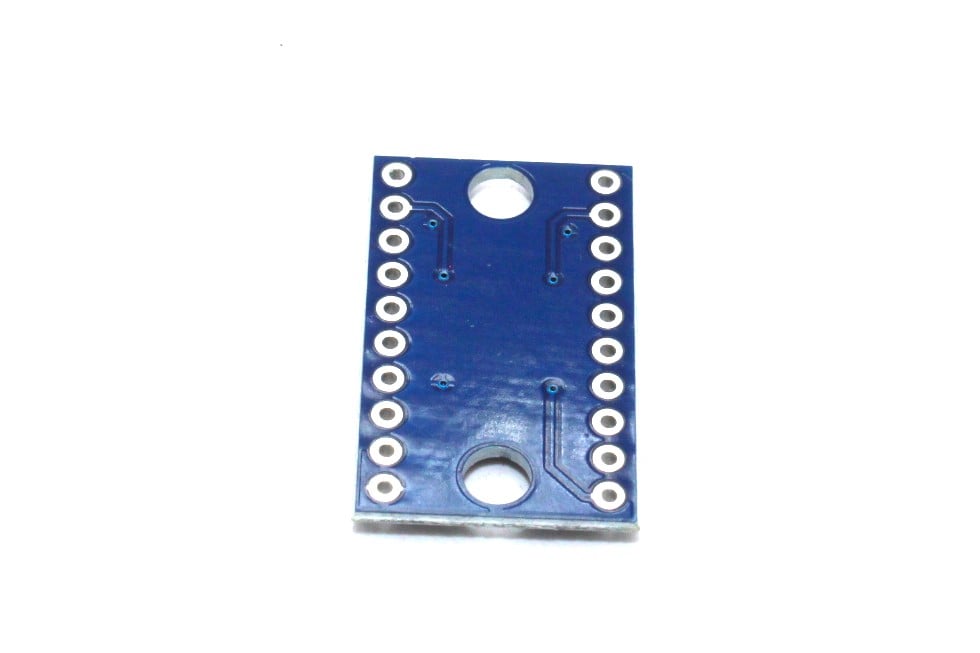

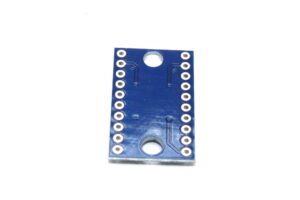

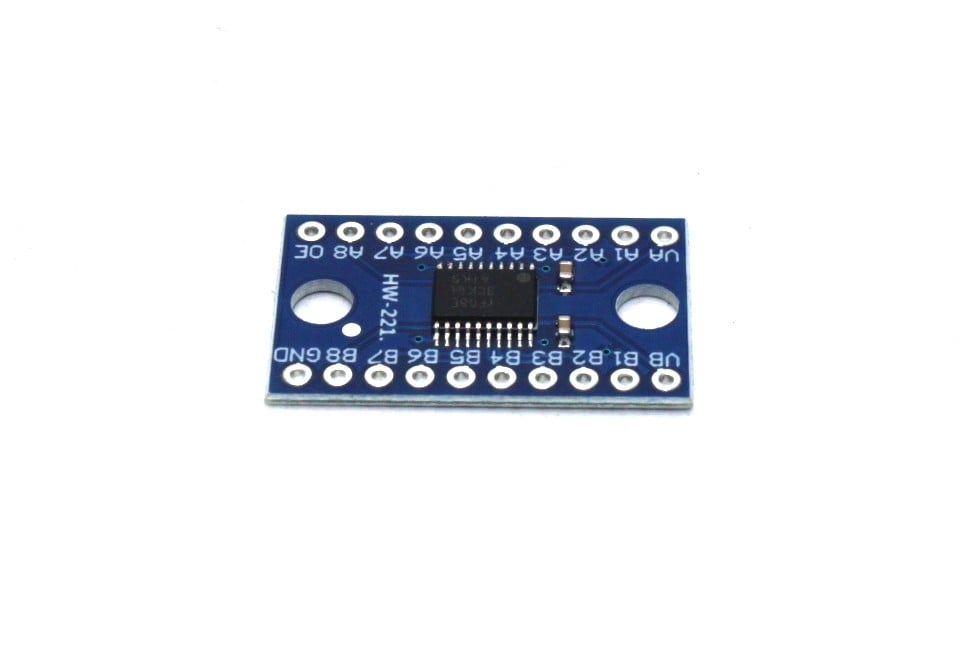

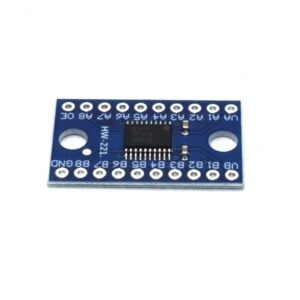

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
Introducing the TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter, designed to tackle the challenges of connecting devices with different logic voltage levels. This bi-directional logic level converter enables seamless conversion between 1.8V, 3.3V, and 5V logic levels, ensuring compatibility across a variety of devices and systems.
Each level converter within this module can handle up to 8 pins on both the high and low sides, providing ample connectivity options for your projects. With its serial interface compatibility with UART/IIC/SPI ports, integration into your existing setup is effortless.
Utilizing two separate configurable power-supply rails – VCCA and VCCB – this converter accommodates a wide range of supply voltages for bidirectional translation. VCCA accepts supply voltages between 1.2V and 3.6V, while VCCB accepts voltages between 1.65V and 5.5V.
Experience smooth and reliable logic level conversion without signal inversion, ensuring accurate translation between different voltage nodes. Say goodbye to compatibility challenges and confidently connect your devices with the TXS0108E Logic Level Converter.
Features:
- Wide Compatibility: Supports logic level conversion between 1.8V, 3.3V, and 5V voltage levels, providing versatile compatibility for a range of devices.
- 8-Channel Conversion: Each level converter can handle up to 8 pins on both the high and low sides, offering ample connectivity options for your projects.
- Serial Interface Compatibility: Equipped with a serial communication interface compatible with UART/IIC/SPI ports, facilitating easy integration with various communication protocols.
- Dual Power-Supply Rails: Utilizes two separate configurable power-supply rails, with VCCA accepting voltages between 1.2V and 3.6V, and VCCB accepting voltages between 1.65V and 5.5V.
- Bidirectional Translation: Enables bidirectional translation between different voltage nodes, supporting seamless communication between devices with varying logic levels.
Specifications:
| Specification | Details |
|---|---|
| Logic Voltage Levels Supported | 1.8V, 3.3V, 5V |
| Number of Channels | 8 |
| Interface Compatibility | UART/IIC/SPI |
| Power-Supply Rails | Two configurable rails: VCCA and VCCB |
| VCCA Voltage Range | 1.2V to 3.6V |
| VCCB Voltage Range | 1.65V to 5.5V |
| Maximum Channels Converted Simultaneously | 8 |
- Ideal for interfacing MCUs and SD cards
- Perfect for connecting MCUs with serial devices
- Widely used in MCU and 5V/3V module communication scenarios
Upgrade your project’s compatibility and connectivity with our TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter. Ensure seamless communication between devices with different logic voltage levels and unlock new possibilities for your applications.
Package Includes

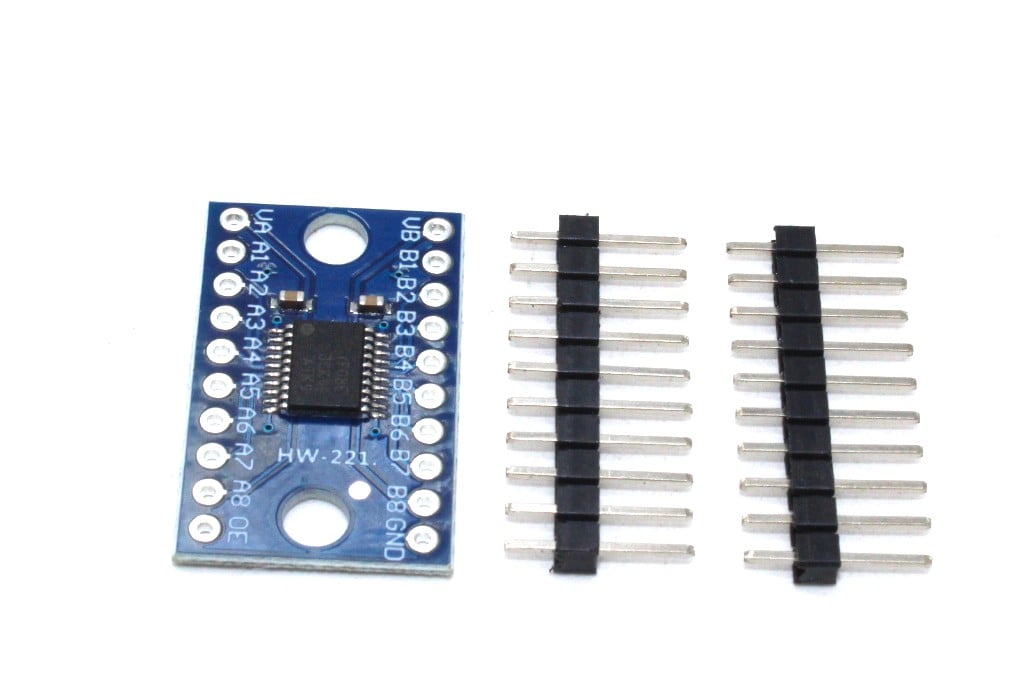

- 1 x TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter
