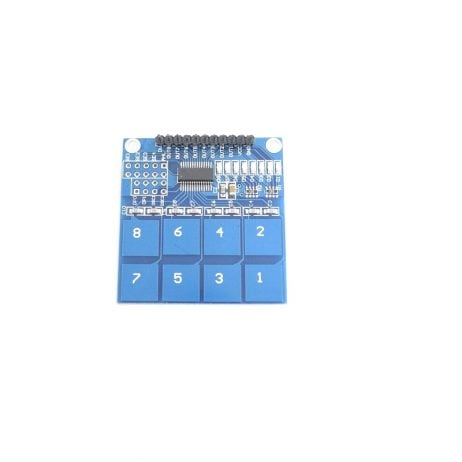

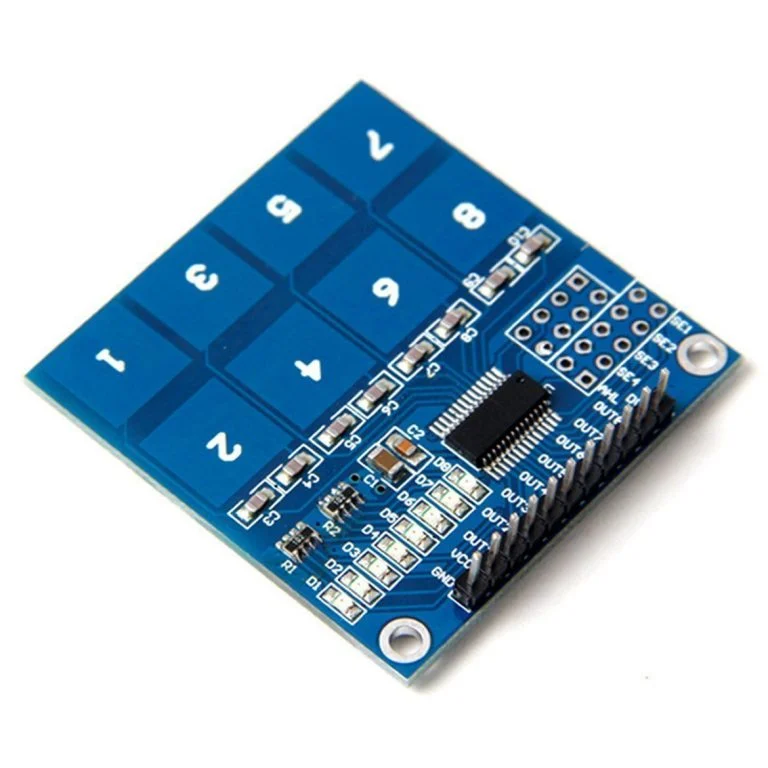

TTP226 8-way Capacitive Touch Switch Module
The TTP226 is an integrated touchpad detector IC featuring 8 touch keys. This detection IC is specifically engineered to replace traditional direct button keys with pads of various sizes. Utilizing capacitive touch technology, it enables electronics to detect when a finger is in close proximity to a surface, effectively simulating a button press similar to traditional pushbuttons. Capacitive sensing can be employed in applications where low to no force human touch sensing is preferred, offering versatile functionality across various devices and interfaces.
Features:
- On-board TTP226 capacitive touch induction IC
- On-board 8-way level indicator.
- Adjustable output mode, key output mode, longest time and fast/low power output.
Specification:
Onboard 8 key TTP226 capacitive touch induction IC.
Onboard 8-way level indicator.
Working voltage: 2.4 to 5.5 V.
Modules, you can set the output mode, key output mode, the longest time and fast/low power output
Package Includes:
1 x TTP226 8-way Capacitive Touch Switch Module.
TTP226 8-way Capacitive Touch Switch Module Overview
The TTP226 8-way Capacitive Touch Switch Module is a compact PCB featuring an onboard TTP226 capacitive touch induction IC and eight touch-sensitive pads. Designed to replace mechanical buttons, it detects finger proximity to simulate pushbutton actions and provides an LED level indicator for each key. Ideal for projects that require low-force human interface controls.
Key Features of TTP226 8-way Capacitive Touch Switch Module
- Onboard TTP226 capacitive touch induction IC with 8 independent touch keys
- Built-in 8-segment LED level indicator for real-time status display
- Wide operating voltage range of 2.4 – 5.5 V for 3.3 V or 5 V systems
- Configurable output mode and key output mode via solder jumpers
- Adjustable touch response time and power consumption (fast/low-power)
- Compact form factor for easy integration into control panels
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Home automation touch panels for lighting and HVAC control
- Industrial machinery operator interfaces replacing mechanical switches
- DIY electronics projects requiring sleek, force-free controls
- Audio equipment and mixing consoles with touch-sensitive buttons
- Interactive kiosks or vending machines needing durable interfaces
- Consumer appliances such as touch-activated fans or coffee makers
How to Use TTP226 8-way Capacitive Touch Switch Module
Connect VCC (2.4–5.5 V) and GND, then wire each of the eight output pins to your microcontroller or logic circuit inputs. Use the onboard solder jumpers to select momentary or latch output modes and set the desired response time or power-saving mode. Power up the module, allow a few seconds for self-calibration, and monitor the LED indicators to confirm each touch key is active. Read the digital outputs to detect touch events in your firmware.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many touch keys and outputs does the module provide?
This module offers eight individual capacitive touch keys, each with its own digital output pin. You can monitor each key separately in your microcontroller code.
What supply voltage levels are supported?
The TTP226 module operates from 2.4 V to 5.5 V, making it compatible with both 3.3 V and 5 V logic systems. Ensure a stable DC supply within this range for reliable touch detection.
How do I switch between latch and momentary modes?
Use the onboard solder‐jumper sections labeled for output mode to select either momentary (touch‐to‐activate) or latch (toggle) behavior. After changing jumpers, power cycle the module to apply the new setting.
Technical Specifications
| Model | TTP226 |
|---|---|
| SKU | AI3102 |
| Weight | 0.0117 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TTP226 8-way Capacitive Touch Switch Module is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
