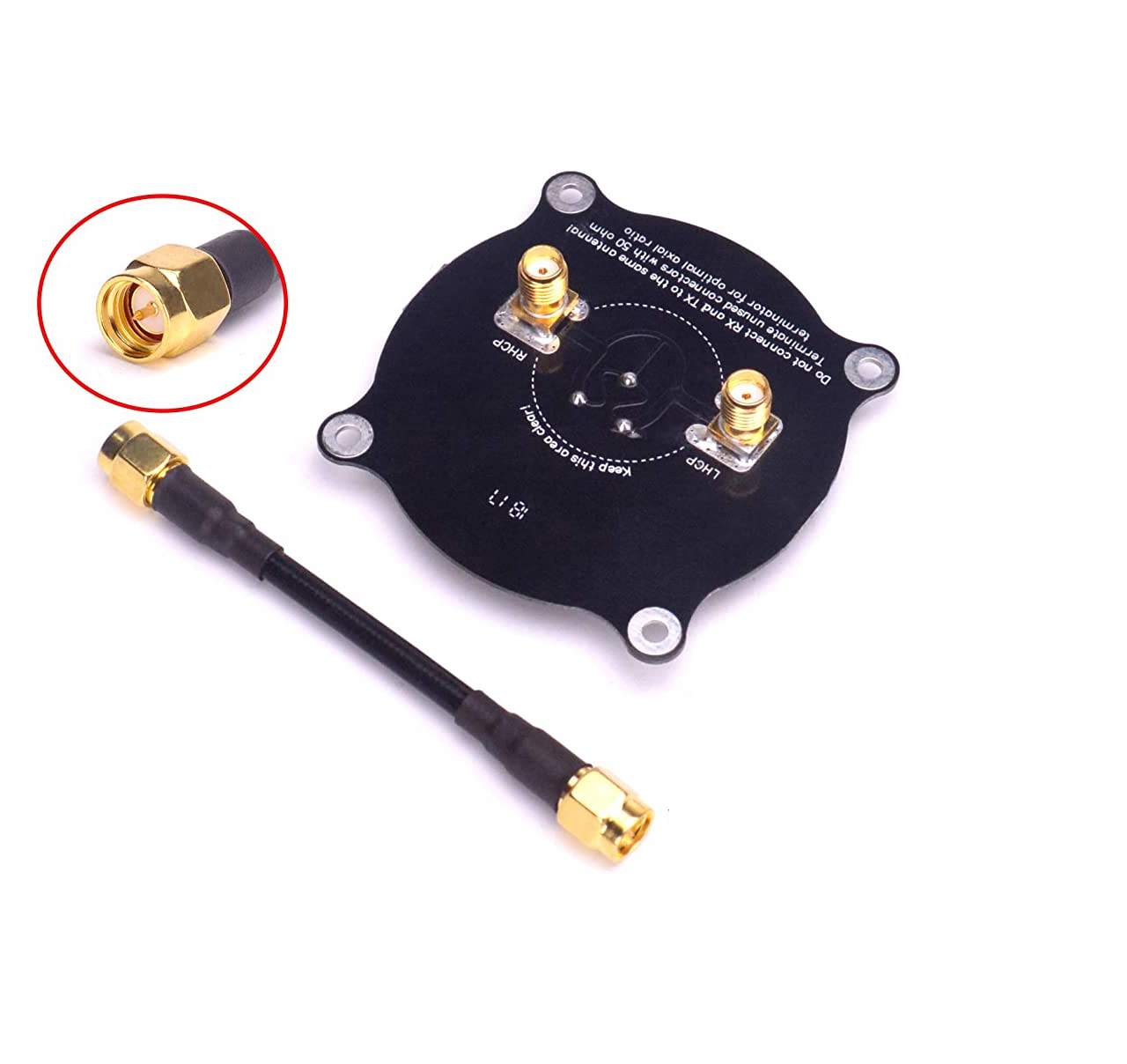

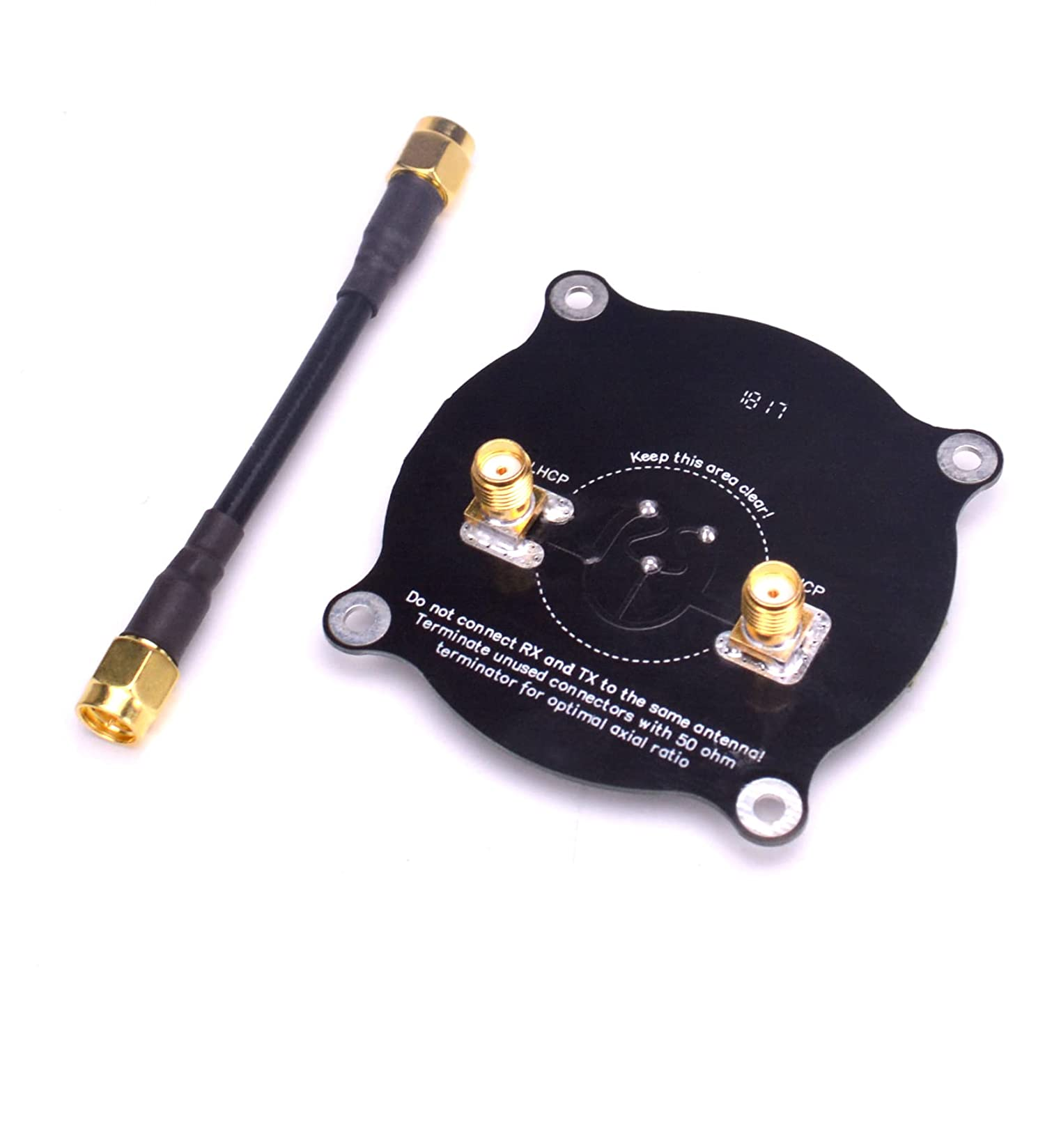

Triple Feed Patch 5.8GHz Antenna RP SMA

Triple Feed Patch 5.8GHz Antenna RP SMA

The Triple Feed Patch antenna is a directional circularly polarized antenna. Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz. Good axial ratio, not just directly perpendicular to the patch but also off-center. Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Features:

1. Good radiation efficiency.
2. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.
3. Good axial ratio, not just directly perpendicular to the patch but also off-center.
4. Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Specification:

Product:  Triple Feed Patch 5.8GHz Antenna RP SMA

Center frequency: 5.8 GHz

Antenna gain: 9.4 dBi

Bandwidth: 660 MHz (5.47 – 6.13 GHz)

Axial ratio: < 1.3

Package Includes:

1 x Triple Feed Patch 5.8GHz Antenna RP SMA
