PRODUCT DESCRIPTION:
TowerPro MG945 Digital High Speed Servo Motors are low-cost servos that deliver high quality. You can use them for various purposes, such as RC planes, cars, and robots, or for any creative project you have in mind.
However, most TowerPro motors sold in India are NOT ORIGINAL, and neither are these. These are NOT ORIGINAL Tower Pro Servos. But they are very cheap and serve the purpose well. We tested them and found them to be good quality for the price.
If you want high-quality servos, you can buy E Max Servos OR Orange servos instead.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
For your one-stop solution we have added a wide range of Servo Motor accessories, Check them now here. Servo Motors and Accessories
Features:
- Operating Voltage: 4.8 ~ 6.6v
- Stall Torque(Kg-Cm): 10kg/cm (4.8v); 12kg/cm (6v)
- Servo wire length: 32cm
- Power Supply: Through External Adapter
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Servo arms & screws included, and fit with Futaba servo arm
Specification:
| Temperature range | 0- 55 deg |
|---|---|
| Stall Torque(Kg-Cm) | 12 |
| Servo wire length | 32cm |
| Degree of rotation | 180° |
| Dead band width | 1 uS |
| Gear Type | Metal |
| Length (mm): | 40.70 |
| Width (mm) | 19.7 |
| Height (mm) | 42.9 |
| Weight (g): | 66 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 4.5 × 2.5 × 5 cm |
Package Includes:
1 x TowerPro MG945 Digital High-Speed Servo Motor

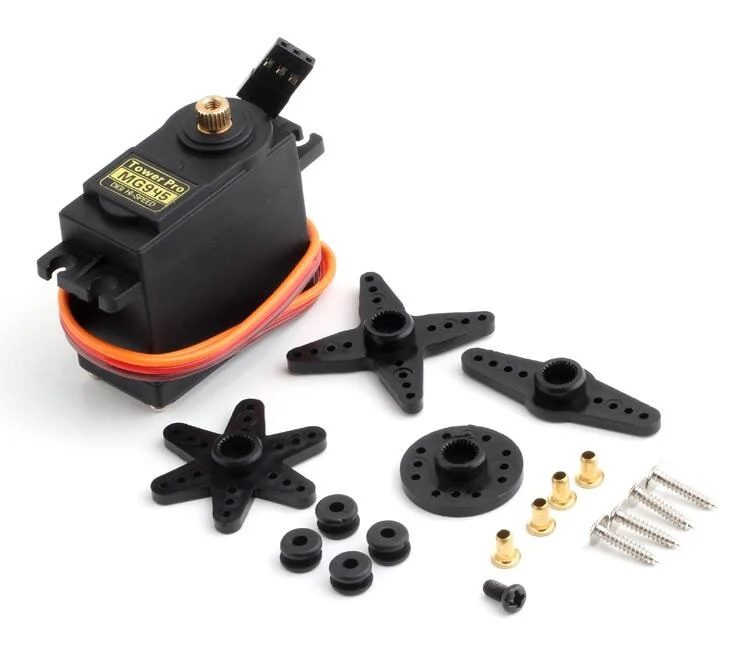

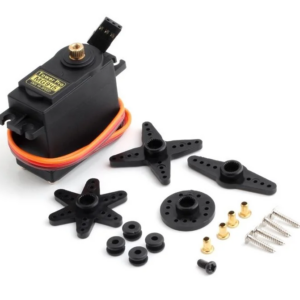

1 x Accessories Set (shown in the image)
