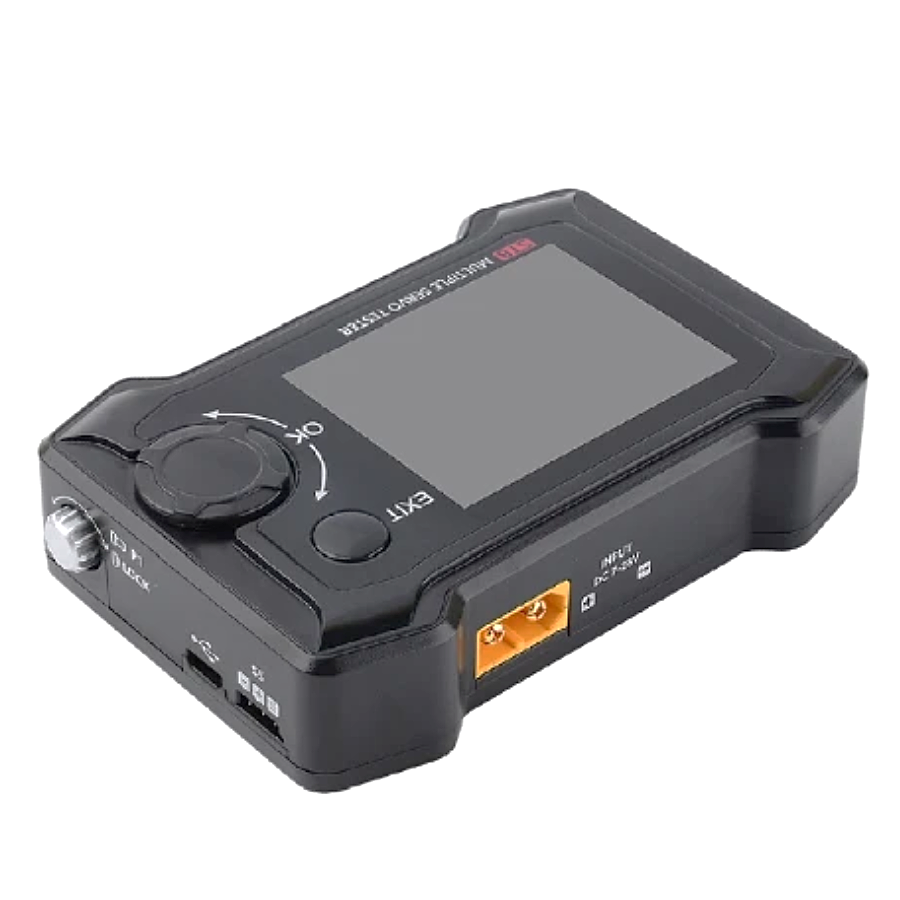

ToolkitRC ST8 Advanced Servo Tester
Description:
The ToolkitRC ST8 Advanced Servo Tester is a versatile and efficient tool designed to test and monitor servos with a wide input range of 7.0-28.0V and a maximum output of 10A. It features multiple output ports, including signal outputs for PWM, PPM, and SBUS protocols. The 2.4″ TFT RGB display provides clear and detailed readings with a 320×240 resolution. The tester supports various signal frequencies from 33Hz to 1000Hz and is ideal for a range of servo testing needs. The USB micro connection allows for easy firmware upgrades, and its compact design makes it portable and user-friendly
Features:
- Wide Input Voltage Range: Supports 7.0-28.0V, maximum 10A input for versatile usage.

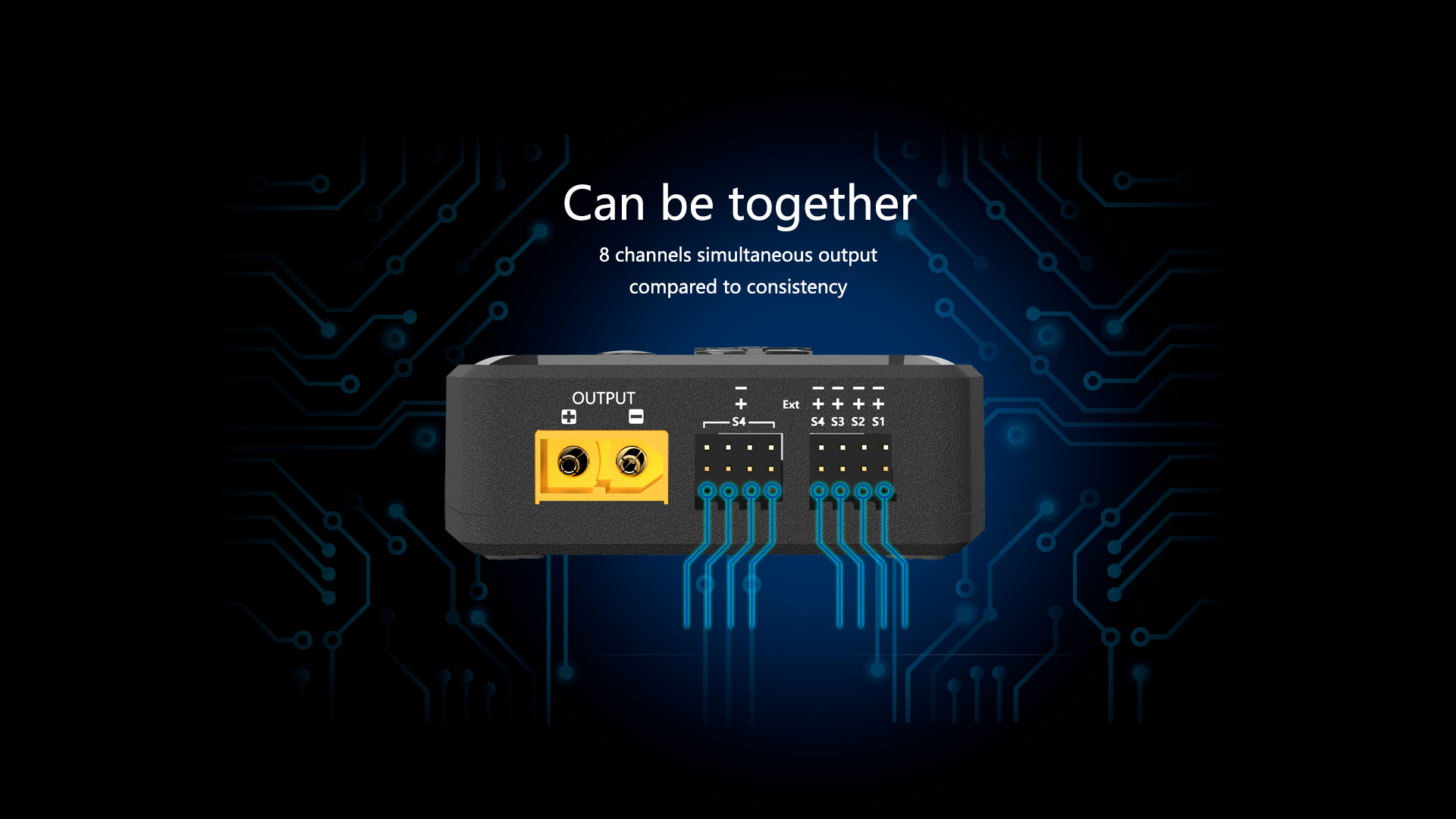

- Multiple Output Ports: Provides 5.0V-28.0V outputs at up to 10A with multiple signal ports for PWM, PPM, and SBUS.
- Signal Frequency Range: Capable of handling signal frequencies from 33Hz to 1000Hz.

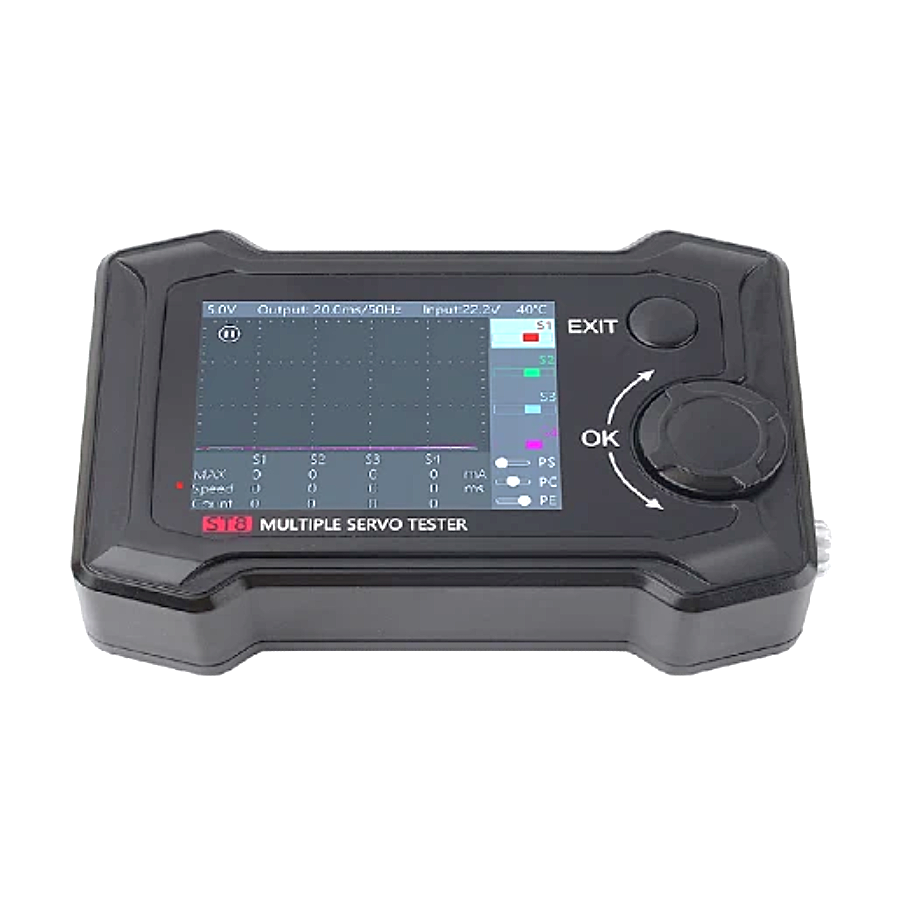

- LCD Display: Equipped with a 2.4″ TFT RGB display with a 320×240 resolution for clear monitoring.
- PWM and PPM Support: Includes options for 500us-2500us PWM, 8-channel PPM, and 16-channel SBUS signals.
- USB Upgrade: Allows easy firmware updates via USB 3.0 for enhanced functionality.
Specifications:
| Item Type: | Advanced Servo Tester |
|---|---|
| Input Voltage | 7.0-28.0V @MAX 10A |
| Signal port | 5.0V-8.4V@MAX 4A/S1-S4 |
| Output Voltage: | 5.0V-8.4V@MAX 4A/S4 Ext. |
| Output Signal | 100us-2900us@33-1000Hz @S1-S4 |
| LCD display | 2.4″ TFT RGB |
| MicroUSB | [email protected] |
Package Include:
1 x ToolkitRC ST8 Advanced Servo Tester
