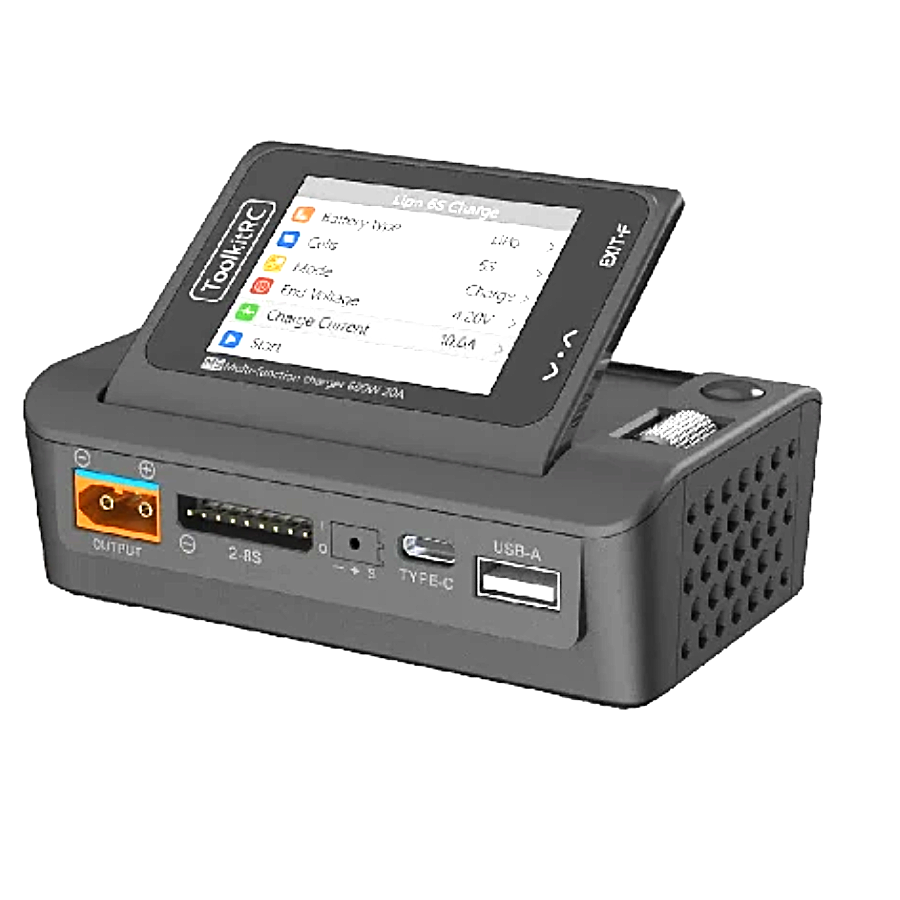

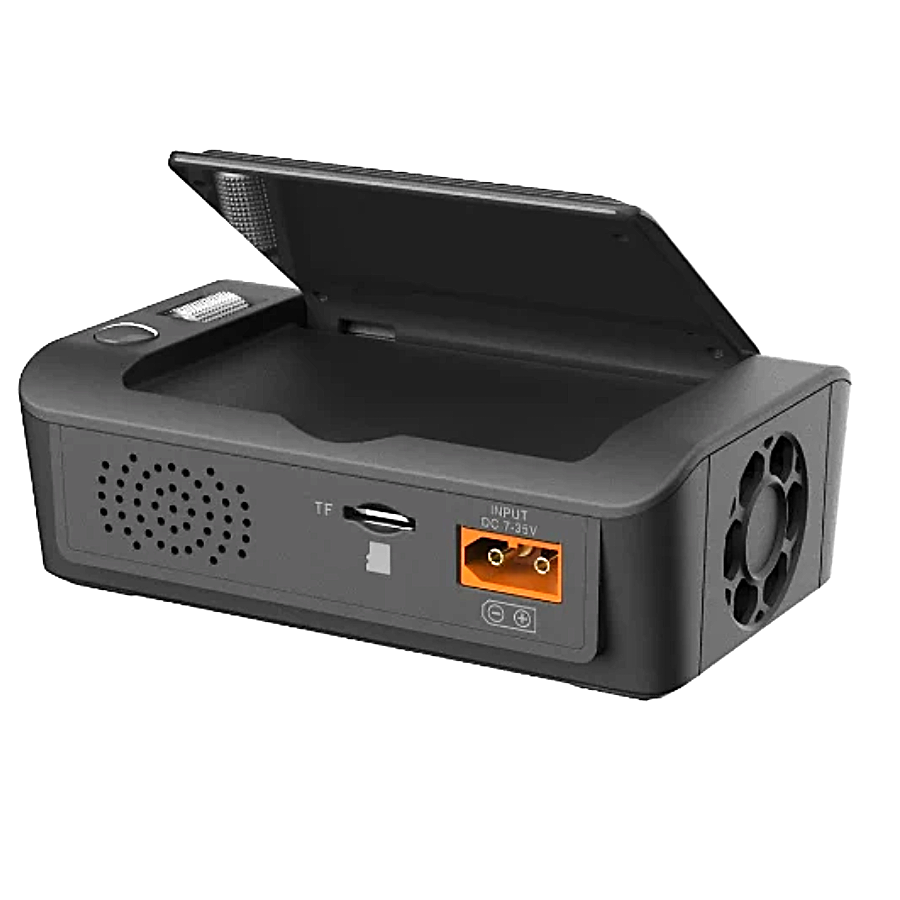

ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger
Description:
This is ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger. The acclaimed ToolkitRC M9 is a multi-function balance charger with all-in-one features.This device features 600 Watts of Power, Dual USB Fast Charging with maximum 65W USB-C/USB-A Output, an IPS Wide-Angle Color Display. This charger has a signal tester, battery meter, and wattage meter for all of your measuring needs! The integrated voice system grants an interactive experience.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Customizable Voice Alerts and Welcome Screen
- DC Output – 600W 2-8S Capable
- 2.4″ Multi-Angle Color Display
- Dual USB Fast Charging
- Balance Charger
- Signal Source
- Battery Meter
- Signal Tester
- Watt Meter
- Measurer:
SBUS: 880-2200us*16CH @20-100Hz - Output:
SBUS: 880-2200us*16CH @74Hz
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz - Discharging Power:
0.1-20A@600W Recycle External
0.1-3A@20W Normal Mode
ESC: 1-20A@1-35V MAX 600W
NiMh @1-20S Pb @1-10
Specifications:
| Model Series: | M9 |
|---|---|
| Charging Power (W) | 600 |
| Power Supply (V) | 01 to 35 |
| Frequency Tolerance (ppm): | 880-2200us * 8CH @ 20-50Hz |
| PWM | 880-2200us @20-400Hz |
| Battery Type | Lipo LiHV LiFe Lion LTO@1-8S |
| LCD | 2.4*IPS RGB 320*240 Pixel |
| Balance Current(mA) | 1000mA @ 4.2V |
| Input Voltage (V): | 1.0-5.0 |
| Input | 7-35V@MAX35A |

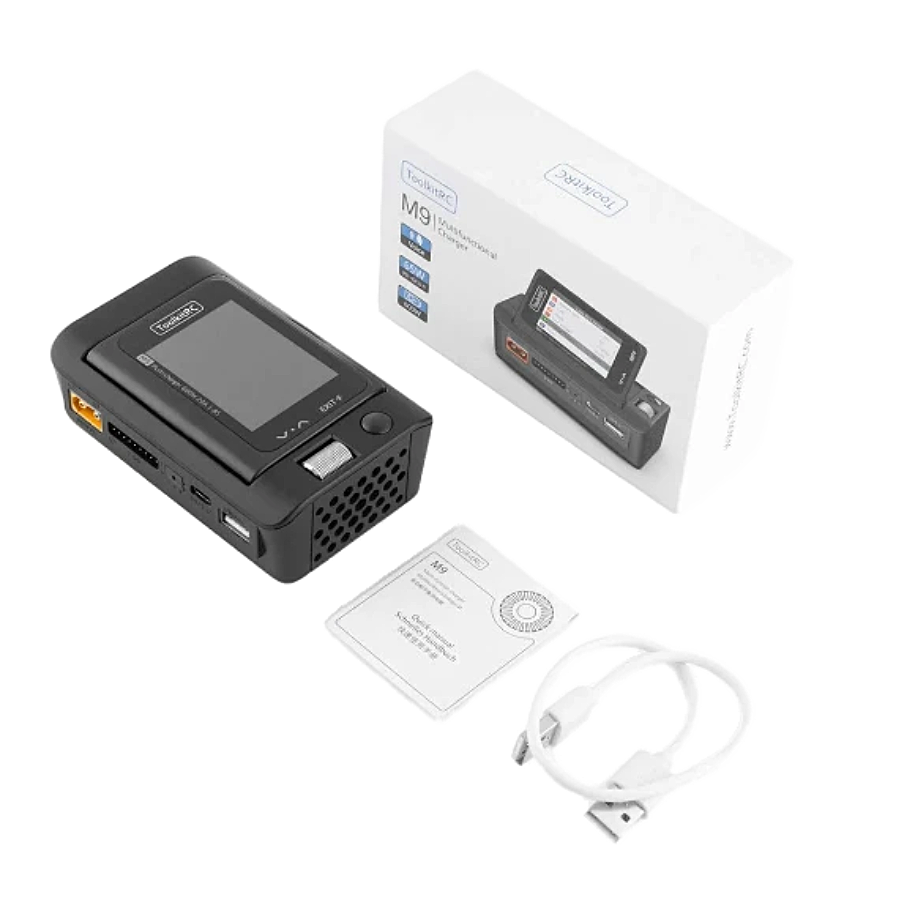

Package Includes:
1 x ToolkitRC M9 600W 20A 1-8S Multi-Function DC Smart Balance Charger
