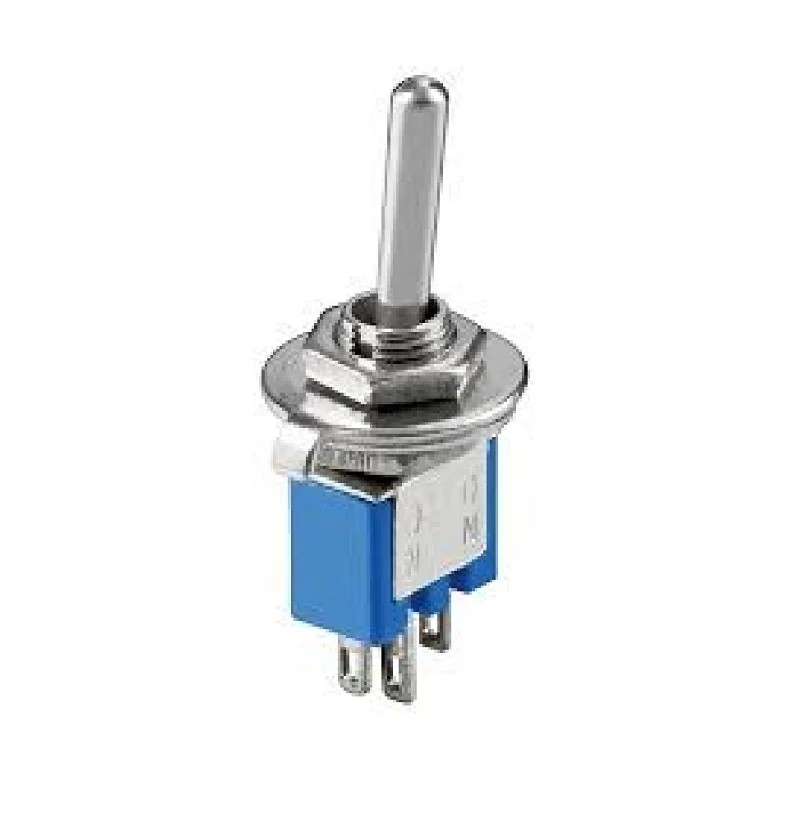

The Toggle Switch KNX-100 (MPN: KNX-100) provides dependable electrical control. With a low contact resistance of ≤0.052 and an impressive insulation resistance of 2100ΜΩ, it ensures reliable performance. It operates within a temperature range of -25 to 85℃ and can withstand voltages up to AC 1500V (50Hz)/min. The actuating force ranges from 2 to 8N. This switch is rated for various loads, including AC 120V 5A, AC 125V 6A, and AC 250V 2A, offering versatile application possibilities.
Features:
- Toggle Switch: KNX-100(MPN: KNX-100)
- Contact Resistance: ≤0.052
- Insulation Resistance: 100ΜΩ
- Operating Temperature: -25 to 85℃
- Actuating Force: 2-8N
- Withstand Voltage: AC 1500V(50HZ)/min
- Rated Load: AC 120V 5A, AC 125V 6A, AC 250V 2A
Specification
| Model | Toggle Switch-KNX-100 |
|---|---|
| Max Temperature(°C) | -25-85 |
| Rated input voltage | AC 120V 5A, AC 125V 6A, AC 250V 2A |
| Contact Resistance | ≤0.05 |
| Insulation Resistance (MOhm) | ≥100 |
| Withstand Voltage (V): | AC 1500V(50HZ)/min |
Package Includes:
1 x Toggle Switch-KNX-100
Technical Specifications
| Model | KNX-100 |
|---|---|
| SKU | AI6327 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Toggle Switch-KNX-100 is a versatile electronic switches used across a wide range of applications including control panels, DIY electronics, industrial equipment, automotive dashboards, and arcade machines.
Common use cases:
- Adding a power switch to a project enclosure
- Building a custom control panel
- Replacing a worn-out switch in equipment
This product is ideal for electronics builders, panel designers, and DIY enthusiasts.
Technical Tip: Momentary switches return to OFF when released; latching switches stay in position. Check voltage and current ratings for your load.
